Configuration#

  • FQDN and Ingress Setup: Properly configure the Fully Qualified Domain Name (FQDN) and ingress. If the FQDN points to the head node and Slurm cluster, dashboards will be accessible via this FQDN.

  • Certificates: Ensure proper certificates are set up for the ingress, or use a certificate manager.

    • Shoreline break & fix integration: As part of the BCM wizard installation of ARE, there is an optional step where Shoreline break and fix can be configured.

      • Obtain the API token from Shoreline UI (as shown below):

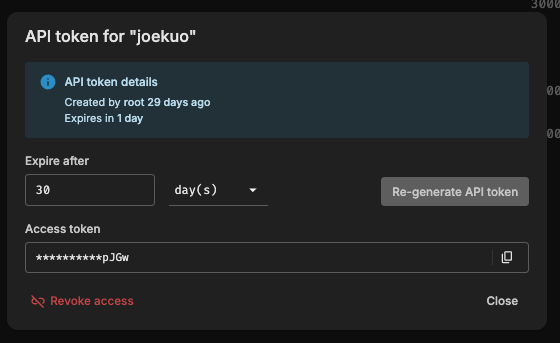

        Grab API token from Shoreline UI

      • In the BCM installation wizard, there are 3 required fields: API endpoint, API token, and runbook name. The API endpoint and runbook name will be pre-populated with default values. The API token is the one fetched in the previous step:

        • API endpoint: <Insert URL here> (filled by default)

        • API token: <Insert API Token from Shoreline UI here>

        • Runbook name: DRAIN_AND_DIAG_RECOVERY_ENGINE (filled by default)

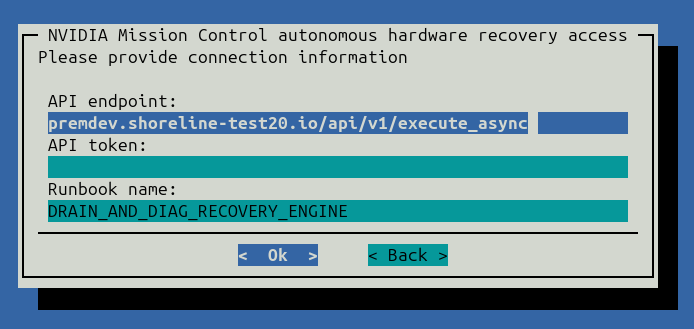

        Configuration Step in BCM Wizard
