Leak Detection

The GB200 system uses liquid cooling to achieve its scale-out density and efficiency. With a liquid, there is the chance for leaks and the GB200 system implements several fail-safes to avoid the worst effects of these. From an administrative point of view, these events will be collated within BCM.

9.1.1 Leak Example in cmsh

In this example, two nodes that are in a leak detection status.

[a03-p1-head-01]% events off broadcast
Broadcast events: off
[a03-p1-head-01]% device
[a03-p1-head-01->device]% list -r a06 -t physicalnode --status DOWN -v
Type             Hostname (key)     MAC               Category        IP              Network         Status
---------------- ------------------ ------------------ ---------------- ---------------- ---------------- --------------------------------
PhysicalNode     a06-p1-dgx-02-c05  72:14:AF:B4:FC:7E  hwqa-gb200      7.241.18.33     dgxnet1         [  DOWN  ], leak:large (going
                                                                                                          down timeout reached: 10m),
                                                                                                          health check failed, health
                                                                                                          check unknown, restart
                                                                                                          required (interface:enP22p3s0f0np0)
PhysicalNode     a06-p1-dgx-02-c15  1A:A7:F7:32:98:AD  hwqa-gb200      7.241.18.43     dgxnet1         [  DOWN  ], leak:large (going
                                                                                                          down timeout reached: 10m),
                                                                                                          health check failed, health check unknown

BCM also shows this within the UI in several locations.

9.1.2 Leak Example in BCM UI

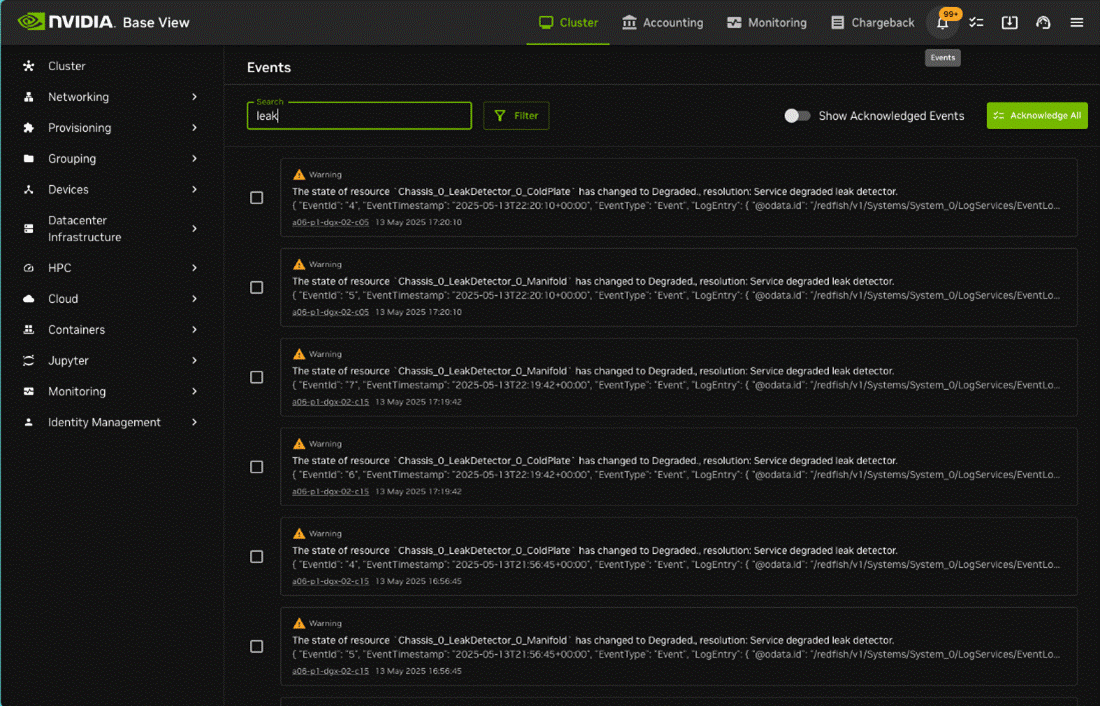

Events

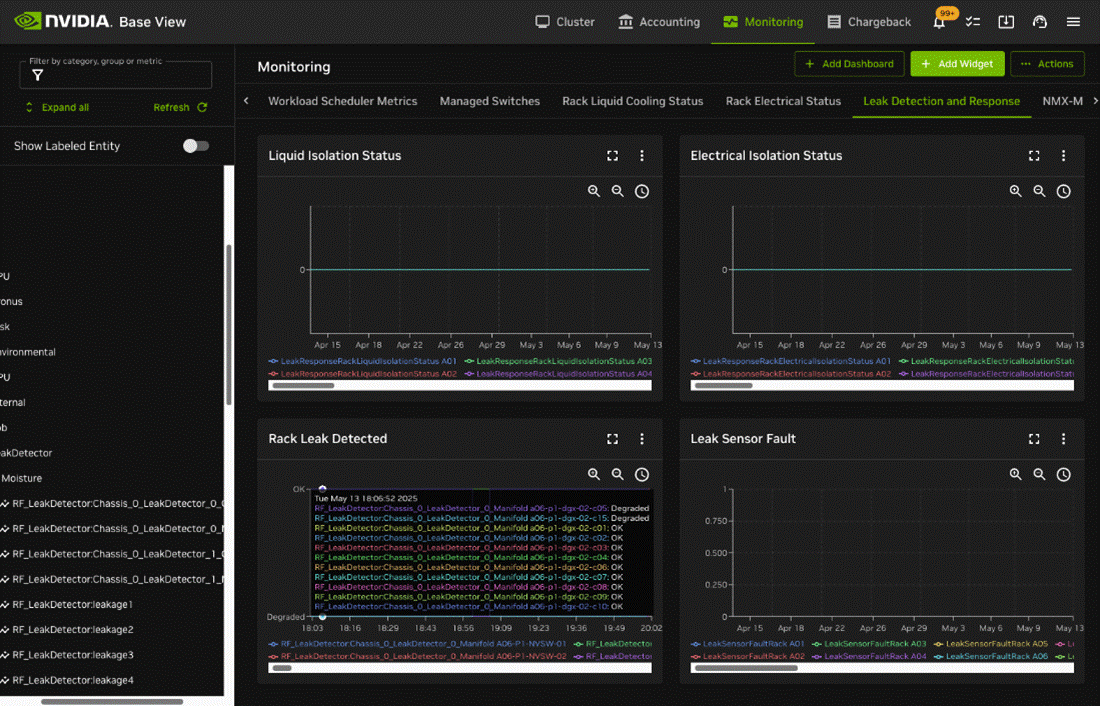

Monitoring -> Leak Detection and Response

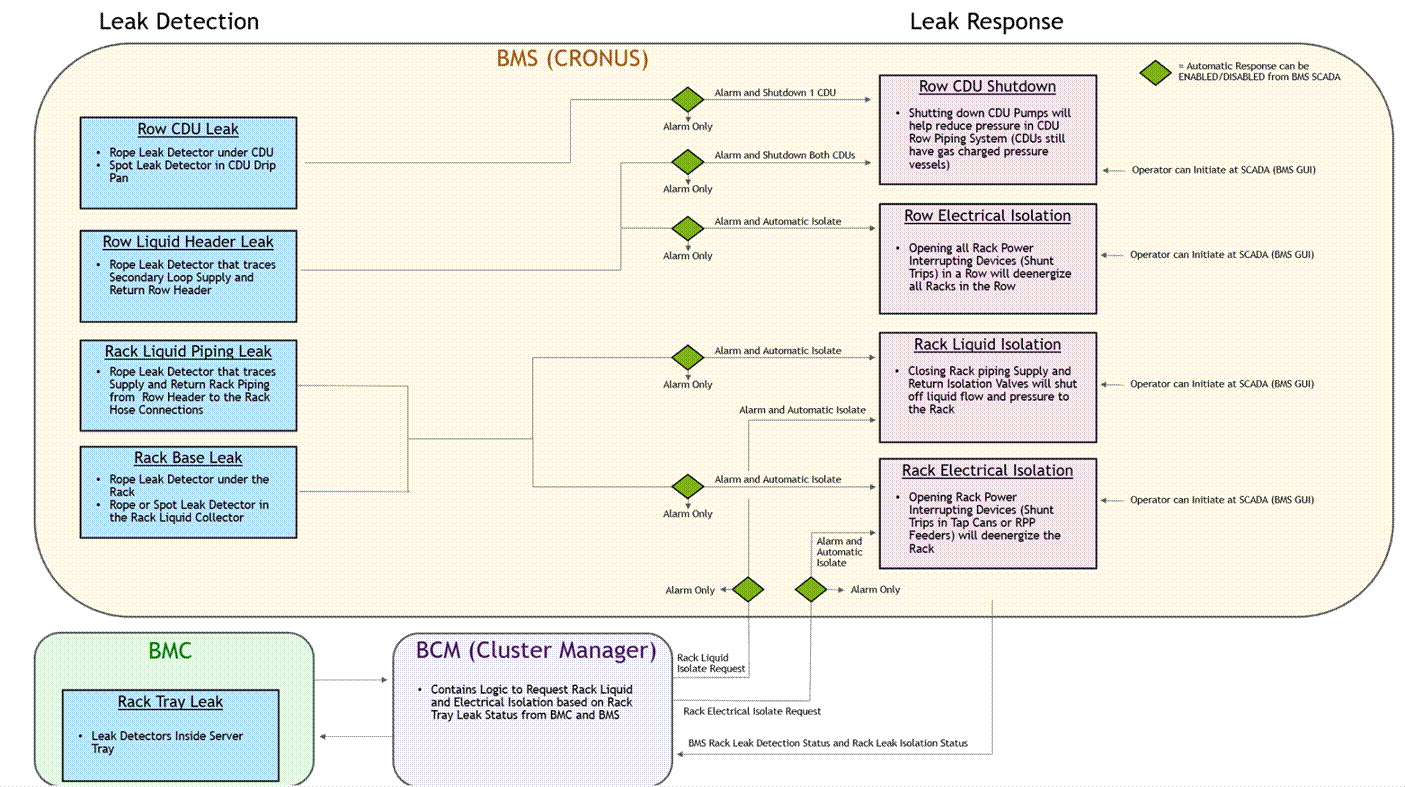

BCM integrates with several data sources for leak detection:

• Redfish API at the device level via BMC.

• Building management System (BMS) at the rack and data center level.

These metrics are available through the UI, using the in-built reporting or as metrics via the Prometheus endpoint.

Examples of these metrics through the exporter endpoint:

for i in $(curl -sk https://localhost:8081/exporter | grep -i 'leak' | grep -Ev '# HELP|# TYPE' | cut -d '{' -f1 | sort -u); do echo Example metric $i; curl -sk https://localhost:8081/exporter | grep $i | head -n 3; done

Example metric deviceswithleaks

# HELP deviceswithleaks Number of devices that have detected a leak
# TYPE deviceswithleaks gauge
deviceswithleaks{base_type="Rack",name="B04"} 0

Example metric leakdetectrack

# HELP leakdetectrack undefined
# TYPE leakdetectrack gauge
leakdetectrack{base_type="Rack",name="A05"} 0

Example metric leakdetectracktray

# HELP leakdetectracktray undefined
# TYPE leakdetectracktray gauge
leakdetectracktray{base_type="Rack",name="A06"} 0

Example metric leakresponserackelectricalisolationstatus

# HELP leakresponserackelectricalisolationstatus undefined
# TYPE leakresponserackelectricalisolationstatus gauge
leakresponserackelectricalisolationstatus{base_type="Rack",name="A06"} 0

Example metric leakresponserackliquidisolationstatus

# HELP leakresponserackliquidisolationstatus undefined
# TYPE leakresponserackliquidisolationstatus gauge
leakresponserackliquidisolationstatus{base_type="Rack",name="A06"} 0

Example metric rf_chassis_0_leakdetector_0_coldplate

# HELP rf_chassis_0_leakdetector_0_coldplate Chassis 0 LeakDetector 0 ColdPlate
# TYPE rf_chassis_0_leakdetector_0_coldplate gauge
rf_chassis_0_leakdetector_0_coldplate{base_type="Device",category="perf-team",hostname="b05-p1-dgx-05-c12",type="PhysicalNode"} 1.7047

Example metric rf_chassis_0_leakdetector_0_manifold

# HELP rf_chassis_0_leakdetector_0_manifold Chassis 0 LeakDetector 0 Manifold
# TYPE rf_chassis_0_leakdetector_0_manifold gauge
rf_chassis_0_leakdetector_0_manifold{base_type="Device",category="perf-team",hostname="b05-p1-dgx-05-c12",type="PhysicalNode"} 1.7055

Example metric rf_chassis_0_leakdetector_1_coldplate

# HELP rf_chassis_0_leakdetector_1_coldplate Chassis 0 LeakDetector 1 ColdPlate
# TYPE rf_chassis_0_leakdetector_1_coldplate gauge
rf_chassis_0_leakdetector_1_coldplate{base_type="Device",category="perf-team",hostname="b05-p1-dgx-05-c12",type="PhysicalNode",parameter="state"} 0

Example metric rf_chassis_0_leakdetector_1_manifold

# HELP rf_chassis_0_leakdetector_1_manifold Chassis 0 LeakDetector 1 Manifold
# TYPE rf_chassis_0_leakdetector_1_manifold gauge
rf_chassis_0_leakdetector_1_manifold{base_type="Device",category="perf-team",hostname="b05-p1-dgx-05-c12",type="PhysicalNode",parameter="state"} 0

Example metric rf_ld_leakdetection

# HELP rf_ld_leakdetection Leak Detection Systems
# TYPE rf_ld_leakdetection gauge
rf_ld_leakdetection{base_type="Device",category="perf-team",hostname="b05-p1-dgx-05-c12",type="PhysicalNode"} 0

Example metric rf_leakdetector

# HELP rf_leakdetector Chassis 0 LeakDetector 1 ColdPlate
# TYPE rf_leakdetector gauge
rf_leakdetector{base_type="Device",category="perf-team",hostname="b05-p1-dgx-05-c12",type="PhysicalNode",parameter="Chassis_0_LeakDetector_1_ColdPlate"} 0
