Out-of-Band Management

Using cmsh to get BMC events

BMC integrates with BMC interfaces via the Redfish API. You can use cmsh to get events.

1. Get a list of physical nodes for a specific rack, filtering for a status of DOWN.

   root@a03-p1-head-01:~# cmsh

   [a03-p1-head-01]% device list -t physicalnode -r a06 | grep DOWN


2. Show events from the BMC interface.

   [a03-p1-head-01]% device use a06-p1-dgx-02-c18
   [a03-p1-head-01->device[a06-p1-dgx-02-c18]]% bmceventlog

   Device            id              message                                                          severity        timestamp                   type            Result  Error
   ------------------ ----------------  ----------------------------------------------------------------  ----------------  --------------------------  ----------------  --------  --------------------------------
   a06-p1-dgx-02-c18  5424             The state of resource `Chassis_0_LeakDetector_0_Manifold` has    Warning          2025-05-12T10:28:41+00:00                       good
                                       changed to Degraded.


Using cmsh to access BMC SoL

The BMC on DGX nodes allows for two types of remote access during POST and BOOT via Serial over LAN and a graphical console, KVM. To access SoL, you can start this via cmsh.

This is covered in Section 14.7 in the BMC 11 administration manual.

root@a03-p1-head-01:~# cmsh

[a03-p1-head-01]% device
[a03-p1-head-01->device]% use a07-p1-dgx-03-c08
[a03-p1-head-01->device[a07-p1-dgx-03-c08]]% rconsole

===============================================================================
ipmiconsole
To exit IPMI SOL, type <ENTER> "&" "."
===============================================================================

Using cmsh to get BMC IPs

You can get the IP for a given device’s out-of-band management interface using cmsh. In this example, we’ll investigate why a node is in a down status using the node’s BMC web interface.

1. Get a list of physical nodes for a specific rack, filtering for a status of DOWN.

   root@a03-p1-head-01:~# cmsh

   [a03-p1-head-01]% device list -t physicalnode -r a06 | grep DOWN
   PhysicalNode     a06-p1-dgx-02-c18  0E:63:D1:83:48:82  dgx-gb200        7.241.18.46      dgxnet1          [  DOWN  ], health check failed


2. List the BMC interface.

   [a03-p1-head-01]% device use a06-p1-dgx-02-c18
   [a03-p1-head-01->device[a06-p1-dgx-02-c18]]% interfaces
   [a03-p1-head-01->device[a06-p1-dgx-02-c18]->interfaces]% list bmc

   Type         Network device name  IP              Network          Start if
   ------------ -------------------- ----------------  ----------------  --------
   bmc          rf0                  7.241.2.118      ipminet2         always

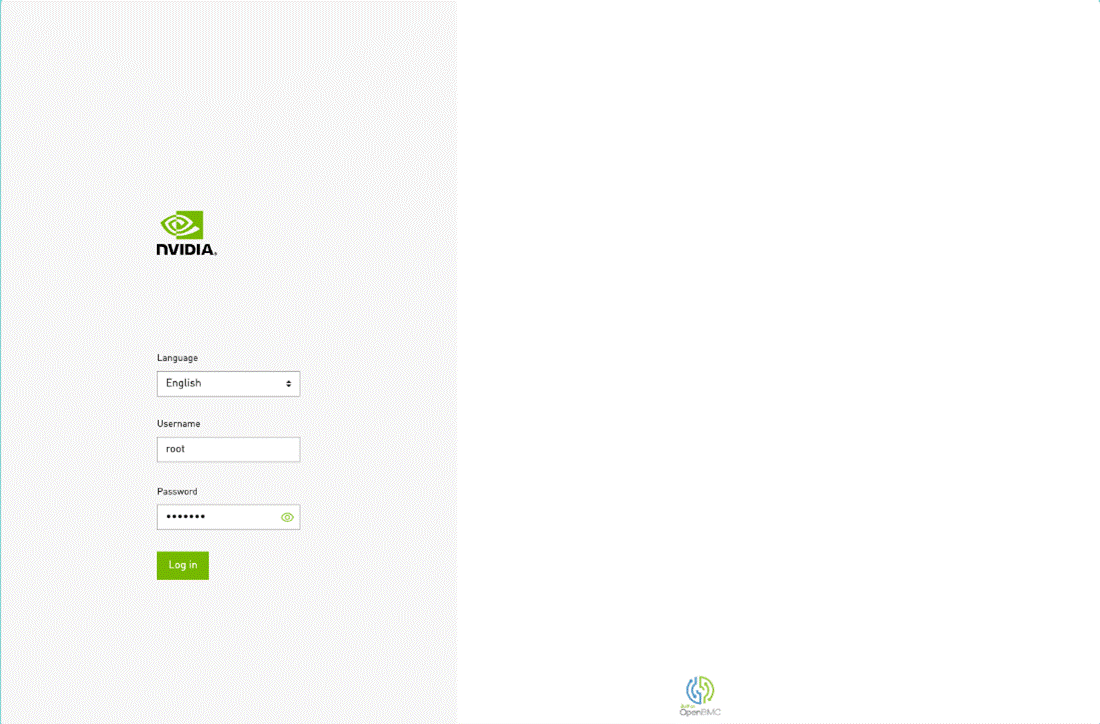

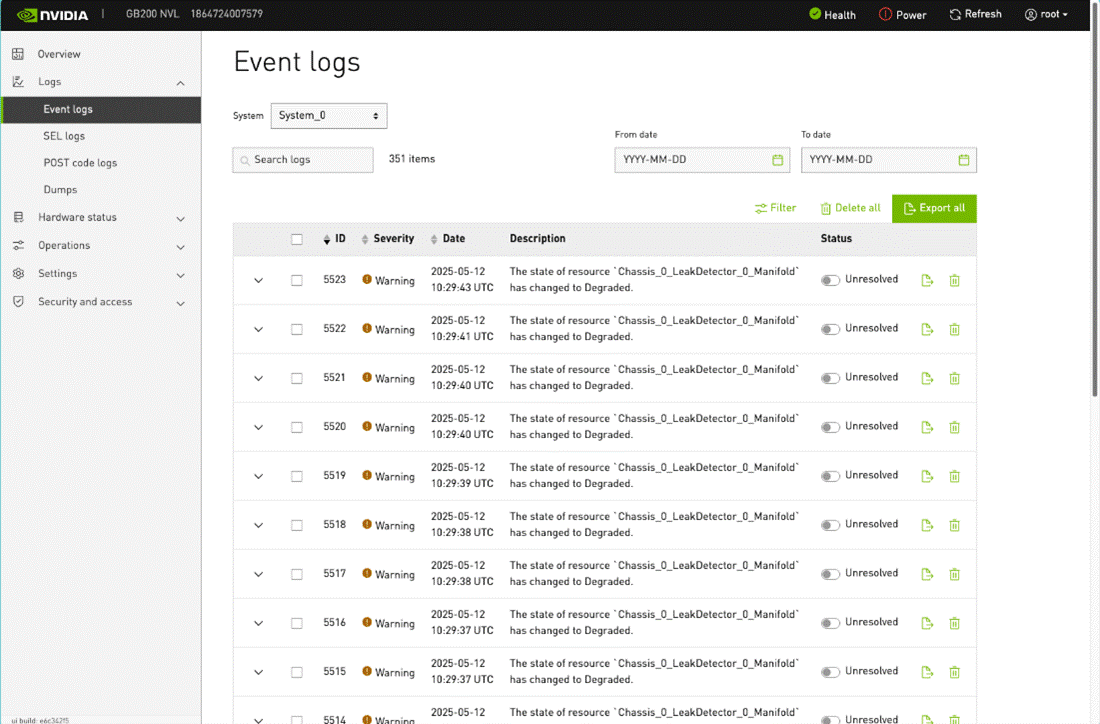

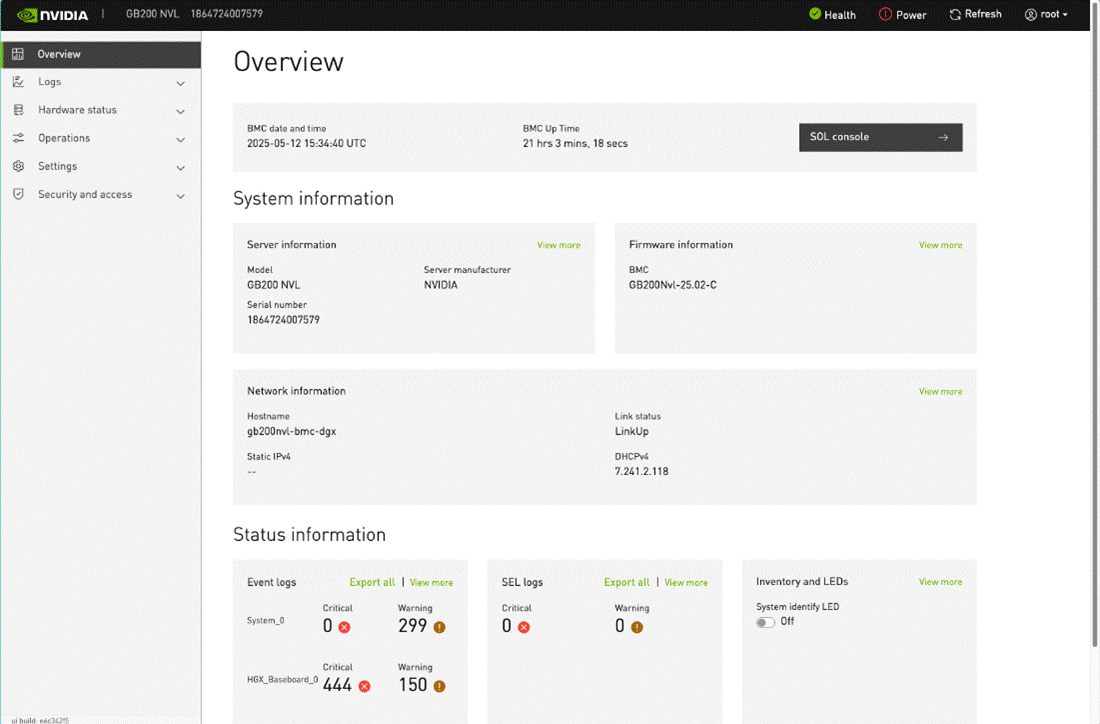

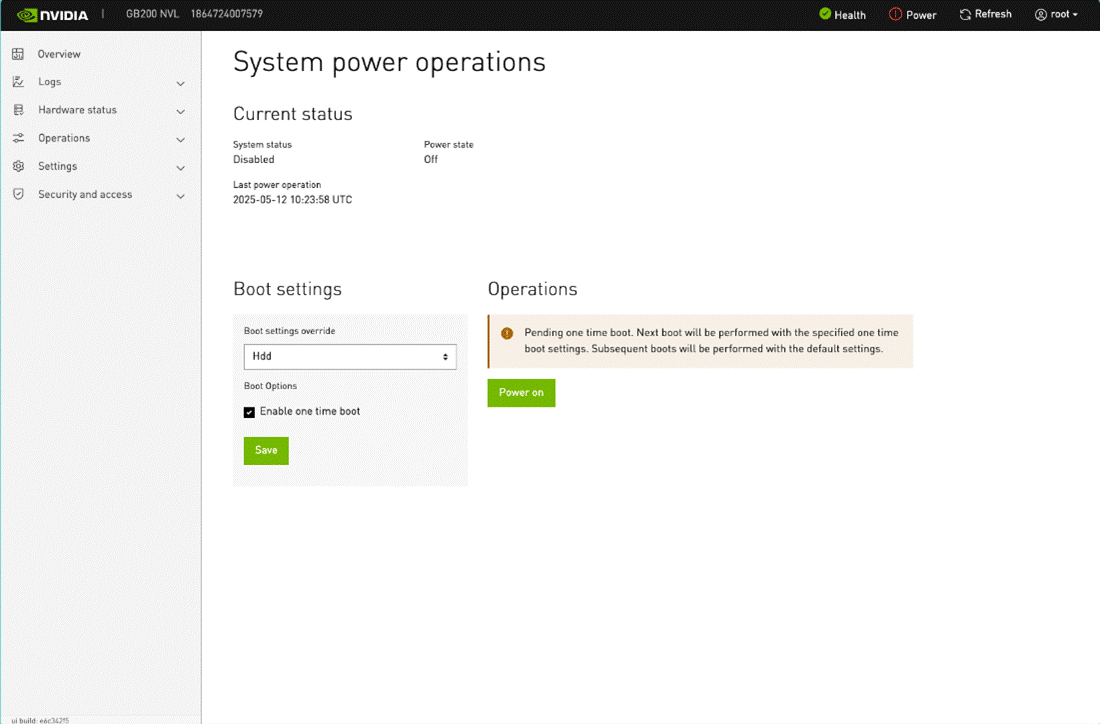

3. With the IP, we can now use a browser to access the BMC interface.
