Physics-Informed Neural Networks (PINNs)#

PhysicsNeMo supports physics-informed training as a first-class workflow through the upstreamed physicsnemo.sym namespace. PINN training is expressed as a plain PyTorch training loop that uses physicsnemo.sym.eq.phy_informer.PhysicsInformer to evaluate PDE residuals on the model outputs and add them to the loss.

Building blocks#

A PhysicsNeMo PINN training script is composed of a small number of explicit pieces, all of which the user assembles directly:

  • Network — any torch.nn.Module (typically a physicsnemo.models.mlp.fully_connected.FullyConnected) that maps coordinates to the field variables of interest.

  • PDE definition — a physicsnemo.sym.eq.pde.PDE subclass that declares the governing equations symbolically with SymPy. Equations are written once and reused across forward and inverse problems.

  • PhysicsInformer — a physicsnemo.sym.eq.phy_informer.PhysicsInformer instance that, given a PDE and a chosen grad_method ("autodiff", "finite_difference", "meshless_finite_difference", "spectral", or "least_squares"), computes the spatial derivatives and evaluates the equation residuals on the network’s outputs.

  • Loss and optimizer — a standard PyTorch loss that sums the data fitting terms (where applicable) and the physics residual terms, optimized with any torch.optim optimizer.

  • Configuration — Hydra (@hydra.main) for a small config.yaml, with no PhysicsNeMo-specific configuration wrappers.

This mirrors the rest of the PhysicsNeMo training workflows: the same physicsnemo.distributed for multi-GPU initialization, physicsnemo.utils.logging for logs and checkpoints, and standard torch.optim optimizers and schedulers. Physics-informing is just an additional residual term in the loss.

Worked examples#

The two canonical PINN examples in the PhysicsNeMo repository are the recommended starting points and serve as the reference templates for new projects:

  • Lid-Driven Cavity (LDC) PINN — a forward, purely physics-driven PINN that solves 2D incompressible Navier–Stokes on the LDC geometry. Demonstrates the minimal end-to-end training script: network, PDE, PhysicsInformer, training loop.

  • Inverse PINN (heat-sink coefficient recovery) — an inverse PINN that recovers unknown PDE coefficients (kinematic viscosity and thermal diffusivity) from observed OpenFOAM data, using PhysicsInformer.

Both examples are self-contained, runnable as python scripts, and are intended to be copied and adapted to new problems rather than extended through framework hooks.

Migrating from PhysicsNeMo-Sym#

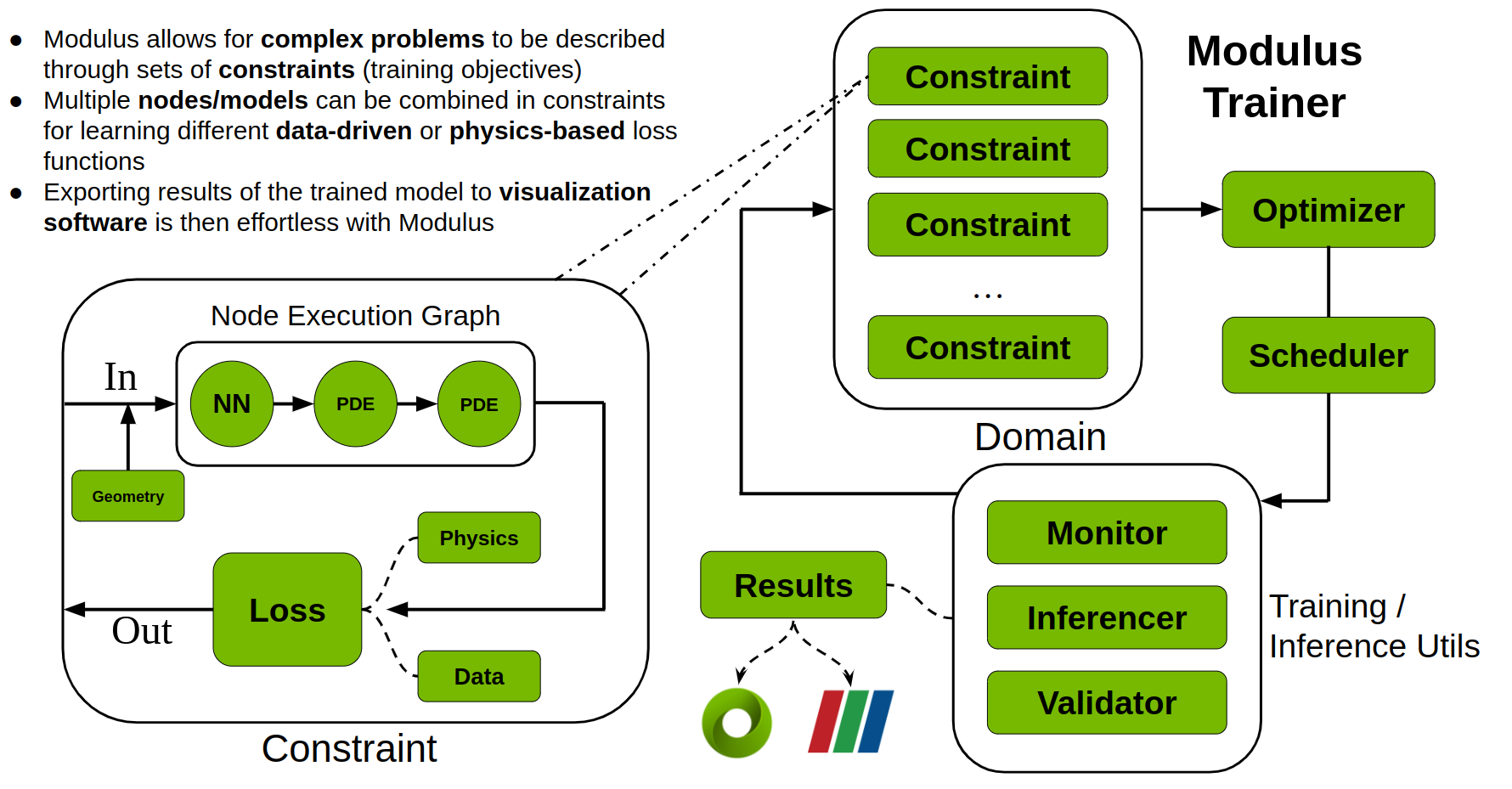

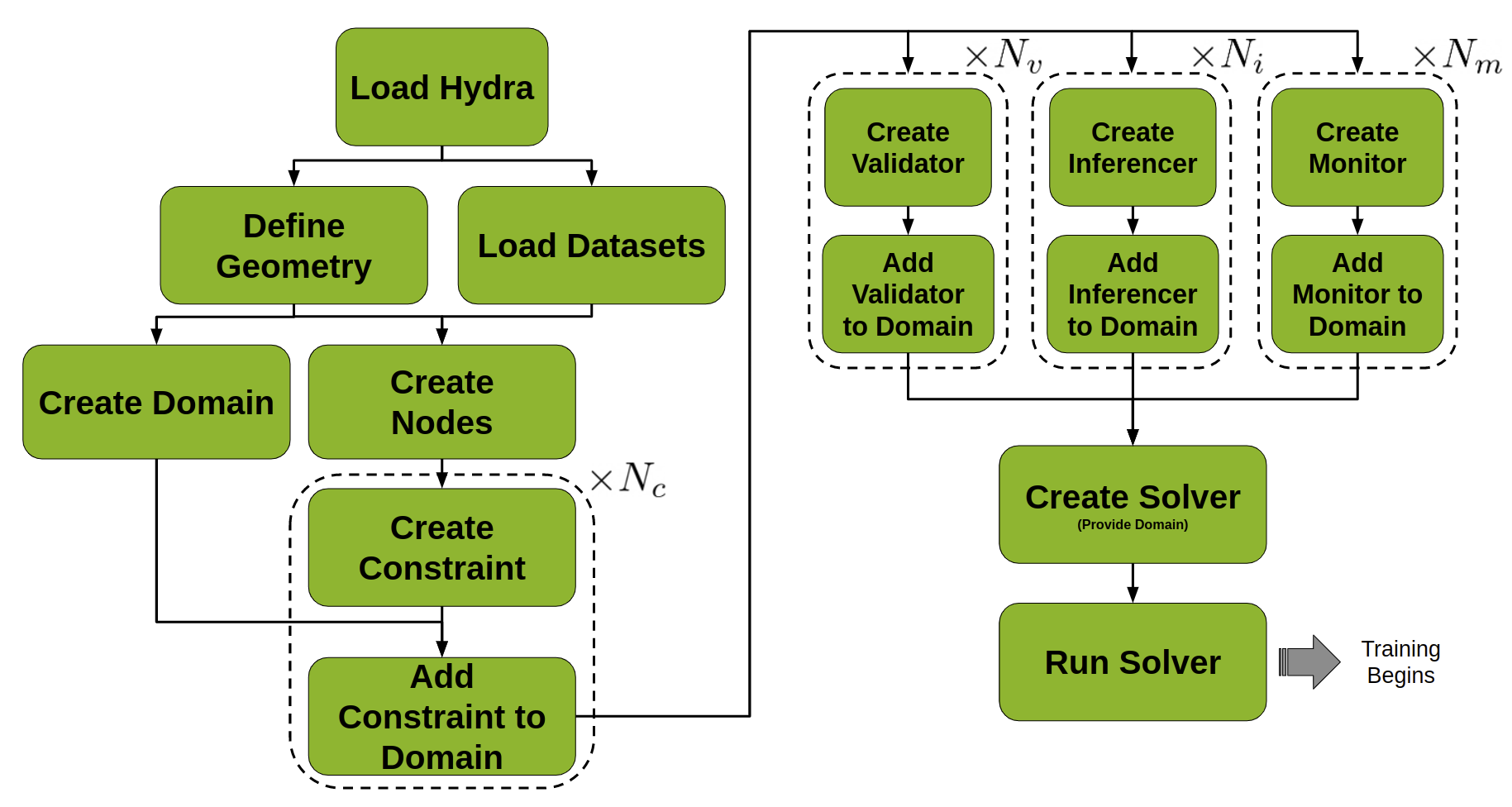

If you previously used the standalone physicsnemo-sym repository with the Solver / Domain / Constraint / Geometry abstractions, the PhysicsNeMo v2.0 Migration Guide (PhysicsNeMo Sym → physicsnemo.sym section) describes the mapping between the old abstractions and the explicit PyTorch loop expressed above. The two examples linked in this section also include side-by-side migration notes from their physicsnemo-sym predecessors.
