DeepStream Configurator#

Overview#

The DeepStream Configurator (ds-configurator) is a lightweight Flask-based init-style service that runs before the DeepStream perception pipeline starts. It starts, waits for a configuration event (e.g. from SDR), updates the necessary DeepStream configuration files, then shuts down so that DeepStream can start with the updated settings.

Key Features:

  • Receives configuration events via HTTP POST

  • Extracts region, group, and topic-prefix metadata

  • Updates DeepStream configuration files with calibration and BEV group settings

  • Writes configuration data for downstream consumption by DeepStream pipelines

Architecture#

The DeepStream Configurator operates as an init-style service that:

  1. Starts and listens for a configuration event

  2. Processes the event and updates configuration files

  3. Gracefully shuts down after completing the configuration

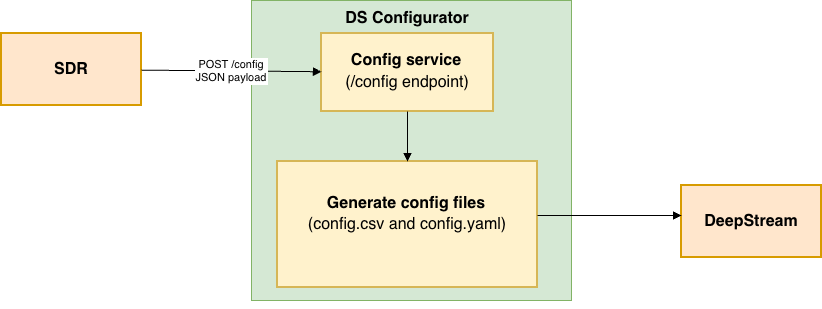

DS Configurator Architecture

DS Configurator Architecture#

Configuration#

Environment Variables#

The following environment variables control the DS Configurator’s behavior:

Environment Variables#

Variable

Default

Description

PORT

9002

HTTP port the service listens on

DS_CONFIG_PATH

/tmp/data/ds-configurator/config.csv

Path where the CSV configuration file is written (contains region, group, topic-prefix)

DS_CONFIG_YAML_SOURCE_PATH

/ds-config/config.yaml

Source YAML configuration file to read and update

DS_CONFIG_YAML_TARGET_PATH

/tmp/data/ds-configurator/config.yaml

Target path where the updated YAML configuration is written

CALIB_FILE_PATH

/tmp/data/ds-configurator/calibration_grouped.json

Path to the calibration file (set in the output config.yaml)

EVENT_OBJECT_FIELD

event

JSON field name containing the event data in the incoming payload

METADATA_OBJECT_FIELD

metadata

JSON field name containing metadata within the event object

API Reference#

POST /config#

Receives a configuration event and updates DeepStream configuration files.

Request:

  • Content-Type: application/json

  • Method: POST

Request Body Schema:

{
  "event": {
    "metadata": {
      "region": "string",
      "group": "string",
      "topic-prefix": "string"
    }
  }
}

Example Request:

curl -X POST http://localhost:9002/config \
  -H "Content-Type: application/json" \
  -d '{
    "event": {
      "metadata": {
        "region": "warehouse-zone-1",
        "group": "bev-sensor-group-1",
        "topic-prefix": "mdx"
      }
    }
  }'

Response:

Returns the original JSON payload on success.

Behavior:

  1. Extracts region, group, and topic-prefix from the event metadata

  2. Writes a CSV file with format: region,group,topic-prefix

  3. Updates the target YAML config with: - calib_file_path: Set to the configured calibration file path - bev_group_name: Set to the group from the event metadata

  4. Gracefully shuts down after sending the response

Output Files#

config.csv#

A comma-separated file containing the sensor assignment information:

warehouse-zone-1,bev-sensor-group-1,mdx

This file can be consumed by DeepStream pipelines or other services that need to know the current sensor group assignment.

config.yaml#

The updated YAML configuration file includes calibration and BEV settings. Key fields updated:

# Calibration file path (set by DS Configurator)
calib_file_path: /tmp/data/ds-configurator/calibration_grouped.json

# BEV group name (set from event metadata)
bev_group_name: bev-sensor-group-1

# Other DeepStream pipeline settings (preserved from source)
onnx_model_path: /root/sparse4d/sparse4d_model.onnx
batch_size: 1
# ... additional settings
