Video-Analytics-MCP Server#

Overview#

The Video Analytics MCP Server exposes video analytics capabilities through the Model Context Protocol (MCP). It enables AI agents to query and analyze video analytics data stored in Elasticsearch, including incident records, object detection metrics, and sensor metadata.

Key features include:

Semantic place search using sentence-transformer embeddings
VLM (Vision Language Model) verification for incidents
Optional: Active sensor filtering using VST sensor list tool

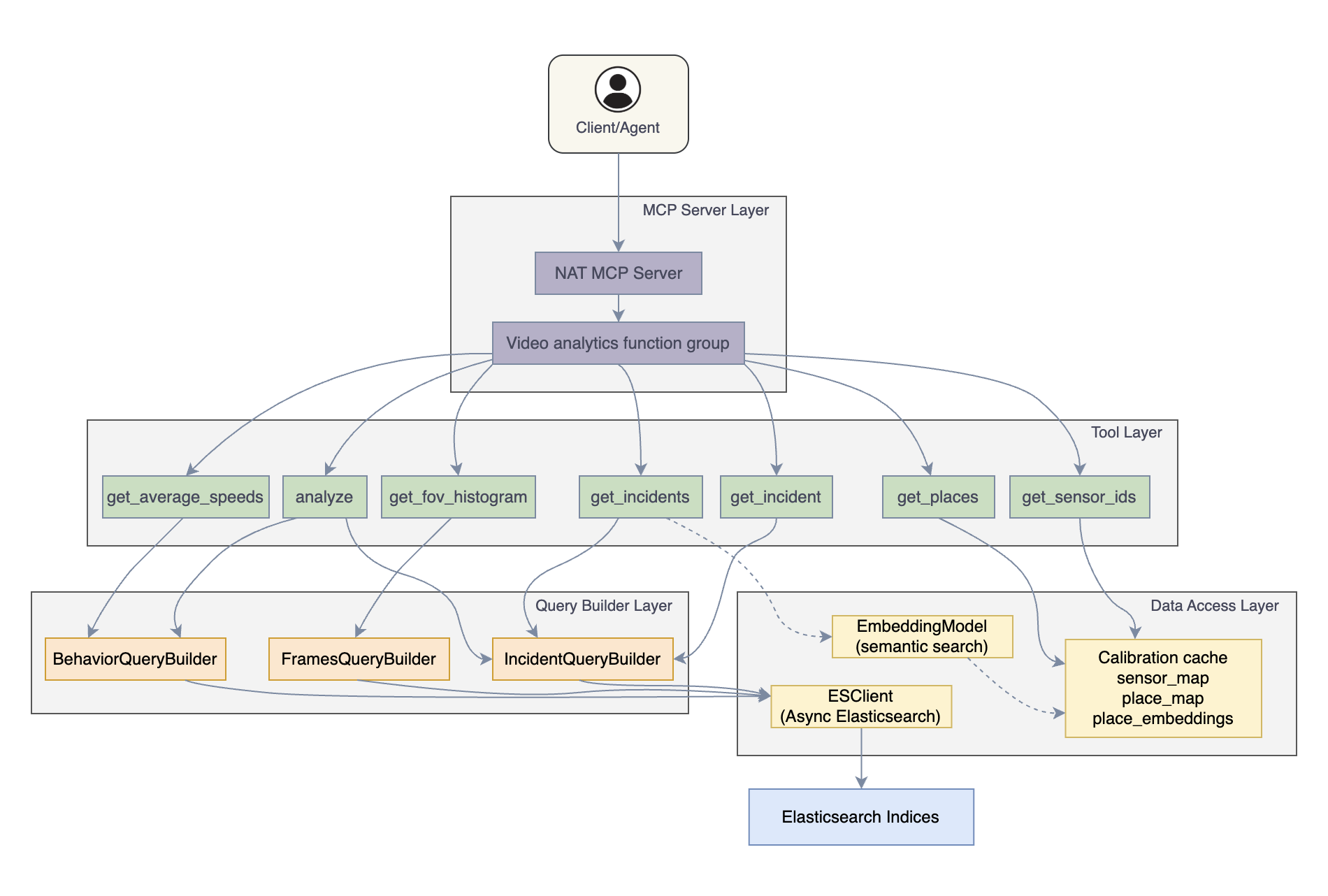

The server is implemented as a NAT (NVIDIA Agent Toolkit) function group and uses the NAT library to serve its tools via the MCP protocol. For more information about NAT, see NVIDIA Agent Toolkit Documentation.

Prerequisites#

System Requirements

Python 3.10 or higher
NVIDIA Agent Toolkit installed. See NAT Installation.

External Dependencies

Elasticsearch 7.x or 8.x containing video analytics data
Optional: VST (Video Sensor Tool) for active sensor filtering
Optional: Sentence-transformers model for semantic place search

Required Elasticsearch Indices

Index Pattern	Description	Key Fields
incidents-*	Incidents data	sensorId, timestamp, end, place, category, type, info
vlm-incidents-*	VLM-verified incidents	Same as incidents, info.verdict
behavior-*	Object behavior metrics	speed, direction, distance, timeInterval, sensor.id, place
frames-*	Frame data	sensorId, timestamp, fov (nested: type, count)
calibration-*	Sensor and configuration metadata	calibration.sensors with id, place

Note

All indices can be prefixed using the index_prefix configuration option (e.g., mdx-incidents-*).

Configuration#

Configuration File#

The VA-MCP Server is configured via a YAML file:

functions:
  vst_sensor_list:
    _type: vst.sensor_list
    vst_internal_url: "http://${HOST_IP}:30888"

function_groups:
  video_analytics:
    _type: video_analytics
    es_url: "http://${HOST_IP}:${VSS_ES_PORT}"
    index_prefix: "mdx-"
    vlm_verified: false
    vst_sensor_list_tool: vst_sensor_list
    embedding_model_name: "sentence-transformers/all-MiniLM-L6-v2"
    include:
      - get_incident
      - get_incidents
      - get_sensor_ids
      - get_places
      - get_fov_histogram
      - get_average_speeds
      - analyze

llms:
  nim_llm:
    _type: nim
    model_name: meta/llama-3.1-70b-instruct
    temperature: 0.0
    max_tokens: 1024

# Dummy workflow required to start MCP server
workflow:
  _type: react_agent
  tool_names: [video_analytics]
  llm_name: nim_llm
  verbose: true
  parse_agent_response_max_retries: 3

Note

A dummy workflow is required by NAT to start the MCP server.

Configuration Parameters

Parameter	Type	Required	Default	Description
_type	string	Yes		Must be `video_analytics`
es_url	string	Yes	http://localhost:9200	Elasticsearch connection URL
index_prefix	string	No		Prefix for all Elasticsearch indices (e.g. `mdx-` → `mdx-incidents-*`)
vlm_verified	boolean	No	false	When true, queries VLM-verified incidents index
embedding_model_name	string	No	sentence-transformers/all-MiniLM-L6-v2	Model for semantic place search. Set to null to disable
vst_sensor_list_tool	string	No	null	Reference to VST sensor list function for active sensor filtering
include	list	No	All tools	List of tools to expose

Environment Variables#

The configuration file supports environment variable substitution using ${VAR_NAME} syntax.

Variable	Description
HOST_IP	Host IP for Elasticsearch
VSS_ES_PORT	Elasticsearch port

Example:

export HOST_IP=10.63.144.174
export VSS_ES_PORT=9200

Quick Start#

After setting up dependencies, configuration, and environment variables, start the server:

nat mcp serve --config_file <path/to/config_file>

The server starts on http://localhost:9901/mcp by default.

Custom Host and Port

nat mcp serve --config_file <path/to/config_file> \
  --host 0.0.0.0 \
  --port 9901 \
  --name "<server-name>"

Transport Type

nat mcp serve --config_file <path/to/config_file> --transport sse

For more NAT MCP commands, see NAT MCP Documentation.

Connecting a Client#

The MCP server’s tools are accessible using an agent’s standard tool-calling interface.

Example NAT Agent Configuration

function_groups:
  video_analytics_mcp:
    _type: mcp_client
    server:
      transport: streamable-http
      url: "http://localhost:9901/mcp"

llms:
  nim_llm:
    _type: nim
    model_name: meta/llama-3.1-70b-instruct
    temperature: 0.0
    max_tokens: 1024

workflow:
  _type: react_agent
  tool_names: [video_analytics_mcp]
  llm_name: nim_llm
  verbose: true
  max_retries: 3

For more on NAT workflows, see NAT Workflow Documentation.

Available Tools#

Tool	Description
get_incident	Retrieve a specific incident by incident ID
get_incidents	Query incidents with filtering by sensor, place, time range, and VLM verdict
get_sensor_ids	Get list of available sensor IDs, optionally filtered by place
get_places	Get hierarchical map of all available places (city → intersections)
get_fov_histogram	Get field-of-view occupancy histogram showing object counts over time
get_average_speeds	Get average speed metrics grouped by direction
analyze	Perform statistical analysis: max_min_incidents, average_speed, avg_num_people, avg_num_vehicles

get_incident#

Retrieve a specific incident by ID.

Parameters

Parameter	Type	Description
id	string	Incident ID
includes	list	Optional: `objectIds`, `info`

get_incidents#

Query incidents with optional filtering.

Parameters

Parameter	Type	Description
source	string	Sensor ID or place name
source_type	string	`sensor` or `place` (required if source provided)
start_time	string	ISO format: `YYYY-MM-DDTHH:MM:SS.sssZ`
end_time	string	ISO format: `YYYY-MM-DDTHH:MM:SS.sssZ`
max_count	int	Maximum results (default: 10)
includes	list	Optional fields: `objectIds`, `info`
vlm_verdict	string	Filter by VLM verdict (requires `vlm_verified: true`)

get_sensor_ids#

Get available sensor IDs.

Parameters: place (optional) - filter by place name

Returns: List of sensor IDs

get_places#

Get hierarchical place map.

Returns:

{"CityName": ["Intersection1", "Intersection2"]}

get_fov_histogram#

Get object counts over time in field of view.

Parameters

Parameter	Type	Description
source	string	Sensor ID or place name
source_type	string	`sensor` or `place`
start_time	string	ISO format: `YYYY-MM-DDTHH:MM:SS.sssZ`
end_time	string	ISO format: `YYYY-MM-DDTHH:MM:SS.sssZ`
object_type	string	Optional filter: `Person`, `Vehicle`
bucket_count	int	Number of time buckets (default: 10)

Returns:

{
  "bucketSizeInSec": 180,
  "histogram": [
    {
      "start": "2025-01-12T11:20:10.000Z",
      "end": "2025-01-12T11:23:10.000Z",
      "objects": [
        {"type": "Person", "averageCount": 5}
      ]
    }
  ]
}

get_average_speeds#

Get average speed per direction.

Parameters: source, source_type, start_time, end_time

Returns:

{"metrics": [{"direction": "North", "averageSpeed": "25 mph"}]}

analyze#

Perform statistical analysis on video analytics data.

Parameters

Parameter	Type	Description
source	string	Sensor ID or place name
source_type	string	`sensor` or `place`
start_time	string	ISO format: `YYYY-MM-DDTHH:MM:SS.sssZ`
end_time	string	ISO format: `YYYY-MM-DDTHH:MM:SS.sssZ`
analysis_type	string	One of: `max_min_incidents`, `average_speed`, `avg_num_people`, `avg_num_vehicles`

Analysis Types:

max_min_incidents - Min/max overlapping incidents
average_speed - Average speeds per direction
avg_num_people - Average people count
avg_num_vehicles - Average vehicle count

Source Type Options#

Several tools accept source and source_type parameters to specify the data source.

Sensor (source_type: "sensor"): Queries by exact sensor ID match.

source: "Camera-001"
source_type: "sensor"

Place (source_type: "place"): Queries by place name using wildcard matching with optional semantic search.

# Match all incidents in a city
source: "Montague"
source_type: "place"

# Match a specific intersection
source: "Lafayette_Agnew"
source_type: "place"

When wildcard matching returns no results, the server automatically falls back to semantic search (if enabled) to find places with similar names.

Note

When using source, source_type must also be provided. Both parameters must be provided together or both omitted.

NAT CLI Commands#

Inspect available tools using NAT CLI:

List Tools

nat mcp client tool list --url <mcp-url>

Tool Details

nat mcp client tool list --tool <tool_name> --url <mcp-url>

Call a Tool

nat mcp client tool call --tool <tool_name> --url <mcp-url> --json-args '<json args>'

Help

nat mcp --help

For more NAT MCP commands, see NAT MCP Client Documentation.
