Overview#

VSS Auto Calibration Microservice enables automatic calibration of multi-camera systems through a simple, web-based, step-by-step workflow.

It is powered by AutoMagicCalib (AMC), which estimates camera intrinsics and extrinsics to generate accurate projection matrices and lens distortion parameters for 3D and multi-view applications.

Unlike checkerboard-based methods, AMC uses naturally moving objects in the scene. With NVIDIA DeepStream detection and tracking, it follows objects (e.g., people) and derives camera parameters from normal operational footage—no setup, no downtime, and supports calibration from archived videos.

The service supports both a geometry-based approach (AMC) using object trajectories and geometric relationships, and a model-based approach (VGGT) that leverages learned models for higher accuracy and robustness.

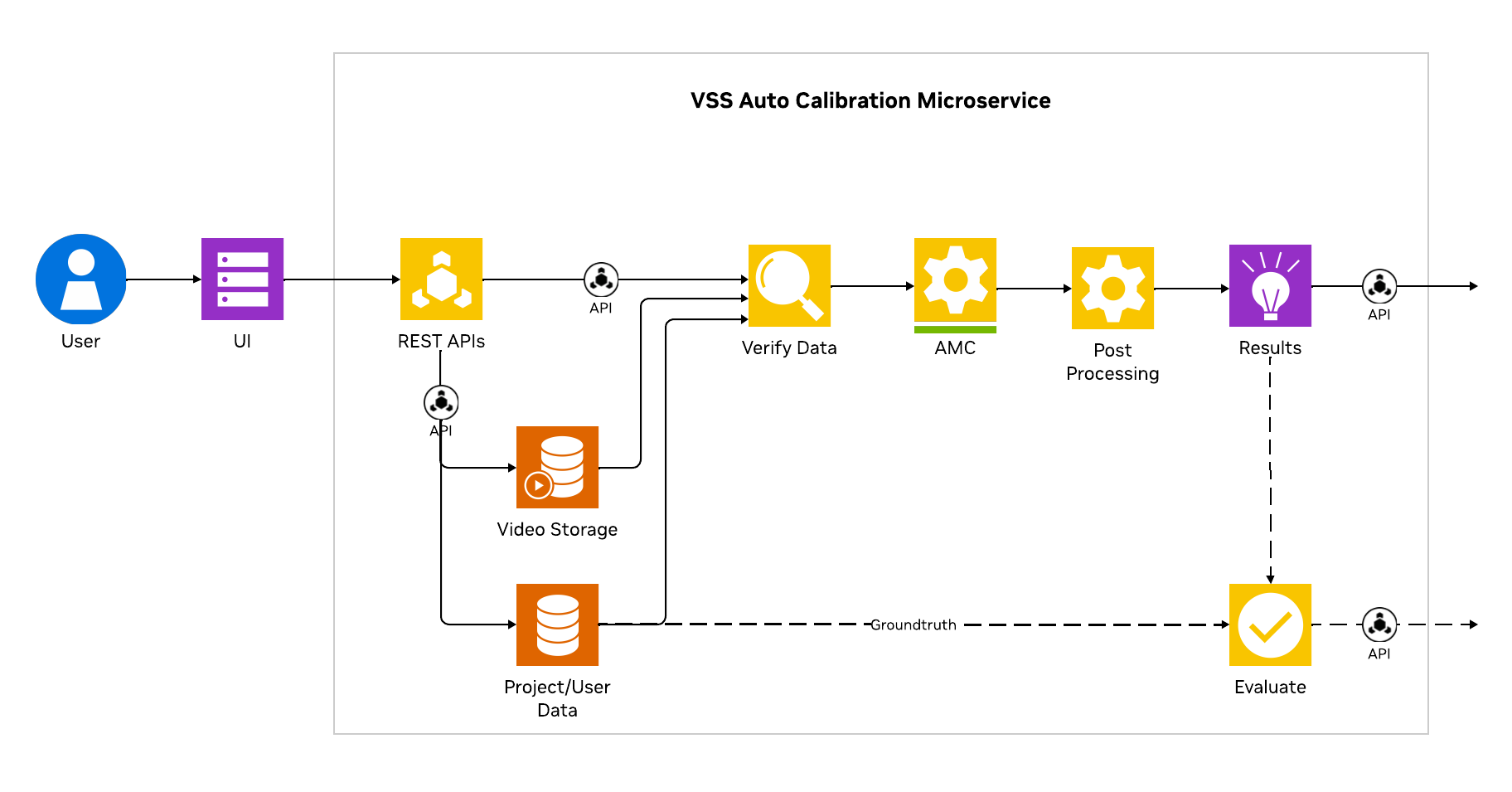

The overall microservice architecture is as shown below:

VSS Auto Calibration Microservice Architecture

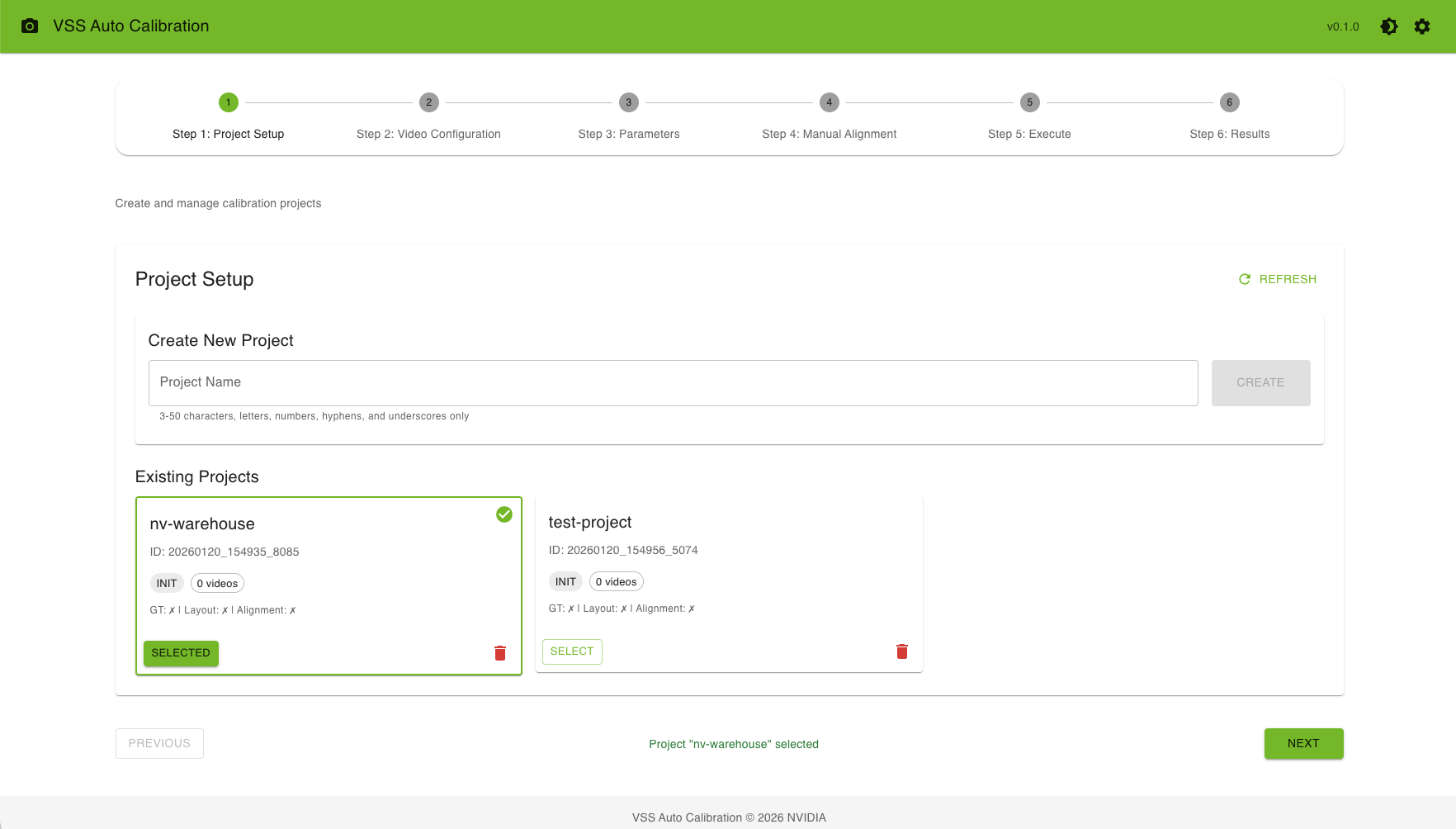

UI launch screen is as shown below:

VSS Auto Calibration User Interface

Key Features#

Guided Workflow

  • 6-Step Process: Intuitive step-by-step calibration workflow

  • Progress Tracking: Visual indicators for completion status

  • Validation: Real-time validation of inputs at each step

Project Management

  • Multiple Projects: Create and manage multiple calibration projects

  • Project States: Track project progress (INIT, READY, RUNNING, COMPLETED, ERROR)

  • Data Persistence: All project data is saved automatically

Interactive Tools

  • ROI Drawing: Draw regions of interest directly on video frames

  • Tripwire Configuration: Define tripwire lines and directions

  • Manual Alignment: Interactive point selection for camera-to-world alignment

  • Real-time Preview: See annotations and calibration results immediately

Dual Calibration Methods

  • AMC (Auto Magic Calibration): Primary calibration method

  • VGGT (Vision-Geometry Graph Transformer): Optional model-based method

Export Options

  • Multiple Formats: Export calibration data in various formats

  • MV3DT Compatible: Export data compatible with MV3DT verification tools

  • World Coordinates: Full calibration with ROI/tripwire world coordinates

  • Camera Parameters: Individual camera intrinsic and extrinsic parameters

Workflow Overview#

The calibration process follows a logical 6-step workflow:

  1. Project Setup: Create or select a calibration project

  2. Video Configuration: Upload camera videos, layout image, and optional files

  3. Parameters: Draw ROIs, tripwires, and configure focal lengths, settings

  4. Manual Alignment: Create alignment data by selecting corresponding points

  5. Execute: Run the calibration pipeline with live monitoring

  6. Results: View calibration results and export data

Each step validates inputs before allowing progression to the next step, ensuring a smooth calibration experience.
