NVIDIA DOCA Switch Application Guide

This document provides a switch implementation on top of NVIDIA® BlueField® DPU.

DOCA Switch is a network application that leverages the DPU's hardware capability for internal switching between representor ports on the DPU.

DOCA Switch is based on the DOCA Flow library. As such, it exposes a command line interface which receives DOCA Flow like commands to allow adding rules in real time.

DOCA Switch is designed to run on the DPU as a standalone application (all network traffic goes directly through it).

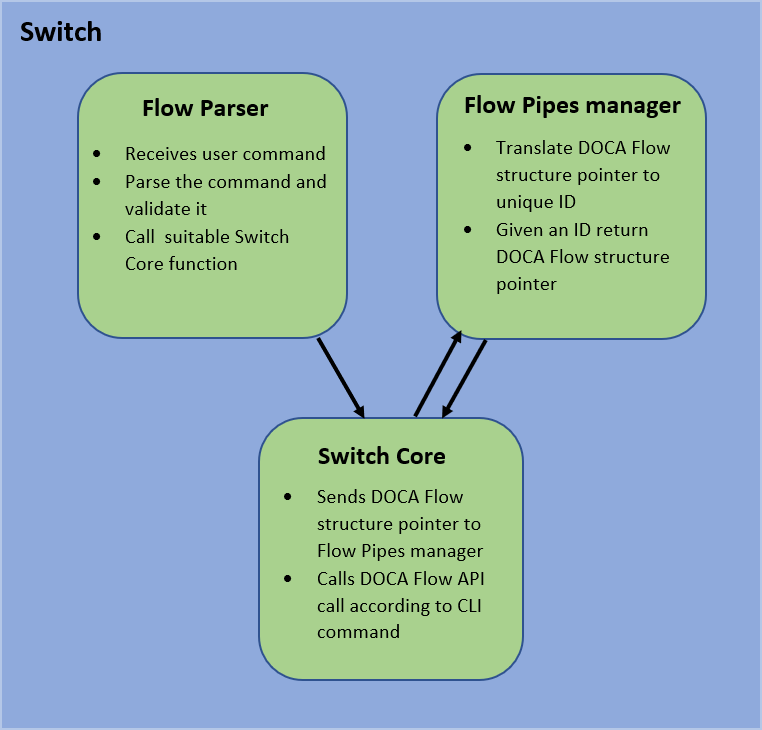

DOCA Switch is based on 3 modules:

  • Command line interface – receives pre-defined DOCA Flow-like commands and parses them
  • Flow pipes manger – generates a unique identification number for each DOCA Flow structure created
  • Switch core – combines all modules together and calls necessary DOCA Flow API


Port initialization cannot be made dynamically. All ports must be defined when running the application with standard DPDK flags.

  • When adding a pipe or an entry, the user must run commands to create the relevant structs beforehand
  • Optional parameters must be specified by the user in the command line; otherwise, NULL is used
  • After a pipe or an entry is created successfully, the relevant ID is printed for future use

Available commands:

  • create pipe port_id=[port_id][,<optional_parameters>] Available optional parameters:
    • name=<pipe-name>
    • root_enable=[1|0]
    • monitor=[1|0]
    • match_mask=[1|0]
    • fwd=[1|0]
    • fwd_miss=[1|0]
    • type=[basic|control]
  • add entry pipe_id=<pipe_id>,pipe_queue=<pipe_queue>[,<optional_parameters>] Available optional parameters:
    • monitor=[1|0]
    • fwd=[1|0]
  • add control_pipe entry priority=<priority>,pipe_id=<pipe_id>,pipe_queue=<pipe_queue>[,<optional_parameters>] Available optional parameters:
    • match_mask=[1|0]
    • fwd=[1|0]
  • destroy pipe port_id=[port_id],pipe_id=<pipe_id>
  • rm entry pipe_queue=<pipe_queue>,entry_id=[entry_id]
  • port pipes flush port_id=[port_id]
  • port pipes dump port_id=[port_id],file=[file_name]
  • query entry_id=[entry_id]
  • create [struct] [field=value,…]
    • Struct options: pipe_match, entry_match, match_mask, actions, monitor, fwd, fwd_miss
      • Match struct fields:
        Fields Field Options
        flags
        port_meta (source port) According to the number of physical ports
        out_src_mac
        out_dst_mac
        out_eth_type
        out_vlan_id
        out_src_ip_type ipv4, ipv6
        out_src_ip_addr
        out_dst_ip_type ipv4, ipv6
        out_dst_ip_addr
        out_l4_type tcp, udp, gre
        out_tcp_flags FIN, SYN, RST, PSH, ACK, URG, ECE, CWR
        out_src_port
        out_dst_port
        tun_type
        vxlan-tun_id
        gre_key
        gtp_teid
        in_src_mac
        in_dst_mac
        in_eth_type
        in_vlan_id
        in_src_ip_type ipv4, ipv6
        in_src_ip_addr
        in_dst_ip_type ipv4, ipv6
        in_dst_ip_addr
        in_l4_type tcp, udp
        in_tcp_flags FIN, SYN, RST, PSH, ACK, URG, ECE, CWR
        in_src_port
        in_dst_port

      • Actions struct fields:
        Fields Field Options
        decap true, false
        mod_src_mac
        mod_dst_mac
        mod_src_ip_type ipv4, ipv6
        mod_src_ip_addr
        mod_dst_ip_type ipv4, ipv6
        mod_dst_ip_addr
        mod_src_port
        mod_dst_port
        dec_ttl true, false
        has_encap true, false
        encap_src_mac
        encap_dst_mac
        encap_src_ip_type ipv4, ipv6
        encap_src_ip_addr
        encap_dst_ip_type ipv4, ipv6
        encap_dst_ip_addr
        encap_tup_type vxlan, gtpu, gre
        encap_vxlan-tun_id
        encap_gre_key
        encap_gtp_teid

      • FWD struct fields:
        Fields Field Options
        type rss, port, pipe, drop
        rss_flags
        rss_queues
        num_of_queues
        rss_mark
        port_id
        next_pipe_id

      • Monitor struct fields:
        • flags
        • id
        • cir
        • cbs
        • aging

Consider that the physical port number (only one physical port is supported) will always be 0 and all representor ports are numbered from 1 to N where N is the number of representors being used. For example:

  • Physical port ID: 0
  • VF0 representor port ID: 1
  • VF1 representor port ID: 2
  • VF2 representor port ID: 3

The following is an example for creating a pipe and adding two entries:

  • The first entry matches UDP packets with destination port 54223 and forwards it to VF1 representor (port ID 2)
  • The second entry matches UDP packets with destination port 54222 and forwards it to VF0 representor (port ID 1)

In the final stage, both entries are deleted, each according to the unique random ID it was given:

Copy
Copied!


create pipe_match out_l4_type=udp,out_src_ip_type=ipv4,out_dst_port=0xffff,port_meta=0xffffffff create fwd type=port,port_id=0xffff create pipe port_id=0,name=vf0_to_vf1,root_enable=1,fwd=1 create entry_match port_meta=1,out_dst_port=54223 create fwd type=port,port_id=2 add entry pipe_queue=0,fwd=1,pipe_id=1012 create entry_match port_meta=2,out_dst_port=54222 create fwd type=port,port_id=1 add entry pipe_queue=0,fwd=1,pipe_id=1012 rm entry pipe_queue=0,entry_id=345 rm entry pipe_queue=0,entry_id=447

This application leverages the DOCA Flow library.

  1. Parse application argument.
    1. Initialize the arg parser resources and register DOCA general parameters.
      Copy
      Copied!


      doca_argp_init();

    2. Register application parameters.
      Copy
      Copied!


      register_switch_params();

    3. Parse application flags.
      Copy
      Copied!


      doca_argp_start();

  2. Count total number of ports.
    Copy
    Copied!


    switch_ports_count();

    1. Check how many ports are entered when running the application.
  3. Initialize DPDK ports and queues.
    Copy
    Copied!


    dpdk_queues_and_ports_init();

  4. Initialize DOCA Switch.
    Copy
    Copied!


    switch_init();

    1. Initialize DOCA Flow.
    2. Create port pairs.
    3. Create Flow Pipes Manger module
    4. Register an action for each relevant CLI command.
  5. Initialize Flow Parser.
    Copy
    Copied!


    flow_parser_init();

    1. Reset all internal Flow Parser structures.
    2. Start the command line interface.
    3. Receive user commands, parse them, and call the required DOCA Flow API command.
    4. Close the interactive shell once a "quit" command is entered.
  6. Clean Flow Parser resources.
    Copy
    Copied!


    flow_parser_cleanup();

  7. Destroy DOCA Switch resources.
    Copy
    Copied!


    switch_destroy();

    1. Destroy Flow Pipes Manager resources.
  8. Destroy DOCA Flow.
    Copy
    Copied!


    switch_destroy();

  9. Destroy DPDK ports and queues.
    Copy
    Copied!


    dpdk_queues_and_ports_fini();

  10. DPDK finish.
    Copy
    Copied!


    dpdk_fini();

    1. Call rte_eal_destroy() to destroy initialized EAL resources.
  11. Arg parser destroy.
    Copy
    Copied!


    doca_argp_destroy();

  1. Refer to the following documents:
  2. The DOCA Switch example binary is located under /opt/mellanox/doca/applications/switch/bin/doca_switch. To build all the applications together, run:
    Copy
    Copied!


    cd /opt/mellanox/doca/applications/ meson build ninja -C build

  3. To build only the Switch application:
    1. Edit the following flags in /opt/mellanox/doca/applications/meson_option.txt:
      • Set enable_all_applications to false
      • Set enable_switch to true
    2. Run the commands in step 2.
      Note:

      doca_switch will be created under ./build/switch/src/.

    Application usage:

    Copy
    Copied!


    Usage: doca_switch [DOCA Flags] DOCA Flags: -h, --help Print a help synopsis -v, --version Print program version information -l, --log-level                    Set the log level for the program <CRITICAL=20, ERROR=30, WARNING=40, INFO=50, DEBUG=60>

    Note:

    For additional information on the app, use -h:

    Copy
    Copied!


    /opt/mellanox/doca/applications/switch/bin/doca_switch -h


  4. CLI example for running the app on BlueField with 3 VF representors:
    Copy
    Copied!


    /opt/mellanox/doca/applications/switch/bin/doca_switch -a 03:00.0,representor=[0-2] -- -l 30

Refer to NVIDIA DOCA Arg Parser User Guide for more information.

Flag Type Short Flag Long Flag/JSON Key Description JSON Content
General flags l log-level Sets the log level for the application:
  • CRITICAL=20
  • ERROR=30
  • WARNING=40
  • INFO=50
  • DEBUG=60
Copy
Copied!


"log-level": 60

v version Print program version information N/A
h help Print a help synopsis N/A

  • /opt/mellanox/doca/applications/switch/src/switch.c
  • /opt/mellanox/doca/applications/switch/src/switch_core.c
  • /opt/mellanox/doca/applications/switch/src/switch_core.h
