Deployment Guide#

Note

This documentation uses the updated terminology: Safety Event Integrator and Safety Decision Maker (SEI & SDM). File paths, Debian package names, and binary executables may retain legacy naming (psf, nvpss) for backward compatibility. Future releases will transition to the new naming convention.

This guide covers installation, configuration, runtime parameters, and troubleshooting in detail. For the quickest bring-up on an existing perception feed, start from Deploy the Safety Core.

AI Perception#

The blueprint has two halves, and this guide covers one of them. Halos Outside-In Safety consumes a perception feed rather than implementing one, so perception is deployed first and the numbered sections below then install the Safety Core against it.

The reference backend is the NVIDIA VSS Warehouse Operations Blueprint 3.2.1, which ships from its own repository:

  • Deploy AI Perception covers camera selection, placement, and calibration, then the VSS Warehouse installation, with sample data.

  • The VSS Warehouse Blueprint quick start is the upstream procedure, and the vss-deploy-profile skill that ships with it performs the same installation from a single prompt.

The reference backend is not a requirement. Any perception stack that satisfies the same contract can drive the Safety Core, because the contract is all the Safety Core depends on:

  • Transport — Kafka.

  • Topics — mdx-events for ROI and tripwire alerts, mdx-frames for per-frame analysis such as proximity.

  • Schema — Metropolis MDX protobuf messages.

Integration Guide documents how those messages are mapped to the safety events the Safety Decision Maker acts on. That mapping is where to start when substituting a different perception backend.

1. Installation of the Safety Core#

The Safety Core can be installed using one of two methods:

  • Debian packages — Individual .deb packages are provided for direct installation on the host system. This method is suitable for bare-metal deployments where the Safety Core components run natively on the target platform.

  • Docker container — A pre-built Docker image is available on NGC containing all Safety Core binaries and runtime dependencies. This method simplifies deployment by encapsulating the application environment and is the recommended approach.

1.1 Debian Installation#

The following Debian packages are available:

  • psf-desktop.deb, psf-desktop-dev.deb — For x86-64 based systems. - psf-desktop.deb — Application binaries and libraries - psf-desktop-dev.deb — Development headers and makefiles

  • psf-tegra.deb, psf-tegra-dev.deb, psf-tegra-fsi.deb — For IGX Thor based systems (aarch64). - psf-tegra.deb — Application binaries and libraries - psf-tegra-dev.deb — Development headers and makefiles - psf-tegra-fsi.deb — FSI (Functional Safety Island) firmware binaries and the fsicom-agent host bridge. This package needs a separate sign-up here.

# x86-64
ngc registry resource download-version "nvidia/halos-outside-in/outside-in-safety:nv-psf-halos-1.3-x86-lin64-release-6932895-psf-desktop"
ngc registry resource download-version "nvidia/halos-outside-in/outside-in-safety:nv-psf-halos-1.3-x86-lin64-release-6932895-psf-desktop-dev"

# IGX (aarch64)
ngc registry resource download-version "nvidia/halos-outside-in/outside-in-safety:nv-psf-halos-1.3-aarch64-release-6932895-psf-tegra"
ngc registry resource download-version "nvidia/halos-outside-in/outside-in-safety:nv-psf-halos-1.3-aarch64-release-6932895-psf-tegra-dev"

# IGX (aarch64) - FSI support (need separate sign-up)
ngc registry resource download-version "nvidia/outside-in-safety/outside-in-safety:nv-psf-halos-1.3-aarch64-release-6932895-psf-tegra-fsi"

Install the Debian packages using the following commands:

sudo dpkg -i psf-desktop.deb
sudo dpkg -i psf-desktop-dev.deb
sudo dpkg -i psf-tegra.deb
sudo dpkg -i psf-tegra-fsi.deb
sudo dpkg -i psf-tegra-dev.deb

Important

dpkg -i skips a package whose version string is unchanged, so reinstalling a rebuilt package of the same version leaves the old binaries in place. When moving between builds of one release, purge first, delete the binaries, then install:

sudo dpkg --purge psf-tegra-fsi psf-tegra || true
sudo rm -f /opt/nvidia/psf/bin/fsicom-agent \
    /opt/nvidia/psf/apps/atl/atl_sdm_cmd_receiver \
    /opt/nvidia/psf/apps/proximity/proximity_sdm_cmd_receiver
sudo dpkg -i psf-tegra.deb psf-tegra-fsi.deb

Then confirm the installed files come from the build you expect, by comparing their modification times against the build date:

dpkg -l | grep psf-tegra
ls -l /opt/nvidia/psf/bin/fsicom-agent
find /opt/nvidia/psf/etc/fsi-fw -name '*.bin' -exec ls -l {} \;

Chasing a stale binary is a common cause of behavior that does not match the release notes.

After installation, the framework directory structure will be as follows:

Component

Path

Root Directory

/opt/nvidia/psf

Libraries

/opt/nvidia/psf/lib

Binaries

/opt/nvidia/psf/bin

Reference Apps

/opt/nvidia/psf/apps

Note

By default, SEI & SDM binaries and libraries inside the Docker container are located under /opt/nvidia/psf/bin and /opt/nvidia/psf/lib respectively. To make these binaries and libraries discoverable from the host environment (for example, when launching helper tools or linking against container-provided libraries), extend your PATH and LD_LIBRARY_PATH accordingly.

export PATH=/opt/nvidia/psf/bin:"${PATH}"
export LD_LIBRARY_PATH=/opt/nvidia/psf/lib:"${LD_LIBRARY_PATH}"

1.2 Docker Installation#

You can install Safety Core as a Docker container by downloading it from NGC using the following command:

Important

The Safety Core container image is hosted on NGC under gated access. Before pulling the image, complete the following one-time setup:

  1. Accept the NGC invitation — An enrollment email is sent when your access is approved. Click the link in the email to join the NGC organization. If you did not receive the email or it has expired, contact your NVIDIA representative to have it resent.

  2. Sign in to NGC — Log in at https://ngc.nvidia.com with your NVIDIA account.

  3. Accept the license agreement — Navigate to the Halos Outside-In Safety resource page and accept the governing terms and user agreements when prompted.

  4. Log in Docker to NGC — NGC CLI authentication is not enough for Docker image pulls. Docker must be authenticated to nvcr.io or the pull fails with 401 Unauthorized.

If the docker pull command below fails with a permission or authentication error, verify that Docker is logged in to nvcr.io and that both the NGC invitation and the license agreement have been accepted.

export PSF_IMAGE=nvcr.io/nvidia/halos-outside-in/outside-in-safety:nv-psf-halos-1.3-6932895

docker login nvcr.io
# Username: $oauthtoken
# Password: <NGC API key>

# Validate Docker registry access before deployment.
docker pull "${PSF_IMAGE}"

1.3 Safety Core Setup (Docker Runtime)#

Note

Ensure the reference AI Perception (VSS stack) is fully up and running before starting the Safety Core (PSF) Docker container, with the calibration file including "restrictedObjectTypes":["Person"] for all relevant ROIs. For dual-camera setups, all camera streams must be synchronized and named accurately.

1.3.1 Prerequisites#

  • VSS stack containers (analytics, UI, recorders, etc.) are running and reachable.

  • Calibration file for the monitored region is deployed and includes "restrictedObjectTypes":["Person"] for the ROIs, where relevant.

  • For dual camera configurations, ensure all camera streams are in sync.

2. Running Safety Core#

2.1 Setup#

2.1.1 Create shared log directory#

Create a shared log directory on the host that the Safety Core container will write to. All Safety Core deployment methods use /var/log/psf/; manual Docker launches write the container log to /var/log/psf/psf.log.

# Create log directory and Safety Core log file
sudo mkdir -p /var/log/psf
sudo touch /var/log/psf/psf.log

# Set appropriate permissions
sudo chmod 755 /var/log/psf
sudo chmod 666 /var/log/psf/psf.log

2.1.2 Runtime library dependencies (Debian installation only)#

When using the Debian-based installation, the following shared libraries must be installed on the host system before launching Safety Core applications. These libraries are not bundled in the Safety Core Debian packages and must be installed separately.

  • librdkafka.so.1 — Required for Kafka event ingestion

  • libprotobuf.so.32 — Required for protobuf message parsing

Install them using apt:

sudo apt-get update

Ubuntu 22.04:

sudo apt-get install -y librdkafka1 libprotobuf23

Ubuntu 24.04:

sudo apt-get install -y librdkafka1 libprotobuf32t64

Note

Verify the libraries are accessible on the default library search path after installation:

ldconfig -p | grep librdkafka
ldconfig -p | grep libprotobuf

If either library is not found, ensure /usr/lib or the appropriate library directory is included in /etc/ld.so.conf and run sudo ldconfig.

Tip

This step is not required for Docker-based installations. The Safety Core Docker container already includes all required runtime libraries.

2.1.3 Create the sensor configuration file#

Every Safety Core invocation consumes a sensor configuration file. It is the single source of truth mapping each physical camera stream to a fixed pipeline slot, a human-readable sensor name, and the RTSP URL from which frames are pulled. The file must exist and be readable by the user (or container) that launches Safety Core before any of the flows in sections 2.2, 2.3, or 2.4 are started.

Default path and name

The Safety Core Debian package ships a ready-to-edit template at:

/opt/nvidia/psf/bin/sensor_config.conf.sample

The operator renames (or copies) that template in place to produce the live configuration that is actually read at runtime:

/opt/nvidia/psf/bin/sensor_config.conf

This is also the default value of sensorConfig in /opt/nvidia/psf/bin/nvpss.conf.

Manual mdx_client launches and Safety Core Docker launches must pass the same file using --sensor-config /opt/nvidia/psf/bin/sensor_config.conf. The SEI daemon (nvpss_daemon) reads this path from the sensorConfig entry in /opt/nvidia/psf/bin/nvpss.conf.

File format

  • One sensor per non-blank line.

  • Fields are comma-separated in this exact order:

    pipelineId, sensorName, rtspUrl

  • Blank lines are ignored.

  • Lines beginning with # are treated as comments.

  • Leading and trailing whitespace around each field is trimmed.

  • The RTSP URL field captures the remainder of the line, so any commas inside the URL (for example inside query parameters) are preserved verbatim.

Field rules

Field

Type

Constraints

pipelineId

uint8

Integer in [1, 8]. Must be unique across the file. Identifies the fixed hardware / software pipeline slot used to decode this stream.

sensorName

string

1-63 characters. Must be unique across the file. Used as the human-readable identifier that appears in logs, alerts, and Kafka Behavior.sensor.id.

rtspUrl

string

1-255 characters. The exact RTSP URL consumed by the Blueprint. It must be directly playable; VST online status alone is not sufficient.

A single configuration may contain at most 8 entries (one per pipeline slot).

Example

# /opt/nvidia/psf/bin/sensor_config.conf
#
# pipelineId, sensorName, rtspUrl

1, Camera_North,     rtsp://192.168.10.21:554/stream0
2, Camera_South,     rtsp://192.168.10.22:554/stream1
3, Camera_Left,      rtsp://192.168.10.23:554/stream2

Create the file from the shipped template

# Start from the template installed by the Debian package.
sudo cp /opt/nvidia/psf/bin/sensor_config.conf.sample \
        /opt/nvidia/psf/bin/sensor_config.conf

# Edit in place with your real pipelineId / sensorName / rtspUrl
# tuples (the example above is a good reference).
sudo $EDITOR /opt/nvidia/psf/bin/sensor_config.conf

# Ensure the file is readable by the HOISA runtime.
sudo chmod 644 /opt/nvidia/psf/bin/sensor_config.conf

# Validate each configured RTSP URL before launching HOISA.
ffprobe -rtsp_transport tcp <rtsp_url>
# or
gst-launch-1.0 rtspsrc location=<rtsp_url> ! fakesink

Note

If the file is missing, malformed, contains duplicate pipelineId or sensorName values, or lists more than 8 entries, Safety Core components will fail to start and a descriptive error will be written to /var/log/psf/*.log (or to stderr when launched outside the container). Fix the offending line and relaunch; no partial configurations are accepted.

Note

For Halos Outside-In Safety deployments with VSS, use the VST proxy RTSP URL configured for the registered sensor, typically a /live/<sensor-id> URL, in sensor_config.conf and validate that exact URL. A direct nvstreamer URL that plays in isolation is useful for camera debugging, but it is not a substitute for validating the VST proxy URL consumed by HOISA.

Tip

When creating VST sensors for HOISA, keep VST sensor names unique. If sensor creation fails because names such as Camera_01, Camera_02, or Camera already exist, remove the stale sensors or create new PSF-specific names, then update sensor_config.conf with the refreshed rtspUrl values.

Tip

The sensorName values configured here are the same strings the Metropolis producer emits in the Behavior.sensor.id field of each Kafka event. Keeping the two in sync is what lets Safety Core correlate a Kafka alert back to a specific camera pipeline.

Note

VSS 3D (BEV) profile: events arrive under a grouped sensor name. The VSS 3D profile groups several physical cameras into one BEV sensor. VSS consumes the individual camera streams, but every published event carries the BEV group name configured by bev_group_name (bev-sensor-1 in the shipped warehouse 3D profile) in Behavior.sensor.id, never a physical camera name. A single sensor_config.conf cannot satisfy both consumers of the file: SAIM needs one entry per physical camera because it decodes each rtspUrl and learns a per-camera baseline, while mdx_client resolves Behavior.sensor.id against the same sensorName values.

For 3D deployments, keep the file camera-oriented: list the physical cameras exactly as for a 2D deployment (one pipelineId and VST proxy rtspUrl per camera) and launch Safety Core with the normal single launch_hoisa.sh invocation. The BEV group name is deliberately left out of the file. Because it does not resolve to a configured sensor, mdx_client logs Event from unknown sensor (not in sensor_config) and stamps pipelineId 0, the passthrough channel: the event is forwarded to the SEI daemon and on to the SDM, and the daemon skips its sensorIdentifier cross-check for that pipelineId. Decisions are made as usual, and SAIM continues to validate each physical camera and drive the all-safety-relevant-sensors-failed safe hold.

Account for the following in 3D deployments. BEV-derived events carry no sensor attribution, so they are not fused per camera and are not gated by per-sensor trust: a SENSOR_INVALID raised for a contributing camera does not mark them untrusted, because trust is keyed by pipelineId. Treat the unknown sensor warnings in /var/log/psf/psf.log as expected for this profile rather than as a mapping error, and rely on the SAIM verdicts and the Perception Monitor for input-integrity coverage.

Note

VSS 3D (BEV) profile: bypassing fusion is optional. VSS has already fused the contributing cameras into the BEV group, so the SEI daemon has nothing left to correlate across pipelines for these events. Make that explicit, if preferred, by adding the application’s event types to bypassFusionEvents in nvpss.conf, which routes them straight to the SDM instead of through the fusion module. For the ATL reference mapping:

bypassFusionEvents = SW_FAIL, EVENT_0, EVENT_1, EVENT_2, EVENT_3, EVENT_4, EVENT_5

Trust gating and stale-event marking are applied either way, and the setting does not restore sensor attribution. Use the exact event-type names emitted by the mapping: an unrecognized name is logged as Unknown event type '<name>', using EVENT_0 and bypasses EVENT_0 instead of the intended type. See SEI Configuration.

Safety Core is demonstrated by the following reference applications:

  • Control of safety function on a forklift

  • Proximity monitoring (Preview)

2.2 Launch ‘Control of safety function on a forklift’#

This application uses Safety Core to control a safety function on a forklift which is operating in a warehouse environment and performing loading and unloading of pallets to/from the trailer. The system responds to movement of the forklift when it approaches the trailer. The operation scenario appears below.

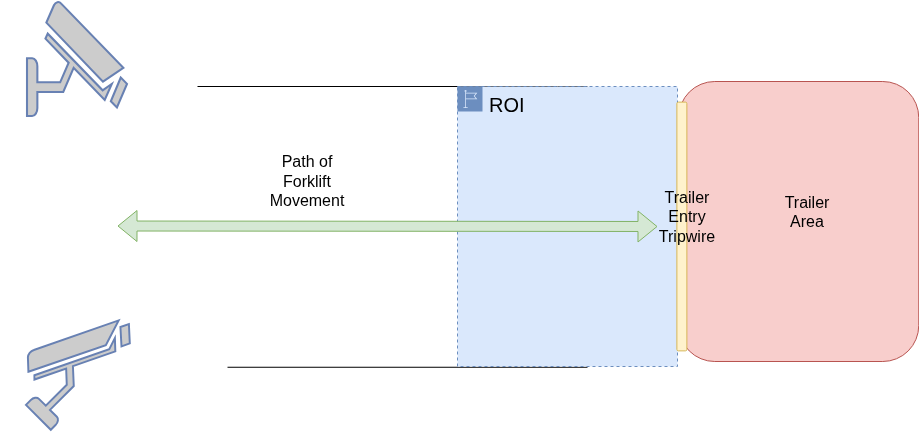

ATL Scenario

Operation of controlling the safety function on the forklift is based on following principles

  1. When a forklift is about to enter the trailer, its safety function must be turned off provided there is no human personnel inside the trailer and in a defined ROI around the gate of the trailer.

  2. When a forklift is about to exit the trailer, its safety function must be turned on if it was turned off while entering the trailer.

Supported Deployment Options

Safety Core supports the following deployment options:

Platform

SDM Location

Description

x86-64

CCPLEX

Standard deployment on x86-64 servers.

aarch64

CCPLEX

IGX Thor deployment with SDM running on the CCPLEX. Execution is identical to x86-64.

aarch64

FSI

IGX Thor deployment with SDM offloaded to the FSI (Functional Safety Island) for hardware-isolated safety.

Note

If the forklift’s safety state is to be updated on the VST UI only, launching a separate command receiver application is not necessary.

Execution Steps:

2.2.1 Option A / B : x86-64 / aarch64 — SDM on CCPLEX#

This option applies to both x86-64 and aarch64 (IGX Thor) platforms when the Safety Decision Maker runs on the CCPLEX. The launch procedure is identical on both architectures.

Note

For aarch64 (IGX Thor) deployments, it is a prerequisite that the appropriate BSP version of IGX Software (version IGX SW 2.0) has been flashed on the target platform.

For Debian-based installation:

Note

Ensure the Debian package corresponding to the target architecture has been installed: psf-desktop.deb for x86-64 or psf-tegra.deb for aarch64 (IGX Thor). Refer to 1.1 Debian Installation for details.

# Launch command receiver (runs on host / external system)
# Default port: 12345, max_hb_failures: 10
./atl_sdm_cmd_receiver -p <port> --max_hb_failures 100 \
    --vst_ip <VST_IP> --vst_port <VST_PORT>

# Launch NvPSD Gateway
./nvpsd_gateway

# Launch SEI Daemon
# Reads sensorConfig from /opt/nvidia/psf/bin/nvpss.conf.
./nvpss_daemon

# Launch Safety Decision Maker
# Default cmd_rx_ip: 127.0.0.1, cmd_rx_port: 12345
./atl_sdm --cmd_rx_ip <IP> --cmd_rx_port <Port>

# Launch Event Ingestion
./mdx_client --config /opt/nvidia/psf/apps/atl/event_mapping_atl.pb.txt \
    --sensor-config /opt/nvidia/psf/bin/sensor_config.conf

For Docker-based installation:

In Docker-based installation, the command receiver application must run outside the Safety Core container. It can be extracted from the PSF-desktop.deb package.

# Extract psf-desktop Debian package
dpkg -x psf-desktop.deb .

The command receiver application can be found at <extracted_package_path>/opt/nvidia/psf/apps/atl/atl_sdm_cmd_receiver.

# Launch the command receiver app
./atl_sdm_cmd_receiver -p <port> --max_hb_failures 100 \
    --vst_ip <VST_IP> --vst_port <VST_PORT>

Note

The command receiver application can run on a different system in the same network. If it does, pass its IP address and port to the SDM application (atl_sdm --cmd_rx_ip / --cmd_rx_port) so the Safety Decision Maker can reach it.

--vst_ip and --vst_port are optional and must be supplied together. When configured, the receiver relays each validated decision command to the VST display destination. Invalid values cause startup to fail; a relay socket or send failure disables only display delivery and does not stop command reception or acknowledgement.

--max_hb_failures sets how many consecutive upstream heartbeat misses the receiver tolerates before it raises a heartbeat fault (range 1-255, default 10). The first miss is counted 5 seconds after the last heartbeat and each further miss after another 5.5 seconds, so the value shown above delays the fault by roughly nine minutes. Use it only to keep a demonstration running over a noisy link, and keep the default in a production deployment.

By default the receiver writes its verbose per-packet log to /tmp/cmdrx.log and keeps the console for latch, clear, and release events only. Pass --log-file <PATH> to send that detail elsewhere, or --no-log-file to keep every packet on the console. Follow the detail with tail -f /tmp/cmdrx.log while watching the console for safe-state events.

Writing release to the receiver’s standard input is how a latched safe state is released. This is always enabled, so a background or service-managed receiver can be driven with echo release into its stdin or FIFO. The receiver also sends the request by itself once it first hears from the SDM, which clears a latch left over from a previous run. See 2.5 Clearing a Latched Safe State.

The Safety Core Docker container pulled in 1.2 Docker Installation can now be launched. All Spatial AI 2D Docker containers must be up and running before proceeding. The Safety Core container should be started with the Docker socket, shared log directory, and sensor configuration file mounted from the host and bound to the host network.

# Launch the Safety Core (PSF) Docker container
docker run --name nv-psf \
    --gpus all \
    -e NVIDIA_DRIVER_CAPABILITIES=all \
    -v /var/run/docker.sock:/var/run/docker.sock \
    -v /var/log/psf:/var/log/psf \
    -v /opt/nvidia/psf/bin/sensor_config.conf:/opt/nvidia/psf/bin/sensor_config.conf:ro \
    --network="host" \
    --group-add $(getent group docker | cut -d: -f3) \
    -d nvcr.io/nvidia/halos-outside-in/outside-in-safety:nv-psf-halos-1.3-6932895 \
    --app atl --cmd_rx_ip <IP> --cmd_rx_port <Port> \
    --sensor-config /opt/nvidia/psf/bin/sensor_config.conf \
    --saim-mode active

Tip

To view container logs in real time, run: tail -f /var/log/psf/psf.log

Note

With the 1.3 Safety Core image the Safety AI Monitor runs inside this container alongside the other Safety Core components. The command above starts SAIM in active mode using the shipped default baselines. To capture site-specific baselines, run a one-time learn pass (see 2.4.2 Typical Invocations) and bind-mount a host baseline directory onto /opt/nvidia/psf/bin/saim_baseline in both the learn and active commands so the learned .cfg files persist. With a raw docker run, add that same -v mount plus --saim-mode learn --learn-duration <seconds> (no --app or SDM receiver needed). To run the container without SAIM, pass --saim-mode skip and drop the accelerator flags.

The default values for IP and Port are 127.0.0.1 and 12345 respectively.

2.2.2 Option C: aarch64 — SDM on FSI#

In this option, the Safety Decision Maker is offloaded to the Functional Safety Island (FSI) on IGX Thor based platforms. The SEI daemon, event ingestion pipeline, and NvPSD Gateway continue to run on the CCPLEX, while the SDM executes in the hardware-isolated FSI environment.

Prerequisites

  1. Flash the IGX Thor BSP software and the Safety Extension Package (SEP) on the target platform. Refer to the IGX Safety Extension Package documentation for flashing instructions.

  2. Extract the psf-tegra-fsi.deb package on the host machine to which the IGX Thor target is connected. This package contains the HOISA FSI firmware binary (fsi-ffw-t264.bin) required for running the SDM on the Functional Safety Island, as well as the fsicom-agent communication bridge (installed to /opt/nvidia/psf/bin/fsicom-agent) that relays decisions between the FSI and the NvPSD Gateway on the CCPLEX.

# Extract the FSI firmware package on the host
dpkg -x psf-tegra-fsi.deb <extraction_path>

After extraction, the firmware binary is located at:

<extraction_path>/opt/nvidia/psf/etc/fsi-fw/atl/fsi-ffw-t264.bin

  1. Reflash the IGX Thor target with the above firmware image from the host. This step replaces the default firmware that was flashed as part of the Safety Extension Package with the HOISA-specific SDM firmware. Flash the image that matches the application under test: fsi-fw/atl/ for the forklift use case and fsi-fw/proximity/ for proximity monitoring.

  2. Reset or reboot the board so the FSI island boots the new firmware, and do this before starting nvFsiCom or fsicom-agent. The firmware does not take effect until the reset.

Important

The nvFsiCom daemon must already be running before fsicom-agent starts. Without it, fsicom-agent stops at [INIT] Initializing FSI communication... waiting on /dev/fsicom_client, never connects to the gateway, and no decision ever reaches the command receiver. Confirm the kernel module and device node are present, then confirm the daemon is up:

lsmod | grep tegra_fsicom
ls -l /dev/fsicom_client
pgrep -af nvFsiCom

Execution Steps:

For Debian-based installation:

Note

Ensure the psf-tegra.deb package has been installed for the CCPLEX-side components. Refer to 1.1 Debian Installation for details. The fsicom-agent bridge used in this mode ships in the psf-tegra-fsi.deb package (see the prerequisite extraction step above), while psf-tegra.deb supplies the remaining CCPLEX-side components.

In SDM-on-FSI mode, the atl_sdm binary is not launched on the CCPLEX. Instead, the fsicom-agent communication bridge must be started on the CCPLEX to relay decisions between the FSI and the NvPSD Gateway.

Note

The nvFsiCom daemon and fsicom-agent processes must be launched with root privileges.

# Launch command receiver (runs on CCPLEX / external system)
# Default port: 12345, max_hb_failures: 10
./atl_sdm_cmd_receiver -p <port> --max_hb_failures 100 \
    --vst_ip <VST_IP> --vst_port <VST_PORT>

# Launch FSI communication daemon
sudo /opt/nvidia/ccplex_sf/fsi_ccplex_com/nvFsiCom &

# Launch FSI communication agent (replaces atl_sdm in this mode)
# Default command receiver ip: 127.0.0.1, port: 12345
sudo ./fsicom-agent --relay-fsi-resp --ip <IP> --port <Port> --heartbeat

# Launch NvPSD Gateway
./nvpsd_gateway

# Launch SEI Daemon
# Reads sensorConfig from /opt/nvidia/psf/bin/nvpss.conf.
./nvpss_daemon

# Launch Event Ingestion
./mdx_client --config /opt/nvidia/psf/apps/atl/event_mapping_atl.pb.txt \
    --sensor-config /opt/nvidia/psf/bin/sensor_config.conf

fsicom-agent accepts the following options:

Option

Default

Description

--gw-ip <addr>

127.0.0.1

NvPSD Gateway address the agent registers with.

--gw-port <port>

50000

NvPSD Gateway UDP port. Must match the port the gateway binds.

--relay-fsi-resp

off

Relay decisions coming back from the FSI over UDP. Requires both --ip and --port; the agent exits at startup if either is missing.

--ip <addr>

—

Relay destination, that is, the host running the command receiver.

--port <port>

—

Relay destination port. This must equal the receiver’s -p listen port, or decisions are sent where nothing is listening.

--heartbeat

off

Send periodic pings to the FSI and track its beacons and pongs. Use it to confirm the FSI link is alive rather than merely open.

--heartbeat-interval <ms>

2000

Ping interval when --heartbeat is enabled.

A healthy start looks like this, in order:

[INIT] ✓ FSI communication initialized
[INFO] NvPSDGateway: connected
[HB] First keepalive received (seq=...) — FSI heartbeat link up
[HB] First pong received (seq=...) — FSI responding to pings

Note

Starting the agent before the Safety Core container is fine. Until the gateway binds its port the agent reports [GW] Gateway not reachable yet (connection refused); awaiting NvPSDGateway on 127.0.0.1:50000... and then connects on its own once the container is up. A message that never clears means the gateway is not running, or is bound to a different address than --gw-ip / --gw-port.

Once the container is running, check that both hops of the FSI path exist:

# nvpsd_gateway listening, with fsicom-agent connected to it
sudo ss -unap | grep ':50000'

# command receiver listening on its own port
sudo ss -lunp | grep ':12345'

An ESTAB row from fsicom-agent to 127.0.0.1:50000 confirms the gateway link; decisions arriving as Received ... command: 0x.. lines in the receiver log confirm the relay hop.

Tip

SDM logs can be observed on the FSI UART shell. The tcu_muxer utility can be used to obtain the device node for accessing the FSI UART.

For Docker-based installation:

The command receiver must run outside the Safety Core container, as described in 2.2.1 Option A / B : x86-64 / aarch64 — SDM on CCPLEX.

The Safety Core Docker container is launched with the --sdm-on-fsi flag, which skips the CCPLEX-based SDM process. The nvFsiCom daemon and fsicom-agent must be launched on the CCPLEX separately.

Note

The nvFsiCom daemon and fsicom-agent processes must be launched with root privileges.

# Launch the command receiver app
./atl_sdm_cmd_receiver -p <port> --max_hb_failures 100 \
    --vst_ip <VST_IP> --vst_port <VST_PORT>

# Launch FSI communication daemon
sudo /opt/nvidia/ccplex_sf/fsi_ccplex_com/nvFsiCom &

# Launch FSI communication agent on the CCPLEX (outside the container)
# Default command receiver ip: 127.0.0.1, port: 12345
sudo ./fsicom-agent --relay-fsi-resp --ip <IP> --port <Port> --heartbeat

# Launch the Safety Core (PSF) Docker container with SDM-on-FSI mode
docker run --name nv-psf \
    --runtime nvidia \
    -e NVIDIA_VISIBLE_DEVICES=all \
    -e NVIDIA_DRIVER_CAPABILITIES=all \
    -v /var/run/docker.sock:/var/run/docker.sock \
    -v /var/log/psf:/var/log/psf \
    -v /opt/nvidia/psf/bin/sensor_config.conf:/opt/nvidia/psf/bin/sensor_config.conf:ro \
    --network="host" \
    --group-add $(getent group docker | cut -d: -f3) \
    -d nvcr.io/nvidia/halos-outside-in/outside-in-safety:nv-psf-halos-1.3-6932895 \
    --app atl --sdm-on-fsi \
    --sensor-config /opt/nvidia/psf/bin/sensor_config.conf \
    --saim-mode active

Tip

To view container logs in real time, run: tail -f /var/log/psf/psf.log

Tip

SDM logs can be observed on the FSI UART shell. The tcu_muxer utility can be used to obtain the device node for accessing the FSI UART.

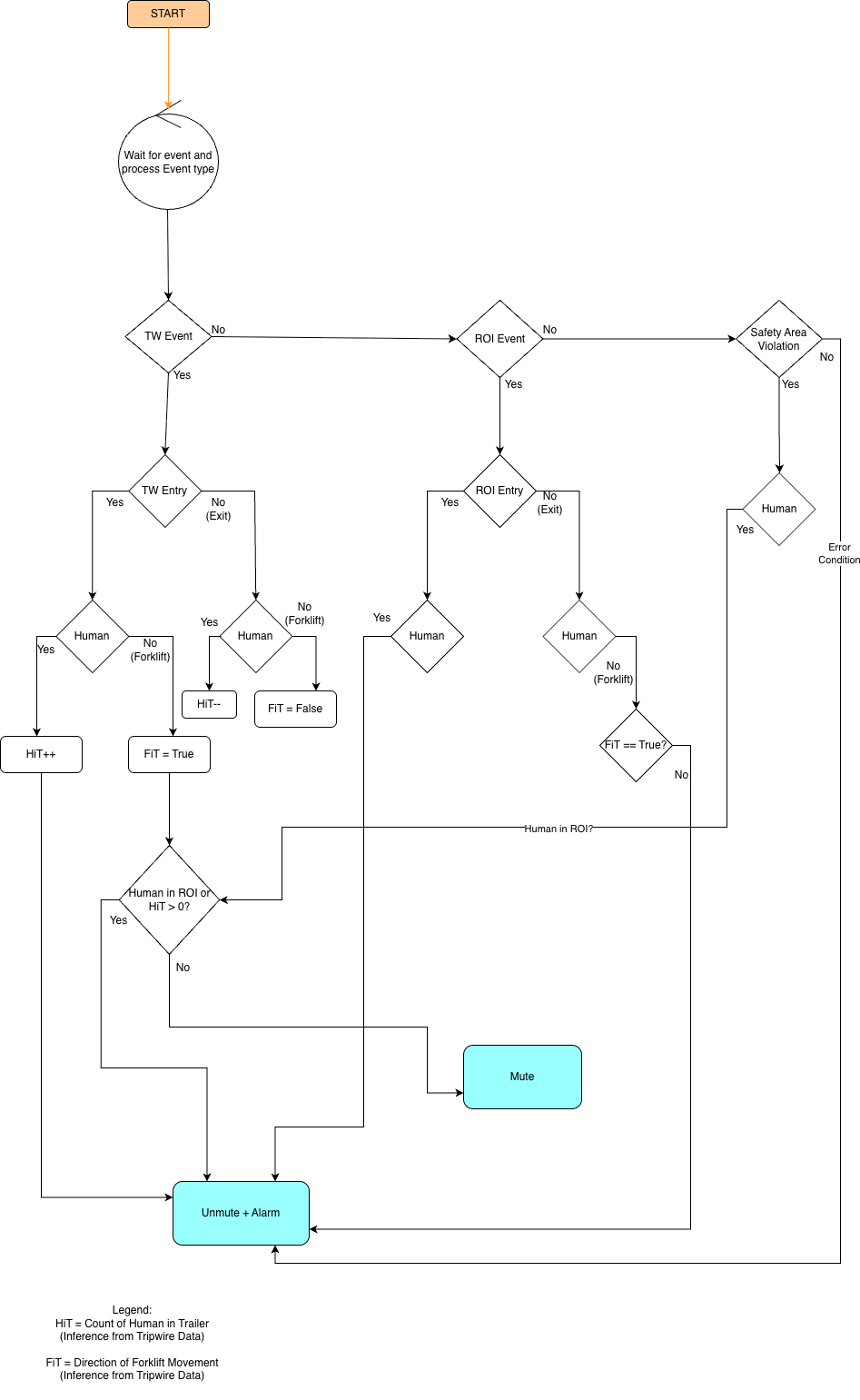

The forklift safety control operation works based on the following algorithm:

ATL Control Algorithm

The Forklift Safety Control Application follows this execution flow:

  1. Event Ingestion: Consumes Kafka events, processes them for alerts, and forwards safety events to the central daemon.

  2. Event Integrator: Manages safety events centrally. It aggregates, validates, and fuses events from multiple sources, then forwards them to forklift safety control

  3. Decision & Command: Receives validated safety events, forklift safety control algorithm, and sends mute/unmute commands via UDP with acknowledgments.

  4. Command Reception & Ack: Listens for UDP commands, executes safety actions, and sends acknowledgment packets back.

UDP Packet Format

Both command and acknowledgment packets are 64 bytes, structured as follows:

  • Byte 0 Identifier: 1 byte: Magic identifier (0xA2)

  • Bytes 1-2 Sequence Number: 2 bytes: Packet sequence number (uint16)

  • Byte 3 Command: 1 byte: Command opcode

  • Bytes 4-11 Timestamp Seconds: 8 bytes: UTC seconds since epoch (uint64)

  • Bytes 12-19 Timestamp Microseconds: 8 bytes: Microseconds component (uint64)

  • Bytes 20-23 CRC-32: 4 bytes: CRC-32 checksum (computed over bytes 0-19 and 24-63)

  • Bytes 24-43 Object Record 0: 20 bytes: First object record (object_id, x, y, z, metadata)

  • Bytes 44-63 Object Record 1: 20 bytes: Second object record (same layout)

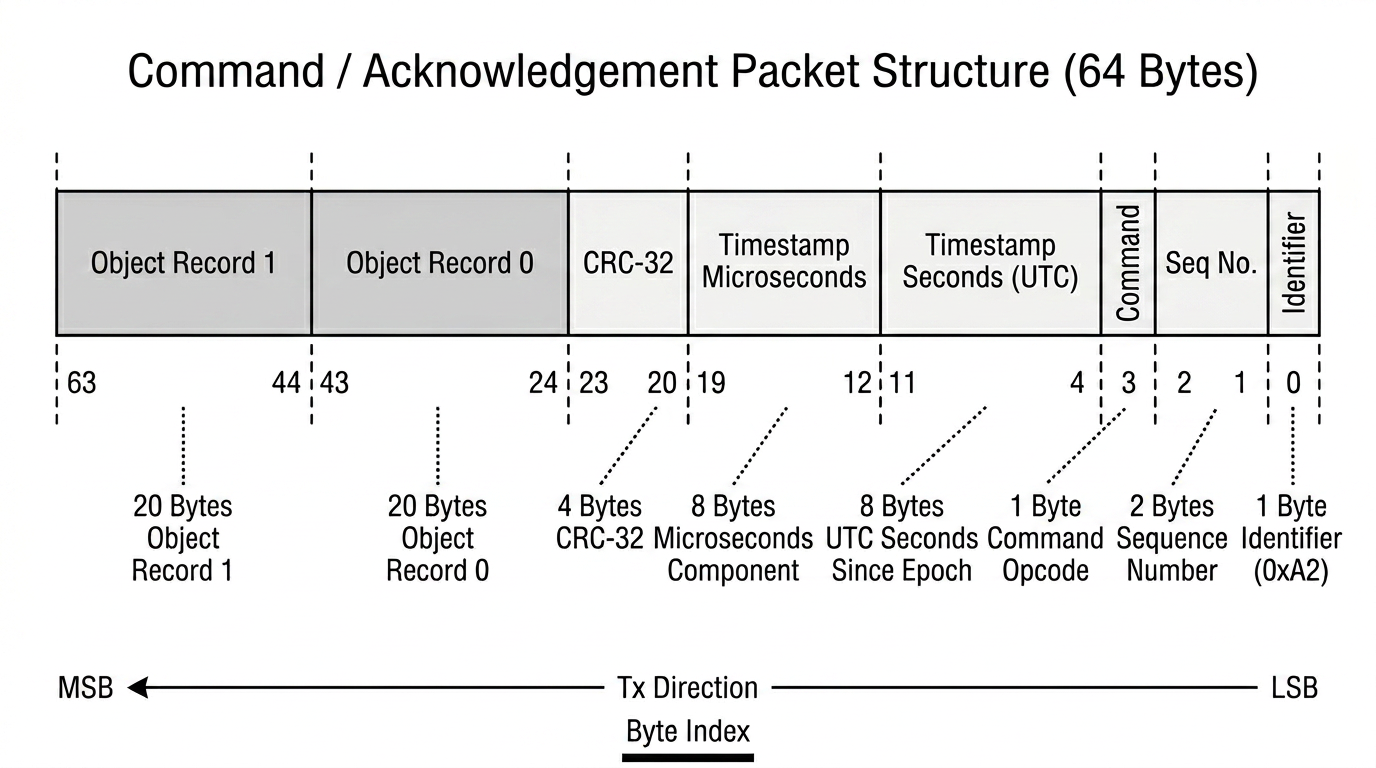

Packet Structure

2.3 Launch ‘Proximity Monitoring’ (Preview)#

This application uses Safety Core to monitor the distance between a human operator and an Agility Digit Humanoid robot operating in a warehouse environment. The system continuously evaluates the proximity between them and generates appropriate safety signals based on distance thresholds.

Note

Proximity Monitoring requires a VSS Vision AI 3D deployment with the warehouse-4cams-20mx20m-synthetic dataset. Refer to the VSS 3D deployment documentation for setup instructions.

The proximity monitoring operation is based on the following distance thresholds:

Distance

Zone

Signal

Greater than 2 meters

Safe

Normal Operation

Between 1 and 2 meters

Warning

Slow Down

Less than 1 meter

Critical

Emergency Stop

  1. When the distance between the human and the robot exceeds 2 meters, the system signals Normal Operation (CMD_NORMAL), allowing standard robot movement.

  2. When the distance falls between 1 and 2 meters, the system signals Slow Down (CMD_REDUCE), commanding the robot to reduce its speed.

  3. When the distance drops below 1 meter, the system signals Emergency Stop (CMD_STOP), commanding the robot to halt immediately.

Supported Deployment Options

Proximity Monitoring supports the following deployment options:

Platform

SDM Location

Description

x86-64

CCPLEX

Standard deployment on x86-64 servers.

aarch64

CCPLEX

IGX Thor based deployment with SDM running on the CCPLEX. Execution is identical to x86-64.

aarch64

FSI

IGX Thor based deployment with SDM offloaded to the FSI (Functional Safety Island) for hardware-isolated safety.

Execution Steps:

2.3.1 Option A/B: x86-64 / aarch64 — SDM on CCPLEX#

This option applies to both x86-64 and aarch64 (IGX Thor) platforms when the Safety Decision Maker runs on the CCPLEX. The launch procedure is identical on both architectures.

Note

For aarch64 (IGX Thor) deployments, it is a prerequisite that the appropriate BSP version of IGX Software (version IGX SW 2.0) has been flashed on the target platform.

For Debian-based installation:

Note

Ensure the Debian package corresponding to the target architecture has been installed: psf-desktop.deb for x86-64 or psf-tegra.deb for aarch64 (IGX Thor). Refer to 1.1 Debian Installation for details.

# Launch command receiver (runs on host / external system)
# Default port: 12345, max_hb_failures: 10
./proximity_sdm_cmd_receiver -p <port> --max_hb_failures 100

# Launch NvPSD Gateway
./nvpsd_gateway

# Launch SEI Daemon
# Reads sensorConfig from /opt/nvidia/psf/bin/nvpss.conf.
./nvpss_daemon

# Launch Safety Decision Maker
# Default cmd_rx_ip: 127.0.0.1, cmd_rx_port: 12345
./proximity_sdm --cmd_rx_ip <IP> --cmd_rx_port <Port>

# Launch Event Ingestion
./mdx_client --config /opt/nvidia/psf/apps/proximity/proximity_event_mapping.pb.txt \
    --sensor-config /opt/nvidia/psf/bin/sensor_config.conf

For Docker-based installation:

The command receiver application must run outside the Safety Core container. It can be extracted from the PSF-desktop.deb package.

# Extract psf-desktop Debian package
dpkg -x psf-desktop.deb .

The command receiver application can be found at <extracted_package_path>/opt/nvidia/psf/apps/proximity/proximity_sdm_cmd_receiver.

# Launch the command receiver app
./proximity_sdm_cmd_receiver -p <port> --max_hb_failures 100

Note

The command receiver application can run on a different system in the same network. If it does, pass its IP address and port to the SDM application (proximity_sdm --cmd_rx_ip / --cmd_rx_port) so the Safety Decision Maker can reach it.

The Proximity receiver has no VST relay. --vst_ip and --vst_port are accepted only by the ATL receiver, and passing them to proximity_sdm_cmd_receiver fails at startup with error: unknown option.

--max_hb_failures sets how many consecutive upstream heartbeat misses the receiver tolerates before it raises a heartbeat fault (range 1-255, default 10). The first miss is counted 5 seconds after the last heartbeat and each further miss after another 5.5 seconds, so the value shown above delays the fault by roughly nine minutes. Use it only to keep a demonstration running over a noisy link, and keep the default in a production deployment.

By default the receiver writes its verbose per-packet log to /tmp/cmdrx.log and keeps the console for latch, clear, and release events only. Pass --log-file <PATH> to send that detail elsewhere, or --no-log-file to keep every packet on the console. Follow the detail with tail -f /tmp/cmdrx.log while watching the console for safe-state events.

Writing release to the receiver’s standard input is how a latched safe state is released. This is always enabled, so a background or service-managed receiver can be driven with echo release into its stdin or FIFO. The receiver also sends the request by itself once it first hears from the SDM, which clears a latch left over from a previous run. See 2.5 Clearing a Latched Safe State.

The Safety Core Docker container pulled in 1.2 Docker Installation can now be launched. All Spatial AI 3D Docker containers must be up and running before proceeding. The Safety Core container should be started with the Docker socket, shared log directory, and sensor configuration file mounted from the host and bound to the host network.

# Launch the Safety Core (PSF) Docker container
docker run --name nv-psf \
    --gpus all \
    -e NVIDIA_DRIVER_CAPABILITIES=all \
    -v /var/run/docker.sock:/var/run/docker.sock \
    -v /var/log/psf:/var/log/psf \
    -v /opt/nvidia/psf/bin/sensor_config.conf:/opt/nvidia/psf/bin/sensor_config.conf:ro \
    --network="host" \
    --group-add $(getent group docker | cut -d: -f3) \
    -d nvcr.io/nvidia/halos-outside-in/outside-in-safety:nv-psf-halos-1.3-6932895 \
    --app pxc --cmd_rx_ip <IP> --cmd_rx_port <Port> \
    --sensor-config /opt/nvidia/psf/bin/sensor_config.conf \
    --saim-mode active

Tip

To view container logs in real time, run: tail -f /var/log/psf/psf.log

Note

With the 1.3 Safety Core image the Safety AI Monitor runs inside this container alongside the other Safety Core components. The command above starts SAIM in active mode using the shipped default baselines. To capture site-specific baselines, run a one-time learn pass (see 2.4.2 Typical Invocations) and bind-mount a host baseline directory onto /opt/nvidia/psf/bin/saim_baseline in both the learn and active commands so the learned .cfg files persist. With a raw docker run, add that same -v mount plus --saim-mode learn --learn-duration <seconds> (no --app or SDM receiver needed). To run the container without SAIM, pass --saim-mode skip and drop the accelerator flags.

The default values for IP and Port are 127.0.0.1 and 12345 respectively.

2.3.2 Option C: aarch64 — SDM on FSI#

In this option, the Safety Decision Maker is offloaded to the Functional Safety Island (FSI) on IGX Thor based platforms. The SEI daemon, event ingestion pipeline, and NvPSD Gateway continue to run on the CCPLEX, while the SDM executes in the hardware-isolated FSI environment.

The prerequisites for FSI deployment are the same as described in 2.2.2 Option C: aarch64 — SDM on FSI, with the FSI firmware located at /opt/nvidia/psf/etc/fsi-fw/proximity/fsi-ffw-t264.bin. The fsicom-agent options, expected startup output, and link checks are the same as well; see the option reference below.

For Debian-based installation:

Note

Ensure the psf-tegra.deb package has been installed for the CCPLEX-side components. Refer to 1.1 Debian Installation for details. The fsicom-agent bridge used in this mode ships in the psf-tegra-fsi.deb package (see the prerequisite extraction step in 2.2.2 Option C: aarch64 — SDM on FSI), while psf-tegra.deb supplies the remaining CCPLEX-side components.

In SDM-on-FSI mode, the proximity_sdm binary is not launched on the CCPLEX. Instead, the fsicom-agent communication bridge must be started on the CCPLEX to relay decisions between the FSI and the NvPSD Gateway.

Note

The nvFsiCom daemon and fsicom-agent processes must be launched with root privileges.

# Launch command receiver (runs on CCPLEX / external system)
# Default port: 12345, max_hb_failures: 10
./proximity_sdm_cmd_receiver -p <port> --max_hb_failures 100

# Launch FSI communication daemon
sudo /opt/nvidia/ccplex_sf/fsi_ccplex_com/nvFsiCom &

# Launch FSI communication agent (replaces proximity_sdm in this mode)
# Default command receiver ip: 127.0.0.1, port: 12345
sudo ./fsicom-agent --relay-fsi-resp --ip <IP> --port <Port> --heartbeat

# Launch NvPSD Gateway
./nvpsd_gateway

# Launch SEI Daemon
# Reads sensorConfig from /opt/nvidia/psf/bin/nvpss.conf.
./nvpss_daemon

# Launch Event Ingestion
./mdx_client --config /opt/nvidia/psf/apps/proximity/proximity_event_mapping.pb.txt \
    --sensor-config /opt/nvidia/psf/bin/sensor_config.conf

Tip

SDM logs can be observed on the FSI UART shell. The tcu_muxer utility can be used to obtain the device node for accessing the FSI UART.

For Docker-based installation:

The command receiver application must run outside the Safety Core container. It can be extracted from the PSF-desktop.deb package as described in the Debian-based installation steps above.

The Safety Core Docker container is launched with the --sdm-on-fsi flag, which skips the CCPLEX-based SDM process. The nvFsiCom daemon and fsicom-agent must be launched on the CCPLEX separately, before starting the Docker container.

Note

The nvFsiCom daemon and fsicom-agent processes must be launched with root privileges.

# Launch the command receiver app (on CCPLEX)
./proximity_sdm_cmd_receiver -p <port> --max_hb_failures 100

# Launch FSI communication daemon
sudo /opt/nvidia/ccplex_sf/fsi_ccplex_com/nvFsiCom &

# Launch FSI communication agent on the CCPLEX (outside the container)
# Default command receiver ip: 127.0.0.1, port: 12345
sudo ./fsicom-agent --relay-fsi-resp --ip <IP> --port <Port> --heartbeat

# Launch the Safety Core (PSF) Docker container with SDM-on-FSI mode
docker run --name nv-psf \
    --runtime nvidia \
    -e NVIDIA_VISIBLE_DEVICES=all \
    -e NVIDIA_DRIVER_CAPABILITIES=all \
    -v /var/run/docker.sock:/var/run/docker.sock \
    -v /var/log/psf:/var/log/psf \
    -v /opt/nvidia/psf/bin/sensor_config.conf:/opt/nvidia/psf/bin/sensor_config.conf:ro \
    --network="host" \
    --group-add $(getent group docker | cut -d: -f3) \
    -d nvcr.io/nvidia/halos-outside-in/outside-in-safety:nv-psf-halos-1.3-6932895 \
    --app pxc --sdm-on-fsi \
    --sensor-config /opt/nvidia/psf/bin/sensor_config.conf \
    --saim-mode active

Tip

To view container logs in real time, run: tail -f /var/log/psf/psf.log

Tip

SDM logs can be observed on the FSI UART shell. The tcu_muxer utility can be used to obtain the device node for accessing the FSI UART.

The Proximity Monitoring Application follows this execution flow:

  1. Event Ingestion: Consumes Kafka events from the VSS 3D perception pipeline, processes proximity data, and forwards safety events to the SEI daemon.

  2. Event Integrator: Manages safety events centrally. It aggregates, validates, and fuses proximity events from multiple camera sources, then forwards them to the proximity control logic.

  3. Decision & Command: Receives validated safety events, evaluates the proximity distance against configured thresholds, and sends Normal/Reduce/Stop commands via UDP with acknowledgments.

  4. Command Reception & Ack: Simulates the robot’s command interpreter. Incoming commands are buffered and evaluated every 100 ms using a “most conservative wins” policy — any Stop overrides Reduce, which overrides Normal. Acknowledgment packets are sent back to the sender.

UDP Packet Format

Both command and acknowledgment packets are 64 bytes, with the same structure as described in Section 2.2. The packet identifier for Proximity Monitoring is 0xA5.

The command opcodes specific to this application are:

Command

Code

Description

HEARTBEAT

0x00

Periodic liveness check

HW_ERROR

0x01

Hardware error signal

STOP

0x02

Emergency stop

SW_ERROR

0x03

Software error signal

REDUCE

0x05

Slow down (safe speed)

NORMAL

0x07

Normal operation

2.4 Quick Start with launch_hoisa.sh#

As an alternative to the manual, per-component steps in sections 2.2 and 2.3, the reference launcher launch_hoisa.sh can bring up the full Safety Core stack with a single command. It wraps the same components described above:

  • the Safety Core Docker container (NvPSD Gateway, SEI daemon, event ingestion),

  • the host-side Safety Decision Maker (CCPLEX SDM, or the FSI bridge on IGX Thor),

  • the Safety AI Monitor and Perception Monitor in LEARN or ACTIVE mode (unless --skip-pcm is supplied), and

  • graceful startup/shutdown of the above on SIGINT / SIGTERM.

The launcher is installed by the psf-desktop / psf-tegra Debian packages at /opt/nvidia/psf/bin/launch_hoisa.sh.

Run the launcher from /opt/nvidia/psf/bin. SAIM’s per-sensor baseline files are stored in a dedicated host baseline directory, selected with the launch_hoisa.sh --baseline-dir argument: when it is omitted the default /opt/nvidia/psf/bin/saim_baseline is used, and when it is supplied the path you provide is used instead. Under the default Docker runtime this directory is bind-mounted into the container so baselines learned in learn mode persist for active mode. Use the same --baseline-dir for both modes.

Running ``active`` without ``learn`` (default baselines). SAIM ships default baseline templates for a 3-camera loading-dock reference scene (Camera_01, Camera_02 and Camera), so active mode can start before any learn pass. For each configured sensor, SAIM first checks for a learned baseline (<sensorName>_baseline.cfg) in the baseline directory; if it is not present, SAIM uses the matching shipped template (<sensorName>_baseline.cfg.default). active mode fails only when neither is found. The defaults are tuned for the reference cameras; for any other camera or scene, run learn mode to generate accurate site-specific baselines.

2.4.1 Operating Modes#

Mode

Components launched

When to use

learn

Safety AI Monitor and Perception Monitor (LEARN).

One-time baseline-learning pass per camera install.

active

Safety Core container + SDM + SAIM (ACTIVE) + PCM.

Full production stack. Default deployment.

skip

Safety Core container + SDM (no SAIM).

AI-trust path validated separately, or no GPU/decoder budget available for SAIM.

2.4.2 Typical Invocations#

Learn (first-time setup per camera install). learn mode only captures baselines, so it needs no threshold config or SDM application; under the default Docker runtime it requires --docker-image:

cd /opt/nvidia/psf/bin
sudo ./launch_hoisa.sh --mode learn \
    --sensor-config /opt/nvidia/psf/bin/sensor_config.conf \
    --docker-image <PSF_DOCKER_IMAGE> \
    --learn-duration 300

Active — Forklift Safety Control:

cd /opt/nvidia/psf/bin
sudo ./launch_hoisa.sh --mode active --app atl \
    --sensor-config /opt/nvidia/psf/bin/sensor_config.conf \
    --docker-image <PSF_DOCKER_IMAGE> \
    --cmd-rx-ip <IP> --cmd-rx-port <Port>

Active — Proximity Monitoring:

cd /opt/nvidia/psf/bin
sudo ./launch_hoisa.sh --mode active --app pxc \
    --sensor-config /opt/nvidia/psf/bin/sensor_config.conf \
    --docker-image <PSF_DOCKER_IMAGE> \
    --cmd-rx-ip <IP> --cmd-rx-port <Port>

Active — SDM on FSI (IGX Thor; nvFsiCom must be started separately, see sections 2.2.2 Option C: aarch64 — SDM on FSI and 2.3.2 Option C: aarch64 — SDM on FSI):

cd /opt/nvidia/psf/bin
sudo /opt/nvidia/ccplex_sf/fsi_ccplex_com/nvFsiCom &

sudo ./launch_hoisa.sh --mode active --app atl --sdm-target fsi \
    --sensor-config /opt/nvidia/psf/bin/sensor_config.conf \
    --docker-image <PSF_DOCKER_IMAGE> \
    --cmd-rx-ip <IP> --cmd-rx-port <Port>

Active — host runtime (no Docker). Run SAIM and the Safety Core components directly on the host instead of in a container:

cd /opt/nvidia/psf/bin
sudo ./launch_hoisa.sh --mode active --runtime host --app atl \
    --sensor-config /opt/nvidia/psf/bin/sensor_config.conf \
    --cmd-rx-ip <IP> --cmd-rx-port <Port>

Learn then Active with a shared baseline directory. The two examples above run active with SAIM’s default baseline directory. To capture site-specific baselines first, pass the same --baseline-dir to both learn and active so the learned *_baseline.cfg files carry from one step into the next (a learned .cfg then takes precedence over the shipped .cfg.default template):

# Step 1 - learn: writes <sensor>_baseline.cfg into the baseline directory
cd /opt/nvidia/psf/bin
sudo ./launch_hoisa.sh --mode learn \
    --sensor-config /opt/nvidia/psf/bin/sensor_config.conf \
    --learn-duration 300 \
    --baseline-dir /path/to/saim_baseline \
    --docker-image <PSF_DOCKER_IMAGE>

# Step 2 - active: reads the learned baselines from the same directory
sudo ./launch_hoisa.sh --mode active --app atl \
    --sensor-config /opt/nvidia/psf/bin/sensor_config.conf \
    --cmd-rx-ip <IP> --cmd-rx-port <Port> \
    --baseline-dir /path/to/saim_baseline \
    --docker-image <PSF_DOCKER_IMAGE>

For host runtime, add --runtime host and drop --docker-image from both steps. When --baseline-dir is omitted, SAIM uses the default /opt/nvidia/psf/bin/saim_baseline directory (see Default baselines (running active mode without learn)).

2.4.3 Prerequisites#

  • psf-desktop.deb (x86-64) or psf-tegra.deb (aarch64) installed.

  • Docker installed and the invoking user a member of the docker group (active / skip modes only).

  • The launcher must be run as root, or the invoking user must have passwordless sudo access. The launcher invokes privileged operations with sudo -n to create the runtime directories under /var/log/psf and launch the host-side SDM process (and SAIM when --runtime host is used).

  • Run the launcher from /opt/nvidia/psf/bin, and use the same --baseline-dir for learn and active so SAIM finds the learned baselines (default: /opt/nvidia/psf/bin/saim_baseline).

  • Every rtspUrl in sensor_config.conf must be validated with ffprobe or gst-launch-1.0 before learn or active mode is started.

  • sensor_config.conf must exist and be readable. It maps the pipeline IDs and VSS sensor names used by event ingestion to the RTSP streams consumed by Safety Core.

  • The event-mapping configuration for the selected application must exist and be valid. For direct mdx_client launches, pass it with --config; launch_hoisa.sh selects the ATL or Proximity mapping from /opt/nvidia/psf/apps/. Its rules must match the deployed VSS topics, object labels, and ROI or tripwire identifiers. See Event Mapping Configuration.

  • Before active mode, confirm the SAIM baseline files generated by learn mode are present in the baseline directory. Baseline file names are derived from the configured sensorName values, for example Camera_01_baseline.cfg. If a learned baseline is missing for a sensor, SAIM falls back to the shipped default baseline template.

  • nvpss.conf must be present and readable (by default at /opt/nvidia/psf/bin/nvpss.conf). See SEI Configuration.

2.4.4 Logs#

All runtime logs are written under /var/log/psf/:

  • psf.log — Safety Core container components.

  • saim.log — Safety AI Monitor when --runtime host is used. With the Docker runtime, use docker logs <container-name> for SAIM output.

  • pcm.log — Perception Monitor (unless disabled with --skip-pcm).

  • atl_sdm.log — ATL SDM (--app atl).

  • pxc_sdm.log — Proximity SDM (--app pxc).

To verify HALOS-specific runtime flow, check the SAIM and Safety Core logs directly:

# With --runtime host:
grep -E "baseline|RTSP|SENSOR_INVALID|SENSOR_VALID" /var/log/psf/saim.log
# With the Docker runtime:
docker logs <container-name> 2>&1 | grep -E "baseline|RTSP|SENSOR_INVALID|SENSOR_VALID"
grep -E "PSD Gateway|DecisionRequest|heartbeat" /var/log/psf/psf.log

Note

To relay validated ATL decision commands to VST, launch atl_sdm_cmd_receiver with both --vst_ip <VST_IP> and --vst_port <VST_PORT>. These options are paired: supplying only one causes receiver startup to fail. The relay is optional; its delivery failures do not interrupt command reception or acknowledgement. The Proximity receiver has no VST relay and rejects both options. Validate deployment health using VST sensor status, RTSP playback, SAIM logs, Safety Core logs, and Kafka events.

For the full launcher option reference, see launch_hoisa.sh. For the browser-based log dashboard, see Log Viewer.

2.5 Clearing a Latched Safe State#

When the Safety Decision Maker detects a safety-path fault, it latches the safe state: it sends CMD_UNMUTE (prevent operation) followed by CMD_SW_ERROR, and keeps re-asserting that pair. The SDM does not return to normal operation on its own once the fault clears. The latch is released only by an explicit safe-release request from the external controller.

The following fault sources hold the latch:

  • Loss of NvPSD Gateway heartbeats.

  • An SEI fault (SW_FAIL or SEI reporting ERROR mode).

  • A decision freshness timeout.

  • A gateway decision sequence fault.

  • All safety-relevant sensors reporting invalid.

The release handshake uses three command opcodes on the same UDP channel as the decision commands:

  1. While the safe state is held, the SDM sends CMD_SW_ERROR to the command receiver.

  2. The reference command receivers prompt on standard input: Is it safe to return to normal mode? Enter 'release' to exit safe-state, or 'no' to stay safe:

  3. Entering release (r, safe-release, y, and yes are also accepted) sends CMD_SAFE_RELEASE_REQUEST (0x08) to the SDM. Entering no keeps the safe state.

  4. If any fault source is still active, the SDM answers CMD_SAFE_RELEASE_DENIED (0x0A), re-asserts CMD_UNMUTE and CMD_SW_ERROR, and logs PLC safe-release denied; active safe-state fault source remains. The receiver prompts again.

  5. If every fault source has cleared, the SDM answers CMD_SAFE_RELEASE_ACK (0x09) followed by CMD_UNMUTE, clears the latch, resets its internal state, and logs PLC safe-release accepted.

Note

Safe-release over standard input is always enabled and there is no flag to turn it on or off. Displaying the prompt needs a terminal, but sending the answer does not: a background or service-managed receiver can be driven with echo release into its stdin or FIFO. Only if the receiver has no usable stdin at all does that path disappear, in which case your own controller should send CMD_SAFE_RELEASE_REQUEST.

Input is accepted only once the SDM reports a release-ready safe state. Before that the receiver answers Ignoring safe-release input until SDM reports a release-ready safe state. The SDM in turn accepts the request only from the command receiver endpoint it is configured with (--cmd_rx_ip / --cmd_rx_port).

Restarting the command receiver sends one request on its own, shortly after it first hears from the SDM. That releases a latch whose fault has already cleared, without operator input. A fault that is still active is denied as in step 4, so a restart is not a way out of a live fault.

Before releasing the latch, confirm the scene is genuinely safe, because the SDM only re-checks its own fault sources and cannot see the work area. For the forklift use case that means the forklift is outside the trailer and the region of interest, and no person is inside either. A heartbeat miss or a corrupted frame is enough to latch the safe state, so a release request that is answered with CMD_SAFE_RELEASE_DENIED usually means the originating fault is still present rather than that the scene is unsafe.

Tip

The console shows the latch, denial, and release events, while the per-packet detail goes to /tmp/cmdrx.log. Watching both — the console for the prompt and tail -f /tmp/cmdrx.log for the command stream — makes it obvious whether the SDM is still re-asserting the fail-safe pair.

3. Safety Core Configuration#

This section describes the configuration files that control safety-event processing and event ingestion.

3.1 Safety Event Integrator Configuration#

The Safety Event Integrator (SEI) configuration defines fusion, bypass routing, inter-process transport, and heartbeat fail-safe behavior. Consult this reference whenever you modify nvpss.conf or adjust fusion behavior for a deployment. See SEI Configuration.

3.2 Event Mapping Configuration#

This section documents how mdx_client maps VSS mdx-events and mdx-frames messages into HOISA safety events. It includes the ATL reference mapping and rules for validating custom mappings. See Event Mapping Configuration.

4. Runtime Profile#

This section documents the measured runtime profile of Safety Core components on the IGX Thor (aarch64) reference platform. It captures CPU, GPU and PVA utilization, memory footprint (RSS / peak RSS), and NVDEC load under representative workloads. It serves as a reference for interpreting the per-component resource characteristics of the Safety AI Monitor, SEI daemon, SDM, and event ingestion pipeline. See Runtime Profile.

5. Halos Outside-In Safety Error Handling#

5.1 Overview#

The Safety Core framework is designed to fail safe by detecting errors, logging them, and raising software failure events (SW_FAIL) to the SEI daemon when critical components such as the event ingestion pipeline, VSS services, or the Decision control logic fail.

This section is a reference for that designed behavior: what each component does when a given class of error occurs, and what it reports. It is not a runbook. When you are working back from an observed symptom, go to 6. Troubleshooting, which pairs symptoms with diagnosis and resolution steps.

5.2 Kafka Connectivity Errors#

5.2.1 Initialization failures#

  • The event-ingestion client attempts to create each required Kafka consumer once during initialization.

  • If consumer creation fails, it logs the failure and exits; no events are sent to the SEI daemon.

5.2.2 Runtime receive errors#

  • Receive errors are logged, followed by a 100 ms sleep before the client continues consuming.

  • The client does not maintain a consecutive-error counter or generate a SW_FAIL event for this path.

5.2.3 Message parsing errors#

  • Malformed protobuf messages are silently dropped.

  • Repeated failures indicate schema/version mismatch; verify compatible protobuf versions.

Because both the runtime-receive and parsing paths are silent, a broker or schema problem surfaces as an absence of events rather than an error. For the procedure that isolates that case, see 6.6 No Behavior Analytics (BA) events on mdx-events.

5.3 VSS Service Monitoring Errors#

A background thread verifies required Docker services (mdx-deepstream, mdx-ui, analytics, recorders etc.,) are running.

5.4 SEI Client and Heartbeat Errors#

5.4.1 Registration/initialization#

  • Failure to register SEI client or initialize logging causes startup failure.

  • Application exits with error message; system is non-operational.

5.4.2 Heartbeat failures#

  • The event-ingestion client sends a heartbeat every 5 seconds. After 10 consecutive failures it logs PSS heartbeat ACK failure limit reached and shuts down, roughly 50 seconds after the daemon becomes unreachable.

  • This limit is compiled into the client and is independent of the daemon-side max_hb_failures setting in nvpss.conf, which governs how long the daemon waits before declaring a client dead.

  • Indicates unreachable SEI daemon; check daemon logs and network connectivity.

5.5 Decision Maker Algorithm Errors#

5.5.1 SDM initialization#

  • Failure to create NvPSD context or register callbacks causes exit before controlling safety function.

5.5.2 UDP socket and PLC communication#

  • Socket creation/bind failures prevent communication; check IP/port configuration and network connectivity.

  • Send failures log errors but do not automatically retry.

5.5.3 Acknowledgment timeouts#

  • Decision Commands not acknowledged within 3 seconds generate warning logs.

  • Indicates PLC is unreachable or unresponsive; external safety measures required.

5.5.4 SEI error mode#

  • When SEI daemon signals error, SDM sends SOFTWARE ERROR commands to external system.

  • Ensures safe fail-to-alarm behavior.

  • The SDM latches this state and keeps re-asserting the commands. Clearing the underlying fault is not enough to resume normal operation; see 2.5 Clearing a Latched Safe State.

5.6 Software Failure Events (SW_FAIL)#

Sources:

  • Persistent Kafka connection loss.

  • VSS services unavailable.

  • Docker command execution failure.

Safety implications:

  • Indicates software path for safe operation is compromised.

  • SEI daemon may fuse SW_FAIL with other events to trigger safety actions.

  • System should transition to safe state (e.g., stop motion, unmute alarms).

6. Troubleshooting#

Each entry below starts from an observable symptom and gives the diagnosis and resolution. For the designed error behavior behind these symptoms — which conditions raise SW_FAIL, which are logged silently, and which terminate a component — see Section 5.

Common Issues and Resolutions:

6.1 Events not being fused#

Symptoms:

  • All events show SafetyEventStatus = PASSTHROUGH or SafetyEventStatus = STALE

  • Fusion confidence is not improving

Diagnosis:

  • Check fusionThreshold in nvpss.conf (may be too high)

  • Verify multiple pipelines are reporting events

  • Check timeWindowSize (may be too small)

Solutions:

  • Lower fusionThreshold to 0.4-0.5

  • Increase timeWindowSize to 250-300ms

6.2 SEI Daemon fails to start when launched directly#

Symptoms:

  • nvpss_daemon exits immediately at startup when started directly on the host, outside of launch_hoisa.sh or the Safety Core Docker container.

  • The daemon log reports a socket setup failure referencing a path under /run/nvpsf.

Diagnosis:

  • The SEI daemon uses the runtime directory /run/nvpsf for its local IPC sockets. This directory is provisioned automatically by the supported launch paths (launch_hoisa.sh and the Safety Core Docker container). When the daemon is started directly, the directory may not be present.

  • Verify the directory is present and accessible:

    ls -ld /run/nvpsf

Solutions:

Note

/run is a tmpfs on most Linux distributions and is cleared on every reboot. If the SEI daemon is launched directly after a reboot, /run/nvpsf must be recreated before the daemon is started.

6.3 Safety AI Monitor exits with baseline file not found#

Symptoms:

  • safety_monitor exits during active mode startup.

  • /var/log/psf/saim.log reports a missing baseline file, such as Camera_01_baseline.cfg.

Diagnosis:

  • learn mode was not run for the current sensor_config.conf, and no default baseline template is available for the sensor. A missing learned baseline alone is not fatal: SAIM falls back to the shipped default template, and exits only when neither is present.

  • learn and active were run with different --baseline-dir values, so the learned baselines are not found.

Solutions:

  • Rerun learn mode to generate baselines, using the same --baseline-dir that active mode uses:

    cd /opt/nvidia/psf/bin
sudo ./launch_hoisa.sh --mode learn \
    --sensor-config /opt/nvidia/psf/bin/sensor_config.conf \
    --docker-image <PSF_DOCKER_IMAGE> \
    --learn-duration 300

  • Confirm the baseline files are present in the baseline directory (default /opt/nvidia/psf/bin/saim_baseline) before starting active mode.

6.4 VST sensor is online but RTSP playback fails#

Symptoms:

  • The VST dashboard or sensor API reports the sensor as online.

  • The configured /live/<sensor-id> RTSP URL returns DESCRIBE or PLAY errors, or safety_monitor cannot consume the stream.

Diagnosis:

  • Validate the exact rtspUrl from sensor_config.conf:

    ffprobe -rtsp_transport tcp <rtsp_url>
# or
gst-launch-1.0 rtspsrc location=<rtsp_url> ! fakesink

Solutions:

  • Refresh or recreate the VST proxy sensor.

  • Update sensor_config.conf with the refreshed /live/<sensor-id> RTSP URL.

  • Re-run the RTSP validation command before starting learn or active mode.

6.5 Duplicate VST sensor name#

Symptoms:

  • Creating a VST sensor fails with a duplicate-name error.

  • Existing names such as Camera_01, Camera_02, or Camera are already present from an earlier deployment.

Diagnosis:

  • Stale VST sensors can remain after previous setup attempts and block a clean HALOS configuration.

Solutions:

  • Remove the stale VST sensors before recreating them.

  • Alternatively, create new PSF-specific sensor names and update sensor_config.conf so its sensorName and rtspUrl values match the refreshed VST configuration.

6.6 No Behavior Analytics (BA) events on mdx-events#

Symptoms:

  • The VSS dashboard is reachable, but HOISA does not receive expected behavior analytics events.

  • SEI / SDM logs do not show the expected safety event flow.

Diagnosis:

  • Confirm the VSS perception pipeline is publishing behavior analytics events to Kafka:

    docker exec kafka kafka-console-consumer \
    --bootstrap-server localhost:9092 \
    --topic mdx-events \
    --from-beginning \
    --timeout-ms 10000

  • Confirm the Behavior.sensor.id values in the events match the sensorName values in sensor_config.conf.

Solutions:

  • Correct the VSS camera or pipeline mapping so Behavior Analytics events use the same camera names configured for Halos Outside-In.

  • Relaunch the Safety Core components after updating the mapping.

6.7 Safety AI Monitor exits at startup with a GPU / decoder error#

Symptoms:

  • safety_monitor exits immediately in learn or active mode.

  • /var/log/psf/saim.log reports CUDA initialization failed, Decoder capability query failed, or a libnvcuvid load error.

Diagnosis:

  • The container does not have GPU access, or the NVIDIA video-decode library that SAIM uses to decode the RTSP streams is not exposed to it. On some driver versions this library is not mounted unless the video capability is requested explicitly.

Solutions:

  • Launch the Safety Core container with both GPU access and the driver capabilities enabled: --gpus all -e NVIDIA_DRIVER_CAPABILITIES=all. Always include -e NVIDIA_DRIVER_CAPABILITIES=all — it is harmless where the video capability is already exposed by default and required where it is not.

  • With launch_hoisa.sh (or --runtime host) the correct accelerator access is applied for you; verify the host NVIDIA driver and container runtime are installed (docker run --gpus all works).

  • If SAIM is not needed for this run, start the container with --saim-mode skip.

6.8 Safety AI Monitor exits with a baseline validation error#

Symptoms:

  • active mode startup fails and /var/log/psf/saim.log reports Baseline validation failed (as opposed to a missing-file error).

Diagnosis:

  • The baseline exists but is not statistically usable — typically because the learn pass captured too few frames (for example, a very short --learn-duration or a stream that kept dropping during learning), so the per-metric statistics could not be computed.

Solutions:

  • Re-run learn mode with the default (or longer) --learn-duration against a stable stream, so each camera accumulates enough frames, then re-run active mode using the same --baseline-dir.

  • Validate the RTSP stream is continuous during learn (see Section 6.4).

6.9 A single camera stays SENSOR_INVALID and does not recover#

Symptoms:

  • One camera remains SENSOR_INVALID while the other cameras report SENSOR_VALID normally.

  • /var/log/psf/saim.log reports an analyzer permanent fault and that the affected camera’s processing thread was shut down.

Diagnosis:

  • SAIM monitors each camera independently. After repeated per-frame analysis failures on one camera it isolates that camera — reporting it SENSOR_INVALID and stopping its thread — so the remaining cameras keep running unaffected.

Solutions:

  • Investigate that camera’s stream (resolution/codec, GPU/PVA resource pressure) using the per-sensor lines in /var/log/psf/saim.log.

  • Restart the Safety AI Monitor (or the Safety Core container) to re-enable monitoring for the affected camera once the underlying issue is resolved.

6.10 No decisions reach the command receiver in SDM-on-FSI mode#

Symptoms:

  • The Safety Core reports SDM on FSI mode — skipping ..., but /tmp/cmdrx.log stays empty.

  • fsicom-agent stops at [INIT] Initializing FSI communication..., or repeats [GW] Gateway not reachable yet.

Diagnosis:

  • Stalled at [INIT] — nvFsiCom is not running, so the agent blocks on /dev/fsicom_client. This is the most common cause.

  • Stuck on [GW] — nvpsd_gateway is not up, or the agent’s --gw-ip / --gw-port do not match where nvpsd_gateway is bound.

  • Agent healthy but receiver silent — the agent’s --ip / --port do not match the receiver’s host and -p listen port.

Solutions:

  • Start nvFsiCom (as root) before fsicom-agent and confirm it with pgrep -af nvFsiCom, then confirm the device node exists (ls -l /dev/fsicom_client).

  • Verify both hops as described in the fsicom-agent option reference: an ESTAB row to :50000 for the gateway link, and a listening socket on the receiver’s port.

  • Confirm the FSI island was reset after the firmware was flashed. Until the board is reset, the island still runs the previously flashed firmware.

Note

In SDM-on-FSI mode the receiver logs UTC epoch: 0.000000 for every decision. The FSI decision path leaves the packet timestamp field at zero, unlike the CCPLEX SDM which fills it in. This is expected and does not affect the decision, its sequence number, or its acknowledgement.

6.11 Events dropped with Failed to process reported SafetyEvent#

Symptoms:

  • The SEI daemon log reports Failed to process reported SafetyEvent, usually alongside a warning that names a pipeline ID or sensor identifier.

Diagnosis:

  • The daemon accepted the event but fusion rejected it, so the event was dropped. The usual cause is a mismatch between the event and sensor_config.conf: a pipelineID above maxPipelines, a pipelineID absent from the sensor configuration, or a sensorIdentifier that does not match the sensorName configured for that pipeline. The accompanying Rejecting event: ... warning states which of these applies.

  • A few of these while the stack is still coming up are harmless. If they continue, events from the affected sensor are being discarded and will never reach a decision.

Solutions:

6.12 Stale SAIM baselines after the perception stack is redeployed#

Symptoms:

  • active mode fails with a missing baseline, or the baseline directory accumulates more baseline files than there are cameras.

  • sudo is required to delete baseline files.

Diagnosis:

  • Baselines are named after the sensor name in sensor_config.conf. When the perception stack is redeployed or the board is rebooted, VST issues new stream identifiers; a configuration that uses those identifiers as sensor names then no longer matches the baselines learned earlier, and the old files remain alongside the new ones.

  • Baseline files are written by the container user, so they are not owned by the host user that started the container.

Solutions:

  • After a redeploy or reboot, re-read the current RTSP URLs, update sensor_config.conf, and re-run learn mode so the baselines match the new sensor names.

  • Remove the superseded baselines with sudo rm so only the current set remains, then start active mode.

On this page
