Deploy AI Perception#

This quick start guide covers setting up the environment and deploying the Halos Outside-In Safety Blueprint with sample data.

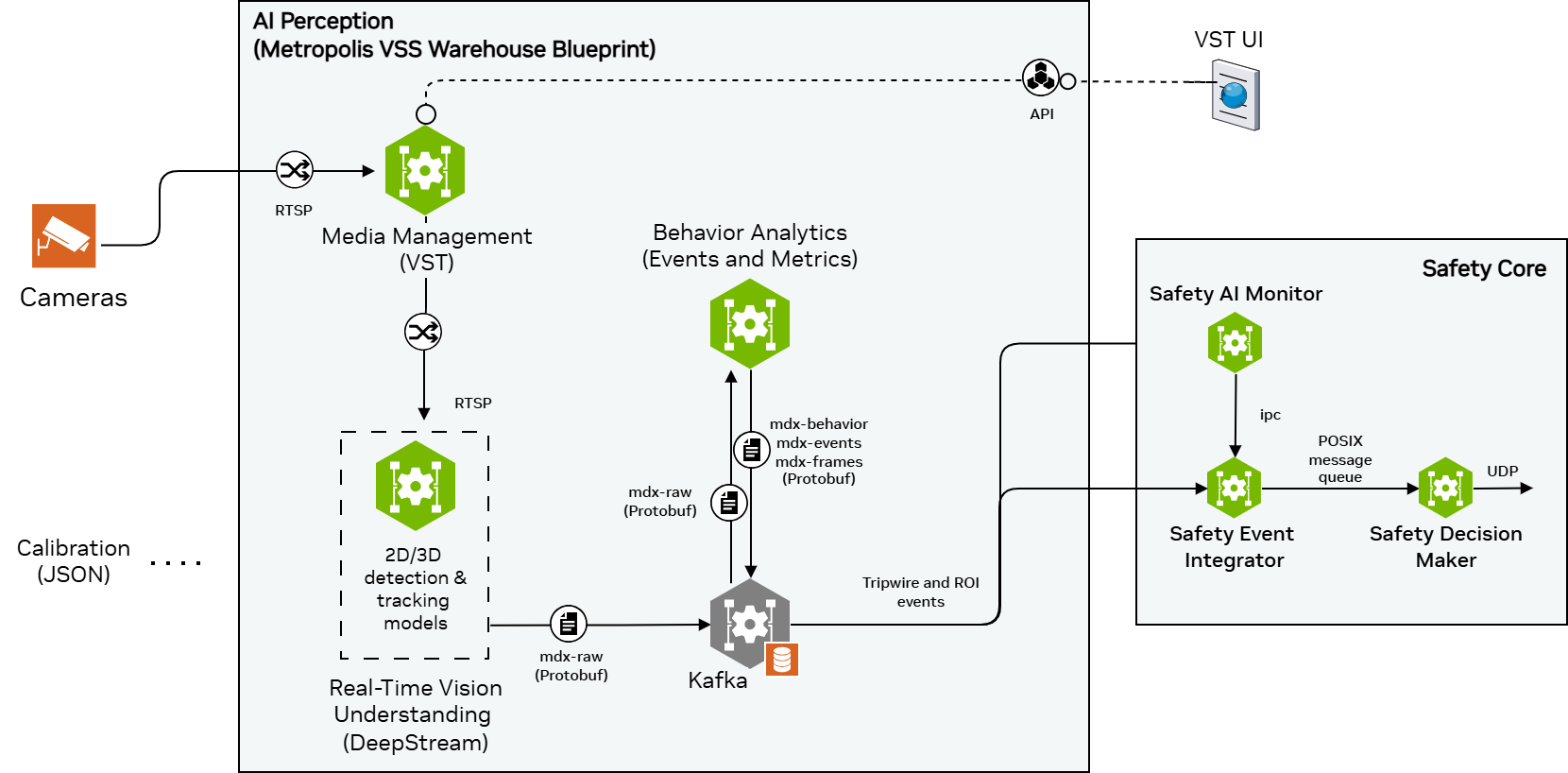

NVIDIA Halos Outside-In Blueprint Architecture#

Halos Outside-In Architecture

The current architecture consists of two main groups of components. This page uses the user-facing names. The Integration Guide describes the same system as architectural sub-elements, and the mapping is direct: AI Perception is the Sensor Input Processing Pipeline (SIPP), and Safety Core covers the Safety AI Monitor (SAIM), Perception Container Monitor (PCM), Safety Event Integrator (SEI), and Safety Decision Maker (SDM), along with the Safety Black Box (SBB) and Safety User Interface (SUI) that sit outside the mainstream data path.

This page covers AI Perception; the Safety Core components are introduced in Deploy the Safety Core.

AI Perception (Sensor Input Processing Pipeline)#

This module detects safety events from 2D camera streams using advanced perception and behavior analytics tuned for warehouse environments. It continuously tracks people, forklifts, AMRs, and other moving assets and emits semantically rich events tied to safety zones and workflows. The system supports three primary event types:

  • Region-of-interest (ROI) events: Triggered when objects enter or exit configured safety zones, enabling occupancy monitoring and enforcement of human‑free or equipment‑free areas.

  • Tripwire events: Triggered when objects cross virtual lines placed at doors, dock edges, or aisle boundaries, enabling directional counting and presence inference in partially occluded or blind areas.

  • Proximity events: Triggered when people and equipment come within unsafe distances, supporting pedestrian–vehicle collision avoidance and automatic slow‑down or stop behaviors.

Learn more about AI Perception component: VSS Warehouse Blueprint - 2D Vision AI and Perception Microservices Documentation.

Deploying Halos Outside-In#

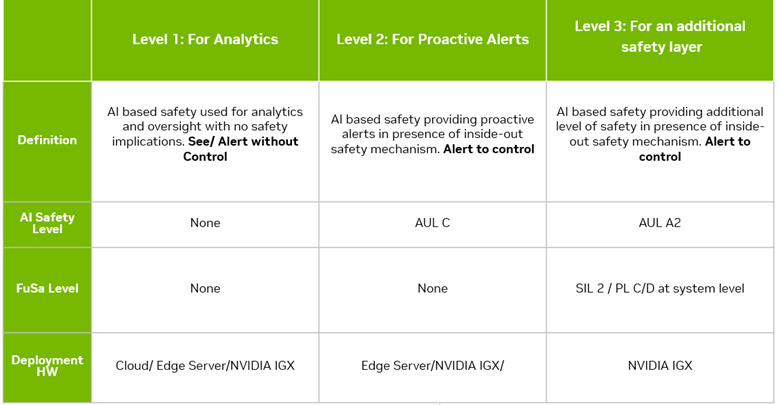

Halos Outside-In can be deployed in three levels:

Halos Outside-In Safety Levels

The deployment process includes these steps:

  1. Camera Selection, Placement and Calibration

  2. Installation of VSS Warehouse Blueprint

  3. Installation of Safety Event Integrator and Decision Maker

Camera Selection, Placement and Calibration Guidelines#

(If you just want to try out Halos Outside-In with the sample videos packaged within the software, skip this step and proceed to the next step Installation of AI Perception.)

Camera model choice and configuration settings significantly impact detection latency. The method used to connect cameras to the compute platform greatly influences overall system latency.

Best Practices for Deployment#

  • Use a Consistent Camera Model: Deploy the same camera model across all units to ensure uniform performance and predictable latency.

  • Standardize Camera Settings: Apply identical configuration settings to every camera in the deployment. This consistency is essential for reliable detection and optimal fusion of results by the safety supervisor, minimizing latency across the system.

  • Connection Method Matters: Ensure that all cameras connect to the compute platform using the same interface and topology to avoid introducing variable delays.

Optimal camera placement is crucial and should be tailored to your specific use case. Camera positioning significantly affects both accuracy and latency of safety event detection. For detailed guidance on camera positioning for best results, refer to the camera placement guide.

Once you place your camera, calibrate it by referring to the camera calibration guidelines.

Configuring Safety Zones and Tripwires is part of the camera calibration process and definitions of tripwires and zones are included in the calibration file.

Installation of AI Perception#

System Requirements#

The System and GPU requirement of AI Perception (VSS Warehouse Blueprint - 2D profile) is shown as below:

2D Warehouse Blueprint Supported Deployment Options#

GPU Type

Number of streams

2D Vision AI Profile (Number of GPUs)

RTX PRO 6000 BW

16

1

H100 (NVL, SXM HBM3)

26

1

L40S

12

1

IGX-THOR

7

1

DGX-SPARK

7

1

The minimum system requirements are:

  • x86-64 architecture

  • 18 core CPU

  • 128 GB RAM

  • 1 TB SSD

  • 1 × 1 Gbps network interface

  • 1 or 2 supported GPUs

For more details in hardware and software prerequisites please refer to VSS Warehouse Blueprint Prerequisites.

Installation Steps#

1. Clone the VSS Warehouse repository

You need an NGC API key to pull the container images. If you don’t have the NGC CLI installed, refer to the NGC CLI installation guide: https://org.ngc.nvidia.com/setup

git clone https://github.com/NVIDIA-AI-Blueprints/video-search-and-summarization.git
cd video-search-and-summarization
git lfs install
git checkout v3.2.1
git lfs pull

The warehouse-operations profile, including the sample calibration data, lives under deploy/docker/industry-profiles/warehouse-operations/.

2. Download the sample data assets

Download the sample app data (videos and perception models for the warehouse-loading-dock-3cams-synthetic dataset) from NGC and extract it:

# The app-data resource stays at 3.2.0 for VSS 3.2.1; there is no 3.2.1 build.
ngc registry resource download-version "nvidia/vss-warehouse/vss-warehouse-app-data:3.2.0"

cd vss-warehouse-app-data_v3.2.0
tar -xvf vss-warehouse-app-data.tar.gz

# Set permissions
sudo chmod -R 777 /path/to/vss-warehouse-app-data

3. Environment Settings

Edit deploy/docker/industry-profiles/warehouse-operations/.env to run the 2D Vision AI Profile. The defaults select a different profile, so change the values below rather than confirming them — each comment gives the default where it differs:

# Deployment mode: 2d, 3d, or mv3dt
MODE=2d
# Blueprint profile: bp_wh, bp_wh_kafka, bp_wh_redis, bp_wh_auto_calib
BP_PROFILE=bp_wh_kafka                           # default: bp_wh, which starts no Kafka
NUM_STREAMS=3                                    # default: 4
SAMPLE_VIDEO_DATASET="warehouse-loading-dock-3cams-synthetic"   # default: nv-warehouse-4cams
HOST_IP='<HOST IP>'
VSS_APPS_DIR="/path/to/deploy/docker"            # the cloned repo's deploy/docker
VSS_DATA_DIR="/path/to/vss-warehouse-app-data"   # where the sample data was extracted in step 2
# Match your GPU: run `nvidia-smi -L` to identify it, then set the matching
# value. Valid values: RTXPRO6000BW, H100, L40S, IGX-THOR, DGX-SPARK
HARDWARE_PROFILE=L40S
LLM_MODE=none                                    # default: local
VLM_MODE=none                                    # already the default
# Deployment scope. Minimal (the VSS default) runs the core perception + Kafka
# pipeline the Safety Core consumes. Extended additionally deploys ELK/Kibana,
# the Video Analytics API, and monitoring. Set MINIMAL_PROFILE="" only if you
# want the optional Kibana analytics dashboard used in the verification below.
MINIMAL_PROFILE="true"                           # "" enables the extended profile (Kibana/ELK)

4. Deploy VSS Warehouse Blueprint

Warning

The two issues below have been observed only on safety-flashed IGX Thor platforms (IGX Thor Developer Kit T7000 and Developer Kit Mini T5000): the nvstreamer-2d container fails to start due to a missing NVIDIA Container Runtime, and --pull always can intermittently fail during image pulls. If you are deploying on one of these platforms, apply the workarounds in Annex A before running the deployment commands below.

Important

Docker registry authentication is mandatory before deploying VSS Warehouse or Safety Core images from nvcr.io. NGC CLI authentication is only used for downloading NGC resources; it does not authenticate Docker image pulls.

Log in to the NGC Docker registry, then validate the required VSS image pulls before starting Docker Compose:

docker login nvcr.io
# Username: $oauthtoken
# Password: <NGC API key>

docker pull nvcr.io/nvidia/vss-core/vss-rt-cv:3.2.1
docker pull nvcr.io/nvidia/vss-core/vss-behavior-analytics:3.2.1
docker pull nvcr.io/nvidia/vss-core/vss-vios-sensor:3.2.1
docker pull nvcr.io/nvidia/vss-core/vss-vios-streamprocessing:3.2.1
docker pull nvcr.io/nvidia/vss-core/vss-vios-ingress:3.2.1

Run Docker Compose from deploy/docker/ so the relative include paths resolve. The top-level compose.yml pulls in the shared infrastructure (Kafka, Redis), the perception app, and the warehouse-operations profile selected by the .env above.

cd deploy/docker

# Start the blueprint
docker compose -f compose.yml \
  --env-file industry-profiles/warehouse-operations/.env \
  up --detach --pull always --force-recreate --build

Verify the running VSS Warehouse Blueprint:

# Verify if containers are in running state
docker ps
docker compose ls
# For 2D Vision AI Profile (perception)
docker logs -f vss-rtvi-cv
# Open a browser to check the data once all containers are up and running
# Verify the Kibana dashboard for safety events (extended profile only, see note below)
http://<HOST_IP>:7777/kibana
# Verify the video storage toolkit (VST) dashboard
http://<HOST_IP>:30888/vst/

Note

The Kibana dashboard is part of the VSS extended profile only. With the default minimal profile (MINIMAL_PROFILE="true" in the .env above), ELK/Kibana are not deployed and http://<HOST_IP>:7777/kibana does not resolve. Set MINIMAL_PROFILE="" to include it. The Safety Core itself only needs the Kafka mdx-events stream, which is present in both profiles, so the VST dashboard and the mdx-events check below are sufficient to validate the perception feed on a minimal deployment.

Note

To render the safety decision as the on-video VST overlay, the same VST config needs halo_safety_udp_port set — it ships disabled at -1. See Enable the VST safety overlay.

Before launching Safety Core, validate the streams and events that HOISA will consume:

# Confirm the VST sensors are online.
curl -s http://<HOST_IP>:30888/vst/api/v1/sensor/list

# Validate each exact rtspUrl configured in sensor_config.conf.
ffprobe -rtsp_transport tcp <rtsp_url>
# or
gst-launch-1.0 rtspsrc location=<rtsp_url> ! fakesink

# Optional: confirm behavior analytics events are present on mdx-events.
docker exec kafka kafka-console-consumer \
    --bootstrap-server localhost:9092 \
    --topic mdx-events \
    --from-beginning \
    --timeout-ms 10000

Note

VST sensor online status is not enough by itself. The exact rtspUrl in sensor_config.conf must be playable before SAIM and Safety Core are launched.

Note

To relay validated ATL decision commands to VST, launch atl_sdm_cmd_receiver with both --vst_ip <VST_IP> and --vst_port <VST_PORT>. These options are paired: supplying only one causes receiver startup to fail. The relay is optional; its delivery failures do not interrupt command reception or acknowledgement. The Proximity receiver has no VST relay and rejects both options. Continue to use VST sensor status, RTSP playback, SAIM logs, Safety Core logs, and Kafka events as deployment-health validation signals.

Stop VSS Warehouse Blueprint:

# From deploy/docker, use the SAME env file you deployed with
docker compose -f compose.yml \
  --env-file industry-profiles/warehouse-operations/.env down
# Tear down all dangling volumes
docker volume ls -q -f "dangling=true" | xargs docker volume rm
# Cleanup all data (matches how you deployed)
bash scripts/cleanup_all_datalog.sh -e industry-profiles/warehouse-operations/.env

Customization#

It is supported to customize the VSS Warehouse Blueprint for user specific use cases, including adding new cameras, configuring different safety zones and tripwires, fine-tuning the AI perception models, etc.

For details please refer to the VSS Warehouse 2D Blueprint Customization Guide.

Installation of Safety Event Integrator and Decision Maker#

Once the AI Perception is up and running, events are being generated from the input camera streams. To convert those events into actionable signals, continue with Deploy the Safety Core, which introduces the Safety Core components and walks the installation, launch, and verification steps.

Annex A: VSS Warehouse Blueprint deployment workarounds for safety-flashed IGX Thor#

The two issues described in this annex have been observed only when deploying the VSS Warehouse Blueprint - 2D profile on safety-flashed IGX Thor systems (IGX Thor Developer Kit T7000 and Developer Kit Mini T5000). Deployment on other (non-safety-flashed) platforms is not affected.

Apply the corresponding workaround below before deploying on these systems. With these workarounds, VSS Warehouse 3.2.1 has been deployed successfully on safety-flashed IGX Thor systems.

a. nvstreamer-2d container fails to start (NVIDIA Container Runtime missing)#

Issue: In the safety build with the Safety Extension Package (SEP), runtime: nvidia is commented out in warehouse-2d-app.yml and the NVIDIA Container Runtime is not selected automatically. As a result, the nvstreamer-2d container fails to start with a runtime hook error.

Workaround: Add runtime: nvidia to the nvstreamer-2d service via a Compose override. Create deploy/docker/docker-compose.override.yml with:

services:
  nvstreamer-2d:
    runtime: nvidia

The deployment command passes -f compose.yml explicitly, which disables auto-discovery of the override file, so add it with an extra -f flag when starting the blueprint:

cd deploy/docker

docker compose -f compose.yml -f docker-compose.override.yml \
  --env-file industry-profiles/warehouse-operations/.env \
  up --detach --force-recreate --build

With this override, the nvstreamer-2d service (container vss-vios-nvstreamer in docker ps) starts successfully.

b. Intermittent Docker image pull failures with –pull always#

Issue: Deploying with --pull always re-fetches every service image on each docker compose up and intermittently fails, blocking the deployment during image pulls.

Workaround: Pre-pull the required images once while authenticated to nvcr.io (see the Docker registry authentication step under Installation of AI Perception), then start the blueprint without --pull always so Docker Compose uses the locally cached images:

cd deploy/docker

docker compose -f compose.yml \
  --env-file industry-profiles/warehouse-operations/.env \
  up --detach --force-recreate --build

Prefer a local cache or an authenticated registry over anonymous Docker Hub pulls.
