Integration Guide#

Note

This documentation uses updated terminology. Legacy code may reference PSF, PSS, PSD for backward compatibility.

1. Document Structure#

This integration guide is organized into the following sections:

  • Overview - Architectural details and system components

  • Component Details - Detailed descriptions of HOISA sub-elements

  • Application Development - Implementation guidelines and APIs

2. Overview#

This section documents the architectural details of the NVIDIA Halos Outside-In Safety Blueprint (HOISA). It includes definitions and descriptions of the building blocks, interactions with other components of the host software stack (L4T for Tegra-based environments and standard Linux distributions for x86-64-based environments), interactions and data flow between the elements within HOISA, and extensibility interfaces to support a variety of end-user specific applications.

The following figures depict the positioning of HOISA in respective platform’s host software stack.

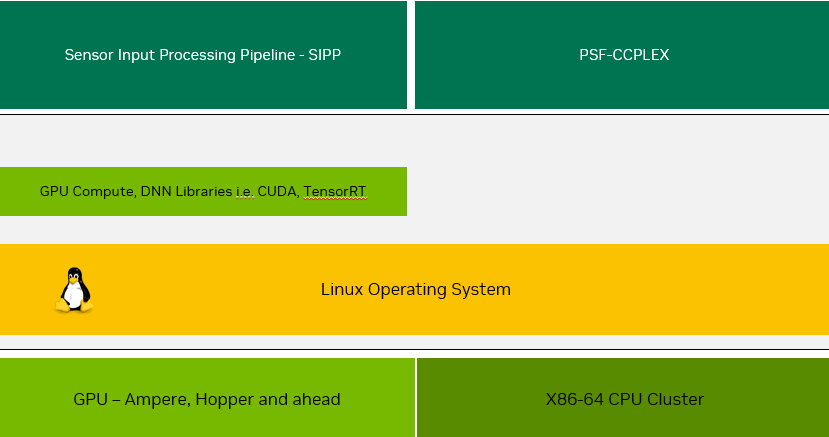

Overview of x86-64 based Software Stack with HOISA

Figure 1 - Overview of x86-64 based Software Stack with HOISA

Figure 1 depicts the positioning of HOISA within the x86-64-based software stack. HOISA makes use of Linux features and APIs exposed by standard desktop Linux distributions, specifically Ubuntu.

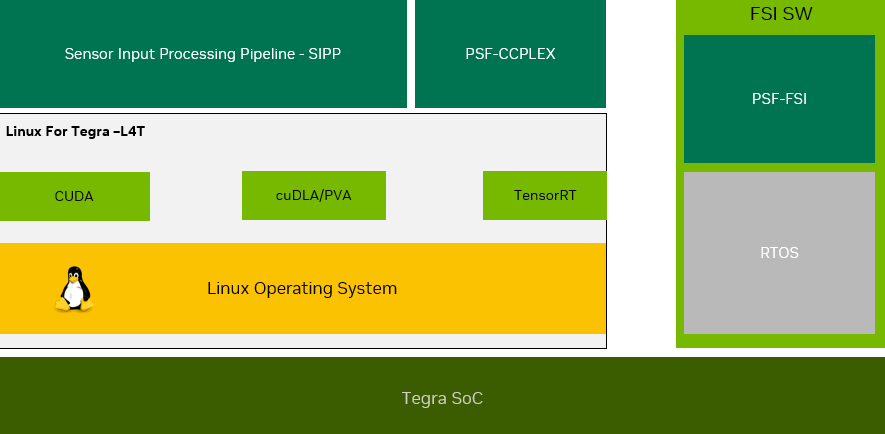

Overview of Tegra based IGX Software Stack with HOISA

Figure 2 - Overview of Tegra based IGX Software Stack with HOISA

Tegra/IGX: Components run on CCPLEX (L4T user space) and FSI (RTOS). Interacts with L4T and standard Linux APIs.

For both HOISA variants, the framework includes one or more sensor input processing pipelines which may be specific to the use case under consideration. These typically include deep neural networks and computer vision algorithms operating on image streams captured by camera devices, or processing elements operating over data streams captured by various sensors deployed to monitor the physical parameters within the surroundings. NVIDIA Metropolis is an example of a sensor pipeline.

The Halos Outside-In Safety blueprint consists of the following sub-elements:

  1. Sensor Input Processing Pipeline (SIPP) - Also referred as AI Perception pipeline

  2. Safety AI Monitor (SAIM)

  3. Perception Container Monitor (PCM)

  4. Safety Event Integrator (SEI) - previously known as Proactive Safety Supervisor (PSS)

  5. Safety Decision Maker (SDM) - previously known as Proactive Safety Decision (PSD)

  6. Safety Black Box (SBB) - previously known as Proactive Safety Black Box (PSB)

  7. Safety User Interface (SUI) - previously known as Proactive Safety User Interface (PSU)

Variable by use case: SIPP, SDM. Use-case agnostic: SAIM, PCM, SEI, SBB. SUI is not yet implemented. Data flow:

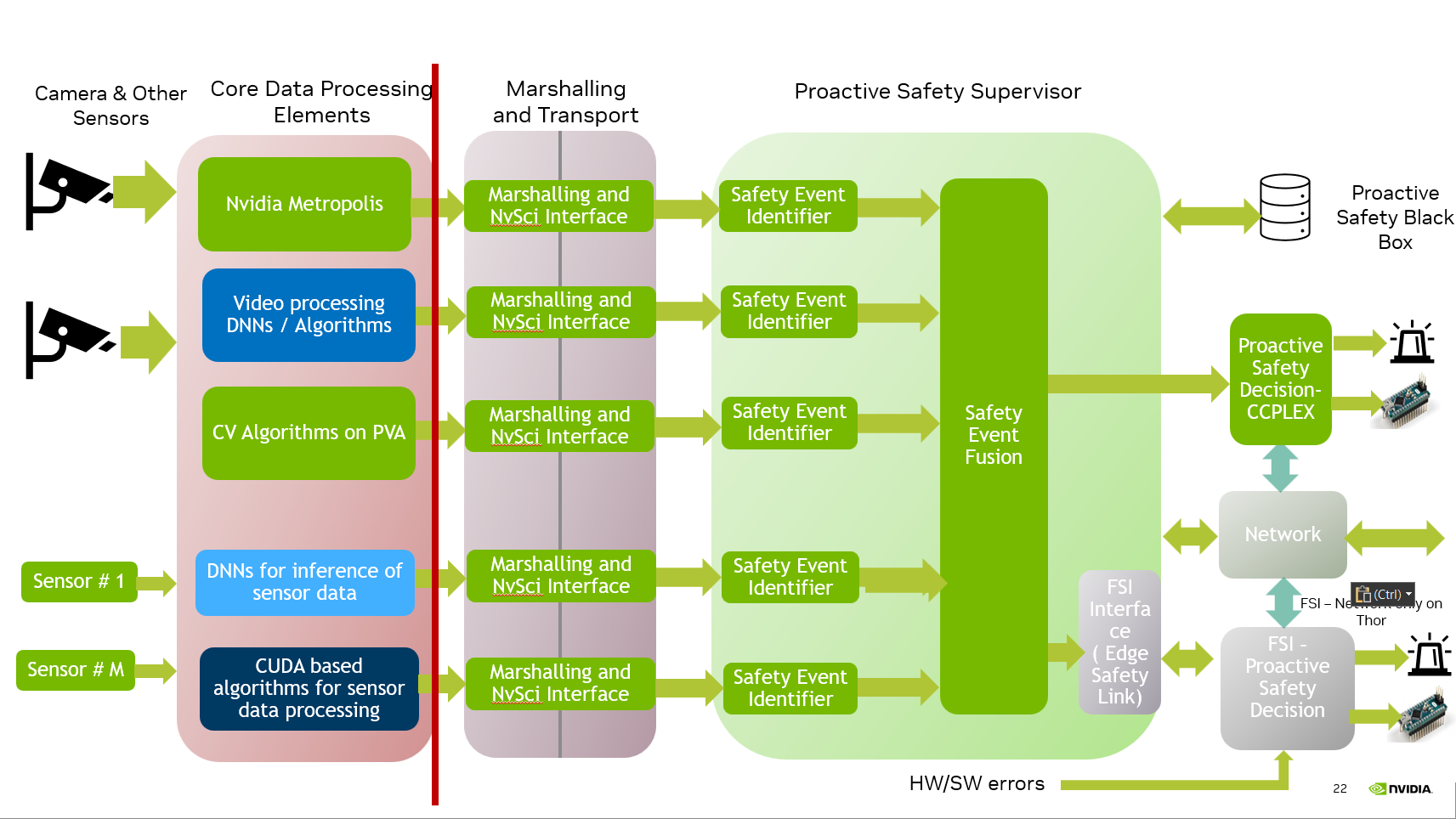

HOISA Data Path

Figure 3 - HOISA Data Path

Data transformation sequence:

Table 1 - Summary of Data Transformations in Sub-Elements

ID

Stage

Form of Input Data

Operation

Form of Output Data

1

Sensor Input Processing Pipeline (AI Perception)

Data captured by sensors and appropriately conditioned

Transformation through DNN or an algorithm to identify/detect required safety condition

A data structure representing the identified/detected safety condition

2

Marshalling and Transport

A data structure representing the identified/detected safety condition

Extraction of relevant data and pass to the different process context

Same data structure received across different process context

3

Safety Event Integrator - Core Processing Unit (legacy: PSSCore)

Data structure representing the identified/detected safety condition

Analysis of contents of the data structure based on certain rules to proactively detect potential safety event

A message or a signal identifying the potential safety event

4

Safety Event Integrator - Safety Event Fusion

Message or signal identifying the safety event as received from Safety Event Identifier

Fusion of the messages/signals

A message or a signal confirming the occurrence of safety event

5

Safety Decision Maker (FSI or CCPLEX)

A message or signal confirming the occurrence of safety event

Ascertain the appropriate action based on the nature of identified safety event

A message or signal back to PSS-CCPLEX identifying the next required action to address the safety event

The Safety Black Box (SBB) can be considered as a master record for the operations associated with HOISA. Any HOISA component can access SBB with appropriate access profile to include respective operational milestones. The entries in SBB can also be utilized by SUI for presenting to the user after appropriate conditions or post-processing.

The Safety User Interface (SUI) is not described in Figure 3 and Table 1 above as it is not part of the mainstream data path. Details of this sub-element are discussed in further sections.

3. Component Details#

This section provides detailed documentation for each HOISA component, including responsibilities, interfaces, and configuration guidelines. Review the relevant component page before making design or integration changes.

3.1 Sensor Input Processing Pipeline (AI Perception)#

3.2 Safety AI Monitor (SAIM)#

3.3 Perception Container Monitor (PCM)#

3.4 Safety Event Integrator (SEI)#

3.5 Safety Decision Maker (SDM)#

3.6 Safety Black Box (SBB)#

3.7 Safety User Interface (SUI)#

4. Application Development#

The perception and behavior analytics features of the Video Storage and Streaming (VSS) stack can be leveraged to define various safety events within a warehouse blueprint. This allows for the creation of independent, customized safety use-cases. Through HOISA, these custom safety events can be mapped, and a Safety Decision Maker (SDM) can be defined to handle them appropriately.

In this section, the process of building a custom application on top of HOISA is explained, using Control of Forklift Safety Function and Proximity Monitoring as examples.

4.1 Control of Forklift Safety Function Use-Case#

In the Control of Forklift Safety Function use-case, a forklift operating in a warehouse is monitored while loading and unloading pallets to and from a trailer. The system evaluates forklift and personnel movement around the trailer gate and issues commands to control the forklift safety function.

The application maps perception signals into discrete HOISA safety events, then processes them in the Safety Decision Maker to generate control commands for the forklift:

  • Safe to Enter/Operate in Trailer: Forklift is in trailer, no personnel inside trailer, and no person in restricted ROI. Mapped through forklift/person movement events and ROI events. A Mute Safety Function command (CMD_MUTE) is issued by the SDM.

  • Standard Operation Mode: Forklift exits trailer, personnel detected, restricted ROI violation, or software/gateway safety fault. Mapped to corresponding safety events. An Unmute Safety Function command (CMD_UNMUTE) is issued by the SDM, with CMD_SW_ERROR in software-fault conditions.

See also

Instructions for executing the Control of Forklift Safety Function application can be found in Deployment Guide, Section 2.2.

The implementation of this use-case using HOISA components is broken down in the following sections.

4.1.1 SDM Execution on CCPLEX#

This approach applies to both x86-64 and aarch64 (IGX-Thor) platforms, where the Safety Decision Maker runs natively on the main CPU (CCPLEX) alongside the rest of the HOISA components.

Prerequisites: Debian Package Installation

Before proceeding with application development, the HOISA development Debian packages must be installed or extracted on the development system.

x86-64: The Debian packages are installed directly on the development host:

sudo dpkg -i psf-desktop.deb
sudo dpkg -i psf-desktop-dev.deb

aarch64 (IGX-Thor): Since cross-compilation for aarch64 targets is performed on an x86-64 development host, the Tegra Debian packages are extracted rather than installed:

dpkg -x psf-tegra.deb <extraction_path>
dpkg -x psf-tegra-dev.deb <extraction_path>

After installation or extraction, the development headers and reference source code are available at the following paths (relative to the installation root or <extraction_path>):

Component

Path

Headers

/opt/nvidia/psf/include

Reference application source

/opt/nvidia/psf/examples/apps/metropolis

1. Define Event Mapping

The first step is to configure how VSS perception events are mapped into discrete HOISA safety events. This is done using a Protobuf text configuration file passed to the Event Ingestion module (mdx_client).

For the Forklift Safety Function use-case, the event mapping subscribes to both mdx-events and mdx-frames streams. Tripwire alerts capture forklift/person movement across the trailer boundary, while ROI alerts capture restricted-area violations near the trailer gate. These are translated into HOISA output events used by the SDM.

Below is a snapshot of the event mapping configuration:

rules {
  name: "Forklift tripwire OUT"
  message_source: "mdx-events"
  alert_type: "tripwire"
  event_type: "OUT"
  object_type: "forklift"
  rule_id: "tripwire-id-1"
  output_event: "EVENT_0"
}
rules {
  name: "Forklift tripwire IN"
  message_source: "mdx-events"
  alert_type: "tripwire"
  event_type: "IN"
  object_type: "forklift"
  rule_id: "tripwire-id-1"
  output_event: "EVENT_1"
}
rules {
  name: "Person tripwire OUT"
  message_source: "mdx-events"
  alert_type: "tripwire"
  event_type: "OUT"
  object_type: "person"
  rule_id: "tripwire-id-1"
  output_event: "EVENT_2"
}
rules {
  name: "Person tripwire IN"
  message_source: "mdx-events"
  alert_type: "tripwire"
  event_type: "IN"
  object_type: "person"
  rule_id: "tripwire-id-1"
  output_event: "EVENT_3"
}
rules {
  name: "Person restricted area ROI violation"
  message_source: "mdx-frames"
  alert_type: "roi"
  object_type: "person"
  rule_id: "roi-id-1"
  restricted_area_violation: "true"
  output_event: "EVENT_4"
}
rules {
  name: "Person restricted area ROI violation cleared"
  message_source: "mdx-frames"
  alert_type: "roi"
  object_type: "person"
  rule_id: "roi-id-1"
  restricted_area_violation: "false"
  output_event: "EVENT_5"
}

The object types and rule identifiers used in these rules are configurable and should match the labels and IDs emitted by the deployed VSS pipeline.

Note

The rule and object-type strings in the event mapping file must match the identifiers produced by the active VSS deployment.

2. Event Ingestion with mdx_client

The mdx_client application serves as the event ingestion layer between the VSS perception pipeline and HOISA. It subscribes to Kafka topics (mdx-events and mdx-frames), parses incoming telemetry, and evaluates messages against the configured event mapping rules. When a rule matches, the corresponding HOISA safety event is generated and reported to the SEI daemon.

The application is configuration-driven — different use-cases are supported by supplying a different event mapping file, without requiring any code changes.

The mdx_client is launched as follows:

./mdx_client --config <path_to_event_mapping_config> --sensor-config <path_to_sensor_config> --broker <broker_address>

Parameter

Description

--config, -c

Path to the event mapping configuration file (required). Accepts Protobuf text or binary format.

--sensor-config, -s

Path to sensor-to-pipeline mapping config file used by HOISA (required). mdx_client exits at startup if it is omitted.

--broker, -b

Kafka broker address. Defaults to localhost:9092 if omitted.

--debug, -d

Enables debug mode. Matched events are printed to stdout instead of being reported to the SEI daemon.

For the Forklift Safety Function use-case, the application is launched with:

./mdx_client --config /opt/nvidia/psf/apps/atl/event_mapping_atl.pb.txt \
    --sensor-config /opt/nvidia/psf/bin/sensor_config.conf

3. Implement the Safety Decision Maker (SDM)

The SDM is the core decision-making component of a HOISA application. It receives fused safety events from the SEI daemon via the NvPSD Gateway and translates them into actionable commands (e.g. Mute/Unmute Safety Function) that are transmitted to the downstream forklift command receiver.

A custom SDM is implemented as a standalone application that communicates with the NvPSD Gateway using a lightweight UDP-based protocol. The following headers, available in the development Debian packages (psf-desktop-dev.deb or psf-tegra-dev.deb) under the include/ directory, are required:

Header

Purpose

pss_protocol.h

Defines the DecisionRequest structure containing fused safety events, and shared event/system status types.

NvPSDGatewayProtocol.h

Defines the registration and heartbeat protocol constants (REGR, HBPG, HBPC) used for communication with the NvPSD Gateway.

pss_message_validate.h

Declares pssDecisionRequestVerifyCRC(), validateDecisionRequest(), and the PSS_ERR_* bitmask flags used to check every received request.

NvPSDGatewayContract.hpp

Defines the registration acceptance rules enforced by the gateway, including the event-type limits and the mandatory event types added to every subscription.

atl_cmd_pkt.h

Defines the ATL 64-byte command/ack packet format and command opcodes such as CMD_MUTE, CMD_UNMUTE, CMD_SW_ERROR, and the safe-release opcodes CMD_SAFE_RELEASE_REQUEST (0x08), CMD_SAFE_RELEASE_ACK (0x09), and CMD_SAFE_RELEASE_DENIED (0x0A).

The system libraries required for linking the SDM are stdc++, pthread, and rt. The command receiver needs only pthread.

Important

Validating every received DecisionRequest is required, not optional. Call pssDecisionRequestVerifyCRC() and then validateDecisionRequest() before acting on a request, and check that integrity.schemaVersion equals PSS_SCHEMA_VERSION. validateDecisionRequest() returns a bitmask of PSS_ERR_* flags, so a non-zero result means the request must be rejected (PSS_VALID is 0). Both reference SDMs do this, which is why pss_message_validate.c appears in the build commands for each of them.

3.1 Connect to the NvPSD Gateway

The SDM communicates with the NvPSD Gateway over a UDP socket. At initialization, a non-blocking UDP socket is created and bound to an ephemeral port. The gateway address (IP and port) is typically provided via command-line arguments; the default is 127.0.0.1:50000.

int gwSock = socket(AF_INET, SOCK_DGRAM, 0);
fcntl(gwSock, F_SETFL, fcntl(gwSock, F_GETFL, 0) | O_NONBLOCK);

struct sockaddr_in bindAddr = {};
bindAddr.sin_family      = AF_INET;
bindAddr.sin_addr.s_addr = INADDR_ANY;
bindAddr.sin_port        = htons(0);  // ephemeral port
bind(gwSock, (struct sockaddr*)&bindAddr, sizeof(bindAddr));

struct sockaddr_in gatewayAddr = {};
gatewayAddr.sin_family = AF_INET;
gatewayAddr.sin_port   = htons(gatewayPort);
inet_pton(AF_INET, gatewayIP.c_str(), &gatewayAddr.sin_addr);

This same socket is used for all subsequent communication with the gateway — registration, event reception, and heartbeat exchange.

3.2 Register for Safety Events

Before the SDM can receive events, it must register with the NvPSD Gateway by sending a binary registration packet. The packet has the following structure:

Field

Description

Bytes 0-3

Magic: REGR (4 ASCII bytes)

Byte 4

Count of subscribed event types (uint8_t)

Byte 5+

Array of uint32_t event type values in network byte order (one per subscribed event)

For this use-case, the SDM subscribes to EVENT_0 through EVENT_5 and SW_FAIL.

#include "NvPSDGatewayProtocol.h"
#include "pss_protocol.h"

static const EventType subscribedEvents[] = {
    EVENT_0, EVENT_1, EVENT_2, EVENT_3, EVENT_4, EVENT_5, SW_FAIL
};
static const uint8_t eventCount = 7;

Registration should be sent once at startup and re-sent periodically (e.g. every 30 seconds) to recover from potential gateway restarts where in-memory subscription state may be lost.

3.3 Receive and Process DecisionRequest Events

Once registered, the NvPSD Gateway forwards each DecisionRequest in a versioned NvPSDGatewayDecisionRequestPacket UDP envelope. The envelope contains DRPG, version, headerSize, gatewayEpoch, gatewayTxSeq, and the DecisionRequest payload. The SDM must validate the envelope and reject duplicate, stale, or gapped sequences. The event loop uses poll() on the gateway socket and distinguishes between:

  • Heartbeat (8 bytes, magic HBPG) — Handled as described in the next section.

  • Decision-request packet (sizeof(NvPSDGatewayDecisionRequestPacket) bytes) — A sequenced fused event batch from the SEI daemon.

The DecisionRequest structure contains the following key fields:

Field

Description

requestId

Unique identifier for the decision request.

sensorDataSummarySize

Number of valid entries in the sensorDataSummary array.

sensorDataSummary[]

Array of SensorData structs carrying fused safety events and fusion metadata.

isHealthy

SensorData flag, false when SAIM reported SENSOR_INVALID for this entry’s pipeline. Discard the entry.

isTrustedSource

SensorData flag, false when AI_PIPELINE_INVALID was reported for this entry’s client. Discard the entry.

pssStatus

System status including mode (NORMAL, DEGRADED, ERROR).

integrity

Message integrity trailer for validation.

The ATL SDM updates internal state from the subscribed events and then evaluates whether the forklift safety function should be muted or unmuted:

  • EVENT_0: Forklift entered trailer (tripwire OUT) -> forkliftInTrailer = true

  • EVENT_1: Forklift exited trailer (tripwire IN) -> forkliftInTrailer = false

  • EVENT_2: Person entered trailer -> increment person count

  • EVENT_3: Person exited trailer -> decrement person count

  • EVENT_4: Restricted ROI violation set -> restrictedAreaViolation = true

  • EVENT_5: Restricted ROI violation cleared -> restrictedAreaViolation = false

  • SW_FAIL or pssStatus.mode == ERROR -> fail-safe (CMD_UNMUTE + CMD_SW_ERROR)

The following snippet illustrates the core decision logic:

if (forkliftInTrailer && personsInTrailerCount == 0 && !restrictedAreaViolationByPerson)
    sendDecisionCommand(CMD_MUTE, true, nullptr);     // allow operation
else
    sendDecisionCommand(CMD_UNMUTE, true, nullptr);   // prevent operation

A safety-path fault does more than drive one fail-safe command: the reference SDMs latch the safe state and keep re-asserting CMD_UNMUTE and CMD_SW_ERROR until an external controller requests a release. Gateway heartbeat loss, an SEI fault, a decision freshness timeout, a gateway decision sequence fault, and an all-sensors-failed condition each hold the latch.

A custom decision maker that adopts this model must handle CMD_SAFE_RELEASE_REQUEST from its configured command receiver endpoint and answer on the same socket:

  • Any fault source still active: reply CMD_SAFE_RELEASE_DENIED, then re-assert CMD_UNMUTE and CMD_SW_ERROR.

  • All fault sources cleared: reply CMD_SAFE_RELEASE_ACK followed by CMD_UNMUTE, then clear the latch and reset internal state. Clear the latch only after both replies are sent, so a fault arriving mid-handshake is not lost.

Requests arriving when no latch is held are answered with CMD_SAFE_RELEASE_ACK and rate-limited to one response per second. For the operator-facing side of this handshake, see 2.5 Clearing a Latched Safe State.

3.4 Gateway Heartbeat Protocol

The NvPSD Gateway maintains a heartbeat mechanism to monitor the liveness of connected SDM clients. This protocol operates on the same UDP socket used for event reception and consists of two message types:

Direction

Format

Gateway -> SDM

8 bytes: HBPG (4 bytes) + sequence number (uint32_t, network byte order)

SDM -> Gateway

8 bytes: HBPC (4 bytes) + same sequence number (echo)

The gateway sends HBPG every 2 seconds. Size the SDM-side watchdog against that period: a threshold of N missed heartbeats corresponds to roughly N x 2 seconds before the gateway is declared unreachable.

Upon receiving a heartbeat from the gateway, the SDM must echo the sequence number back in an acknowledgement packet:

if (n == NVPSD_GATEWAY_HB_MSG_SIZE &&
    memcmp(rawBuf, NVPSD_GATEWAY_HB_MAGIC_GATEWAY, 4) == 0)
{
    char ack[NVPSD_GATEWAY_HB_MSG_SIZE];
    memcpy(ack, NVPSD_GATEWAY_HB_MAGIC_CLIENT, 4);
    memcpy(ack + 4, rawBuf + 4, 4);  // echo sequence number
    sendto(gwSock, ack, NVPSD_GATEWAY_HB_MSG_SIZE, 0,
           (struct sockaddr*)&sender, senderLen);
}

It is recommended that a heartbeat watchdog be implemented to detect gateway communication failures. If heartbeats are not received within the configured threshold (max_hb_failures), the SDM should transition to a fail-safe state. The reference SDMs latch that safe state and keep re-asserting the fail-safe commands rather than exiting, so operation resumes only after the safe-release handshake described above; resumed heartbeats alone do not clear the latch.

4. Building the Forklift SDM Reference

A complete reference implementation of the Forklift Safety Function SDM is included in the development Debian packages. After installation (x86-64) or extraction (aarch64), the source files are located at:

/opt/nvidia/psf/examples/apps/metropolis/atl/sdm/ccplex/
├── ATL.cpp                    # Entry point (CLI argument parsing, launch)
├── ATLControl.cpp             # Gateway integration, event handling, heartbeat
├── ATLControl.h               # SDM interface declarations
└── pss_message_validate.c     # Message integrity validation

/opt/nvidia/psf/examples/apps/metropolis/atl/include/
└── atl_cmd_pkt.h              # Application-specific command packet definition

The required HOISA headers (pss_protocol.h, NvPSDGatewayProtocol.h) are located under /opt/nvidia/psf/include/. Both reference SDMs additionally include three shared headers — sdm_decision_request_state.h, sdm_decision_freshness.hpp, and sdm_gateway_decision_sequence.hpp — from examples/apps/metropolis/common/, which is why that directory is on the include path below. If it is missing from your extracted package, take the headers from the source repository.

The reference SDM can be compiled using a standard GCC toolchain as follows:

x86-64:

g++ -std=c++11 -o atl_sdm \
    /opt/nvidia/psf/examples/apps/metropolis/atl/sdm/ccplex/ATL.cpp \
    /opt/nvidia/psf/examples/apps/metropolis/atl/sdm/ccplex/ATLControl.cpp \
    /opt/nvidia/psf/examples/apps/metropolis/atl/sdm/ccplex/pss_message_validate.c \
    /opt/nvidia/psf/examples/apps/metropolis/atl/sdm/ccplex/atl_fault_report_noop.cpp \
    -I /opt/nvidia/psf/include \
    -I /opt/nvidia/psf/examples/apps/metropolis/atl/include \
    -I /opt/nvidia/psf/examples/apps/metropolis/atl/sdm/ccplex \
    -I /opt/nvidia/psf/examples/apps/metropolis/common \
    -lpthread -lrt

aarch64 (cross-compilation on x86-64 host):

aarch64-linux-gnu-g++ -std=c++11 -o atl_sdm \
    <extraction_path>/opt/nvidia/psf/examples/apps/metropolis/atl/sdm/ccplex/ATL.cpp \
    <extraction_path>/opt/nvidia/psf/examples/apps/metropolis/atl/sdm/ccplex/ATLControl.cpp \
    <extraction_path>/opt/nvidia/psf/examples/apps/metropolis/atl/sdm/ccplex/pss_message_validate.c \
    <extraction_path>/opt/nvidia/psf/examples/apps/metropolis/atl/sdm/ccplex/atl_fault_report_noop.cpp \
    -I <extraction_path>/opt/nvidia/psf/include \
    -I <extraction_path>/opt/nvidia/psf/examples/apps/metropolis/atl/include \
    -I <extraction_path>/opt/nvidia/psf/examples/apps/metropolis/atl/sdm/ccplex \
    -I <extraction_path>/opt/nvidia/psf/examples/apps/metropolis/common \
    -lpthread -lrt

The resulting atl_sdm binary can then be deployed and launched as described in Deployment Guide, Section 2.2.

5. Building the Command Receiver Reference

The development packages also include the source for the Forklift UDP Command Receiver — a reference application that simulates the actuator side. It listens for UDP command packets from the SDM and sends back acknowledgement packets using the same 64-byte packet format.

The source is located at:

/opt/nvidia/psf/examples/apps/metropolis/atl/udp_cmd_receiver/
└── cmd_rx.cpp

/opt/nvidia/psf/examples/apps/metropolis/atl/include/
└── atl_cmd_pkt.h              # Shared packet definition (used by both SDM and receiver)

The command receiver can be compiled as follows:

x86-64:

g++ -std=c++11 -o atl_sdm_cmd_receiver \
    /opt/nvidia/psf/examples/apps/metropolis/atl/udp_cmd_receiver/cmd_rx.cpp \
    -I /opt/nvidia/psf/examples/apps/metropolis/atl/include \
    -lpthread

aarch64 (cross-compilation on x86-64 host):

aarch64-linux-gnu-g++ -std=c++11 -o atl_sdm_cmd_receiver \
    <extraction_path>/opt/nvidia/psf/examples/apps/metropolis/atl/udp_cmd_receiver/cmd_rx.cpp \
    -I <extraction_path>/opt/nvidia/psf/examples/apps/metropolis/atl/include \
    -lpthread

The receiver accepts -p <port> (default 12345), --sdm_ip <IPv4> (default 127.0.0.1), an optional --sdm_port <port>, and --max_hb_failures <N> (1–255, default 10). To relay validated decision commands to VST, provide --vst_ip <IPv4> --vst_port <port> together. Both VST options are required for relay mode; invalid configuration terminates the receiver at startup. A failure to send a relay packet does not affect command reception or acknowledgements.

Logging is split by default: the verbose per-packet log goes to /tmp/cmdrx.log while the console carries only safe-state latch, clear, and release events. Use --log-file <PATH> to choose a different file, or --no-log-file to keep every packet on the console as earlier releases did.

Safe-release over standard input is always enabled and needs no flag. Writing release to the receiver’s stdin sends CMD_SAFE_RELEASE_REQUEST, so an operator can type it at the console and a script, CI job, or service-managed run can echo release into the process’s stdin or FIFO.

The receiver also issues that request on its own, once, after it first hears from its peer, which clears a latch left over from a previous run. See 2.5 Clearing a Latched Safe State for the full handshake, including when the SDM denies the request.

4.2 Proximity Monitoring Use-Case#

In the Proximity Monitoring use-case, the distance between a human (Person) and a robot (Agility_Digit_Humanoid) is monitored, and commands are issued based on safety thresholds.

The application computes the spatial distances between the specified objects, and maps them into discrete HOISA safety events based on the thresholds. These events are then processed by the Safety Decision Maker to generate control commands for the robot:

  • Safe Zone (> 2m): No violation. Mapped to EVENT_8. A Normal Operation command is issued by the SDM.

  • Warning Zone (1m to 2m): Proximity warning. Mapped to EVENT_9. A Slow Down command is issued by the SDM.

  • Critical Zone (< 1m): Proximity violation. Mapped to EVENT_10. An Emergency Stop command is issued by the SDM.

See also

Instructions for executing the Proximity Monitoring application can be found in Deployment Guide, Section 2.3.

The implementation of this use-case using HOISA components is broken down in the following sections.

4.2.1 SDM Execution on CCPLEX#

This approach applies to both x86-64 and aarch64 (IGX-Thor) platforms, where the Safety Decision Maker runs natively on the main CPU (CCPLEX) alongside the rest of the HOISA components.

Prerequisites: Debian Package Installation

Before proceeding with application development, the HOISA development Debian packages must be installed or extracted on the development system.

x86-64: The Debian packages are installed directly on the development host:

sudo dpkg -i psf-desktop.deb
sudo dpkg -i psf-desktop-dev.deb

aarch64 (IGX-Thor): Since cross-compilation for aarch64 targets is performed on an x86-64 development host, the Tegra Debian packages are extracted rather than installed:

dpkg -x psf-tegra.deb <extraction_path>
dpkg -x psf-tegra-dev.deb <extraction_path>

After installation or extraction, the development headers and reference source code are available at the following paths (relative to the installation root or <extraction_path>):

Component

Path

Headers

/opt/nvidia/psf/include

Reference application source

/opt/nvidia/psf/examples/apps/metropolis

1. Define Event Mapping

The first step is to configure how VSS perception events are mapped into discrete HOISA safety events. This is done using a Protobuf text configuration file passed to the Event Ingestion module (mdx_client).

For the Proximity Monitoring use-case, the event mapping configuration defines a set of rules that subscribe to social_distancing alerts from the mdx-frames message source. Each rule filters incoming alerts by strictly matching the primary and secondary object types to Agility_Digit_Humanoid and Person respectively. When a matching alert is detected, the rule evaluates proximity_violation and, for violations, the reported physical distance against predefined distance_threshold_meters parameters. Based on this evaluation, the alert is translated into EVENT_8, EVENT_9, or EVENT_10.

Below is a snapshot of the event mapping configuration :

rules {
  name: "Proximity no violation (safe distance, >2m or SD false)"
  message_source: "mdx-frames"
  alert_type: "social_distancing"
  rule_id: "agility_digit_person_no_violation"
  object_type_primary: "Agility_Digit_Humanoid"
  object_type_secondary: "Person"
  proximity_violation: false
  output_event: "EVENT_8"
}
rules {
  name: "Proximity 2m > distance > 1m"
  message_source: "mdx-frames"
  alert_type: "social_distancing"
  rule_id: "agility_digit_person_lt_2m"
  object_type_primary: "Agility_Digit_Humanoid"
  object_type_secondary: "Person"
  proximity_violation: true
  distance_threshold_meters: 2.0
  output_event: "EVENT_9"
}
rules {
  name: "Proximity distance < 1m"
  message_source: "mdx-frames"
  alert_type: "social_distancing"
  rule_id: "agility_digit_person_lt_1m"
  object_type_primary: "Agility_Digit_Humanoid"
  object_type_secondary: "Person"
  proximity_violation: true
  distance_threshold_meters: 1.0
  output_event: "EVENT_10"
}

The object types specified in the rules are not fixed and can be adapted to match the entities recognized by the VSS perception pipeline. For example, the same distance-based safety logic can be applied to monitor proximity between two robots, or between a person and a different robot type.

The following example illustrates rules for monitoring the distance between an Agility_Digit_Humanoid and a Fourier_GR1_T2_Humanoid robot:

rules {
  name: "Robot-to-robot warning (2m > distance > 1m)"
  message_source: "mdx-frames"
  alert_type: "social_distancing"
  rule_id: "agility_digit_fourier_lt_2m"
  object_type_primary: "Agility_Digit_Humanoid"
  object_type_secondary: "Fourier_GR1_T2_Humanoid"
  proximity_violation: true
  distance_threshold_meters: 2.0
  output_event: "EVENT_9"
}

Similarly, to monitor the distance between a Person and a Fourier_GR1_T2_Humanoid:

rules {
  name: "Person-to-Fourier warning (2m > distance > 1m)"
  message_source: "mdx-frames"
  alert_type: "social_distancing"
  rule_id: "person_fourier_lt_2m"
  object_type_primary: "Fourier_GR1_T2_Humanoid"
  object_type_secondary: "Person"
  proximity_violation: true
  distance_threshold_meters: 2.0
  output_event: "EVENT_9"
}

Note

The object type strings must match the class labels defined in the VSS perception model configuration. Any object type recognized by the deployed model can be used in the event mapping rules.

2. Event Ingestion with mdx_client

The mdx_client application serves as the event ingestion layer between the VSS perception pipeline and HOISA. It subscribes to Kafka topics (mdx-events and mdx-frames) published by the VSS stack, parses incoming Behavior and FrameMessage protobufs, and evaluates them against the rules defined in the event mapping configuration file. When a match is found, the corresponding HOISA safety event is generated and reported to the SEI daemon.

The application is configuration-driven — different use-cases are supported by supplying a different event mapping file, without requiring any code changes.

The mdx_client is launched as follows:

./mdx_client --config <path_to_event_mapping_config> \
    --sensor-config <path_to_sensor_config> \
    --broker <broker_address>

Parameter

Description

--config, -c

Path to the event mapping configuration file (required). Accepts Protobuf text or binary format.

--sensor-config, -s

Path to the sensor-to-pipeline mapping file (required). mdx_client exits at startup if it is omitted.

--broker, -b

Kafka broker address. Defaults to localhost:9092 if omitted. In deployments where the Kafka broker runs on a remote host, a remote address may be specified (e.g. 192.168.1.10:9092).

--debug, -d

Enables debug mode. Matched events are printed to stdout instead of being reported to the SEI daemon. Useful for validating rule matching without a running SEI daemon.

For the Proximity Monitoring use-case, the application is launched with:

./mdx_client --config /opt/nvidia/psf/apps/proximity/proximity_event_mapping.pb.txt \
    --sensor-config /opt/nvidia/psf/bin/sensor_config.conf

3. Implement the Safety Decision Maker (SDM)

The SDM is the core decision-making component of a HOISA application. It receives fused safety events from the SEI daemon via the NvPSD Gateway and translates them into actionable commands (e.g. Stop, Slow Down, Normal Operation) that are transmitted to the downstream actuator or controller.

A custom SDM is implemented as a standalone application that communicates with the NvPSD Gateway using a lightweight UDP-based protocol. The following headers, available in the development Debian packages (psf-desktop-dev.deb or psf-tegra-dev.deb) under the include/ directory, are required:

Header

Purpose

pss_protocol.h

Defines the DecisionRequest structure containing fused safety events, along with EventType, SensorData, SystemStatus, and MessageIntegrity types.

NvPSDGatewayProtocol.h

Defines the registration and heartbeat protocol constants (REGR, HBPG, HBPC) used for communication with the NvPSD Gateway.

pss_message_validate.h

Declares pssDecisionRequestVerifyCRC(), validateDecisionRequest(), and the PSS_ERR_* bitmask flags used to check every received request.

NvPSDGatewayContract.hpp

Defines the registration acceptance rules enforced by the gateway, including the event-type limits and the mandatory event types added to every subscription.

proximity_cmd_pkt.h

Defines the Proximity command/ack packet format shared by the SDM and the command receiver.

The system libraries required for linking the SDM are stdc++, pthread, and rt. The command receiver needs only pthread.

Important

Validating every received DecisionRequest is required, not optional. Call pssDecisionRequestVerifyCRC() and then validateDecisionRequest() before acting on a request, and check that integrity.schemaVersion equals PSS_SCHEMA_VERSION. validateDecisionRequest() returns a bitmask of PSS_ERR_* flags, so a non-zero result means the request must be rejected (PSS_VALID is 0). Both reference SDMs do this, which is why pss_message_validate.c appears in the build commands for each of them.

3.1 Connect to the NvPSD Gateway

The SDM communicates with the NvPSD Gateway over a UDP socket. At initialization, a non-blocking UDP socket is created and bound to an ephemeral port. The gateway address (IP and port) is typically provided via command-line arguments; the default is 127.0.0.1:50000.

int gwSock = socket(AF_INET, SOCK_DGRAM, 0);
fcntl(gwSock, F_SETFL, fcntl(gwSock, F_GETFL, 0) | O_NONBLOCK);

struct sockaddr_in bindAddr = {};
bindAddr.sin_family      = AF_INET;
bindAddr.sin_addr.s_addr = INADDR_ANY;
bindAddr.sin_port        = htons(0);  // ephemeral port
bind(gwSock, (struct sockaddr*)&bindAddr, sizeof(bindAddr));

struct sockaddr_in gatewayAddr = {};
gatewayAddr.sin_family = AF_INET;
gatewayAddr.sin_port   = htons(gatewayPort);
inet_pton(AF_INET, gatewayIP.c_str(), &gatewayAddr.sin_addr);

This same socket is used for all subsequent communication with the gateway — registration, event reception, and heartbeat exchange.

3.2 Register for Safety Events

Before the SDM can receive events, it must register with the NvPSD Gateway by sending a binary registration packet. The packet has the following structure:

Field

Description

Bytes 0–3

Magic: REGR (4 ASCII bytes)

Byte 4

Count of subscribed event types (uint8_t)

Byte 5+

Array of uint32_t event type values in network byte order (one per subscribed event)

Each uint32_t value corresponds to an EventType enum value from pss_protocol.h (e.g. EVENT_8, EVENT_9, EVENT_10). The gateway forwards the subscribed types plus four types it adds to every accepted registration — SW_FAIL, PSS_STATUS_NOOP, SENSOR_INVALID, and SENSOR_VALID — so that sensor-health evidence reaches every decision maker. Handle all four even if your registration omits them.

The gateway also enforces three limits on registration: the event count must be between 1 and 32, values that are neither a valid EventType nor SENSOR_INVALID / SENSOR_VALID are dropped silently (and the packet is rejected outright if nothing valid remains, logged as “ignoring REGR with no valid event types”), and at most 10 decision-maker clients can be registered at once.

#include "NvPSDGatewayProtocol.h"
#include "pss_protocol.h"

static const EventType subscribedEvents[] = {
    EVENT_8, EVENT_9, EVENT_10, SW_FAIL
};
static const uint8_t   eventCount = 4;

void sendRegistration(int gwSock, struct sockaddr_in* gwAddr)
{
    char buf[4 + 1 + eventCount * sizeof(uint32_t)];
    memcpy(buf, NVPSD_GATEWAY_REG_MAGIC, 4);       // "REGR"
    buf[4] = static_cast<char>(eventCount);

    for (uint8_t i = 0; i < eventCount; ++i) {
        uint32_t val = htonl(static_cast<uint32_t>(subscribedEvents[i]));
        memcpy(buf + 5 + i * sizeof(uint32_t), &val, sizeof(uint32_t));
    }

    sendto(gwSock, buf, sizeof(buf), 0,
           (struct sockaddr*)gwAddr, sizeof(*gwAddr));
}

Registration should be sent once at startup and re-sent periodically (e.g. every 30 seconds) to recover from potential gateway restarts where in-memory subscription state may be lost.

3.3 Receive and Process DecisionRequest Events

Once registered, the NvPSD Gateway forwards each DecisionRequest in a versioned NvPSDGatewayDecisionRequestPacket UDP envelope. The envelope contains DRPG, version, headerSize, gatewayEpoch, gatewayTxSeq, and the DecisionRequest payload. The SDM must validate the envelope and reject duplicate, stale, or gapped sequences. The event loop uses poll() on the gateway socket and distinguishes between:

  • Heartbeat (8 bytes, magic HBPG) — Handled as described in the next section.

  • Decision-request packet (sizeof(NvPSDGatewayDecisionRequestPacket) bytes) — A sequenced fused event batch from the SEI daemon.

The DecisionRequest structure contains the following key fields:

Field

Description

requestId

Unique identifier for the decision request.

sensorDataSummarySize

Number of valid entries in the sensorDataSummary array.

sensorDataSummary[]

Array of SensorData structs, each containing a FusedSafetyEvent with the event type, severity, status (FUSED, PASSTHROUGH, STALE), and fusionMetadata (object coordinates, IDs, types).

pssStatus

System status including mode (NORMAL, DEGRADED, ERROR) and hardware/software error flags.

integrity

Message integrity trailer for validation.

The event handler examines each SensorData entry and maps the event.type to an application-specific action. Four classes of entry must be skipped before any decision is taken: STALE status, the SENSOR_INVALID / SENSOR_VALID health events (consumed by the health monitor), entries with isHealthy == false, and entries with isTrustedSource == false. If pssStatus.mode is ERROR, the SDM should immediately issue a fail-safe response.

A DecisionRequest carries a batch of entries, so resolve the whole batch to one command and send it after the loop. Issuing a command per entry lets a later benign event overwrite an earlier critical one on the wire.

The following snippet illustrates the core event handling logic for the Proximity Monitoring use-case:

void onEventNotificationReceive(const DecisionRequest* request)
{
    // PSS ERROR mode — immediate fail-safe
    if (request->pssStatus.mode == ERROR) {
        issueFailSafeAction();
        return;
    }

    unsigned char cmd   = CMD_NORMAL;
    bool          found = false;

    for (uint8_t i = 0; i < request->sensorDataSummarySize; ++i) {
        const SensorData& sd = request->sensorDataSummary[i];

        if (sd.event.status == STALE)
            continue;  // skip stale events

        if (sd.event.type == SENSOR_INVALID || sd.event.type == SENSOR_VALID)
            continue;  // health evidence, not a proximity decision

        if (!sd.isHealthy || !sd.isTrustedSource)
            continue;  // sensor or AI pipeline not trustworthy

        if (sd.event.type == EVENT_10) {       // Critical proximity (< 1 m)
            cmd = CMD_STOP;   found = true;
        } else if (sd.event.type == EVENT_9) { // Warning zone (1–2 m)
            cmd = CMD_REDUCE; found = true;
        } else if (sd.event.type == EVENT_8) { // Safe distance (> 2 m)
            cmd = CMD_NORMAL; found = true;
        }
    }

    if (found)
        sendDecisionCommand(cmd);  // one command per request
}

The mapping between event types and actions is entirely application-specific. Each use-case defines its own logic for translating the received events into appropriate actuator commands.

3.4 Gateway Heartbeat Protocol

The NvPSD Gateway maintains a heartbeat mechanism to monitor the liveness of connected SDM clients. This protocol operates on the same UDP socket used for event reception and consists of two message types:

Direction

Format

Gateway -> SDM

8 bytes: HBPG (4 bytes) + sequence number (uint32_t, network byte order)

SDM -> Gateway

8 bytes: HBPC (4 bytes) + same sequence number (echo)

The gateway sends HBPG every 2 seconds. Size the SDM-side watchdog against that period: a threshold of N missed heartbeats corresponds to roughly N x 2 seconds before the gateway is declared unreachable.

Upon receiving a heartbeat from the gateway, the SDM must echo the sequence number back in an acknowledgement packet:

if (n == NVPSD_GATEWAY_HB_MSG_SIZE &&
    memcmp(rawBuf, NVPSD_GATEWAY_HB_MAGIC_GATEWAY, 4) == 0)
{
    // Update local watchdog timestamp
    hbLastRecvTime = std::chrono::steady_clock::now();

    // Echo ACK: [HBPC][seq]
    char ack[NVPSD_GATEWAY_HB_MSG_SIZE];
    memcpy(ack, NVPSD_GATEWAY_HB_MAGIC_CLIENT, 4);
    memcpy(ack + 4, rawBuf + 4, 4);  // echo sequence number
    sendto(gwSock, ack, NVPSD_GATEWAY_HB_MSG_SIZE, 0,
           (struct sockaddr*)&sender, senderLen);
}

It is recommended that a heartbeat watchdog be implemented to detect gateway communication failures. The watchdog tracks the elapsed time since the last received heartbeat and derives a miss count. If heartbeats are not received within the configured threshold (max_hb_failures, default: 10), the SDM should transition to a fail-safe state. As in the ATL reference application, the Proximity SDM latches that safe state and keeps re-asserting the fail-safe commands rather than exiting; it returns to normal operation only through the safe-release handshake (2.5 Clearing a Latched Safe State).

4. Building the Proximity SDM Reference

A complete reference implementation of the Proximity Monitoring SDM is included in the development Debian packages. After installation (x86-64) or extraction (aarch64), the source files are located at:

/opt/nvidia/psf/examples/apps/metropolis/proximity/sdm/ccplex/
├── Proximity.cpp              # Entry point (CLI argument parsing, launch)
├── ProximityControl.cpp        # Gateway integration, event handling, heartbeat
├── ProximityControl.h          # SDM interface declarations
└── pss_message_validate.c      # Message integrity validation

/opt/nvidia/psf/examples/apps/metropolis/proximity/include/
└── proximity_cmd_pkt.h         # Application-specific command packet definition

The required HOISA headers (pss_protocol.h, NvPSDGatewayProtocol.h) are located under /opt/nvidia/psf/include/. Both reference SDMs additionally include three shared headers — sdm_decision_request_state.h, sdm_decision_freshness.hpp, and sdm_gateway_decision_sequence.hpp — from examples/apps/metropolis/common/, which is why that directory is on the include path below. If it is missing from your extracted package, take the headers from the source repository.

The reference SDM can be compiled using a standard GCC toolchain as follows:

x86-64:

g++ -std=c++11 -o proximity_sdm \
    /opt/nvidia/psf/examples/apps/metropolis/proximity/sdm/ccplex/Proximity.cpp \
    /opt/nvidia/psf/examples/apps/metropolis/proximity/sdm/ccplex/ProximityControl.cpp \
    /opt/nvidia/psf/examples/apps/metropolis/proximity/sdm/ccplex/pss_message_validate.c \
    -I /opt/nvidia/psf/include \
    -I /opt/nvidia/psf/examples/apps/metropolis/proximity/include \
    -I /opt/nvidia/psf/examples/apps/metropolis/proximity/sdm/ccplex \
    -I /opt/nvidia/psf/examples/apps/metropolis/common \
    -lpthread -lrt

aarch64 (cross-compilation on x86-64 host):

aarch64-linux-gnu-g++ -std=c++11 -o proximity_sdm \
    <extraction_path>/opt/nvidia/psf/examples/apps/metropolis/proximity/sdm/ccplex/Proximity.cpp \
    <extraction_path>/opt/nvidia/psf/examples/apps/metropolis/proximity/sdm/ccplex/ProximityControl.cpp \
    <extraction_path>/opt/nvidia/psf/examples/apps/metropolis/proximity/sdm/ccplex/pss_message_validate.c \
    -I <extraction_path>/opt/nvidia/psf/include \
    -I <extraction_path>/opt/nvidia/psf/examples/apps/metropolis/proximity/include \
    -I <extraction_path>/opt/nvidia/psf/examples/apps/metropolis/proximity/sdm/ccplex \
    -I <extraction_path>/opt/nvidia/psf/examples/apps/metropolis/common \
    -lpthread -lrt

The resulting proximity_sdm binary can then be deployed and launched as described in Deployment Guide, Section 2.3.

5. Building the Command Receiver Reference

The development packages also include the source for the Proximity UDP Command Receiver — a reference application that simulates the actuator side. It listens for UDP command packets from the SDM and evaluates them using a “most conservative wins” policy over a fixed 100 ms window (EVAL_WINDOW_MS, a compile-time constant with no CLI override):

  • Any Software Error command in the window drives the fault safe state / alarm, which outranks a stop.

  • Any Stop or Hardware Error command results in an Emergency Stop.

  • Any Reduce command (with no stop or error) results in a Slow Down.

  • If all commands are Normal, normal operation continues.

  • An empty window is skipped, so the previously decided action is held rather than reverting to normal.

The source is located at:

/opt/nvidia/psf/examples/apps/metropolis/proximity/udp_cmd_receiver/
└── cmd_rx.cpp

/opt/nvidia/psf/examples/apps/metropolis/proximity/include/
└── proximity_cmd_pkt.h        # Shared packet definition (used by both SDM and receiver)

The command receiver can be compiled as follows:

x86-64:

g++ -std=c++11 -o proximity_sdm_cmd_receiver \
    /opt/nvidia/psf/examples/apps/metropolis/proximity/udp_cmd_receiver/cmd_rx.cpp \
    -I /opt/nvidia/psf/examples/apps/metropolis/proximity/include \
    -lpthread

aarch64 (cross-compilation on x86-64 host):

aarch64-linux-gnu-g++ -std=c++11 -o proximity_sdm_cmd_receiver \
    <extraction_path>/opt/nvidia/psf/examples/apps/metropolis/proximity/udp_cmd_receiver/cmd_rx.cpp \
    -I <extraction_path>/opt/nvidia/psf/examples/apps/metropolis/proximity/include \
    -lpthread

The receiver accepts -p <port> (default 12345), --sdm_ip <IPv4> (default 127.0.0.1), an optional --sdm_port <port>, and --max_hb_failures <N> (1–255, default 10). Unlike the ATL receiver it has no VST relay, so it rejects --vst_ip and --vst_port at startup with error: unknown option.

Logging is split by default: the verbose per-packet log goes to /tmp/cmdrx.log while the console carries only safe-state latch, clear, and release events. Use --log-file <PATH> to choose a different file, or --no-log-file to keep every packet on the console as earlier releases did.

Safe-release over standard input is always enabled and needs no flag. Writing release to the receiver’s stdin sends CMD_SAFE_RELEASE_REQUEST, so an operator can type it at the console and a script, CI job, or service-managed run can echo release into the process’s stdin or FIFO.

The receiver also issues that request on its own, once, after it first hears from its peer, which clears a latch left over from a previous run. See 2.5 Clearing a Latched Safe State for the full handshake, including when the SDM denies the request.
