Deploy on NVIDIA Brev

An NVIDIA Brev Launchable provisions a cloud GPU instance with the driver, Docker, the NVIDIA Container Toolkit, and both repositories already in place, then opens JupyterLab on it. One notebook brings up the whole Software-in-the-Loop (SIL) closed loop — AI Perception, the Safety Core, and NVIDIA Isaac Sim — runs the forklift scenario, and prints the evidence that the safety decision is reacting to the simulated scene.

Choose this route to watch the system react without provisioning a host. It applies the configuration of SIL — 2D Perception plus cloud-specific additions; that page remains the reference for the configuration, the log vocabulary, and troubleshooting.

Both checkouts are made for you: video-search-and-summarization for perception, and halos-outside-in-safety for the safety stack, with the notebook at deployments/scripts/deploy_hoisa_launchable.ipynb.

Deploy the Launchable

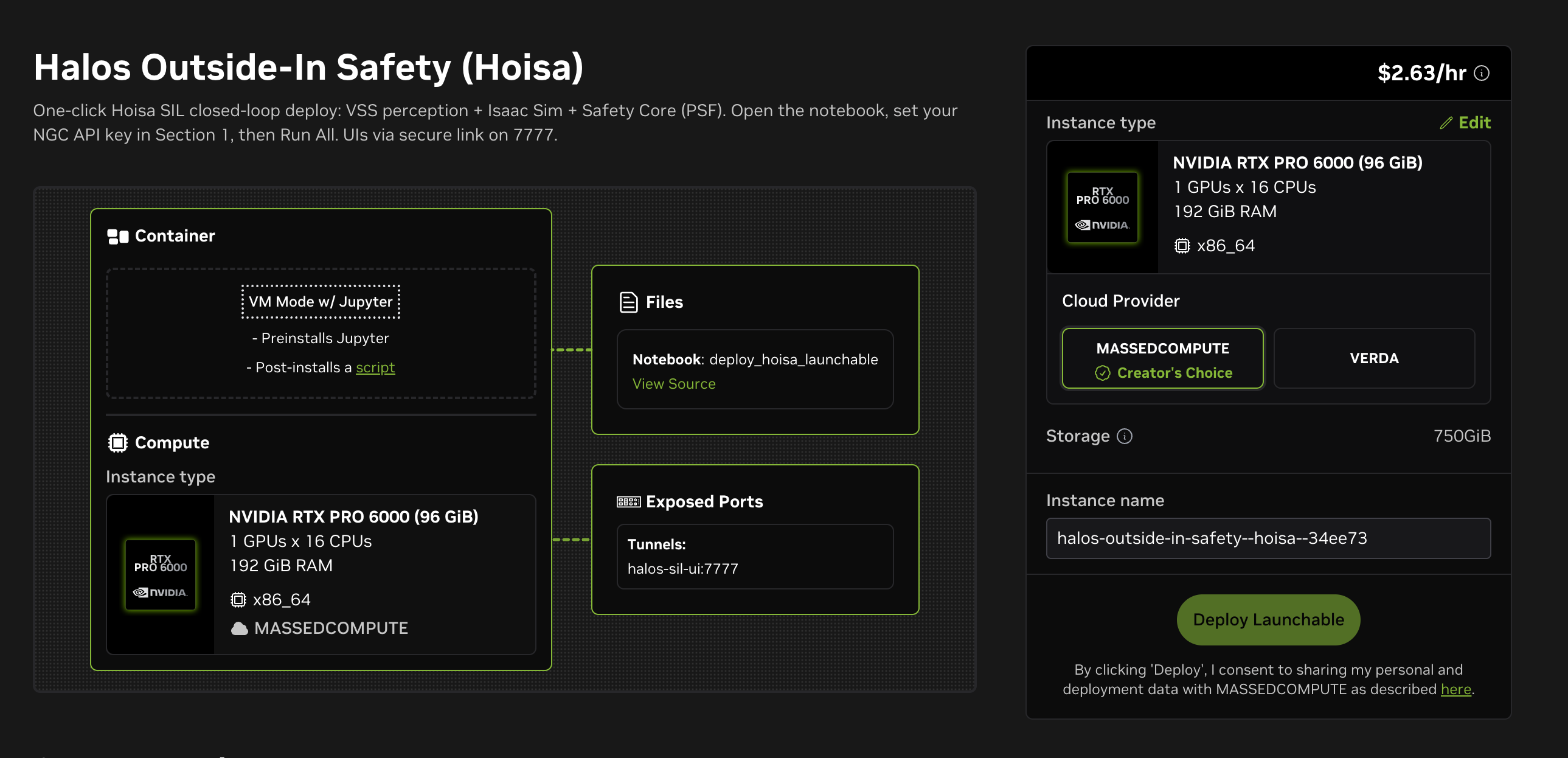

Open the Halos Outside-In Safety SIL Launchable in NVIDIA Brev. The page states what the instance will carry: both repositories, the notebook, and the 7777 tunnel the VST UI is reached through later.

The Launchable page. Edit beside the instance type opens the shape picker.

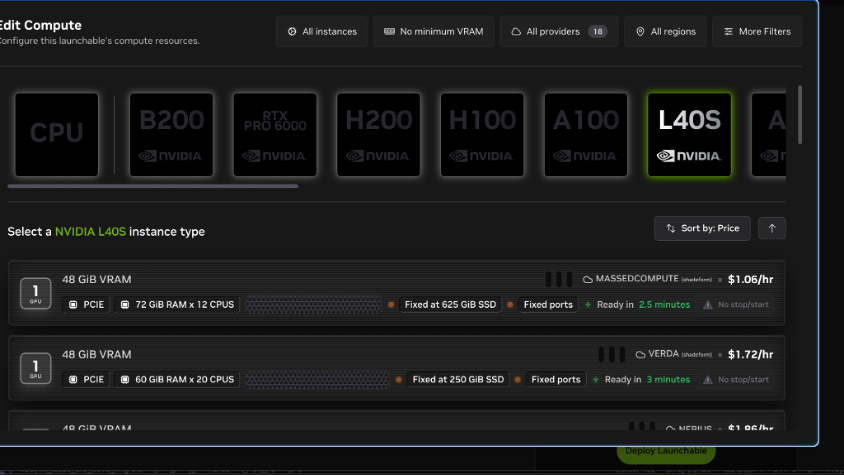

Keep the default shape or select Edit to choose another. Either way it has to satisfy the requirements below, which in practice means a GPU with RT cores and enough SSD to hold the artifacts and container images.

The shape picker. Each row carries its own fixed SSD size — check that before selecting, because it cannot be changed afterwards.

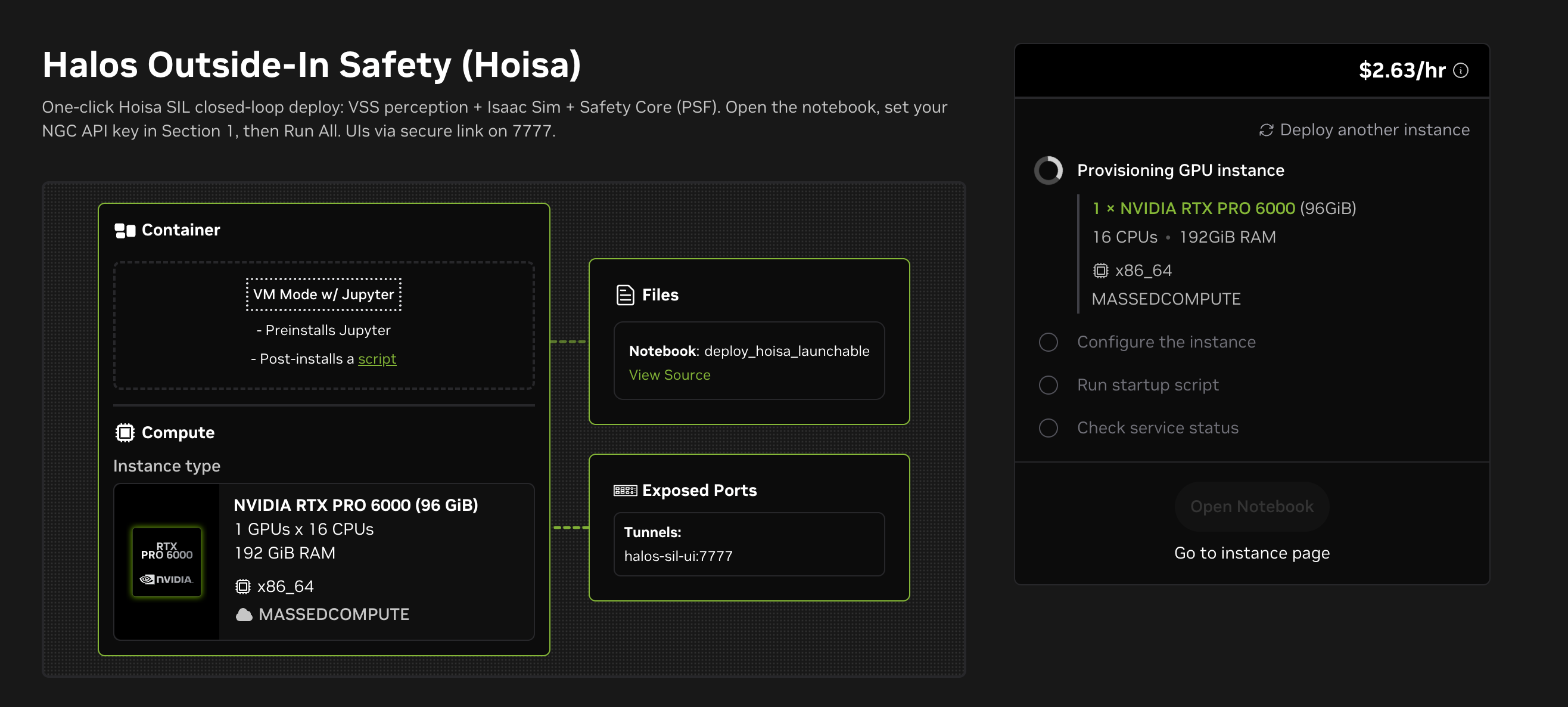

Select Deploy Launchable. Brev provisions the instance, configures it, and runs the startup script that clones both repositories and starts JupyterLab on port 8888.

Provisioning runs through four steps.

Warning

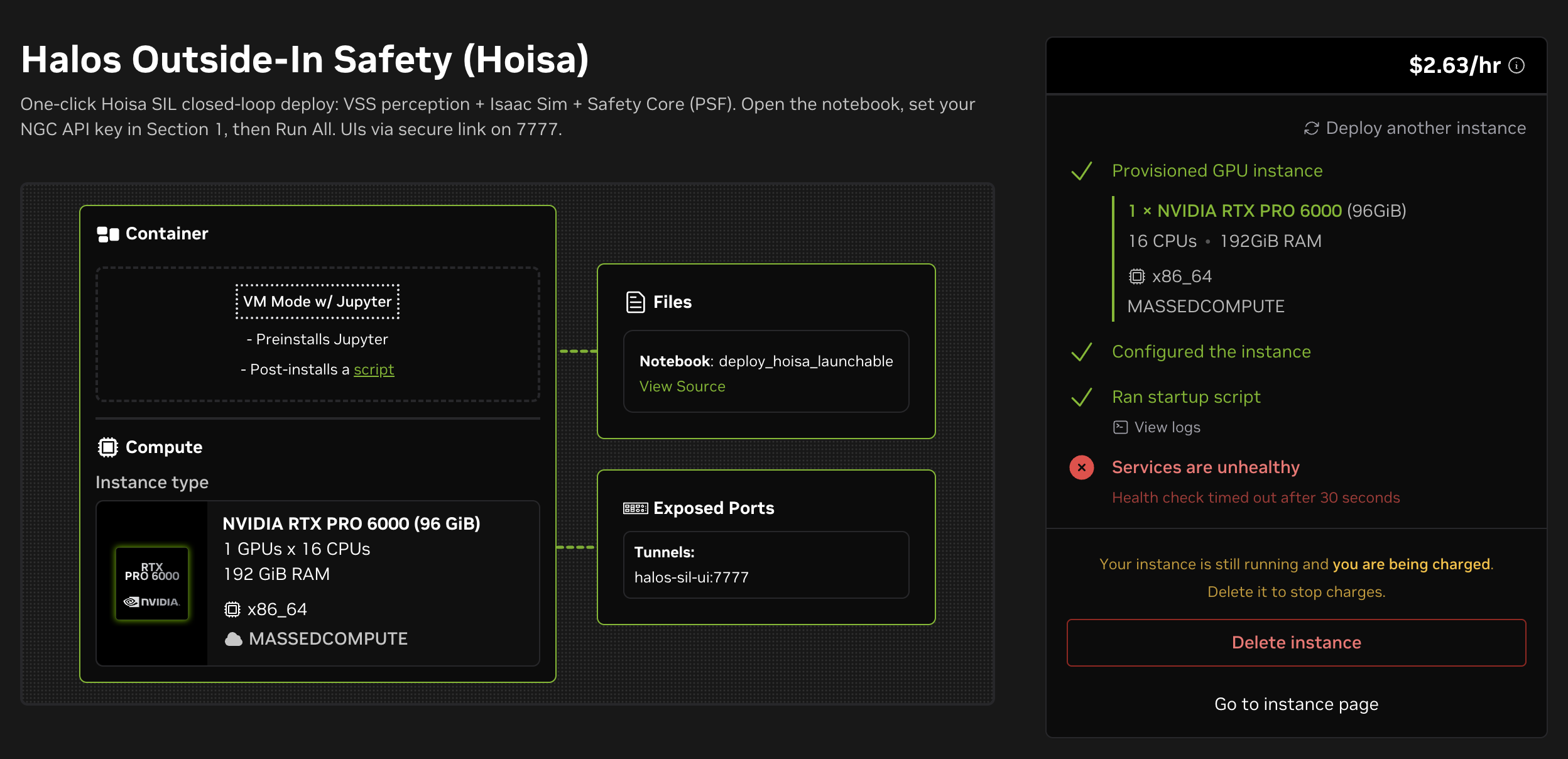

The fourth step ends in Services are unhealthy — Health check timed out on a deploy that is otherwise fine. That check probes the VST ingress on 7777, and nothing answers there until the notebook has deployed the stack. Do not select Delete instance. Select Go to instance page and carry on.

Expected at the end of a good deploy: the first three steps pass, the service health check fails.

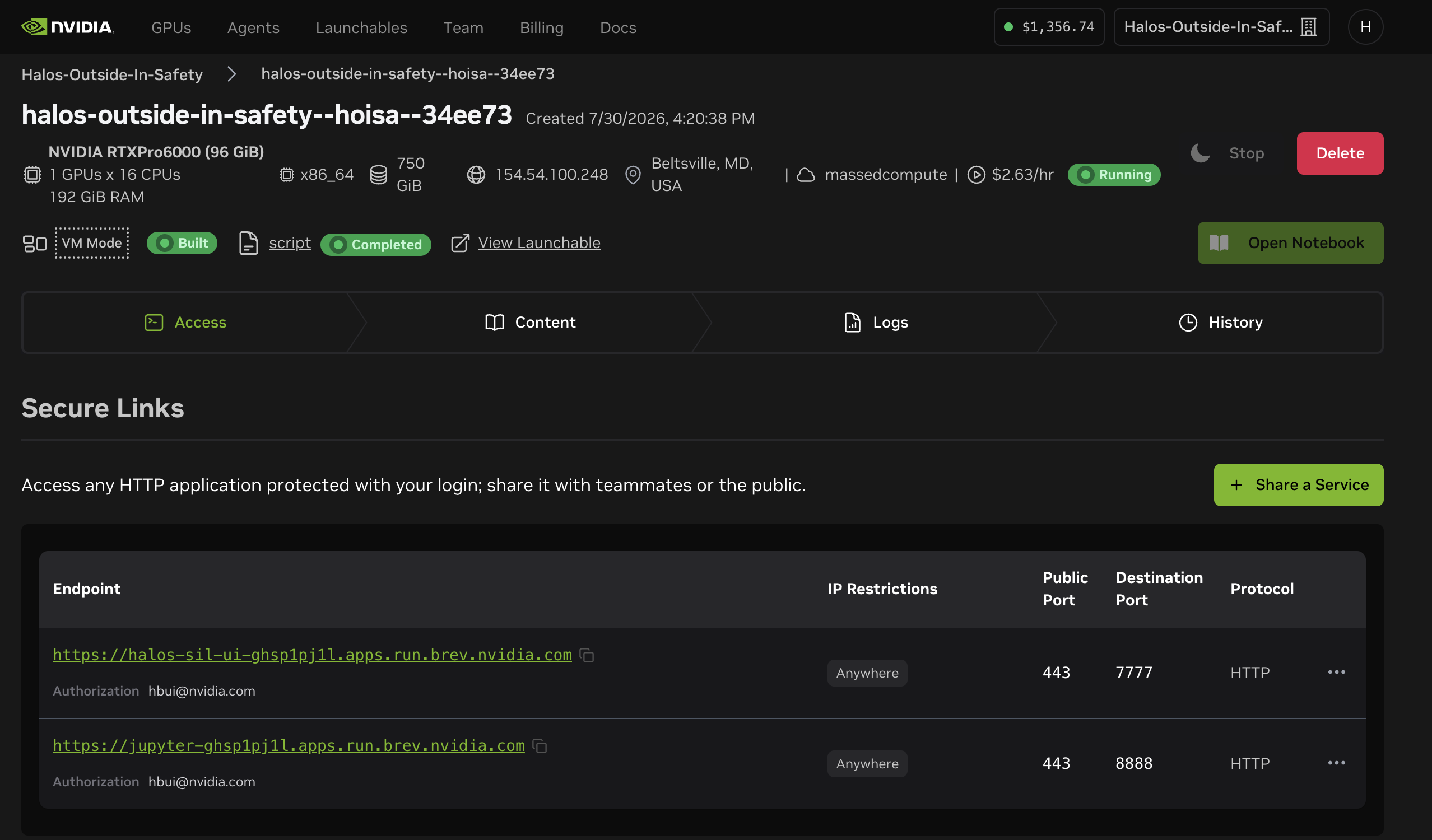

On the instance page, Secure Links lists one entry per exposed port. The jupyter link, on 8888, opens JupyterLab — as does Open Notebook at the top right. The halos-sil-ui link, on 7777, is the one you return to for the VST UI once the notebook has run.

The instance page: both secure links, and the controls to stop or delete the instance.

Prerequisites

See Prerequisites for the NGC enrollment steps and the CPU, RAM, storage, and GPU floors. Two of them read differently when you are choosing a cloud instance shape.

Compute-only accelerators head most cloud GPU catalogs and cannot render the Isaac Sim scene, however much memory they carry. Pick a shape whose GPU has RT cores — an L40S, an RTX A6000 or an RTX 6000 Ada all qualify.

Storage is fixed per shape rather than something you grow later, so take the recommended 250 GB rather than the 200 GB floor: the NGC artifacts and the container images land on the same disk.

Some cloud regions are refused by NGC with an HTTP 403 that is not an authentication failure. If artifact downloads fail that way while docker login succeeded, redeploy the Launchable in a US region, which is validated reachable.

Run the notebook

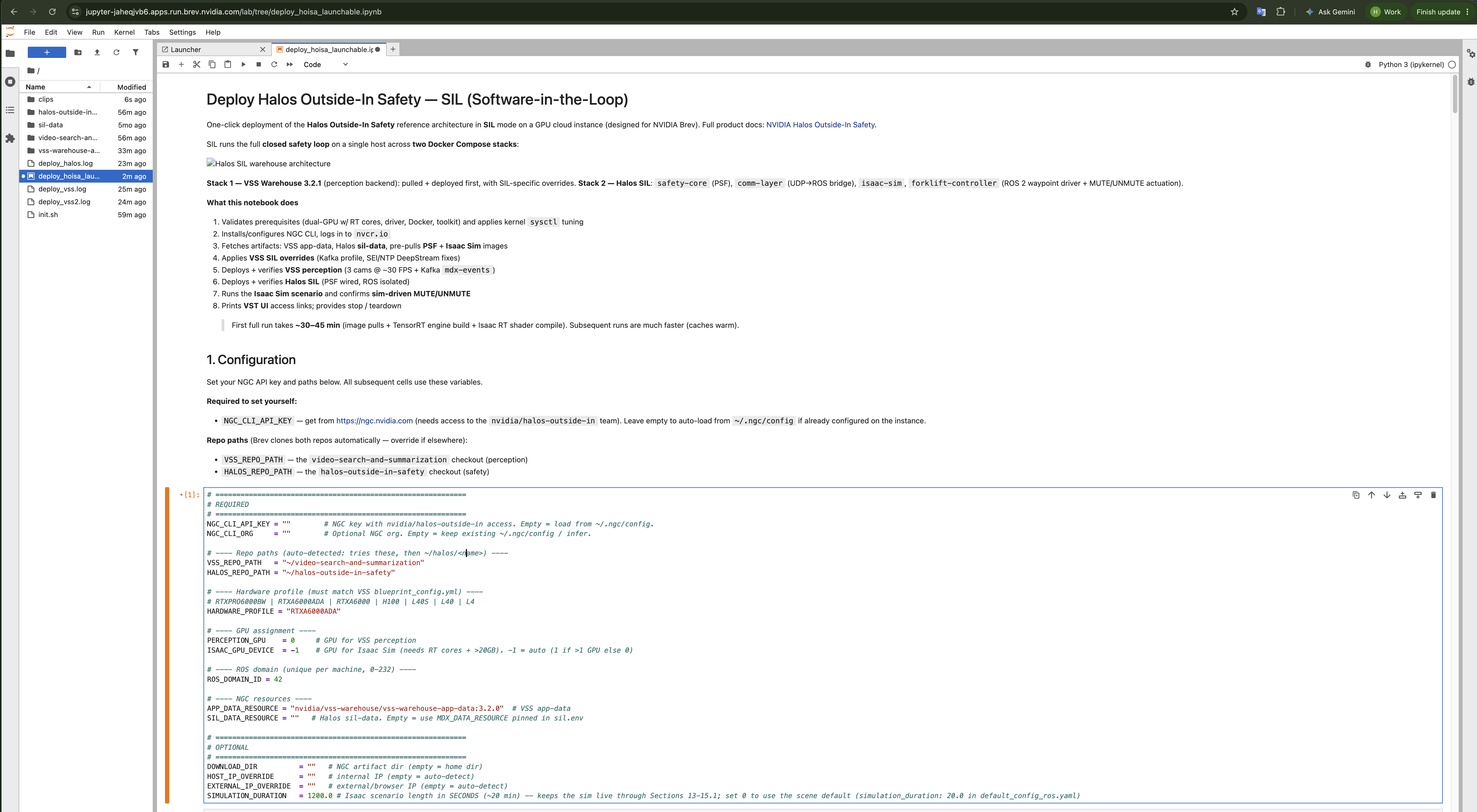

In JupyterLab, open halos-outside-in-safety/deployments/scripts/deploy_hoisa_launchable.ipynb and set the values in Section 1:

NGC_CLI_API_KEY     = "<NGC_API_KEY>"  # empty = read from ~/.ngc/config on the instance
HARDWARE_PROFILE    = "RTXA6000ADA"    # already the default; must match the instance GPU:
                                       # RTXPRO6000BW | RTXA6000ADA | RTXA6000 | H100 | L40S | L40 | L4
SIMULATION_DURATION = 1200.0           # already the default; seconds the scenario runs, 0 = scene default

Both repositories are already in place, and the notebook opens at its configuration section. On a default shape the NGC key is usually the only value that needs changing.

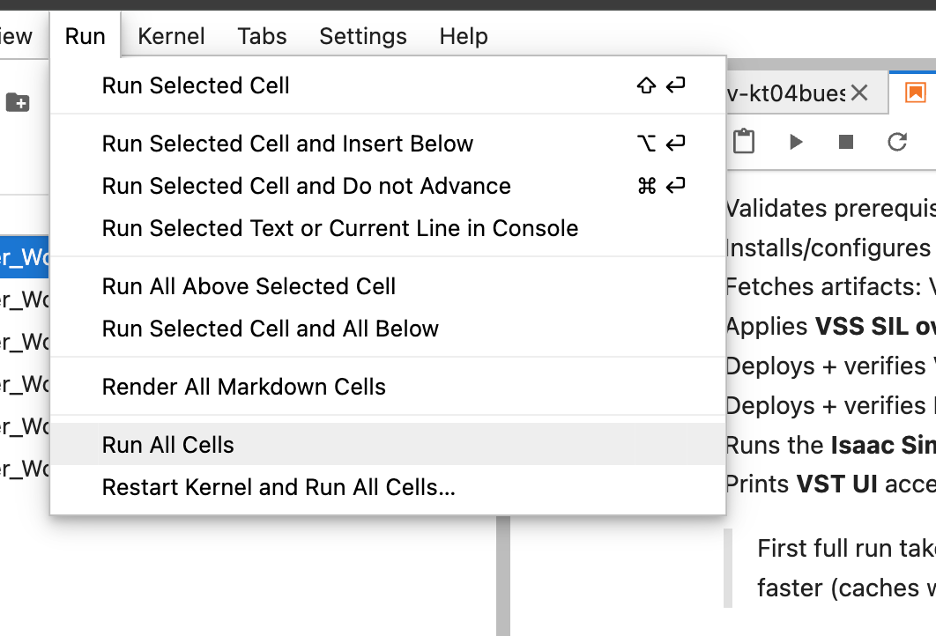

Then run every cell, top to bottom, with Run ▸ Run All Cells.

The rest of the deploy is unattended from here.

Section 1 ends with Configuration valid. and a summary of the resolved repository paths, GPU assignment, and NGC artifacts. Anything else is a wrong path or a missing key, and the run stops there.

The rest is unattended. Section 2 adds what a cloud image lacks — the kernel sysctl values Elasticsearch and Kafka need, and firewall rules for the Docker bridge subnets when ufw is active — without which the infrastructure containers crash-loop or perception never receives a source. Sections 3 to 15 then do the NGC CLI setup, the artifact downloads, the VSS SIL overrides, both Compose stacks, the scenario, and the VST UI links. Artifacts and images already on disk are reused, so a second run skips the downloads.

Important

Section 4 prints PASS or FAIL for each image and data resource, and a FAIL does not stop the run. Read those three lines before the notebook reaches the deploy: the two image lines fail much later, during the Halos deploy pull; a failed data resource stops the notebook at Section 5.

How long it takes

A first run takes about 30 to 45 minutes, measured on a two-GPU RTX 6000 Ada instance; other hardware differs. Beyond the deploy phases below, the balance is the NGC artifact download and the PSF and Isaac Sim image pre-pull in Section 5, the perception TensorRT engine build, and the Isaac Sim scene load and RT shader compile — SIL — 2D Perception gives the first-run figures for the last two. A second run reuses the artifacts, the images, and both build caches.

Phase	First run	Subsequent
VSS Warehouse pull and deploy	~10–15 min	~2–3 min
Halos SIL build and start	~3–5 min	~1 min

How to tell it worked

Four notebook sections carry the acceptance criteria:

Notebook section	What proves it	When it fails
Verify VSS Perception Ready	cameras: 3/3 live, then VSS perception READY; Kafka has mdx-events	Stops the run
Verify Halos Services + PSF Wiring	All four services Up; opc_server.log non-empty and showing MUTE / UNMUTE / HEARTBEAT lines; Publisher count: 1 for /safety/is_muted	Prints and continues
Run the Isaac Sim Scenario	Every Isaac Sim RTSP endpoint answers ffprobe, then Isaac SIL closed-loop RUNNING	Stops the run
Monitor Sim-Driven Safety	Non-zero counts for both MUTE (ALLOW and UNMUTE (PREVENT, plus Forklift tripwire events in the Safety Core log	Prints and continues

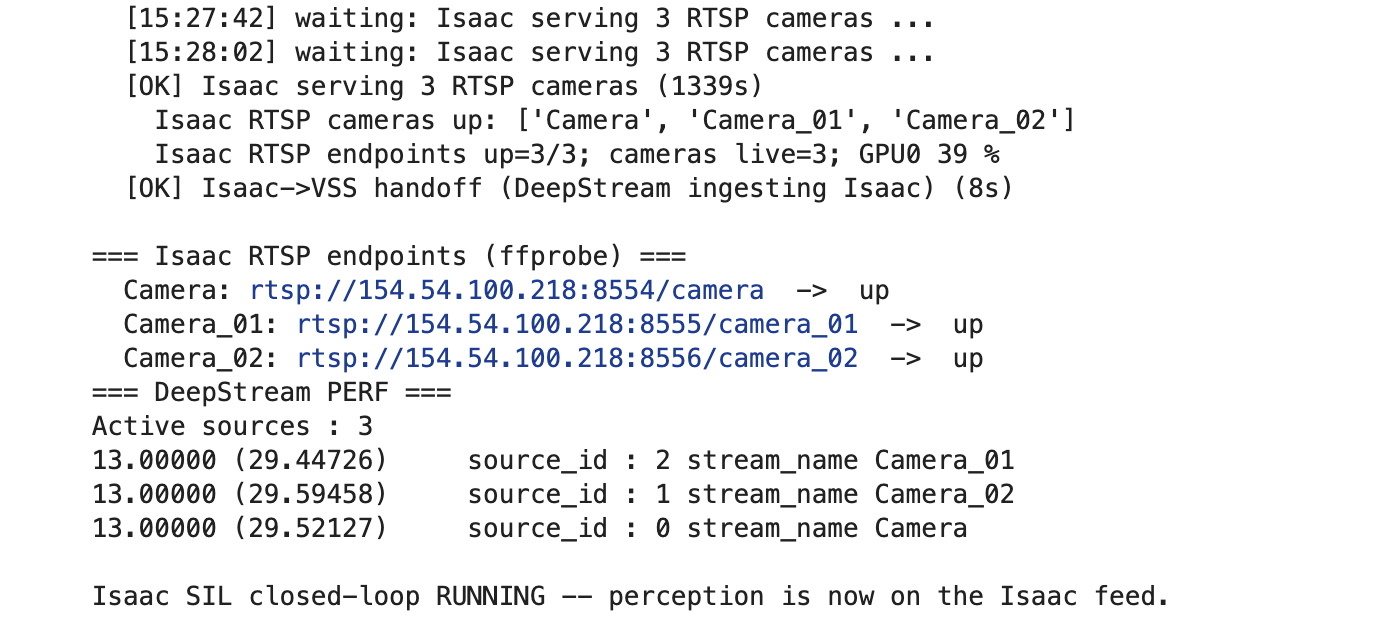

Section 13. Every Isaac Sim RTSP endpoint answers ffprobe, DeepStream reports three active sources on the Isaac feed, and the section signs off with Isaac SIL closed-loop RUNNING.

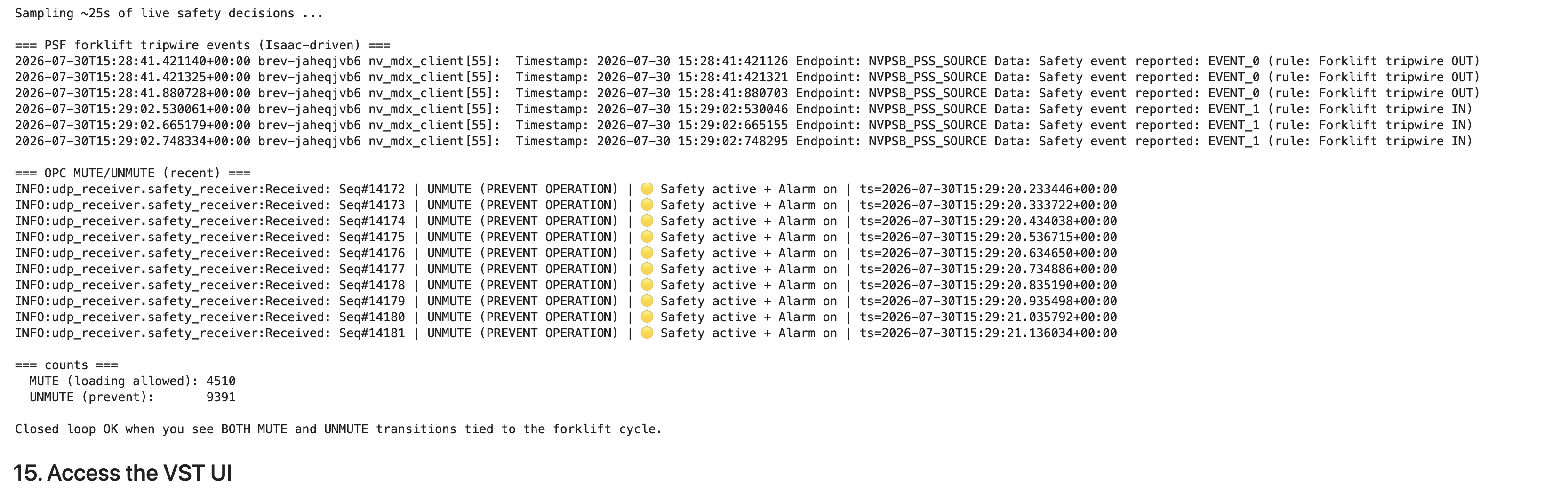

Section 14 is the proof that the loop closed. Both counts must be non-zero and must keep moving with the forklift cycle — the sample video perception plays before the Isaac Sim handoff also produces decisions, so a single transition is not evidence. Re-run the cell to sample another 25 seconds; the log lines are glossed in Monitor safety commands.

Both counts moving with the forklift cycle, above them the Forklift tripwire events that drove them. A single transition is not evidence.

Reach the VST UI

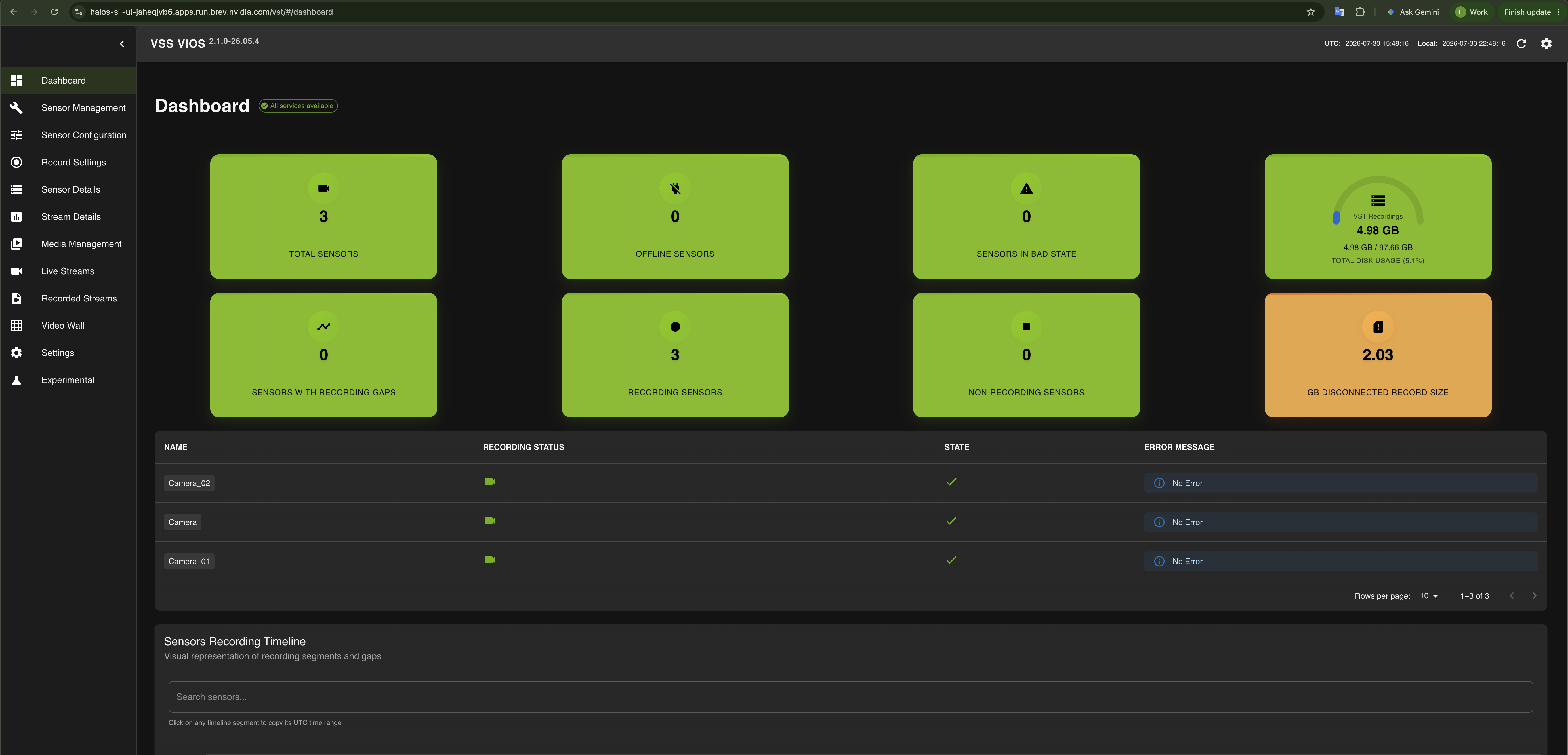

The Launchable already exposes port 7777 as a secure link — the halos-sil-ui entry on the instance page, in front of the HAProxy ingress the notebook puts before VST’s 30888. Open that link with the /vst/ path appended. Section 15 prints the URL, and its local reachability check should show 200 for both /vst/ probes; the ingress already accepts the secure-link hostnames Brev assigns.

The VST UI through the secure link, with all three Isaac Sim cameras registered and healthy.

Note

Video frames do not render through a Brev secure link. The UI loads and the sensor, stream and recording lists stay browsable, but the players remain blank — VST carries video over WebRTC, which wants UDP, while a secure link carries TCP only. Use Section 15.1 below to see what the cameras render.

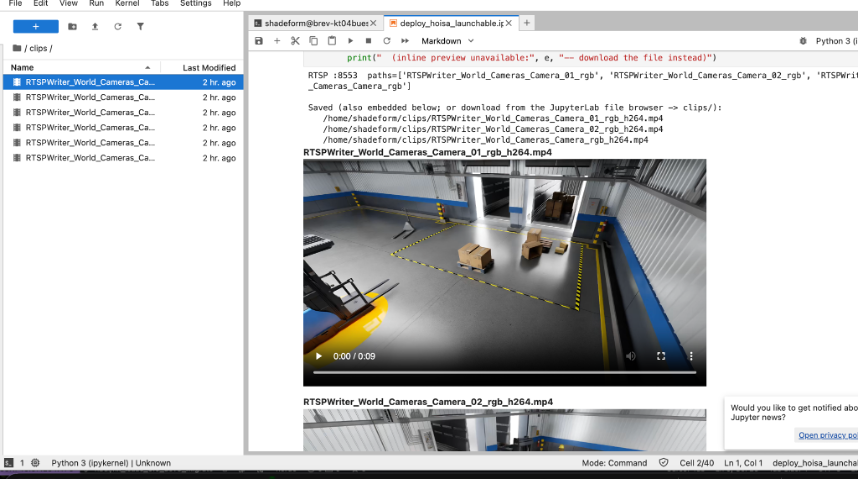

To see what Isaac Sim renders, run Section 15.1 while the scenario is live: it records ten seconds of each camera off its RTSP endpoint into ~/clips, transcodes each to H.264, and plays them inline in the notebook — the one path that carries frames through a secure link. The browser-playable copies are the *_h264.mp4 files, also downloadable from the JupyterLab file browser. With direct network access the UI behaves as on any other SIL host — see View camera streams.

A recorded camera clip playing inline in the notebook, with the same clips listed under clips/ in the file browser for download.

Stop, restart, and tear down

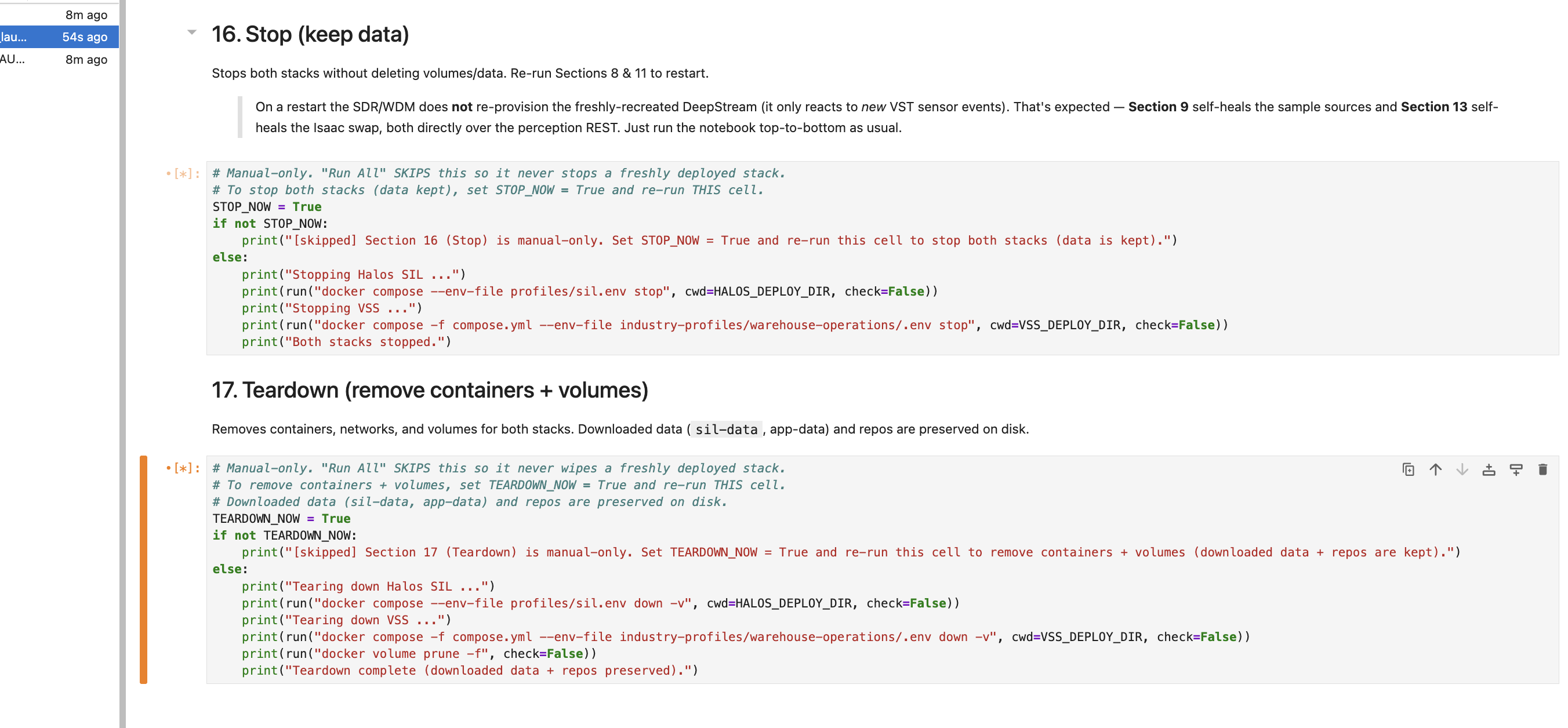

Sections 16 and 17 are manual-only, and a full run skips both so it never stops the stack it just deployed. Set STOP_NOW = True in Section 16 to stop both stacks with data and volumes intact, or TEARDOWN_NOW = True in Section 17 to remove containers, networks, and volumes; the downloaded artifacts and the two repositories stay on disk either way. Stopping the stacks does not release the instance — stop or delete that in Brev when you are finished.

Each section guards itself with a flag, so a cell that runs with the flag still False reports itself skipped rather than doing anything.

To come back up, run the notebook again rather than a bare docker compose up: perception does not re-provision its cameras after a redeploy, and Sections 9 and 13 add the sources back over the perception REST API.

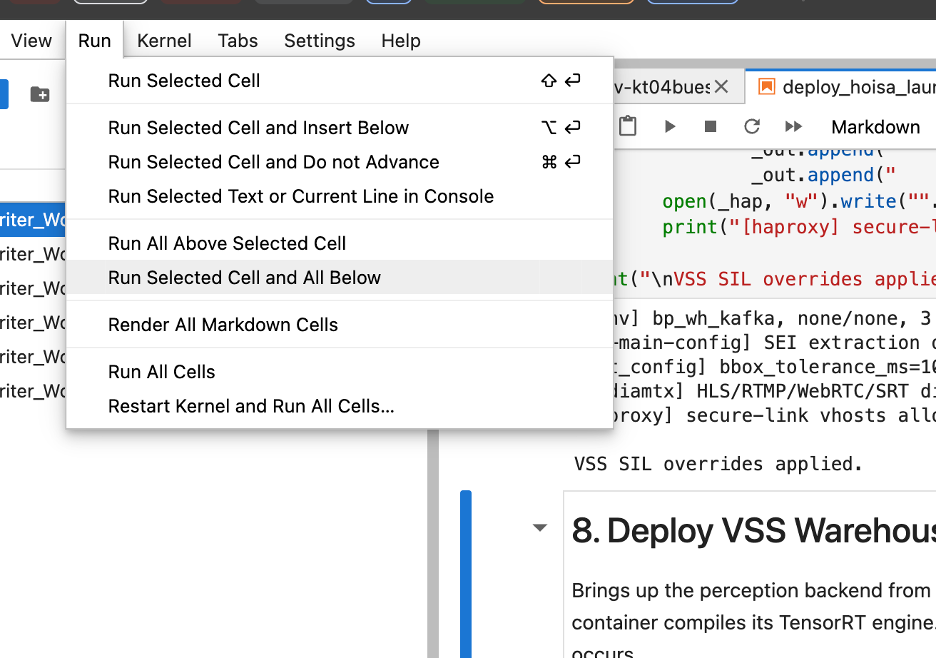

Set whichever flag you used back to False first, or the run will stop or tear down the stack it has just brought up. Then select the Section 8 cell and use Run ▸ Run Selected Cell and All Below, which skips the artifact downloads and the pre-pull that Sections 2 to 7 have already done. Restarting the kernel and running all cells works too and costs only the time those sections take to confirm their work is already in place.

Redeploying from Section 8 rather than from the top.

Next Steps

• SIL — 2D Perception — the manual runbook: VSS overrides, expected output, troubleshooting

• SIL Architecture — what each container does and where data flows

• Quick Start Guide — score the safety decision of a healthy loop

• Agentic Deployment — the same bring-up on your own host, from a coding agent
