Ping Multi Port - NVIDIA Docs

In this section, we look at how to create an application with a more complex workflow where operators may have multiple input/output ports that send/receive a user-defined data type.

In this example we will cover:

how to send/receive messages with a custom data type
how to add a port that can receive any number of inputs

Note

The example source code and run instructions can be found in the examples directory on GitHub, or under /opt/nvidia/holoscan/examples in the NGC container and the debian package, alongside their executables.

Operators and Workflow

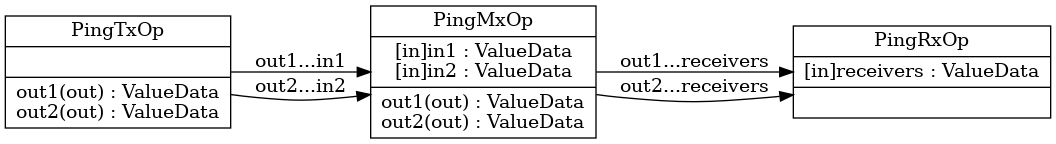

Here is the diagram of the operators and workflow used in this example.

Fig. 7 A workflow with multiple inputs and outputs

In this example, PingTxOp sends a stream of odd integers to the out1 port, and even integers to the out2 port. PingMxOp receives these values using in1 and in2 ports, multiplies them by a constant factor, then forwards them to a single port - receivers - on PingRxOp.

User Defined Data Types

In the previous ping examples, the port types for our operators were integers, but the Holoscan SDK can send any arbitrary data type. In this example, we’ll see how to configure operators for our user-defined ValueData class.

C++
Python

Copy
Copied!


            #include "holoscan/holoscan.hpp"

class ValueData {
 public:
  ValueData() = default;
  explicit ValueData(int value) : data_(value) {
    HOLOSCAN_LOG_TRACE("ValueData::ValueData(): {}", data_);
  }
  ~ValueData() { HOLOSCAN_LOG_TRACE("ValueData::~ValueData(): {}", data_); }

  void data(int value) { data_ = value; }

  int data() const { return data_; }

 private:
  int data_;
};

The ValueData class wraps a simple integer (line 6, 16), but could have been arbitrarily complex.

Note

The HOLOSCAN_LOG_<LEVEL>() macros can be used for logging with fmtlib syntax (lines 7, 9 above) as demonstrated across this example. See the Logging section for more details.

Copy
Copied!


            from holoscan.conditions import CountCondition
from holoscan.core import Application, IOSpec, Operator, OperatorSpec

class ValueData:
    """Example of a custom Python class"""

    def __init__(self, value):
        self.data = value

    def __repr__(self):
        return f"ValueData({self.data})"

    def __eq__(self, other):
        return self.data == other.data

    def __hash__(self):
        return hash(self.data)

The ValueData class is a simple wrapper, but could have been arbitrarily complex.

Defining an Explicit Number of Inputs and Outputs

After defining our custom ValueData class, we configure our operators’ ports to send/receive messages of this type, similarly to the previous example.

This is the first operator - PingTxOp - sending ValueData objects on two ports, out1 and out2:

C++
Python

Copy
Copied!


            namespace holoscan::ops {

class PingTxOp : public Operator {
 public:
  HOLOSCAN_OPERATOR_FORWARD_ARGS(PingTxOp)

  PingTxOp() = default;

  void setup(OperatorSpec& spec) override {
    spec.output<std::shared_ptr<ValueData>>("out1");
    spec.output<std::shared_ptr<ValueData>>("out2");
  }

  void compute(InputContext&, OutputContext& op_output, ExecutionContext&) override {
    auto value1 = std::make_shared<ValueData>(index_++);
    op_output.emit(value1, "out1");

    auto value2 = std::make_shared<ValueData>(index_++);
    op_output.emit(value2, "out2");
  };
  int index_ = 1;
};

We configure the output ports with the ValueData type on lines 10 and 11 using spec.output<std::shared_ptr<ValueData>>(). Therefore, the data type for the output ports is an object to a shared pointer to a ValueData object.
The values are then sent out using op_output.emit() on lines 16 and 19. The port name is required since there is more than one port on this operator.

Note

Data types of the output ports are shared pointers (std::shared_ptr), hence the call to std::make_shared<ValueData>(...) on lines 15 and 18.

Copy
Copied!


            class PingTxOp(Operator):
    """Simple transmitter operator.

This operator has:
outputs: "out1", "out2"

On each tick, it transmits a `ValueData` object at each port. The
transmitted values are even on port1 and odd on port2 and increment with
each call to compute.
"""

    def __init__(self, fragment, *args, **kwargs):
        self.index = 1
        # Need to call the base class constructor last
        super().__init__(fragment, *args, **kwargs)

    def setup(self, spec: OperatorSpec):
        spec.output("out1")
        spec.output("out2")

    def compute(self, op_input, op_output, context):
        value1 = ValueData(self.index)
        self.index += 1
        op_output.emit(value1, "out1")

        value2 = ValueData(self.index)
        self.index += 1
        op_output.emit(value2, "out2")

We configure the output ports on lines 18 and 19 using spec.output(). There is no need to reference the type (ValueData) in Python.
The values are then sent out using op_output.emit() on lines 24 and 28.

We then configure the middle operator - PingMxOp - to receive that data on ports in1 and in2:

C++
Python

Copy
Copied!


            class PingMxOp : public Operator {
 public:
  HOLOSCAN_OPERATOR_FORWARD_ARGS(PingMxOp)

  PingMxOp() = default;

  void setup(OperatorSpec& spec) override {
    spec.input<std::shared_ptr<ValueData>>("in1");
    spec.input<std::shared_ptr<ValueData>>("in2");
    spec.output<std::shared_ptr<ValueData>>("out1");
    spec.output<std::shared_ptr<ValueData>>("out2");
    spec.param(multiplier_, "multiplier", "Multiplier", "Multiply the input by this value", 2);
  }

  void compute(InputContext& op_input, OutputContext& op_output, ExecutionContext&) override {
    auto value1 = op_input.receive<std::shared_ptr<ValueData>>("in1").value();
    auto value2 = op_input.receive<std::shared_ptr<ValueData>>("in2").value();

    HOLOSCAN_LOG_INFO("Middle message received (count: {})", count_++);

    HOLOSCAN_LOG_INFO("Middle message value1: {}", value1->data());
    HOLOSCAN_LOG_INFO("Middle message value2: {}", value2->data());

    // Multiply the values by the multiplier parameter
    value1->data(value1->data() * multiplier_);
    value2->data(value2->data() * multiplier_);

    op_output.emit(value1, "out1");
    op_output.emit(value2, "out2");
  };

 private:
  int count_ = 1;
  Parameter<int> multiplier_;
};

We configure the input ports with the std::shared_ptr<ValueData> type on lines 8 and 9 using spec.input<std::shared_ptr<ValueData>>().
The values are received using op_input.receive() on lines 16 and 17 using the port names. The received values are of type std::shared_ptr<ValueData> as mentioned in the templated receive() method.

Copy
Copied!


            class PingMxOp(Operator):
    """Example of an operator modifying data.

This operator has:
inputs:  "in1", "in2"
outputs: "out1", "out2"

The data from each input is multiplied by a user-defined value.
"""

    def __init__(self, fragment, *args, **kwargs):
        self.count = 1

        # Need to call the base class constructor last
        super().__init__(fragment, *args, **kwargs)

    def setup(self, spec: OperatorSpec):
        spec.input("in1")
        spec.input("in2")
        spec.output("out1")
        spec.output("out2")
        spec.param("multiplier", 2)

    def compute(self, op_input, op_output, context):
        value1 = op_input.receive("in1")
        value2 = op_input.receive("in2")
        print(f"Middle message received (count:{self.count})")
        self.count += 1

        print(f"Middle message value1:{value1.data}")
        print(f"Middle message value2:{value2.data}")

        # Multiply the values by the multiplier parameter
        value1.data *= self.multiplier
        value2.data *= self.multiplier

        op_output.emit(value1, "out1")
        op_output.emit(value2, "out2")

Sending messages of arbitrary data types is pretty straightforward in Python. The code to define the operator input ports (lines 18-19), and to receive them (lines 25-26) did not change when we went from passing int to ValueData objects.

PingMxOp processes the data, then sends it out on two ports, similarly to what is done by PingTxOp above.

Receiving Any Number of Inputs

In this workflow, PingRxOp has a single input port - receivers - that is connected to two upstream ports from PingMxOp. When an input port needs to connect to multiple upstream ports, we define it with spec.param() instead of spec.input(). The inputs are then stored in a vector, following the order they were added with add_flow().

C++
Python

Copy
Copied!


            class PingRxOp : public Operator {
 public:
  HOLOSCAN_OPERATOR_FORWARD_ARGS(PingRxOp)

  PingRxOp() = default;

  void setup(OperatorSpec& spec) override {
    // // Since Holoscan SDK v2.3, users can define a multi-receiver input port using 'spec.input()'
    // // with 'IOSpec::kAnySize'.
    // // The old way is to use 'spec.param()' with 'Parameter<std::vector<IOSpec*>> receivers_;'.
    // spec.param(receivers_, "receivers", "Input Receivers", "List of input receivers.", {});
    spec.input<std::vector<std::shared_ptr<ValueData>>>("receivers", IOSpec::kAnySize);
  }

  void compute(InputContext& op_input, OutputContext&, ExecutionContext&) override {
    auto value_vector =
        op_input.receive<std::vector<std::shared_ptr<ValueData>>>("receivers").value();

    HOLOSCAN_LOG_INFO("Rx message received (count: {}, size: {})", count_++, value_vector.size());

    HOLOSCAN_LOG_INFO("Rx message value1: {}", value_vector[0]->data());
    HOLOSCAN_LOG_INFO("Rx message value2: {}", value_vector[1]->data());
  };

 private:
  // // Since Holoscan SDK v2.3, the following line is no longer needed.
  // Parameter<std::vector<IOSpec*>> receivers_;
  int count_ = 1;
};

In the operator’s setup() method, we define an input port receivers (line 12) with holoscan::IOSpec::kAnySize to allow any number of upstream ports to connect to it.
The values are retrieved using op_input.receive<std::vector<std::shared_ptr<ValueData>>>(...).
The type of value_vector is std::vector<std::shared_ptr<ValueData>> (lines 16-17).

Please see Receiving any number of inputs (C++) for more information on how to retrieve any number of inputs in C++.

Copy
Copied!


            class PingRxOp(Operator):
    """Simple receiver operator.

This operator has:
input: "receivers"

This is an example of a native operator that can dynamically have any
number of inputs connected to is "receivers" port.
"""

    def __init__(self, fragment, *args, **kwargs):
        self.count = 1
        # Need to call the base class constructor last
        super().__init__(fragment, *args, **kwargs)

    def setup(self, spec: OperatorSpec):
        # # Since Holoscan SDK v2.3, users can define a multi-receiver input port using
        # # 'spec.input()' with 'size=IOSpec.ANY_SIZE'.
        # # The old way is to use 'spec.param()' with 'kind="receivers"'.
        # spec.param("receivers", kind="receivers")
        spec.input("receivers", size=IOSpec.ANY_SIZE)

    def compute(self, op_input, op_output, context):
        values = op_input.receive("receivers")
        print(f"Rx message received (count:{self.count}, size:{len(values)})")
        self.count += 1
        print(f"Rx message value1:{values[0].data}")
        print(f"Rx message value2:{values[1].data}")

In Python, a port that can be connected to multiple upstream ports is created by defining an input port and setting the argument size=IOSpec.ANY_SIZE (line 21).
The call to receive() returns a tuple of ValueData objects (line 24).

Please see Receiving any number of inputs (Python) for more information on how to retrieve any number of inputs in Python.

The rest of the code creates the application, operators, and defines the workflow:

C++
Python

Copy
Copied!


            class MyPingApp : public holoscan::Application {
 public:
  void compose() override {
    using namespace holoscan;

    // Define the tx, mx, rx operators, allowing the tx operator to execute 10 times
    auto tx = make_operator<ops::PingTxOp>("tx", make_condition<CountCondition>(10));
    auto mx = make_operator<ops::PingMxOp>("mx", Arg("multiplier", 3));
    auto rx = make_operator<ops::PingRxOp>("rx");

    // Define the workflow
    add_flow(tx, mx, {{"out1", "in1"}, {"out2", "in2"}});
    add_flow(mx, rx, {{"out1", "receivers"}, {"out2", "receivers"}});
  }
};

int main(int argc, char** argv) {
  auto app = holoscan::make_application<MyPingApp>();
  app->run();

  return 0;
}

Copy
Copied!


            class MyPingApp(Application):
    def compose(self):
        # Define the tx, mx, rx operators, allowing the tx operator to execute 10 times
        tx = PingTxOp(self, CountCondition(self, 10), name="tx")
        mx = PingMxOp(self, name="mx", multiplier=3)
        rx = PingRxOp(self, name="rx")

        # Define the workflow
        self.add_flow(tx, mx, {("out1", "in1"), ("out2", "in2")})
        self.add_flow(mx, rx, {("out1", "receivers"), ("out2", "receivers")})


def main():
    app = MyPingApp()
    app.run()


if __name__ == "__main__":
    main()

The operators tx, mx, and rx are created in the application’s compose() similarly to previous examples.
Since the operators in this example have multiple input/output ports, we need to specify the third, port name pair argument when calling add_flow():
- tx/out1 is connected to mx/in1, and tx/out2 is connected to mx/in2.
- mx/out1 and mx/out2 are both connected to rx/receivers.

Running the Application

Running the application should give you output similar to the following in your terminal.

Copy
Copied!


            [info] [fragment.cpp:586] Loading extensions from configs...
[info] [gxf_executor.cpp:249] Creating context
[info] [gxf_executor.cpp:1960] Activating Graph...
[info] [gxf_executor.cpp:1992] Running Graph...
[info] [greedy_scheduler.cpp:191] Scheduling 3 entities
[info] [gxf_executor.cpp:1994] Waiting for completion...
[info] [ping_multi_port.cpp:80] Middle message received (count: 1)
[info] [ping_multi_port.cpp:82] Middle message value1: 1
[info] [ping_multi_port.cpp:83] Middle message value2: 2
[info] [ping_multi_port.cpp:116] Rx message received (count: 1, size: 2)
[info] [ping_multi_port.cpp:118] Rx message value1: 3
[info] [ping_multi_port.cpp:119] Rx message value2: 6
[info] [ping_multi_port.cpp:80] Middle message received (count: 2)
[info] [ping_multi_port.cpp:82] Middle message value1: 3
[info] [ping_multi_port.cpp:83] Middle message value2: 4
[info] [ping_multi_port.cpp:116] Rx message received (count: 2, size: 2)
[info] [ping_multi_port.cpp:118] Rx message value1: 9
[info] [ping_multi_port.cpp:119] Rx message value2: 12
...
[info] [ping_multi_port.cpp:80] Middle message received (count: 10)
[info] [ping_multi_port.cpp:82] Middle message value1: 19
[info] [ping_multi_port.cpp:83] Middle message value2: 20
[info] [ping_multi_port.cpp:116] Rx message received (count: 10, size: 2)
[info] [ping_multi_port.cpp:118] Rx message value1: 57
[info] [ping_multi_port.cpp:119] Rx message value2: 60
[info] [greedy_scheduler.cpp:372] Scheduler stopped: Some entities are waiting for execution, but there are no periodic or async entities to get out of the deadlock.
[info] [greedy_scheduler.cpp:401] Scheduler finished.
[info] [gxf_executor.cpp:1997] Deactivating Graph...
[info] [gxf_executor.cpp:2005] Graph execution finished.
[info] [gxf_executor.cpp:278] Destroying context

Note

Depending on your log level you may see more or fewer messages. The output above was generated using the default value of INFO. Refer to the Logging section for more details on how to set the log level.
