YARA Inspection

NVIDIA DOCA YARA Inspection Application Guide

This guide provides YARA inspection implementation on top of NVIDIA® BlueField® DPU.

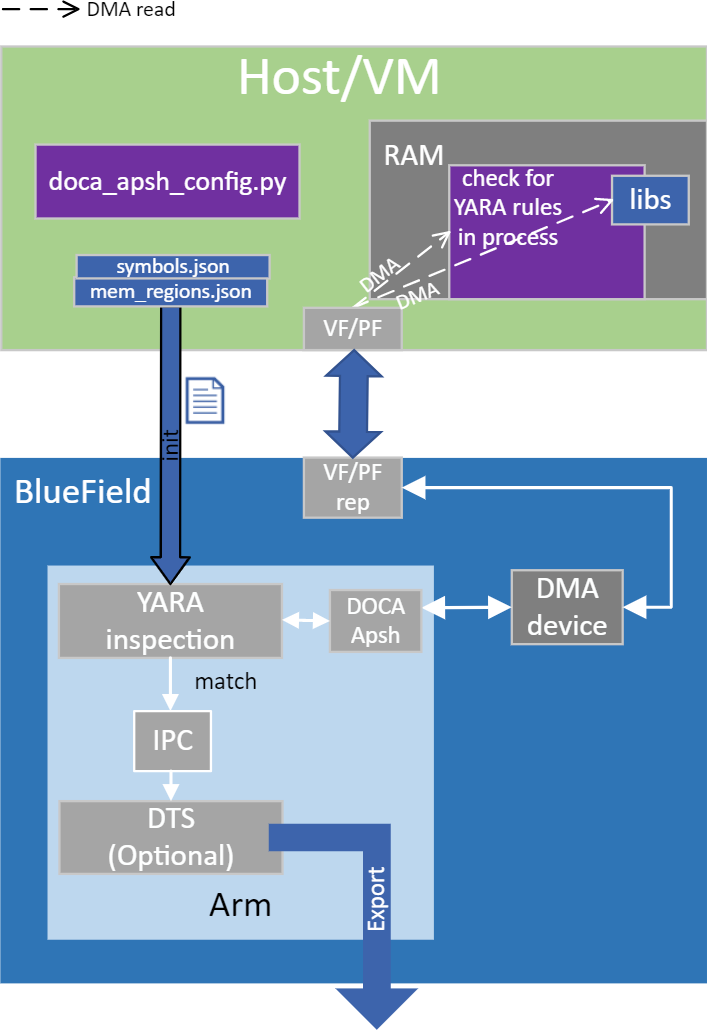

YARA inspection monitors all processes in the host system for specific YARA rules using the DOCA App Shield library.

This security capability helps identify malware detection patterns in host processes from an independent and trusted DPU. This is an innovative intrusion detection system (IDS) as it is designed to run independently on the DPU's Arm cores without hindering the host.

This DOCA App Shield based application provides the capability to read, analyze, and authenticate the host (bare metal/VM) memory directly from the DPU.

Using the library, this application scans host processes and looks for pre-defined YARA rules. After every scan iteration, the application indicates if any of the rules matched. Once there is a match, the application reports which rules were detected in which process. The reports are both printed to the console and exported to the DOCA Telemetry Service (DTS) using inter-process communication (IPC). This guide describes how to build YARA inspection using the DOCA App Shield library which leverages DPU abilities such as hardware-based DMA, integrity, and more.

Note:

As the DOCA App Shield library only supports the YARA API for Windows hosts, this application can only be used to inspect Windows hosts.

The host's involvement is limited to generating the required ZIP and JSON files to pass to the DPU. This is done before the app is triggered, when the host is still in a "safe" state.

Generating the needed files can be done by running DOCA App Shield's doca_apsh_config.py tool on the host. See NVIDIA DOCA App Shield Programming Guide for more info.


The user creates the ZIP and JSON files using the DOCA tool doca_apsh_config.py and copies them to the DPU. The application can report YARA rules detection to the:

  • File
  • Terminal
  • DTS

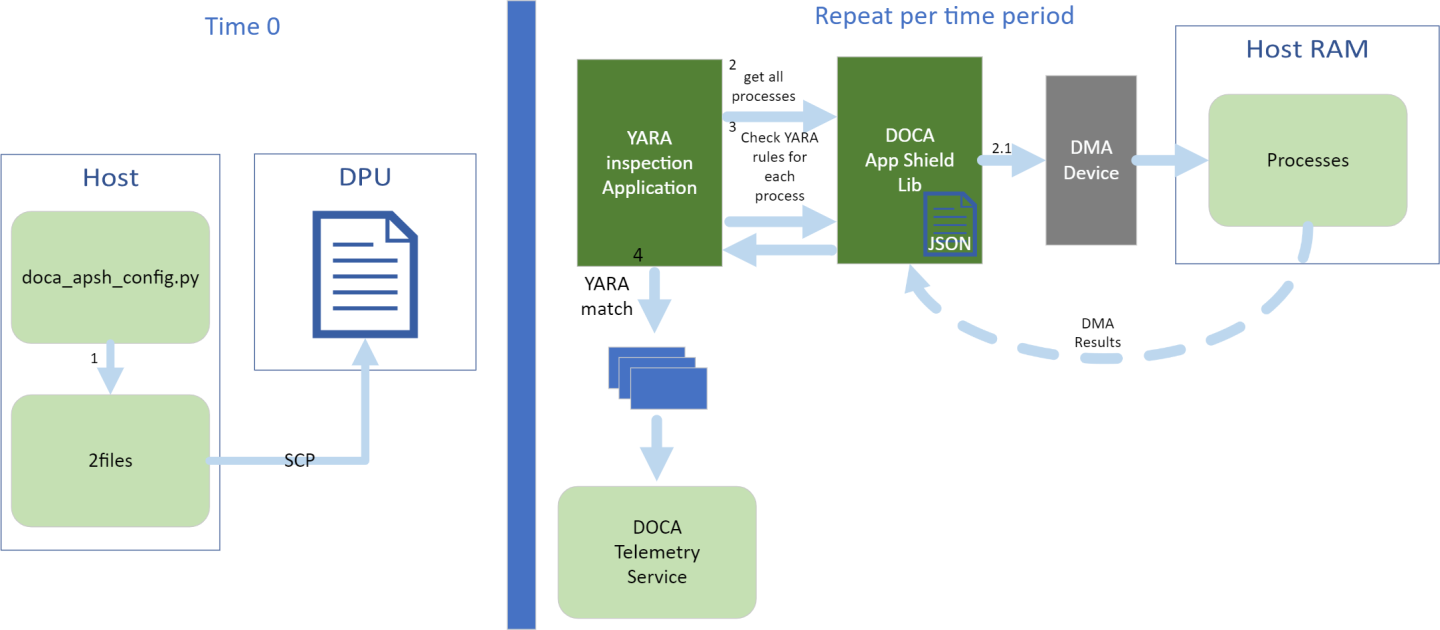

  1. The files are generated by running doca_apsh_config.py on the host against the process at time zero.

  2. The following steps recur at regular time intervals:
    1. The YARA inspection app requests a list of all apps from the DOCA App Shield library.
    2. The app loops over all processes and checks for YARA rules match using the DOCA App Shield library.
    3. If YARA rules are found (1 or more), the YARA attestation app reports results with a timestamp and details about the process and rules to:
      • Local telemetry files – a folder and files representing the data a real DTS would have received
        Note:

        These files are used for the purpose of this example only as normally this data is not exported into user-readable files.

      • DOCA log
      • DTS IPC interface (even if no DTS is active)
  3. The App Shield agent exits on first YARA rule detection.

This application leverages following DOCA libraries:

  1. Parse application argument.
    1. Initialize arg parser resources and register DOCA general parameters.
      Copy
      Copied!


      doca_argp_init();

    2. Register application parameters.
      Copy
      Copied!


      register_apsh_params();

    3. Parse app flags.
      Copy
      Copied!


      doca_argp_start();

  2. Initialize DOCA App Shield lib context.
    1. Create lib context.
      Copy
      Copied!


      doca_apsh_create();

    2. Set DMA device for lib.
      Copy
      Copied!


      open_doca_device_with_ibdev_name(); doca_apsh_dma_dev_set();

    3. Start the context.
      Copy
      Copied!


      doca_apsh_start(); apsh_system_init();

  3. Initialize DOCA App Shield lib system context handler.
    1. Get the representor of the remote PCIe function exposed to the system.
      Copy
      Copied!


      open_doca_device_rep_with_vuid();

    2. Create and start the system context handler.
      Copy
      Copied!


      doca_apsh_system_create(); doca_apsh_sys_os_symbol_map_set(); doca_apsh_sys_mem_region_set(); doca_apsh_sys_dev_set(); doca_apsh_sys_os_type_set(); doca_apsh_system_start();

  4. Telemetry initialization.
    Copy
    Copied!


    telemetry_start();

    1. Initialize a new telemetry schema.
    2. Register YARA type event.
    3. Set up output to file (in addition to default IPC).
    4. Start the telemetry schema.
    5. Initialize and start a new DTS source with the gethostname() name as source ID.
  5. Loop until YARA rule is matched.
    1. Get all processes from the host.
      Copy
      Copied!


      doca_apsh_processes_get();

    2. Check for YARA rule identification and send a DTS event if there is a match.
      Copy
      Copied!


      doca_apsh_yara_get(); if (yara_matches_size != 0) { /* event fill logic doca_telemetry_source_report(); DOCA_LOG_INFO(); sleep();

  6. Telemetry destroy.
    Copy
    Copied!


    telemetry_destroy();

  7. YARA inspection clean-up.
    Copy
    Copied!


    doca_apsh_system_destroy(); doca_apsh_destroy(); doca_dev_close(); doca_dev_rep_close();

  8. Arg parser destroy.
    Copy
    Copied!


    doca_argp_destroy();

  • Firmware version 24.32.1010 or greater
  • BFB Ubuntu 22.04 only
  • Supported only for Windows hosts

  1. Refer to the following documents:
  2. The App Shield Agent binary is located under /opt/mellanox/doca/applications/yara_inspection/bin/doca_yara_inspection. To build the applications together, run:
    Copy
    Copied!


    cd /opt/mellanox/doca/applications/ meson build ninja -C build

  3. To build only the App Shield Agent application:
    1. Edit the following flags in /opt/mellanox/doca/applications/meson_options.txt:
      • Set enable_all_applications to false
      • Set enable_yara_inspection to true
    2. Run the commands in step 2.
      Note:

      doca_yara_inspection is created under ./build/yara_inspection/src/.

    Application usage:

    Copy
    Copied!


    Usage: doca_yara_inspection [DOCA Flags] [Program Flags] DOCA Flags: -h, --help Print a help synopsis -v, --version Print program version information -l, --log-level Set the log level for the program <CRITICAL=20, ERROR=30, WARNING=40, INFO=50, DEBUG=60> Program Flags: -m, --memr <path> System memory regions map -f, --vuid VUID of the System device -d, --dma DMA device name -o, --osym <path> System OS symbol map path -t, --time <seconds> Scan time interval in seconds

    Note:

    For additional information on the application, use the -h flag:

    Copy
    Copied!


    /opt/mellanox/doca/applications/yara_inspection/bin/doca_yara_inspection -h


  4. The following steps must be done only once.
    1. Configure the BlueField's firmware.
      1. On the BlueField system, configure the PF base address register and NVME emulation. Run:
        Copy
        Copied!


        dpu> mlxconfig -d /dev/mst/mt41686_pciconf0 s PF_BAR2_SIZE=2 PF_BAR2_ENABLE=1 NVME_EMULATION_ENABLE=1

      2. Perform a cold boot from the host. Run:
        Copy
        Copied!


        host> ipmitool power cycle

      Note:

      These configurations can be checked using the following command:

      Copy
      Copied!


      dpu> mlxconfig -d /dev/mst/mt41686_pciconf0 q | grep -E "NVME|BAR"

    2. Perform IOMMU passthrough. This stage is only necessary in cases where IOMMU is not enabled by default (e.g., when the host is using an AMD CPU).
      Note:

      Skip this step if you are not sure whether you need it. Return to it only if DMA fails with a message in dmesg similar to the following:

      Copy
      Copied!


      host> dmesg [ 3839.822897] mlx5_core 0000:81:00.0: AMD-Vi: Event logged [IO_PAGE_FAULT domain=0x0047 address=0x2a0aff8 flags=0x0000]

      1. Locate your OS's grub file (most likely /boot/grub/grub.conf, /boot/grub2/grub.cfg, or /etc/default/grub) and open it for editing. Run:
        Copy
        Copied!


        host> vim /etc/default/grub

      2. Search for the line defining GRUB_CMDLINE_LINUX_DEFAULT and add the argument iommu=pt. For example:
        Copy
        Copied!


        GRUB_CMDLINE_LINUX_DEFAULT="iommu=pt <intel/amd>_iommu=on"

      3. Run:
        • For Ubuntu:
          Copy
          Copied!


          host> sudo update-grub host> ipmitool power cycle

        • For CentOS:
          Copy
          Copied!


          host> grub2-mkconfig -o /boot/grub2/grub.cfg host> ipmitool power cycle

    3. For Windows targets only, turn off Hyper-V capability
  5. Running the application on BlueField:
    • Pre-run setup:
      1. The DOCA App Shield library uses huge pages for DMA buffers. Therefore, the user must allocate 42 huge pages. Run:
        Copy
        Copied!


        dpu> nr_huge=$(cat /sys/devices/system/node/node0/hugepages/hugepages-2048kB/nr_hugepages) nr_huge=$((42+$nr_huge)) sudo echo $nr_huge > /sys/devices/system/node/node0/hugepages/hugepages-2048kB/nr_hugepages

      2. Create the ZIP and JSON files. Run:
        Note:

        If the kernel and process .exe have not changed, there no need to redo this step.

        Copy
        Copied!


        target-system> cd /opt/mellanox/doca/tools/ target-system> python3 doca_apsh_config.py <pid-of-process-to-monitor> --os <windows/linux> --path <path to dwarf2json executable or pdbparse-to-json.py> target-system> cp /opt/mellanox/doca/tools/*.* <shared-folder-with-baremetal> dpu> scp <shared-folder-with-baremetal>/* <path-to-app-shield-binary>


        If the target system does not have DOCA installed, the script can be copied from the BlueField.

        The required dwaf2json and pdbparse-to-json.py are not provided with DOCA. Follow the NVIDIA DOCA App Shield Programming Guide for more information.

    • CLI example for running the app:
      Copy
      Copied!


      dpu> /opt/mellanox/doca/applications/yara_inspection/bin/doca_yara_inspection -m mem_regions.json -o symbols.json -f MT2125X03335MLNXS0D0F0VF1 -d mlx5_0 -t 3

Refer to NVIDIA DOCA Arg Parser Programming Guide for more information.
Flag Type Short Flag Long Flag/JSON Key Description
General flags l log-level Set the log level for the application:
  • CRITICAL=20
  • ERROR=30
  • WARNING=40
  • INFO=50
  • DEBUG=60
v version Print program version information
h help Print a help synopsis
Program flags m memr Path to the pre-generated mem_regions.json file transfered from the host
f pcif System PCIe function vendor unique identifier (VUID) of the VF/PF exposed to the target system. Used for DMA operations. To obtain this argument, run:
Copy
Copied!


target-system> lspci -vv | grep "\[VU\] Vendor specific:"

Example output:
Copy
Copied!


[VU] Vendor specific: MT2125X03335MLNXS0D0F0 [VU] Vendor specific: MT2125X03335MLNXS0D0F1


Two VUIDs are printed for each DPU connected to the target system. The first is of the DPU on pf0 and the second is of the DPU on port pf1.
Note:

Running this command on the DPU outputs VUIDs with an additional "EC" string in the middle. You must remove the "EC" to arrive at the correct VUID.


The VUID of a VF allocated on PF0/1 is the VUID of the PF with an additional suffix, VF<vf-number>, where vf-number is the VF index +1.

For example, for the output in the example above:

  • PF0 VUID = MT2125X03335MLNXS0D0F0
  • PF1 VUID = MT2125X03335MLNXS0D0F1
  • VUID of VF0 on PF0 = MT2125X03335MLNXS0D0F0VF1

VUIDs are persistent even on reset.

d dma DMA device name to use
o osym Path to the pre-generated symbols.json file transferred from the host
t time Number of seconds to sleep between scans
