Gst-nvunixfd#
The Gst-nvunixfd plugin performs the hardware video buffers sharing between different processes and pipelines via IPC (inter-process communication). Gst-nvunixfd provides the Gst-nvunixfdsink and Gst-nvunixfdsrc for sending and receiving the hardware video buffers between pipelines to avoid unnecessary memory copy. Gst-nvunixfdsink acts as a server, the NvBufSurfaceMapParams which contains the video buffer information and the IPC sharable FD(File Descriptor) of the video buffer are sent to the Gst-nvunixfdsrc. Gst-nvunixfdsrc then creates a new NvBufSurface with the received data. On Jetson, FD is the bufferDesc in the NvBufSurface structure. On DGPU, FD is a cudaIpcMemHandle_t handle derived from the CUDA memory.
The Gst-nvunixfdsink pipeline can send hardware video buffers to multiple Gst-nvunixfdsrc pipelines, the Gst-nvunixfdsrc pipeline can receive hardware video buffers from multiple Gst-nvunixfdsink pipelines. All the pipelines should work in the same device and the same system. The batched NvBufSurface is not supported.
Gst-nvunixfdsink#

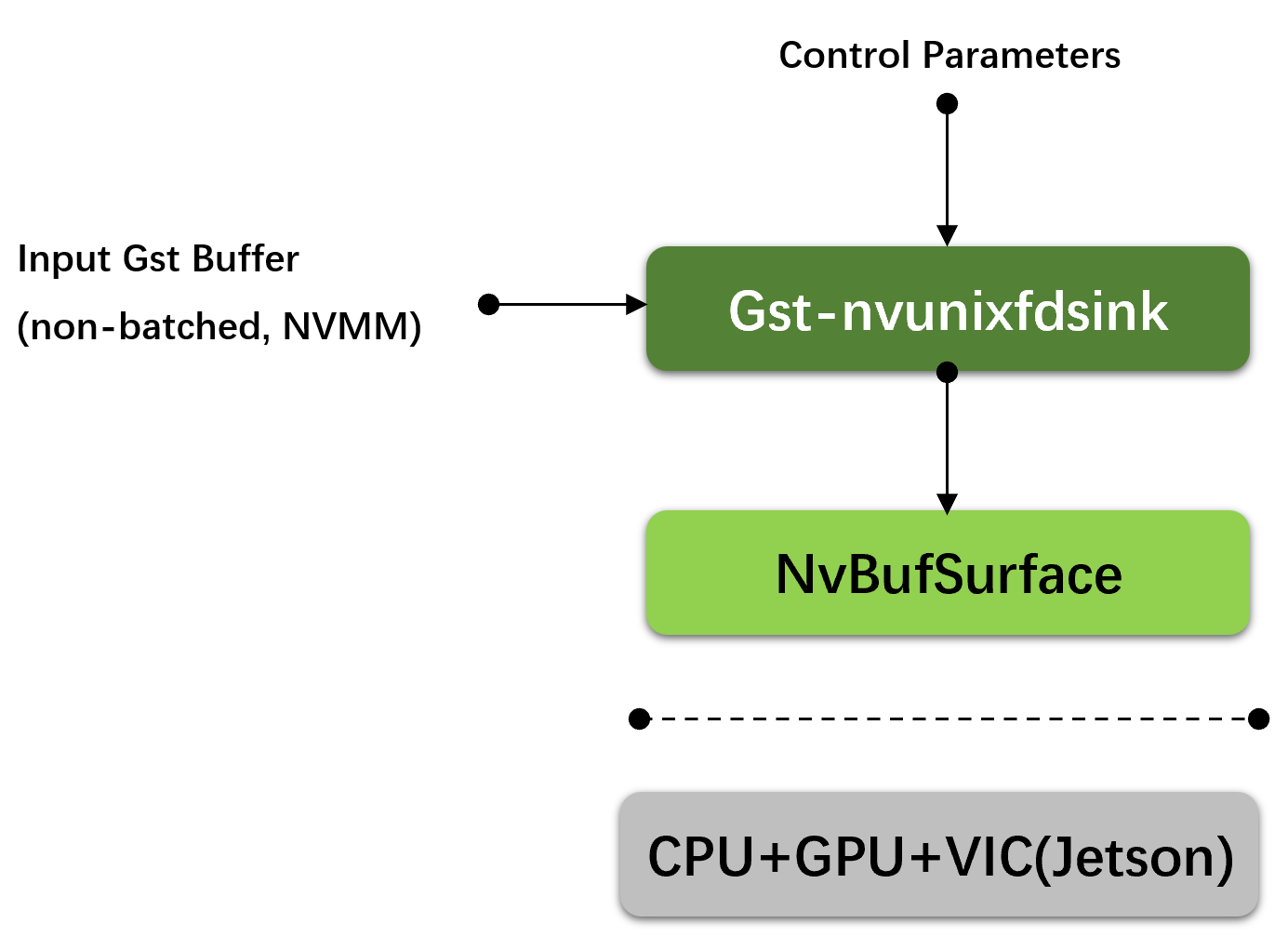

Gst-nvunixfdsink is a Unix file descriptor sink derived from OSS unixfdsink element, which is used on server side.
Inputs and Outputs#
Inputs
Gst no-batched buffer
Control parameters
gpu-id: selects the GPU ID
buffer-copy: copy buffer for every client
buffer-timestamp-copy: copy timestamp of the received Gst buffers
compute-hw: Compute HW for copy operation
meta-serialization-lib: Set meta serialization library name to be used
socket-type: The type of underlying socket
socket-path: The path to the control socket used to control the shared memory
Output
After client connects, server passes the NvBufSurface handle, timestamp and other data to client through IPC.
Features#
The following table summarizes the features of the Gst-nvunixfdsink plugin.
Feature |
Description |
Release |
|---|---|---|
Configure GPU selection |
Sets the GPU ID to be used for optical flow visualization operations (valid only for dGPU platforms) |
DS 8.0 |
buffer copy |
copy buffer for every client |
DS 8.0 |
buffer timestamp copy |
copy timestamp of received buffer |
DS 8.0 |
compute HW |
Compute HW for copy operation |
DS 8.0 |
meta serialization lib |
Set meta serialization library name to be used |
DS 8.0 |
socket type |
The type of underlying socket |
DS 8.0 |
socket path |
The path to the control socket used to control the shared memory |
DS 8.0 |
Gst-nvunixfdsrc#

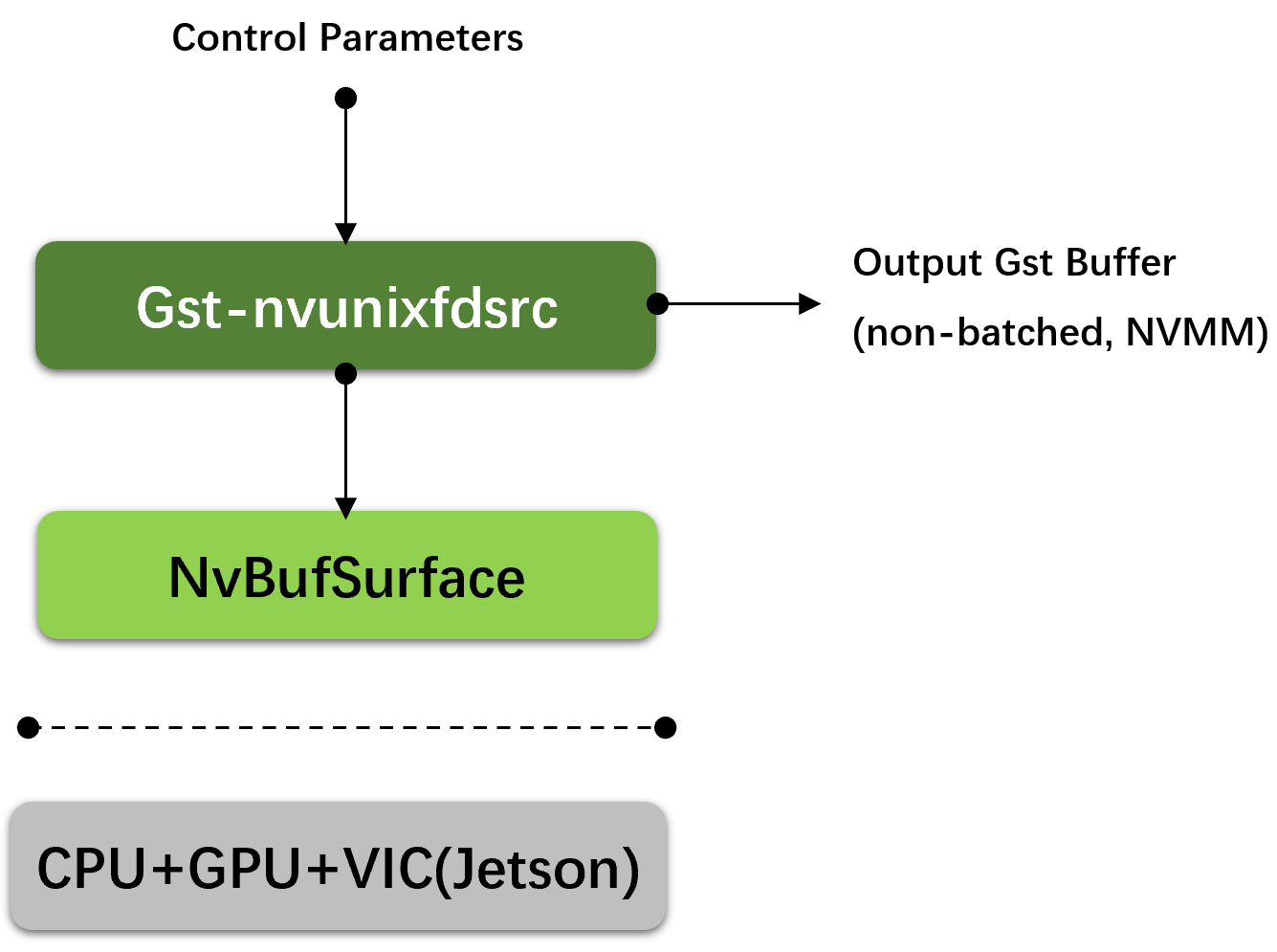

Gst-nvunixfdsrc is a Unix file descriptor source derived from OSS unixfdsrc element, which is used on client side.
Inputs and Outputs#
Inputs
The NvBufSurface handle, timestamp and other data received from server.
Control parameters
gpu-id: selects the GPU ID
buffer-copy: copy buffer for every client
buffer-timestamp-copy: copy timestamp of received buffer
compute-hw: Compute HW for copy operation
meta-deserialization-lib: Set meta deserialization library name to be used
socket-type: The type of underlying socket
socket-path: The path to the control socket used to control the shared memory
connection-attempts: Max number of attempts for connection (-1 = unlimited)
connection-interval: Connection interval between connection attempts in micro seconds
Output
Gst no-batched buffer
Features#
The following table summarizes the features of the Gst-nvunixfdsrc plugin.
Feature |
Description |
Release |
|---|---|---|
Configure GPU selection |
Sets the GPU ID to be used for optical flow visualization operations (valid only for dGPU platforms) |
DS 8.0 |
buffer copy |
copy buffer for every client |
DS 8.0 |
buffer timestamp copy |
copy timestamp of received buffer |
DS 8.0 |
compute HW |
Compute HW for copy operation |
DS 8.0 |
meta deserialization lib |
Set meta deserialization library name to be used |
DS 8.0 |
socket type |
The type of underlying socket |
DS 8.0 |
socket path |
The path to the control socket used to control the shared memory |
DS 8.0 |
connection attempts |
Max number of attempts for connection |
DS 8.0 |
connection interval |
connection interval |
DS 8.0 |
Gst Properties#
The following table describes the Gst properties of the Gst-nvunixfdsrc plugin.
Property |
Meaning |
Type and Range |
Example Notes |
|---|---|---|---|
gpu-id |
Device ID of the GPU to be used(dGPU only) |
Integer,0 to 4,294,967,295 |
gpu-id=0 |
buffer-copy |
Buffer copy |
Boolean. Default: false |
buffer-copy=0 |
buffer-timestamp-copy |
Buffer copy |
Boolean. Default: false |
buffer-copy=0 |
compute-hw |
Type of computing hardware: 0: Default (GPU for gDPU, CPU for Jetson) 1: VLC( only for Jetson) 2: GPU |
enum GstComputeHW |
compute-hw=0 Default value is 0. |
buffer-timestamp-copy |
Buffer copy |
Boolean. Default: false |
buffer-copy=0 |
meta-serialization-lib |
Meta serialization library name |
String |
./lib/serialization.so |
socket-type |
socket type |
enum GUnixSocketAddressType |
socket-type=G_UNIX_SOCKET_ADDRESS_PATH,Default value is G_UNIX_SOCKET_ADDRESS_PATH |
socket-path |
Path to the control socket |
String |
socket-path=/tmp/test1 |
connection-attempts |
Max number of attempts for connection (-1 = unlimited) |
int |
connection-attempts=3,Default: -1 |
connection-interval |
Path to the control socket |
int |
connection-interval=3000000,Default: 1000000 |
