Guided Installation

The runai-installer CLI is the recommended way to install NVIDIA Run:ai, for both Open Source and Support-Entitled Release installations. It enhances the installation experience by doing everything through a single configuration file - see Installer Flow below for what it does step by step. The installer supports:

• Both connectivity types - connected or air-gapped.
• Both deployment models - same-cluster or multi-cluster.
• All supported Kubernetes distributions.

When to Use the Installer

Use runai-installer when:

• You are deploying a new NVIDIA Run:ai environment (upgrades are not yet supported by the installer).
• You want built-in preflight validation before any changes are applied.
• You prefer a single tool that validates your configuration, runs preflight checks, installs prerequisites, and deploys the NVIDIA Run:ai control plane and cluster.

For environments with an existing GitOps pipeline (Argo CD) or where administrators manage Helm releases directly, see Manual Helm.

Installer Flow

The runai-installer CLI installs NVIDIA Run:ai from a configuration YAML file. Before applying any changes, it validates your configuration, runs preflight checks, installs any required prerequisites, and deploys the NVIDIA Run:ai control plane and cluster components. The flow is the same for same-cluster and multi-cluster installations - in a multi-cluster deployment, the installer runs once per Kubernetes cluster.

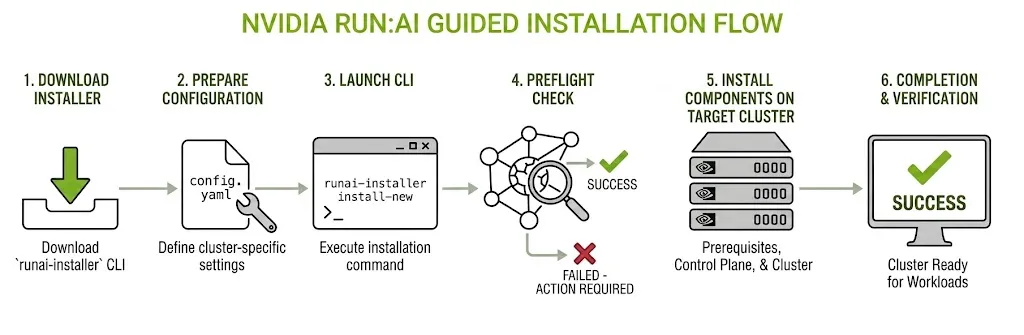

The following diagram shows the installer flow - from downloading the runai-installer CLI to a verified, workload-ready cluster:

The installation is built from two artifacts: the runai-installer binary (available for AMD64 and ARM64) and a declarative config.yaml file - the single input that describes what to install and how. At run time, the installer writes detailed logs to a local directory and persists session state in the cluster, so an interrupted installation can be resumed without re-entering configuration values.

The installer is not a one-time step - rerunning it against an already-installed cluster with an updated config.yaml adds any prerequisites or features that were skipped initially, installing only what is missing and leaving the rest of the deployment untouched.

What the Installer Does

The installer assumes your Kubernetes cluster and infrastructure already meet System Requirements - deployment model, infrastructure (hardware, OS, Kubernetes distribution, storage, and permissions), networking (load balancer, ingress controller, FQDNs, DNS, and TLS certificates), third-party services, and external access to critical services. The following sections describe what the installer itself configures and deploys.

Configures Networking

Configures routing, FQDNs, and TLS for both the control plane and cluster. See Networking Setup for how these components work and how to prepare them beforehand.

• Routing - On standard Kubernetes, externalConnection.type routes traffic through your own Ingress Controller and Load Balancer (ingress) or an existing Gateway resource (gatewayApi). On OpenShift, the installer configures Routes automatically. Host-based routing is used by default, with path-based routing available via cluster.workloadRouting.
• FQDN and DNS - Takes the control plane, cluster, and workload domains as configuration fields, and wires them into the routing and TLS it configures.
• TLS - Accepts your own certificate and private key per FQDN, or generates self-signed certificates automatically when tls.generateSelfSigned is enabled. For certificates signed by a private or local CA, also accepts a CA certificate chain via tls.caChainPath.

Handles Registry Authentication

NVIDIA Run:ai’s images and Helm charts are pulled from NGC, configured with registry.type: ngc. Open Source installations use this same setting and do not require any credentials; Support-Entitled Release installations require an NGC API Key to authenticate.

For Support-Entitled Release installations, authentication works differently depending on connectivity:

• Connected installs authenticate directly to NVIDIA’s registry, using an NGC Personal Key - a token beginning with nvapi-, presented with the literal username $oauthtoken. See Connected Registry Credentials for how to generate and configure it.
• Air-gapped installs never connect to NVIDIA’s registry directly, so the registry block instead holds basic-auth credentials (username and password or passwordPath) for your own private mirror registry. See Air-Gapped Registry Credentials for how to generate and configure it.

Installs Prerequisites

The GPU Operator and Prometheus are required for every installation - the GPU Operator provisions and manages GPUs on worker nodes, so the NVIDIA Run:ai cluster can run AI workloads at all, and Prometheus provides the metrics NVIDIA Run:ai’s own monitoring is built on. Additional prerequisites apply depending on your environment - for example, the Network Operator, for RDMA or Multi-Node NVLink-capable nodes. See Prerequisites and Features for what each component does, when you need it, and air-gapped installation instructions where a dedicated guide exists.

• Connected installs configure and install each required prerequisite automatically, before deploying NVIDIA Run:ai itself, when its mode is set to install.
• Air-gapped installs require each prerequisite to be installed beforehand, using its own vendor’s air-gapped installation instructions, with mode: skip set for each one - the installer rejects the configuration if any is set to mode: install, and does not verify that a skipped prerequisite is actually present.

Installs Features

Features extend NVIDIA Run:ai to support specific workload types, and only need enabling for the workload types you actually plan to run - Knative Serving for standard (single-node) inference, the Kubeflow Training Operator for distributed training, and so on for each supported workload type. See Prerequisites and Features for what each component does, when you need it, and air-gapped installation instructions where a dedicated guide exists.

• Connected installs configure and enable each feature automatically when its mode is set to install.
• Air-gapped installs require each feature to be installed beforehand, using its own vendor’s air-gapped installation instructions, with mode: skip set for each one - the installer rejects the configuration if any is set to mode: install.

Deploys the NVIDIA Run:ai Control Plane and Cluster

The NVIDIA Run:ai control plane and cluster each ship as a single Helm chart, and the installer deploys whichever one(s) install.mode calls for - full_installation for both charts together, or runai_control_plane_only / runai_cluster_only for each chart separately in a multi-cluster deployment.

Each chart also bundles the third-party services it depends on (PostgreSQL, Keycloak, and others), installed as part of the same chart. These images are sourced from their official upstream registries (Docker Hub, Quay, registry.k8s.io) - see Third-Party Services for which services each chart brings in.

• Connected installs pull NVIDIA Run:ai’s images directly from NGC and each third-party service’s images directly from its own upstream registry, during installation, over the outbound access you prepare beforehand - see External Access to Critical Services for the outbound connectivity a connected install needs.
• Air-gapped installs pull the same images - NVIDIA Run:ai’s from NGC, each third-party service’s from its own upstream registry - on a separate, internet-connected machine beforehand. You run airgap pack on that machine to build a single bundle containing every image the release needs - NVIDIA Run:ai’s and each third-party service’s alike - then load that bundle into your own private mirror registry inside your air-gapped environment. See Air-Gapped Bundle for the full procedure.

Next Steps

Start with Connected Installation for an internet-connected environment, or Air-Gapped Installation for one with no outbound internet access. Each covers:

• Preparations - System requirements, prerequisites and features, registry credentials, and downloading the installer. For air-gapped installations, this also includes building the air-gapped bundle.
• Same-Cluster Installation - Install the control plane and cluster together, on one Kubernetes cluster.
• Multi-Cluster Installation - Install the control plane and one or more clusters on separate Kubernetes clusters.
• Configuration Templates - Complete, ready-to-use configurations for specific use cases.

See also the Configuration Reference for all configuration YAML fields and their accepted values, to build your own configuration from scratch.
