The viewer includes a built-in YAML editor for loading and modifying simulation configuration. Entity edits made on the map sync back into the YAML automatically, and the updated file can be downloaded for use with the AODT Client.

Opening the Editor

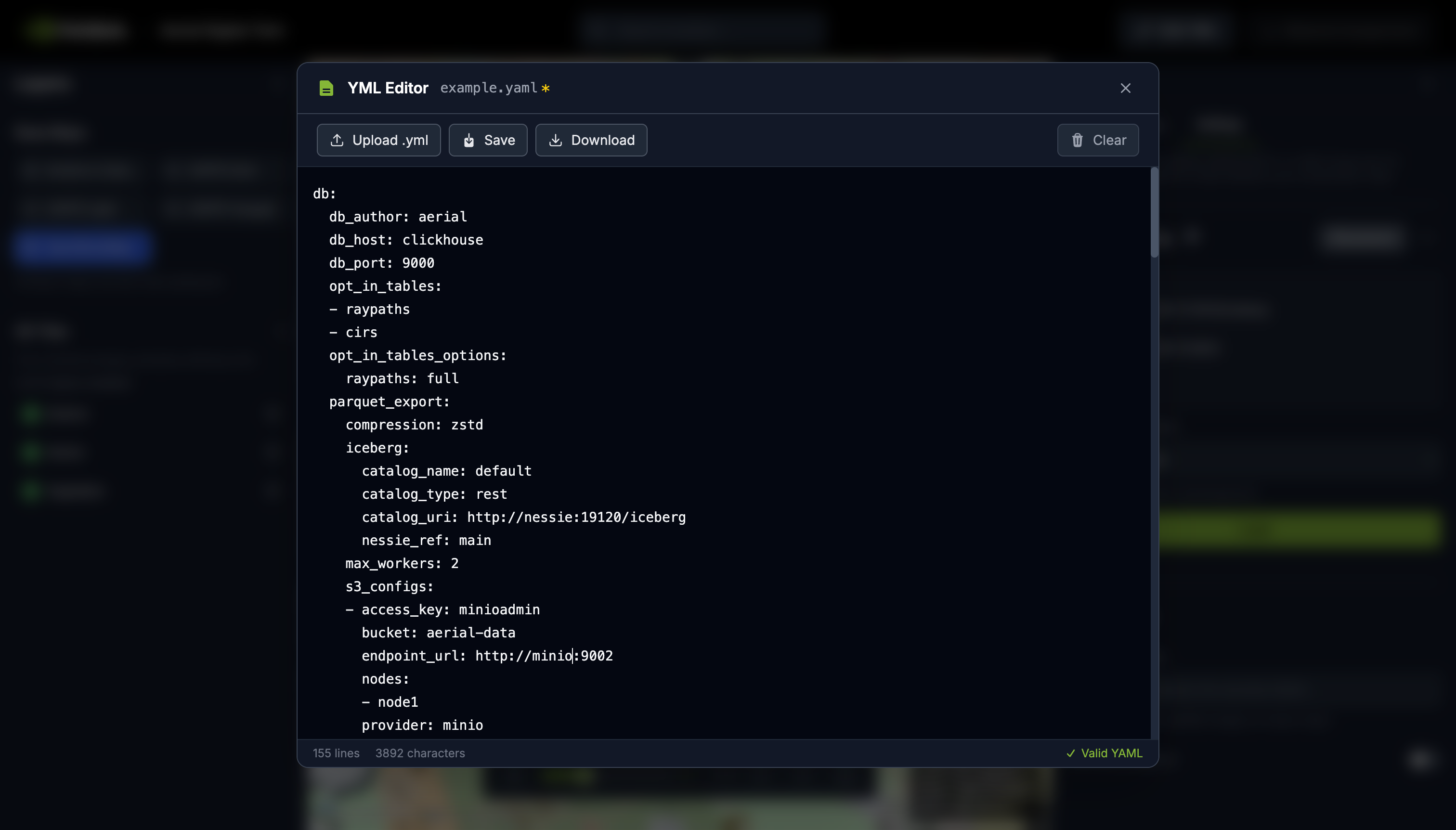

YAML editor modal with upload, save, download, and clear controls

Click Upload YML in the top header to open the editor for the first time. After a file is loaded, the button changes to Edit YML. The editor opens as a full-screen modal with a monospace text area.

You can load YAML by:

  • Clicking Upload and selecting a .yml or .yaml file.
  • Dragging and dropping a file onto the editor.
  • Pasting YAML content directly into the text area.

The editor validates YAML syntax as you type. A status bar at the bottom shows line count, character count, and whether the content is valid YAML. Syntax errors appear in red with the error message.

Applying Configuration

When the editor closes, the viewer applies the YAML to the current session. The db section populates Settings, gis.scene.scene_url loads 3D Tiles and terrain, and the sim section creates all entities on the map.

If the YAML includes projected coordinates (local x/y/z in meters), the viewer fetches scene metadata from S3 to determine the coordinate reference system before converting positions to geographic coordinates.

Saving and Downloading

ActionBehavior
Save (toolbar or Ctrl/Cmd+S)Writes the current editor content to browser storage. Changes are applied to the viewer when the editor closes.
DownloadSaves the current content as a .yml file to your local machine.
ClearRemoves the stored YAML and clears all entities from the viewer.

The YAML is stored in the browser’s localStorage. It persists across page reloads but is local to the browser and machine.

Bidirectional Sync

Entity edits made through the viewer tools (move, rotate, create, delete, or property changes in the sidebar) write back into the stored YAML automatically. For example, placing an RU updates sim.RUs.add, changing a property updates the corresponding sim.RUs.update entry, and deleting a UE removes it from sim.UEs.add.

The db section is preserved verbatim from the original YAML. Keys not mapped to the UI are kept as-is through round trips. Open the editor at any time to see the current state of the YAML.

Sync Limitations

  • Scatterers loaded from a database are not written back to YAML.
  • Only manually created UEs are serialized. Procedural UEs from the simulation are not included.
  • Spawn zone altitude is read on import but not written back on export.
  • See UI for the full viewer layout and workflows.
  • See Configuring Sim YAML for the programmatic YAML workflow, field reference, and Config Builder.
