Hardware Infrastructure Requirements#
Standard deployment is a 5-node cluster with two or more workers.
Standard Deployment#
Compact deployment is a 3-node cluster.
Compact Deployment#
Single Node OpenShift (SNO) is also supported, although it lacks the control plane redundancy recommended for production.
Infrastructure Examples#
The following tables show two example bills of materials for standard and compact clusters for Holoscan for Media using the RTX PRO 6000 Blackwell Server Edition GPU. Depending on the application workloads to be run, the network fabric, the number of worker nodes, and the resources (CPU, RAM, GPU) per worker node may be varied. These examples are for worker nodes based on the NVIDIA-Certified Systems PCIe optimized reference configurations and related Enterprise Reference Architecture. The control plane nodes are based on Red Hat OpenShift recommended control plane node sizing.

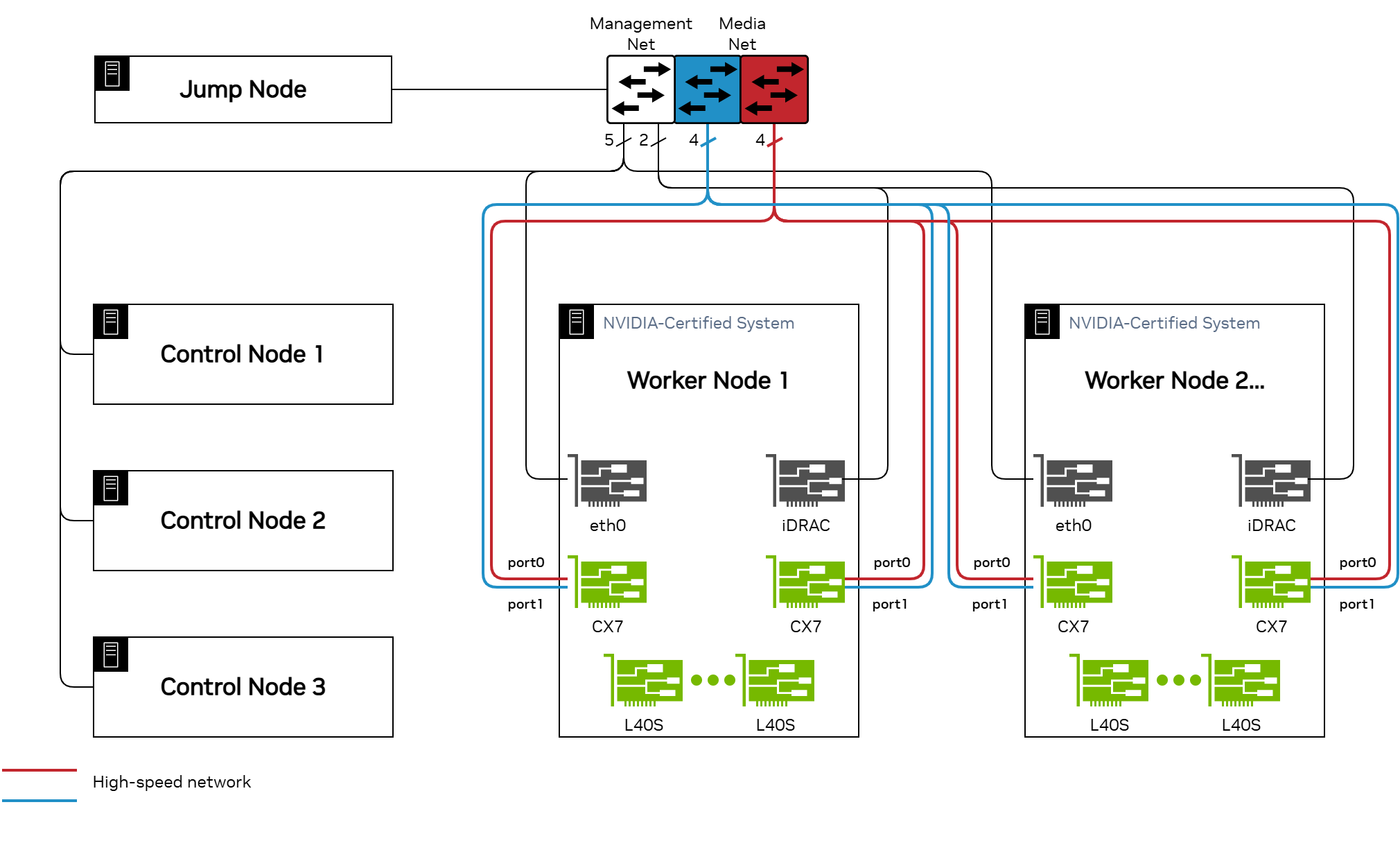

Standard deployment, a 5-node cluster made with 2-8-5 systems:
# |
Part |
Type |
Quantity |
Recommendation |
|---|---|---|---|---|
1 |
Jump Node |
Physical server or virtual machine |
1 |
2 cores, 4 GB RAM, 120 GB boot drive |
2 |
Control Node |
Physical server |
3 |
8 cores, 32 GB RAM, 500 GB NVMe boot drive |
3 |
Worker Node |
Physical server |
2 |
2x 64 cores, 1024 GB RAM, 1x 1 TB NVMe boot drive, 2x 4 TB NVMe storage (adjust for your use case) |
4 |
Ethernet Switch |
Multicast and PTP capable 200G switch |
1 |
|
5 |
NIC |
ConnectX-7 2x200G |
4 |
Per Worker Node |
6 |
DPU |
BlueField-3 2x200G (B3220) |
1 |
Per Worker Node (optional depending on your use case) |
7 |
GPU |
RTX PRO 6000 Blackwell Server Edition |
8 |
Per Worker Node |
8 |
Cables |
8 |
Per Worker Node |

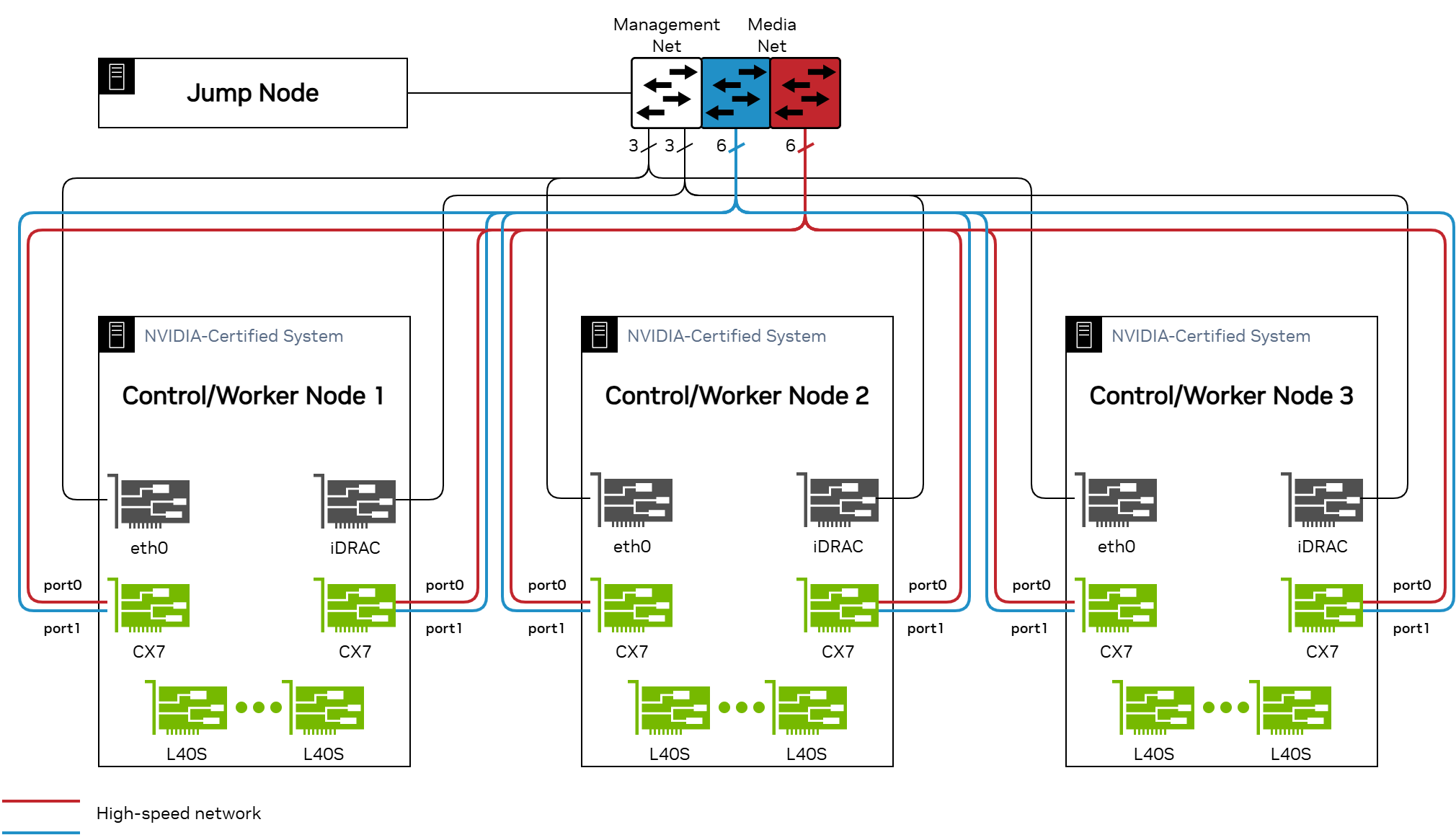

Compact deployment, a 3-node cluster made with 2-4-3 systems:
# |
Part |
Type |
Quantity |
Recommendation |
|---|---|---|---|---|
1 |
Jump Node |
Physical server or virtual machine |
1 |
2 cores, 4 GB RAM, 120 GB boot drive |
2 |
Control-Worker Node |
Physical server |
3 |
2x 64 cores, 512 GB RAM, 1x 1 TB NVMe boot drive, 2x 4 TB NVMe storage (adjust for your use case) |
3 |
Ethernet Switch |
Multicast and PTP capable 200G switch |
1 |
|
4 |
NIC |
ConnectX-7 2x200G |
2 |
Per Node |
5 |
DPU |
BlueField-3 2x200G (B3220) |
1 |
Per Node (optional depending on your use case) |
6 |
GPU |
RTX PRO 6000 Blackwell Server Edition |
4 |
Per Node |
7 |
Cables |
4 |
Per Node |
Network Fabric Configuration#
An example switch configuration can be provided on request for NVIDIA Mellanox Onyx switches (for example, SN3700).
In the production setup manual installation the following configuration is assumed:
VLAN |
Subnet |
Purpose |
|---|---|---|
100 |
10.21.10.0/24 |
Management |
200 |
192.168.20.0/24 |
Media A (red) |
201 |
192.168.120.0/24 |
Media B (blue) |
300 |
172.20.0.0/24 |
PTP |
PTP domain is 127.
