Renderers

Renderers produce camera-sensor buffers for policy observations and synthetic-data workflows. They are distinct from visualizers , which provide human-facing, interactive views for inspection, debugging, and recording. Isaac Lab uses a pluggable renderer architecture. All implementations follow the interface defined by ~isaaclab.renderers.BaseRenderer.

Isaac Lab supports three rendering backends. See Renderer details for their execution models, output coverage, and limitations, and Renderer support for the output-by-backend support matrix.

Choosing a renderer backend

renderer=newton_renderer

renderer=ovrtx

renderer=isaacsim_rtx

Renderer outputs at a glance

Each renderer draws the same scene, camera, lights, and materials: six spheres with mirror-like, transparent, semi-transparent, matte, glossy, and emissive materials. RGB is animated; the other outputs are stills from the same run. Newton Warp and OVRTX use Newton physics while Isaac RTX uses PhysX, so sphere poses can differ.

Minimal rows are the simple_shading_* outputs. Scalar, vector, and label outputs are color-mapped for display: depth runs from near (purple) to far (red), normals map X, Y, and Z to red, green, and blue, and motion-vector arrows show sampled image-space motion. Cameras return the raw tensors described in Output types.

Renderer details

Open a renderer below for its runtime, physics pairing, output coverage, configuration, and typical use case.

• Runtime and physics: A lightweight, kit-less Warp ray tracer included in the base install. Pairs with Newton, OvPhysX, or Isaac Sim PhysX.

• Output coverage: Produces RGB, albedo, depth, normals, semantic segmentation, and instance segmentation with direct lighting. It does not produce motion vectors or RTX material transport.

• Configuration: ~isaaclab_newton.renderers.NewtonWarpRendererCfg

• Best for: Training workflows where throughput matters more than full RTX fidelity.

• Runtime and physics: Provides kit-less RTX rendering through the isaaclab_ov extension and the ovrtx |ovrtx_docs_ref| runtime. Pairs with Newton or OvPhysX; it cannot share a process with Kit.

• Output coverage: Provides RTX Minimal and photo-real rendering with geometry, motion, and label outputs, plus asynchronous rendering.

• Configuration: ~isaaclab_ov.renderers.OVRTXRendererCfg

• Best for: RTX image quality without running Isaac Sim.

• Runtime and physics: Runs NVIDIA’s Omniverse RTX rendering pipeline inside Isaac Sim and pairs with Isaac Sim PhysX or Newton.

• Output coverage: Provides RTX Minimal (Isaac Sim 6.0 or later) and photo-real rendering, plus the broadest camera-output coverage.

• Configuration: ~isaaclab_physx.renderers.IsaacRtxRendererCfg

• Best for: Workflows that must run inside Isaac Sim or Kit.

Choosing a rendering capability

The sections below group rendering by purpose: simplified rendering for throughput-oriented training, photo-real rendering for full RTX image quality, and advanced outputs for geometry, motion, and labels. The commands use the suffixless Isaac-Cartpole-Camera task so each mode can be tried without editing Python.

Simplified rendering

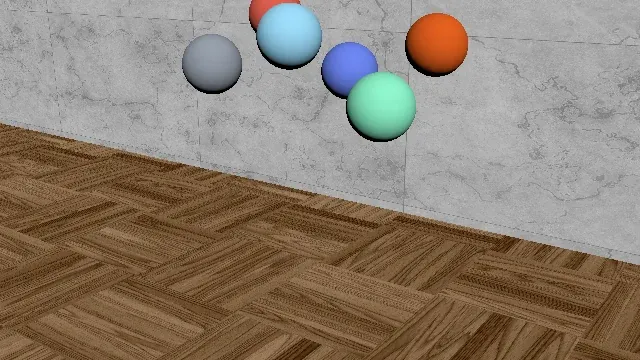

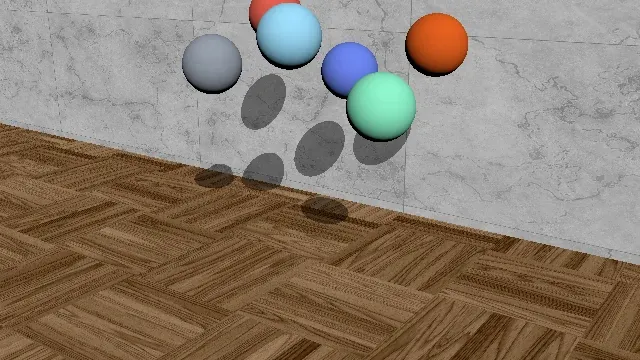

Simplified rendering prioritizes throughput and predictable image formation over full light transport. Newton Warp provides a lightweight ray-traced RGB path. OVRTX and Isaac RTX provide RTX Minimal mode, which disables indirect lighting and offers three levels of material evaluation:

• Constant diffuse uses one constant surface color.
• Diffuse MDL is Isaac Lab’s stable name for textured diffuse shading.
• Full MDL is Isaac Lab’s stable name for diffuse, glossy, and emissive material evaluation.

Requesting a simple_shading_* output switches that camera to RTX Minimal, so request regular color from a separate camera. RTX Minimal uses the first distant light in the scene and hard shadows. See the OVRTX Minimal mode and RTX Minimal renderer documentation for the renderer-level settings and limitations.

Photo-real rendering

Here, photo-real rendering means the regular RGB path from the full RTX Real-Time Path-Tracing (RTPT) mode; it is a capability grouping, not an Isaac Lab preset name. Choose it when material appearance, reflections, transparency, lighting, or the accompanying RTX AOVs matter more than the lowest possible render latency. OVRTX provides this path without Kit, while Isaac RTX provides it inside Isaac Sim. See the OVRTX Real-Time Path-Tracing and Isaac Sim rendering modes documentation.

uv run isaaclab train --rl_library rsl_rl --task Isaac-Cartpole-Camera \
   physics=newton_mjwarp renderer=ovrtx presets=rgb

Advanced rendering outputs

Beyond RGB, renderer-produced buffers expose material, geometry, motion, and labeling information:

• Albedo isolates the material base color from lighting.
• Depth measures optical-axis distance for geometric perception and reconstruction.
• Normals encode local surface orientation.
• Semantic segmentation groups pixels by class, while instance segmentation separates individual objects.
• Motion vectors encode image-space motion per pixel and require prior-frame history.

Request one or more buffers through isaaclab.sensors.CameraCfg.data_types. See Configure a camera for a configuration example and Output types for the available names, tensor shapes, data types, and meanings. Environment-level presets=... selectors are task-defined convenience shortcuts, not an exhaustive list of camera outputs.

Output availability differs by backend. Check the camera renderer support matrix before choosing a renderer; for example, OVRTX and Isaac RTX produce motion vectors, while Newton Warp does not. The renderer visual comparison above shows these outputs on the same scene.

Performance

The environment benchmarks report throughput for each physics and renderer pair. Select a camera task, such as Isaac-Cartpole-Camera, then open the Release tab under Benchmarks. These camera benchmarks compare Newton Warp rgb with OVRTX and Isaac RTX in RTX Minimal mode (simple_shading_full_mdl), the RTX mode closest to Newton Warp’s direct-lighting RGB. In the release benchmarks, Newton Warp has the highest throughput, and OVRTX outperforms Isaac RTX.

Per-environment Isaac RTX scene partitioning

The Isaac RTX renderer enables per-environment scene partitioning by default. It assigns matching scene-partition tokens to each /World/envs/env_<index> hierarchy and its camera so tiled views render only that environment’s geometry.

Configure the behavior through ~isaaclab_physx.renderers.IsaacRtxRendererCfg:

from isaaclab_physx.renderers import IsaacRtxRendererCfg
renderer_cfg = IsaacRtxRendererCfg(enable_scene_partitioning=False)

Scene partitioning and the all-environment spectator view are separate controls. ~isaaclab_physx.app.KitLauncher enables spectator support before RTX startup only when the Kit viewport is enabled or Kit visualization, recording, livestreaming, or XR is requested. Regular headless training and camera-sensor runs keep it disabled so tiled cameras are not exposed to the spectator mode’s world-space layout constraints.

global_settings.show_all_partitions_by_default maps to that same process-global RTX setting; it is not a separate feature. Its default value of None preserves the launch-time choice made by ~isaaclab_physx.app.KitLauncher. An explicit value overrides that setting when the Isaac RTX renderer is constructed. When enabled, environments must remain spatially separated because overlapping partition bounds can make content leak into another environment or disappear. When disabled, the Kit viewport displays only the selected environment.

This setting does not affect OVRTX, which always partitions multi-environment scenes.

Prims outside the environment hierarchies remain in the shared background partition. Environment-owned PointInstancer markers can carry one matching scene-partition token per instance; markers without that ownership information remain shared.

Architecture Overview

The renderer system consists of:

1. BaseRenderer — Abstract base class defining the rendering lifecycle and interface
2. RendererCfg — A BackendCfg subclass; each backend extends it with backend-specific options and declares its implementation in class_type
3. Concrete implementations — Backend-specific renderers in extension packages
4. SimulationContext — Owns renderer instances in its backend registry and shares them across equal configurations of the same concrete type through get_or_create_backend(renderer_cfg).
5. RenderContext — Coordinates initialization, stage preparation, scene updates, and material writers using a filtered view of the simulation registry. It does not construct, cache, or close renderer instances.

import isaaclab.sim as sim_utils
from isaaclab.renderers import BaseRenderer
from isaaclab_newton.renderers import NewtonWarpRendererCfg
# Create a Newton Warp renderer (no Isaac Sim required)
sim_ctx = sim_utils.SimulationContext.instance()
# Reuse a matching renderer or construct one through instantiate(cfg).
renderer: BaseRenderer = sim_ctx.get_or_create_backend(NewtonWarpRendererCfg())
assert isinstance(renderer, BaseRenderer)

For the RTX renderer (requires Isaac Sim):

import isaaclab.sim as sim_utils
from isaaclab.renderers import BaseRenderer
from isaaclab_physx.renderers import IsaacRtxRendererCfg
# Create an RTX renderer
sim_ctx = sim_utils.SimulationContext.instance()
# Reuse a matching renderer or construct one through instantiate(cfg).
renderer: BaseRenderer = sim_ctx.get_or_create_backend(IsaacRtxRendererCfg())

For RTX renderer settings, see /source/how-to/configure_rendering.

Batching camera renders

~isaaclab.renderers.BaseRenderer.render_batch accepts a sequence of render-data objects owned by the same renderer. Prepare the camera poses, intrinsics, and shared scene state before rendering, then read each camera’s output. An empty sequence performs no rendering.

renderer.render_batch([first_render_data, second_render_data])
renderer.read_output(first_render_data, first_camera_data)
renderer.read_output(second_render_data, second_camera_data)

~isaaclab.renderers.BaseRenderer.render continues to accept a single render-data object. The default render_batch() implementation calls render() for each entry, so existing custom renderers and single-camera callers need no changes. OVRTX steps all registered render products together but publishes only the requested cameras’ observations.

With eager sensor updates (scene.cfg.lazy_sensor_update=False), scene.update() advances sensor clocks in scene order and collects batch-capable sensors. After the loop, the camera batch implementation prepares the remaining due captures for submission. ~isaaclab.renderers.RenderContext.render_into_cameras groups these requests by renderer instance, renders each group, and reads its outputs. The context does not retain a pending-camera queue. Each camera retains its own update period and reset state.

With lazy sensor updates, reading a camera’s data refreshes only that camera’s sensor buffers and capture timestamps. It does not refresh peer camera sensors sharing the renderer.

Core concepts

• Use the simulation registry: Always acquire renderers with a renderer-specific config class through sim_ctx.get_or_create_backend(IsaacRtxRendererCfg()). Do not import or instantiate concrete backend classes (e.g. IsaacRtxRenderer, OVRTXRenderer) directly—their names and package locations are implementation details and may change without notice.

• Lightweight config imports: Importing a renderer configuration class does not pull in backend-specific dependencies. class_type is resolved lazily when the renderer is constructed, and construction may fail if the backend is not installed.

import isaaclab.sim as sim_utils
from isaaclab.renderers import BaseRenderer
# Lightweight: does not import OVRTX backend dependencies
from isaaclab_ov.renderers import OVRTXRendererCfg
# Lazily loads ovrtx when instantiated; may fail if isaaclab_ov / ovrtx is not installed
sim_ctx = sim_utils.SimulationContext.instance()
renderer: BaseRenderer = sim_ctx.get_or_create_backend(OVRTXRendererCfg())

Installing the OVRTX renderer

The OVRTX renderer is provided by the isaaclab_ov extension. The extension’s source package ships with the core install, but the renderer’s ovrtx runtime wheel (the ovrtx package, published on public PyPI) is not installed by default. You must request it explicitly — OVRTX does not require Isaac Sim.

Install via the Isaac Lab CLI using the ov[ovrtx] token:

# Install the ovrtx runtime wheel on top of an existing install
./isaaclab.sh -i ov[ovrtx]

Or install the public ovrtx package directly from PyPI:

pip install "ovrtx==0.5.1.385782"

• Opaque render data: The render data object returned by ~isaaclab.renderers.BaseRenderer.create_render_data is passed to subsequent renderer methods. It should be completely opaque to the caller: inspecting or modifying it via get/set attributes is an anti-pattern and breaks the API contract.

Asynchronous Rendering

isaaclab_ov.renderers.OVRTXRendererCfg.async_rendering returns a camera’s previous capture while rendering its next image. This allows rendering to overlap simulation and Python work. The first capture, including after reset, waits for a fresh image. The ovstage path stays synchronous.

Latency is one capture, not necessarily one physics or control step. State observations remain current, so enabling this option changes the policy’s observation timing; training may need to account for that delay. Physics and policy computation may also use the GPU.

For a camera capturing once per environment step, steady-state operation is:

Synchronous:   physics k -> submit image k -> wait/read image k -> policy
Asynchronous:  physics k -> submit image k -> wait/read image k-1 -> policy
                                |                                 |
                                +---- image k renders ------------+--> physics k+1

The first image is returned immediately after priming and repeated once on the next capture.

Each camera owns its pending observations. Reading camera A never changes camera B’s pixels or metadata, even when they share a native render submission. Reset discards that camera’s pending observations. A partial environment reset re-primes the whole tiled camera product, without invalidating other cameras.

Live fields such as camera.data.pos_w and camera.data.intrinsic_matrices remain current. Use the capture metadata when pairing delayed pixels with a pose or calibration, for example when deprojecting depth:

data = camera.data
depth = data.output["distance_to_image_plane"]
capture = data.info["distance_to_image_plane"]["capture"]
position, orientation = capture["pos_w"], capture["quat_w_world"]
intrinsics, frame = capture["intrinsic_matrices"], capture["frame"]

Capture metadata remains unchanged on later captures. Direct renderer callers use ~isaaclab.renderers.BaseRenderer.prepare_capture before submitting a capture and ~isaaclab.renderers.BaseRenderer.read_output to publish it.

SDP fills renderer-owned transform and geometry buffers, including deformable meshes, particles, and cables. Two buffers alternate per write and are reused only after OVRTX consumes them. Physics can therefore update its live arrays while the previous capture renders.

See Also

• /source/concepts/native-physics-api/scene_data_providers: how scene data flows from physics backends to renderers
• https://isaac-sim.github.io/IsaacLab/release/3.0.0/source/concepts/visualization.html — lightweight visualizer backends for interactive feedback
