Visuo-Tactile Sensor

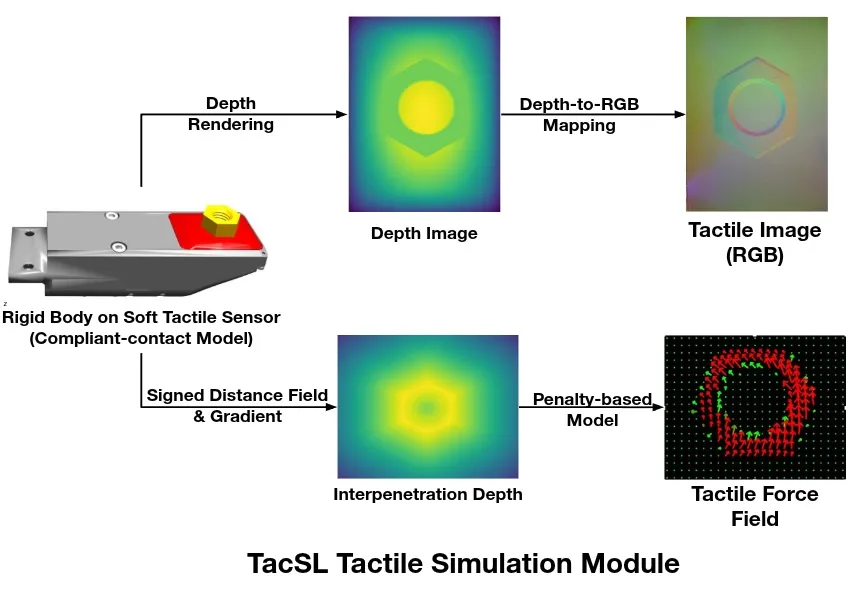

The visuo-tactile sensor in Isaac Lab provides realistic tactile feedback through integration with TacSL (Tactile Sensor Learning) ¹. It is designed to simulate high-fidelity tactile interactions, generating both visual and force-based data that mirror real-world tactile sensors like GelSight devices. The sensor can provide tactile RGB images, force field distributions, and other intermediate tactile measurements essential for robotic manipulation tasks requiring fine tactile feedback.

Configuration

Tactile sensors require specific configuration parameters to define their behavior and data collection properties. The sensor can be configured with various parameters including sensor resolution, force sensitivity, and output data types.

from isaaclab.sensors import CameraCfg
from isaaclab_assets.sensors import GELSIGHT_R15_CFG
import isaaclab.sim as sim_utils
from isaaclab_contrib.sensors.tacsl_sensor import VisuoTactileSensorCfg
# Tactile sensor configuration
tactile_sensor = VisuoTactileSensorCfg(
    prim_path="{ENV_REGEX_NS}/Robot/elastomer/tactile_sensor",
    ## Sensor configuration
    render_cfg=GELSIGHT_R15_CFG,
    enable_camera_tactile=True,
    enable_force_field=True,
    ## Elastomer configuration
    tactile_array_size=(20, 25),
    tactile_margin=0.003,
    ## Contact object configuration
    contact_object_prim_path_expr="{ENV_REGEX_NS}/contact_object",
    ## Force field physics parameters
    normal_contact_stiffness=1.0,
    friction_coefficient=2.0,
    tangential_stiffness=0.1,
    ## Camera configuration
    camera_cfg=CameraCfg(
        prim_path="{ENV_REGEX_NS}/Robot/elastomer_tip/cam",
        update_period=1 / 60,  # 60 Hz
        height=320,
        width=240,
        data_types=["distance_to_image_plane"],
        spawn=None,  # camera already spawned in USD file
    ),
)

The configuration supports customization of:

• Render Configuration: Specify the GelSight sensor rendering parameters using predefined configs (e.g., GELSIGHT_R15_CFG, GELSIGHT_MINI_CFG from isaaclab_assets.sensors)
• Tactile Modalities:
  • enable_camera_tactile - Enable tactile RGB imaging through camera sensors
  • enable_force_field - Enable force field computation and visualization
• Force Field Grid: Set tactile grid dimensions (tactile_array_size) and margins, which directly affects the spatial resolution of the computed force field
• Contact Object Configuration: Define properties of interacting objects using prim path expressions to locate objects with SDF collision meshes
• Physics Parameters: Control the sensor’s force field computation:
  • normal_contact_stiffness, friction_coefficient, tangential_stiffness - Normal stiffness, friction coefficient, and tangential stiffness
• Camera Settings: Configure resolution, update rates, and data types using ~sensors.CameraCfg. Currently only distance_to_image_plane (alias for depth) is supported. spawn is set to None by default, which means that the camera is already spawned in the USD file. If you want to spawn the camera yourself and set focal length, etc., you can set the spawn configuration to a valid spawn configuration.

Configuration Requirements

Usage Example

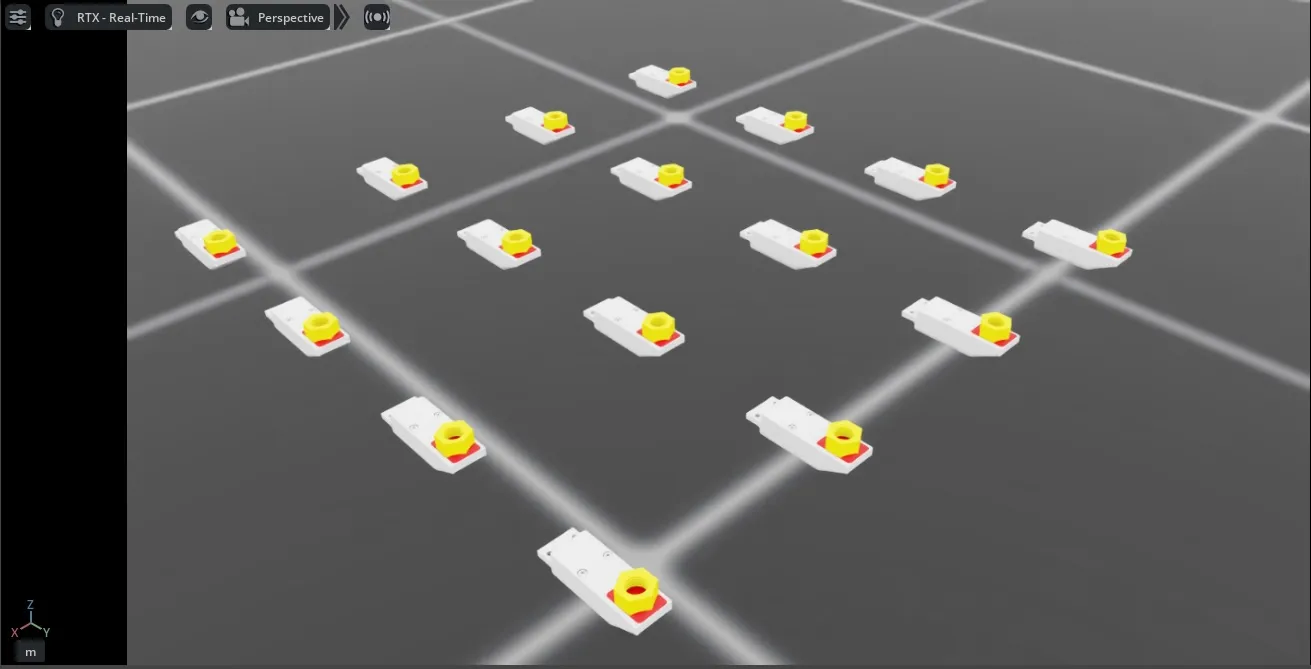

To use the tactile sensor in a simulation environment, run the example:

uv run --extra isaacsim isaaclab example tactile-sensor --use_tactile_rgb --use_tactile_ff --tactile_compliance_stiffness 100.0 --tactile_compliant_damping 1.0 --contact_object_type nut --num_envs 16 --save_viz --viz kit

Available command-line options include:

• --use_tactile_rgb: Enable camera-based tactile sensing
• --use_tactile_ff: Enable force field tactile sensing
• --contact_object_type: Specify the type of contact object (nut, cube, etc.)
• --num_envs: Number of parallel environments
• --save_viz: Save visualization outputs for analysis
• --tactile_compliance_stiffness: Override compliant contact stiffness (default: use USD asset values)
• --tactile_compliant_damping: Override compliant contact damping (default: use USD asset values)
• --normal_contact_stiffness: Normal contact stiffness for force field computation
• --tangential_stiffness: Tangential stiffness for shear forces
• --friction_coefficient: Friction coefficient for shear forces
• --viz: Select one or more visualizers, such as kit or newton
• --debug_sdf_closest_pts: Visualize closest SDF points for debugging
• --debug_tactile_sensor_pts: Visualize tactile sensor points for debugging
• --trimesh_vis_tactile_points: Enable trimesh-based visualization of tactile points

For a complete list of available options:

uv run --extra isaacsim isaaclab example tactile-sensor -h

The tactile sensor supports multiple data modalities that provide comprehensive information about contact interactions:

Output Tactile Data

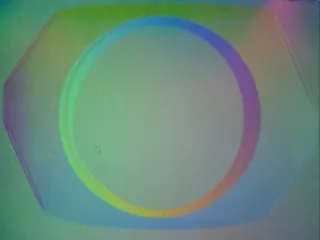

RGB Tactile Images Real-time generation of tactile RGB images as objects make contact with the sensor surface. These images show deformation patterns and contact geometry similar to gel-based tactile sensors ²

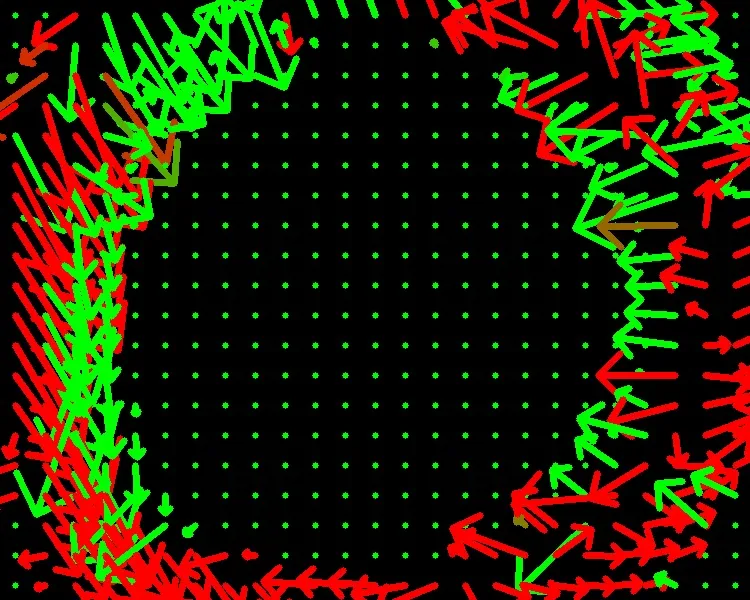

Force Fields Detailed contact force field and pressure distributions across the sensor surface, including normal and shear components.

Integration with Learning Frameworks

The tactile sensor is designed to integrate seamlessly with reinforcement learning and imitation learning frameworks. The structured tensor outputs can be directly used as observations in learning algorithms:

def get_tactile_observations(self):
    """Extract tactile observations for learning."""
    tactile_data = self.scene["tactile_sensor"].data
    # tactile RGB image
    tactile_rgb = tactile_data.tactile_rgb_image
    # tactile depth image
    tactile_depth = tactile_data.tactile_depth_image
    # force field
    tactile_normal_force = tactile_data.tactile_normal_force
    tactile_shear_force = tactile_data.tactile_shear_force
    return [tactile_rgb, tactile_depth, tactile_normal_force, tactile_shear_force]
