RT-DETR#

TAO RT-DETR is an advanced 2D Single-Camera Real-Time Detection Transformer tailored for warehouse environments and industrial automation settings. It generates precise 2D bounding boxes for a diverse set of objects including people, humanoid robots, autonomous vehicles, and warehouse equipment. The RT-DETR Warehouse 2D Model v1.0.1 is part of NVIDIA’s RT-DETR family and features an EfficientViT/L2 backbone, pretrained on warehouse scene datasets for precise 2D object detection in industrial environments.

Note

This model is optimized and ready for commercial deployment with support for fine-tuning via TAO Toolkit.

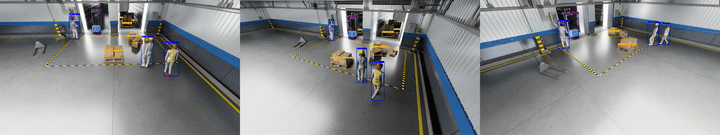

TAO RT-DETR Sample Output

Model Card#

The TAO RT-DETR model card on NGC describes architecture, datasets, and accuracy methodology. TAO fine-tuning (notebook walkthrough, CLI commands, export, FP16 optimization) is documented in RT-DETR (TAO fine-tuning) so it is not duplicated here.

Inference using Perception Microservice#

Detailed information can be found in the 2D Single Camera Detection and Tracking (RT-DETR) page.

Real-Time Inference Throughput & Latency#

Inference runs through the DeepStream pipeline on TensorRT with mixed precision (FP16+FP32). The table below summarizes how many camera streams each GPU supports at 30 FPS and 15 FPS (with inference interval=1) for the RT-DETR model with EfficientViT-L2 backbone.

Real-time throughput (streams supported)#

GPU

@30 FPS

@15 FPS (interval=1)

1x DGX Spark

4

8

1x RTX PRO 6000 (Server)

28

57

1x RTX PRO 6000 (Workstation)

30

61

1x Jetson AGX Thor - T5000

4

8

1x IGX Thor - T7000

4

9

1x B200

58

116

1x GB200

63

126

1x H100

17

35

1x H200

22

45

1x RTX 6000 Ada

8

16

1x A100

9

19

1x L4

2

4

1x L40S

7

15

KPI#

The key performance indicators are Average Precision (AP) per-class evaluated on the Warehouse Synthetic Test dataset. AP quantifies a detector’s ability to trade off precision and recall for a single object category by computing the normalized area under its precision-recall curve.

The model supports 7 object categories: Person, Agility Digit (humanoid robot), Fourier GR1_T2 (humanoid robot), Nova Carter, Transporter, Forklift, and Pallet.

Evaluation Settings

The reported metrics use the following evaluation configuration:

  • AP Variant: COCO AP@0.50

  • IoU Thresholds: 0.50

  • Max Detections: 100 detections per image

  • Matching Policy: Greedy matching based on IoU with ground truth boxes, highest confidence predictions matched first

The evaluation is performed on the MTMC Tracking 2025 subset from the NVIDIA PhysicalAI-SmartSpaces dataset. This is a comprehensive, annotated dataset for multi-camera tracking and 2D/3D object detection, synthetically generated with NVIDIA Omniverse. The dataset consists of time-synchronized video from indoor warehouse scenes with annotations for 2D & 3D bounding boxes and multi-camera tracking IDs. The Warehouse Synthetic Test dataset used for evaluation is the Warehouse_019 scene from the test split.

Per-class AP on Warehouse Synthetic Test#

Dataset

Person

Agility Digit

GR1_T2

Nova Carter

Transporter

Forklift

Pallet

Warehouse Synthetic Test

0.970

0.969

0.920

0.960

0.940

0.851

0.891

Please refer to the Model Card for more details on benchmark datasets and evaluation methodology.
