CLAHE Tutorial with NVIDIA DALI#
Welcome to this hands-on tutorial! In this notebook, you’ll learn how to use Contrast Limited Adaptive Histogram Equalization (CLAHE) with NVIDIA DALI for image enhancement.
Introduction to CLAHE#
This notebook demonstrates how to use CLAHE (Contrast Limited Adaptive Histogram Equalization) in a DALI pipeline for image preprocessing.
CLAHE is a powerful technique that improves contrast in images without overamplifying noise, making it particularly useful for medical imaging, surveillance, and low-contrast photography.
Using Real Medical Imaging Data#
This tutorial includes demonstrations with real knee MRI slices from the DALI_extra repository, which perfectly showcase CLAHE’s effectiveness on low-contrast medical images.
To use the MRI data:
# Clone DALI_extra (requires git-lfs)
git clone https://github.com/NVIDIA/DALI_extra.git
cd DALI_extra && git lfs pull
# Set environment variable
export DALI_EXTRA_PATH=/path/to/DALI_extra
The MRI data will be at: $DALI_EXTRA_PATH/db/3D/MRI/Knee/npy_2d_slices/STU00001/SER00001/
The data is organized in a nested structure:
STU00001/- Patient study directorySER00001/,SER00002/, … - Series directories (different MRI sequences)0.npy,1.npy, … - Individual 2D slice files
Required Imports#
Let’s start by importing the necessary DALI modules and NumPy for data analysis.
[1]:
import nvidia.dali as dali
import nvidia.dali.fn as fn
import nvidia.dali.types as types
import numpy as np
Parameter Comparison Function#
Let’s create a function to demonstrate how different CLAHE parameters affect the results.
Try it yourself: Experiment with different values for
tiles_x,tiles_y, andclip_limitto see their impact.
[2]:
def demonstrate_clahe_parameters():
"""
Demonstrate different CLAHE parameter settings to show their effects.
Returns:
DALI pipeline that generates one base image and three CLAHE variants
"""
@dali.pipeline_def(batch_size=1, num_threads=1, device_id=0)
def parameter_demo_pipeline():
# Create a test image with poor contrast (narrow intensity range)
base_image = fn.random.uniform(
range=(80, 120), shape=(256, 256, 1), dtype=types.UINT8
)
# Different CLAHE configurations to compare:
# 1. Default settings - balanced approach
clahe_default = fn.clahe(
base_image,
tiles_x=8,
tiles_y=8, # Standard 8x8 grid
clip_limit=2.0, # Moderate contrast limiting
)
# 2. Aggressive enhancement - more contrast, more local adaptation
clahe_aggressive = fn.clahe(
base_image,
tiles_x=16,
tiles_y=16, # Finer 16x16 grid
clip_limit=4.0, # Higher contrast limit
)
# 3. Gentle enhancement - subtle improvement
clahe_gentle = fn.clahe(
base_image,
tiles_x=4,
tiles_y=4, # Coarser 4x4 grid
clip_limit=1.0, # Conservative contrast limit
)
return base_image, clahe_default, clahe_aggressive, clahe_gentle
return parameter_demo_pipeline()
Running the CLAHE Pipeline#
Now let’s execute our pipeline and see CLAHE in action! We’ll analyze the results and measure the contrast improvement.
Try it yourself: Run the next cell and observe the printed analysis for each image.
[3]:
# Definition of create_clahe_pipeline (reinserted so usage below works)
import nvidia.dali as dali
import nvidia.dali.fn as fn
import nvidia.dali.types as types
def create_clahe_pipeline(
batch_size=4,
num_threads=2,
device_id=0,
image_dir=None,
tiles_x=8,
tiles_y=8,
clip_limit=2.0,
luma_only=True,
):
"""Build a DALI pipeline that applies CLAHE.
If image_dir is provided images are read and decoded; otherwise synthetic RGB images
are generated to demonstrate contrast enhancement.
GPU CLAHE for RGB requires luma_only=True.
"""
@dali.pipeline_def(
batch_size=batch_size, num_threads=num_threads, device_id=device_id
)
def clahe_preprocessing_pipeline():
if image_dir:
images, labels = fn.readers.file(
file_root=image_dir, random_shuffle=True
)
images = fn.decoders.image(images, device="mixed")
images = fn.resize(images, size=[256, 256])
else:
images = fn.random.uniform(
range=(60, 180), shape=(256, 256, 3), dtype=types.FLOAT
)
contrast_factor = fn.random.uniform(range=(0.5, 0.9))
images = images * contrast_factor
brightness_offset = fn.random.uniform(range=(-20, 20))
images = images + brightness_offset
images = fn.cast(images, dtype=types.UINT8)
clahe_imgs = fn.clahe(
images,
tiles_x=tiles_x,
tiles_y=tiles_y,
clip_limit=clip_limit,
luma_only=luma_only,
)
return images, clahe_imgs
return clahe_preprocessing_pipeline()
[4]:
# Create and build pipeline
print("Creating CLAHE pipeline...")
pipe = create_clahe_pipeline(batch_size=2, num_threads=1, device_id=0)
pipe.build()
print("Pipeline built successfully")
# Run pipeline
print("\nRunning pipeline...")
outputs = pipe.run()
original_images, clahe_images = outputs
# Move to CPU for analysis
original_batch = original_images.as_cpu()
clahe_batch = clahe_images.as_cpu()
print(f"Processed {len(original_batch)} images")
# Analyze results
print("\n" + "=" * 50)
print("CLAHE RESULTS ANALYSIS")
print("=" * 50)
for i in range(len(original_batch)):
original = np.array(original_batch[i])
enhanced = np.array(clahe_batch[i])
print(f"\n Image {i + 1}:")
print(
f" Original - Shape: {original.shape}, Range: [{original.min():.1f}, {original.max():.1f}]"
)
print(
f" Enhanced - Shape: {enhanced.shape}, Range: [{enhanced.min():.1f}, {enhanced.max():.1f}]"
)
# Calculate contrast metrics (standard deviation as a proxy for contrast)
orig_std = np.std(original)
enhanced_std = np.std(enhanced)
contrast_improvement = enhanced_std / orig_std if orig_std > 0 else 1.0
print(f" Contrast improvement: {contrast_improvement:.2f}x")
print("\nCLAHE pipeline executed successfully!")
Creating CLAHE pipeline...
Pipeline built successfully
Running pipeline...
Processed 2 images
==================================================
CLAHE RESULTS ANALYSIS
==================================================
Image 1:
Original - Shape: (256, 256, 3), Range: [22.0, 98.0]
Enhanced - Shape: (256, 256, 3), Range: [5.0, 194.0]
Contrast improvement: 1.88x
Image 2:
Original - Shape: (256, 256, 3), Range: [27.0, 87.0]
Enhanced - Shape: (256, 256, 3), Range: [15.0, 163.0]
Contrast improvement: 1.93x
CLAHE pipeline executed successfully!
Parameter Comparison Experiment#
Let’s compare different CLAHE parameter settings to understand their effects on image enhancement.
Try it yourself: Run the cell below and compare the standard deviation values for each configuration.
[5]:
# Demonstrate parameter variations
print("Testing different CLAHE parameters...")
param_pipe = demonstrate_clahe_parameters()
param_pipe.build()
param_outputs = param_pipe.run()
base, default, aggressive, gentle = param_outputs
# Convert to numpy arrays for analysis
base_img = np.array(base.as_cpu()[0])
default_img = np.array(default.as_cpu()[0])
aggressive_img = np.array(aggressive.as_cpu()[0])
gentle_img = np.array(gentle.as_cpu()[0])
# Compare the results
print("\n" + "=" * 60)
print("PARAMETER COMPARISON RESULTS")
print("=" * 60)
configurations = [
("Base image (no CLAHE)", base_img),
("Default CLAHE (8x8, limit=2.0)", default_img),
("Aggressive CLAHE (16x16, limit=4.0)", aggressive_img),
("Gentle CLAHE (4x4, limit=1.0)", gentle_img),
]
for name, img in configurations:
std_dev = np.std(img)
print(f"{name}")
print(f" Standard deviation (contrast measure): {std_dev:.2f}")
print()
print(" Key Takeaways:")
print(" • Higher std dev = more contrast")
print(" • More tiles (16x16) = more local adaptation")
print(" • Higher clip limit = stronger enhancement")
print(" • Choose parameters based on your image type and requirements!")
Testing different CLAHE parameters...
============================================================
PARAMETER COMPARISON RESULTS
============================================================
Base image (no CLAHE)
Standard deviation (contrast measure): 11.55
Default CLAHE (8x8, limit=2.0)
Standard deviation (contrast measure): 31.64
Aggressive CLAHE (16x16, limit=4.0)
Standard deviation (contrast measure): 49.58
Gentle CLAHE (4x4, limit=1.0)
Standard deviation (contrast measure): 21.25
Key Takeaways:
• Higher std dev = more contrast
• More tiles (16x16) = more local adaptation
• Higher clip limit = stronger enhancement
• Choose parameters based on your image type and requirements!
Practical Applications & Next Steps#
Where can you use CLAHE?
Medical Imaging (Best use case): Enhance X-rays, CT scans, MRI images
Reveals subtle tissue boundaries and pathological structures
Improves diagnostic visualization without changing underlying data
Essential for low-contrast modalities like MRI and ultrasound
Computer Vision: Improve object detection in low-contrast scenes
Photography: Enhance details in shadows and highlights
Security: Improve visibility in surveillance footage
Astronomy: Enhance celestial object visibility
Microscopy: Reveal cellular structures in biological samples
Parameter Tuning Guidelines:
Medical scans (MRI, CT): tiles_x/y = 8-12, clip_limit = 2.0-3.5
Higher clip_limit for very low-contrast tissue boundaries
Moderate tile size to preserve spatial relationships
X-rays: tiles_x/y = 6-10, clip_limit = 2.0-3.0
Natural photos: tiles_x/y = 6-10, clip_limit = 2.0-3.0
Low-light images: tiles_x/y = 10-16, clip_limit = 3.0-4.0
High-noise images: tiles_x/y = 4-8, clip_limit = 1.0-2.0

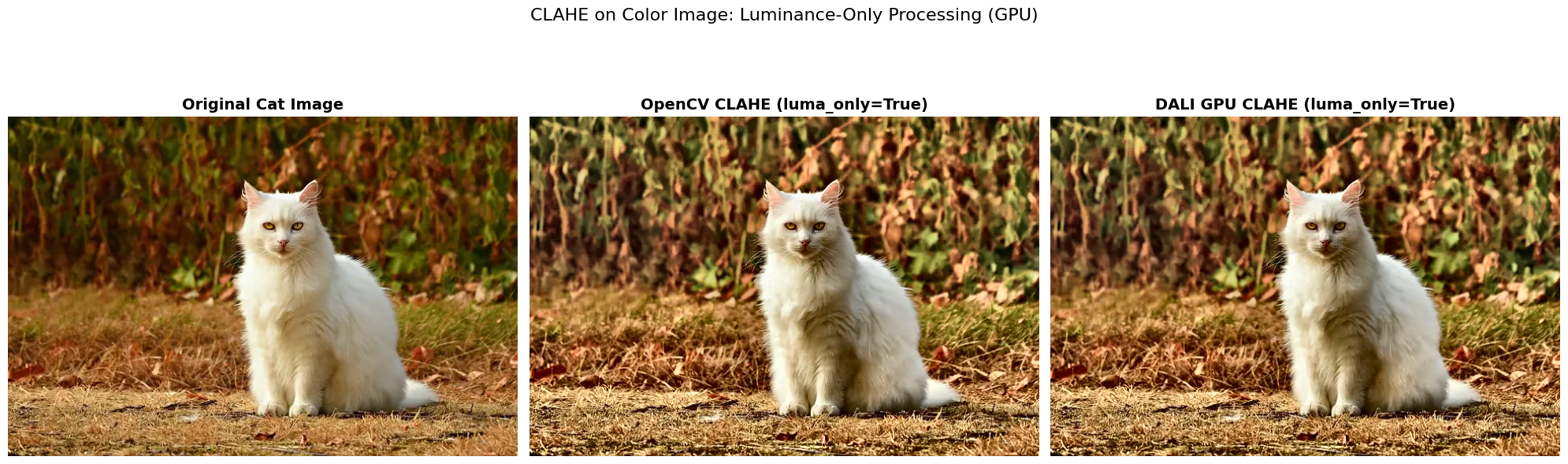

GPU vs CPU Implementation:
GPU: Only supports
luma_only=True(default) - processes luminance channel in LAB color space✅ Fast GPU acceleration
✅ Preserves color relationships
✅ Ideal for most use cases
CPU: Supports both
luma_only=Trueandluma_only=FalseThe CPU version just makes a call to OpenCV’s CLAHE
luma_only=Falseprocesses each RGB channel independentlySlower but offers per-channel processing option

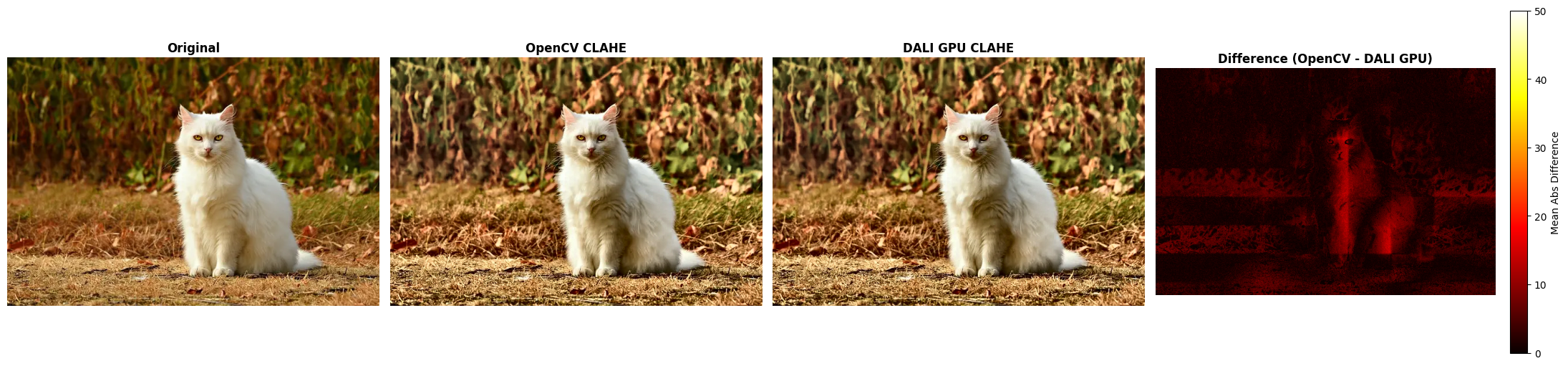

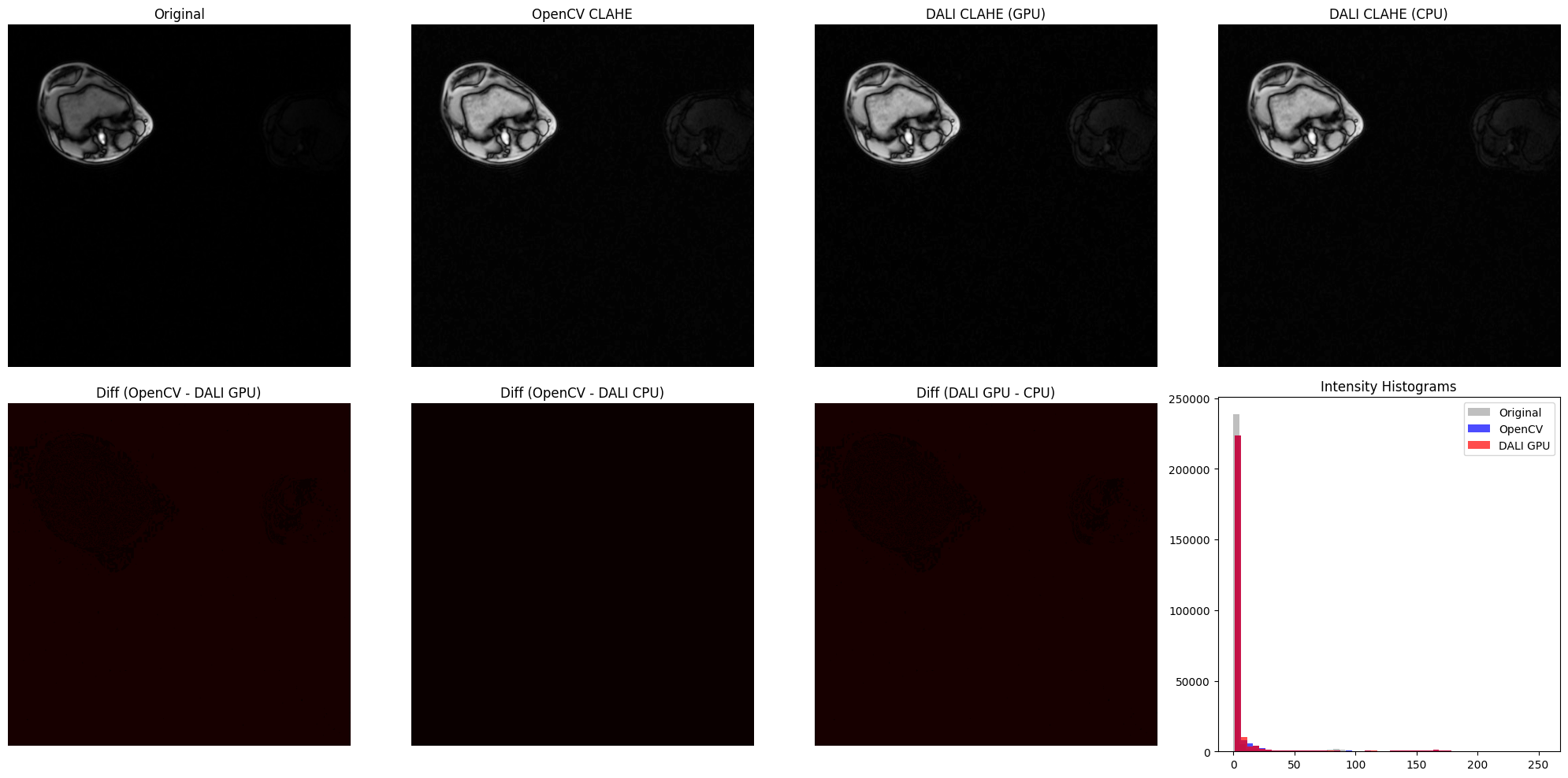

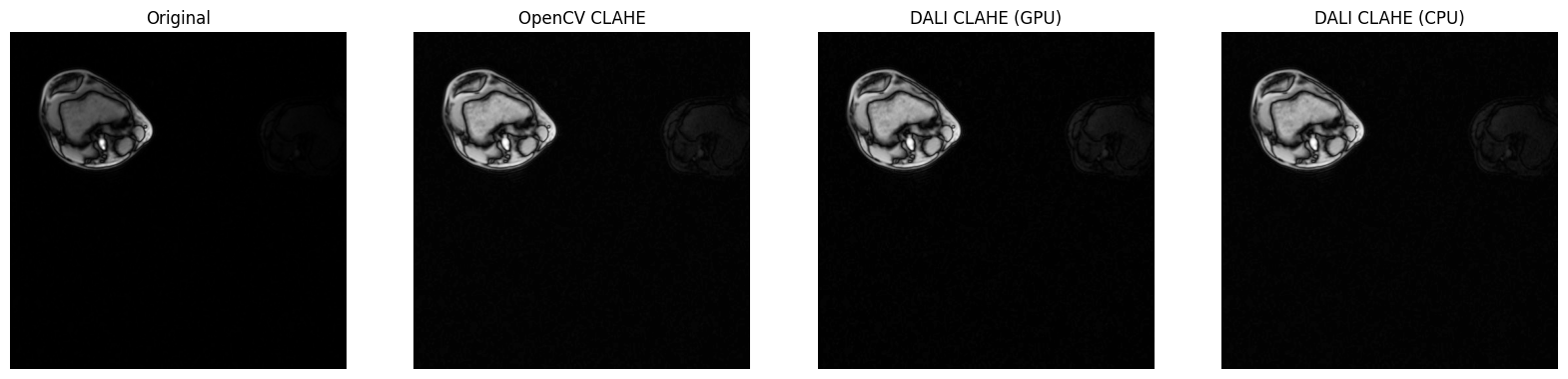

DALI CLAHE vs OpenCV CLAHE on Medical Imaging (Knee MRI)#
This section demonstrates CLAHE on real low-contrast medical imaging data - knee MRI slices from the DALI_extra repository. Medical imaging is where CLAHE truly shines, as these images often have naturally low contrast that benefits significantly from adaptive histogram equalization.
The knee MRI slices (db/3D/MRI/Knee/npy_2d_slices/STU00001/SER00001/) are perfect for demonstrating CLAHE because:
Low local contrast: MRI data typically has subtle tissue boundaries
Grayscale: Single-channel data ideal for CLAHE
Real-world clinical data: Demonstrates practical medical imaging applications
Multiple sequences: 15 different series (SER00001-SER00015) available for experimentation
Try it yourself: Run the next cells to see side-by-side results on actual medical imaging data.
[6]:
# --- Setup: Load knee MRI slice from DALI_extra ---
import numpy as np
import cv2
import matplotlib.pyplot as plt
import os
import glob
# Path to DALI_extra MRI data
# The DALI_EXTRA_PATH should point to your DALI_extra repository
dali_extra_path = os.environ.get("DALI_EXTRA_PATH")
if dali_extra_path and os.path.exists(dali_extra_path):
# Path to knee MRI 2D slices (nested in STU00001/SER00001/ subdirectories)
mri_base_path = os.path.join(
dali_extra_path, "db/3D/MRI/Knee/npy_2d_slices"
)
if os.path.exists(mri_base_path):
# Find .npy files in nested subdirectories (e.g., STU00001/SER00001/*.npy)
npy_pattern = os.path.join(mri_base_path, "STU00001/SER00001/*.npy")
npy_files = sorted(glob.glob(npy_pattern))
if npy_files:
print(f"Loading knee MRI slice from DALI_extra...")
print(f"Found {len(npy_files)} MRI slices in STU00001/SER00001/")
# Load the first MRI slice (or you can choose a different index)
mri_data = np.load(npy_files[0])
print(f"MRI slice loaded: {os.path.basename(npy_files[0])}")
print(f"Original shape: {mri_data.shape}, dtype: {mri_data.dtype}")
# Normalize to uint8 if needed
if mri_data.dtype != np.uint8:
# Normalize to 0-255 range
mri_min, mri_max = mri_data.min(), mri_data.max()
if mri_max > mri_min:
mri_data = (
(mri_data - mri_min) / (mri_max - mri_min) * 255
).astype(np.uint8)
else:
mri_data = np.zeros_like(mri_data, dtype=np.uint8)
print(
f"Normalized to uint8: range [{mri_data.min()}, {mri_data.max()}]"
)
# Ensure it has channel dimension (H, W, 1) for DALI compatibility
if len(mri_data.shape) == 2:
image = np.expand_dims(mri_data, axis=-1)
else:
image = mri_data
print(f"Final shape for processing: {image.shape}")

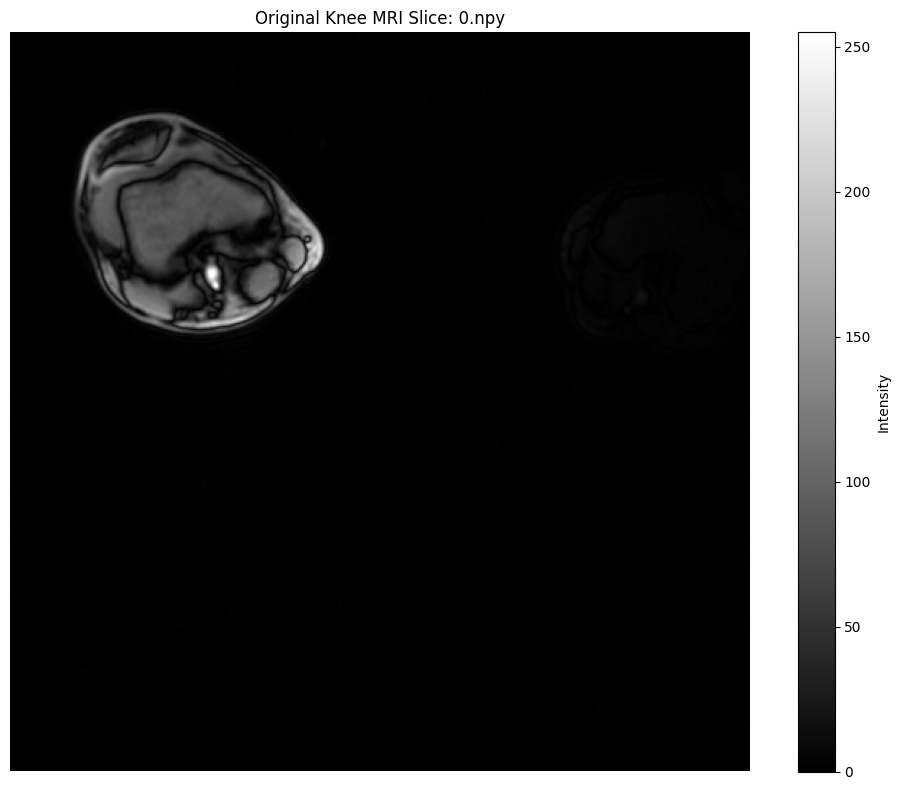

# Display the original MRI slice
plt.figure(figsize=(10, 8))
plt.imshow(image.squeeze(), cmap="gray", vmin=0, vmax=255)
plt.title(
f"Original Knee MRI Slice: {os.path.basename(npy_files[0])}"
)
plt.colorbar(label="Intensity")
plt.axis("off")
plt.tight_layout()
plt.show()
print(
"\nNote: Notice the low contrast in this medical image - perfect for CLAHE."
)
else:
print(f"Error: No .npy files found in {npy_pattern}")
raise FileNotFoundError(f"No MRI data found at {npy_pattern}")
else:
print(f"Error: MRI base path not found: {mri_base_path}")
raise FileNotFoundError(f"MRI base path not found: {mri_base_path}")
else:
print(
"Error: DALI_EXTRA_PATH environment variable not set or path doesn't exist"
)
print("Please set it to your DALI_extra repository path:")
print("export DALI_EXTRA_PATH=/path/to/DALI_extra")
raise EnvironmentError("DALI_EXTRA_PATH not properly configured")
print(f"\nImage statistics:")
print(f"Mean: {image.mean():.1f}, Std: {image.std():.1f}")
print(f"Min: {image.min()}, Max: {image.max()}")
Loading knee MRI slice from DALI_extra...
Found 5 MRI slices in STU00001/SER00001/
MRI slice loaded: 0.npy
Original shape: (512, 512), dtype: uint8
Final shape for processing: (512, 512, 1)
Note: Notice the low contrast in this medical image - perfect for CLAHE.
Image statistics:
Mean: 5.3, Std: 19.7
Min: 0, Max: 255
[7]:
# --- CLAHE Processing: OpenCV and DALI ---
import nvidia.dali.fn as fn
import nvidia.dali.types as types
from nvidia.dali.pipeline import Pipeline
def apply_opencv_clahe(
image, tiles_x=8, tiles_y=8, clip_limit=2.0, luma_only=True
):
clahe = cv2.createCLAHE(
clipLimit=float(clip_limit), tileGridSize=(tiles_x, tiles_y)
)
# Handle grayscale images (shape: H x W x 1 or H x W)
if len(image.shape) == 2 or (len(image.shape) == 3 and image.shape[2] == 1):
# For grayscale, just apply CLAHE directly
img_2d = image.squeeze() if len(image.shape) == 3 else image
result = clahe.apply(img_2d)
# Return with same shape as input
if len(image.shape) == 3:
result = np.expand_dims(result, axis=-1)
# Handle RGB images (shape: H x W x 3)
elif len(image.shape) == 3 and image.shape[2] == 3:
if luma_only:
lab = cv2.cvtColor(image, cv2.COLOR_RGB2Lab)
lab[:, :, 0] = clahe.apply(lab[:, :, 0])
result = cv2.cvtColor(lab, cv2.COLOR_Lab2RGB)
else:
result = np.zeros_like(image)
for i in range(3):
result[:, :, i] = clahe.apply(image[:, :, i])
else:
raise ValueError(f"Unsupported image shape: {image.shape}")
return result
class MemoryPipeline(Pipeline):
def __init__(
self,
image_array,
tiles_x=8,
tiles_y=8,
clip_limit=2.0,
device="gpu",
luma_only=None,
):
super().__init__(batch_size=1, num_threads=1, device_id=0)
self.image_array = image_array
self.tiles_x = tiles_x
self.tiles_y = tiles_y
self.clip_limit = clip_limit
self.device = device
# Auto-detect luma_only if not provided: for RGB on GPU force True; grayscale -> False
if luma_only is None:
if (
len(image_array.shape) == 3
and image_array.shape[2] == 3
and device == "gpu"
):
self.luma_only = True
else:
self.luma_only = False
else:
self.luma_only = bool(luma_only)
def define_graph(self):
images = fn.external_source(
source=lambda: [self.image_array],
device="cpu",
dtype=types.DALIDataType.UINT8,
ndim=3,
)
if self.device == "gpu":
images_processed = images.gpu()
else:
images_processed = images
clahe_result = fn.clahe(
images_processed,
tiles_x=self.tiles_x,
tiles_y=self.tiles_y,
clip_limit=float(self.clip_limit),
luma_only=self.luma_only,
device=self.device,
)
return clahe_result
# Parameters
tiles_x, tiles_y, clip_limit = 8, 8, 2.0
# OpenCV CLAHE
opencv_result = apply_opencv_clahe(image, tiles_x, tiles_y, clip_limit)
# DALI CLAHE GPU
pipe_gpu = MemoryPipeline(image, tiles_x, tiles_y, clip_limit, "gpu")
pipe_gpu.build()
dali_gpu_result = pipe_gpu.run()[0].as_cpu().as_array()[0]
# DALI CLAHE CPU
pipe_cpu = MemoryPipeline(image, tiles_x, tiles_y, clip_limit, "cpu")
pipe_cpu.build()
dali_cpu_result = pipe_cpu.run()[0].as_cpu().as_array()[0]
# Calculate MSE and MAE between implementations
def calculate_metrics(img1, img2):
"""Calculate MSE and MAE between two images."""
mse = np.mean((img1.astype(float) - img2.astype(float)) ** 2)
mae = np.mean(np.abs(img1.astype(float) - img2.astype(float)))
return mse, mae
# Flatten images for comparison
opencv_flat = opencv_result.squeeze()
dali_gpu_flat = dali_gpu_result.squeeze()
dali_cpu_flat = dali_cpu_result.squeeze()
# Calculate metrics
mse_ocv_gpu, mae_ocv_gpu = calculate_metrics(opencv_flat, dali_gpu_flat)
mse_ocv_cpu, mae_ocv_cpu = calculate_metrics(opencv_flat, dali_cpu_flat)
mse_gpu_cpu, mae_gpu_cpu = calculate_metrics(dali_gpu_flat, dali_cpu_flat)
# Show results
fig, axes = plt.subplots(1, 4, figsize=(20, 5))
axes[0].imshow(image.squeeze(), cmap="gray")
axes[0].set_title("Original")
axes[0].axis("off")
axes[1].imshow(opencv_result.squeeze(), cmap="gray")
axes[1].set_title("OpenCV CLAHE")
axes[1].axis("off")
axes[2].imshow(dali_gpu_result.squeeze(), cmap="gray")
axes[2].set_title("DALI CLAHE (GPU)")
axes[2].axis("off")
axes[3].imshow(dali_cpu_result.squeeze(), cmap="gray")
axes[3].set_title("DALI CLAHE (CPU)")
axes[3].axis("off")
plt.show()
# Print comparison metrics
print("\nImplementation Comparison Metrics:")
print("=" * 60)
print(f"OpenCV vs DALI GPU: MSE = {mse_ocv_gpu:.4f}, MAE = {mae_ocv_gpu:.4f}")
print(f"OpenCV vs DALI CPU: MSE = {mse_ocv_cpu:.4f}, MAE = {mae_ocv_cpu:.4f}")
print(f"DALI GPU vs CPU: MSE = {mse_gpu_cpu:.4f}, MAE = {mae_gpu_cpu:.4f}")
print("\nNote: Lower values indicate closer agreement between implementations.")
Implementation Comparison Metrics:
============================================================
OpenCV vs DALI GPU: MSE = 0.9326, MAE = 0.9325
OpenCV vs DALI CPU: MSE = 0.0000, MAE = 0.0000
DALI GPU vs CPU: MSE = 0.9326, MAE = 0.9325
Note: Lower values indicate closer agreement between implementations.
[8]:
# --- Difference Maps and Luminance Histograms ---
def get_luminance(img):
"""Extract luminance from image. For grayscale, just return the image."""
if len(img.shape) == 2:
return img
elif len(img.shape) == 3 and img.shape[2] == 1:
return img.squeeze()
else:
# For RGB images, convert to YUV and extract Y channel
return cv2.cvtColor(img, cv2.COLOR_RGB2YUV)[:, :, 0]
# Calculate differences
diff_opencv_dali_gpu = np.abs(
opencv_result.astype(float) - dali_gpu_result.astype(float)
)
diff_opencv_dali_cpu = np.abs(
opencv_result.astype(float) - dali_cpu_result.astype(float)
)
diff_dali_gpu_cpu = np.abs(
dali_gpu_result.astype(float) - dali_cpu_result.astype(float)
)
fig, axes = plt.subplots(2, 4, figsize=(20, 10))
# Top row: images
axes[0, 0].imshow(image.squeeze(), cmap="gray")
axes[0, 0].set_title("Original")
axes[0, 0].axis("off")
axes[0, 1].imshow(opencv_result.squeeze(), cmap="gray")
axes[0, 1].set_title("OpenCV CLAHE")
axes[0, 1].axis("off")
axes[0, 2].imshow(dali_gpu_result.squeeze(), cmap="gray")
axes[0, 2].set_title("DALI CLAHE (GPU)")
axes[0, 2].axis("off")
axes[0, 3].imshow(dali_cpu_result.squeeze(), cmap="gray")
axes[0, 3].set_title("DALI CLAHE (CPU)")
axes[0, 3].axis("off")
# Bottom row: difference maps
# For grayscale images, no need to average across channels
diff_opencv_gpu_2d = diff_opencv_dali_gpu.squeeze()
diff_opencv_cpu_2d = diff_opencv_dali_cpu.squeeze()
diff_gpu_cpu_2d = diff_dali_gpu_cpu.squeeze()
axes[1, 0].imshow(diff_opencv_gpu_2d, cmap="hot", vmin=0, vmax=50)
axes[1, 0].set_title("Diff (OpenCV - DALI GPU)")
axes[1, 0].axis("off")
axes[1, 1].imshow(diff_opencv_cpu_2d, cmap="hot", vmin=0, vmax=50)
axes[1, 1].set_title("Diff (OpenCV - DALI CPU)")
axes[1, 1].axis("off")
axes[1, 2].imshow(diff_gpu_cpu_2d, cmap="hot", vmin=0, vmax=50)
axes[1, 2].set_title("Diff (DALI GPU - CPU)")
axes[1, 2].axis("off")
# Intensity histograms
orig_lum = get_luminance(image)
opencv_lum = get_luminance(opencv_result)
dali_gpu_lum = get_luminance(dali_gpu_result)
axes[1, 3].hist(
orig_lum.ravel(), bins=50, alpha=0.5, color="gray", label="Original"
)
axes[1, 3].hist(
opencv_lum.ravel(), bins=50, alpha=0.7, color="blue", label="OpenCV"
)
axes[1, 3].hist(
dali_gpu_lum.ravel(), bins=50, alpha=0.7, color="red", label="DALI GPU"
)
axes[1, 3].set_title("Intensity Histograms")
axes[1, 3].legend()
plt.tight_layout()
plt.show()

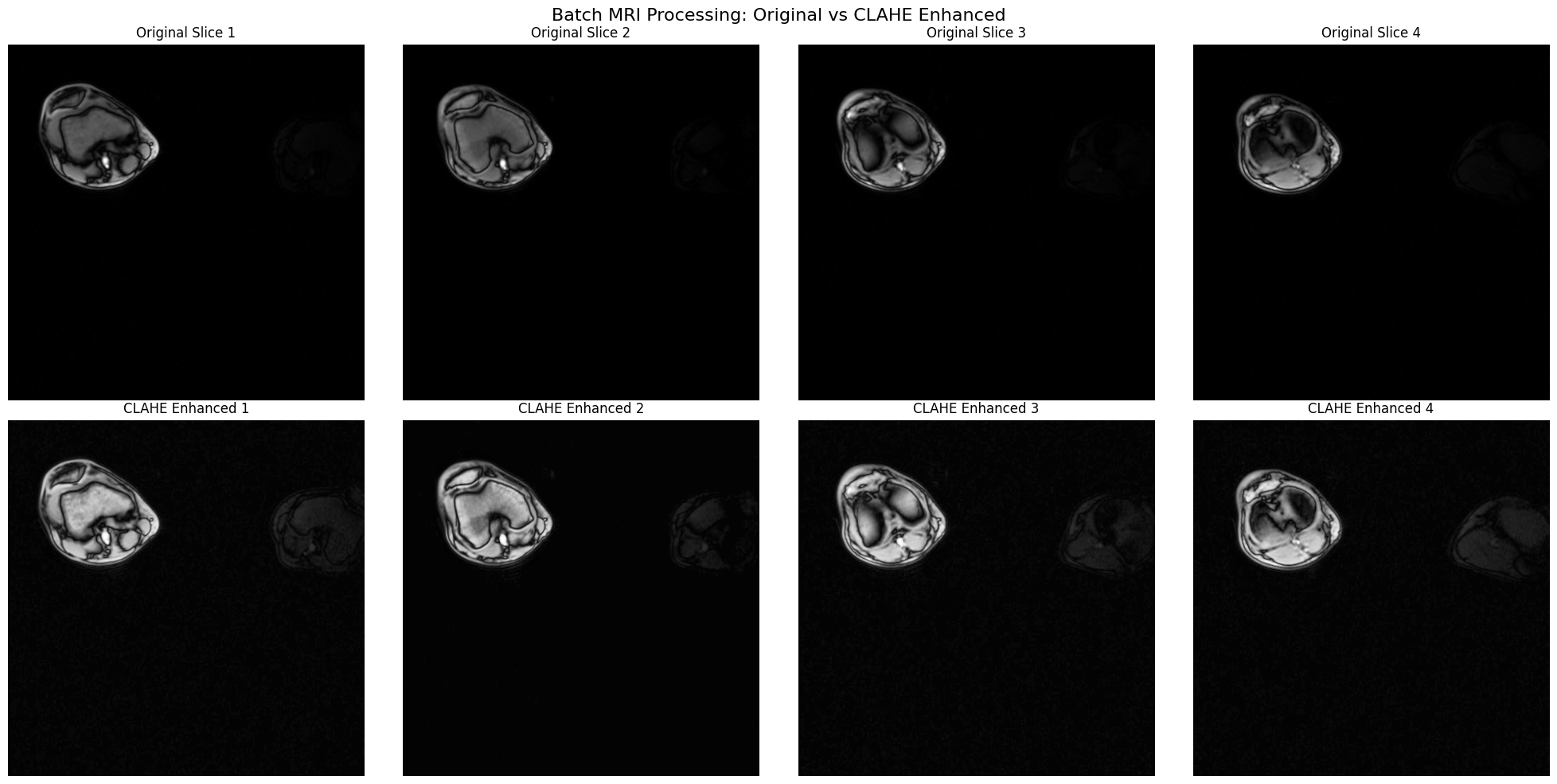

Batch Processing MRI Slices with DALI Numpy Reader#
Let’s demonstrate a more realistic medical imaging workflow: processing multiple MRI slices in batch using DALI’s numpy reader. This showcases DALI’s strength in efficient data loading and GPU-accelerated processing.
Try it yourself: This cell processes multiple MRI slices simultaneously, demonstrating the power of batched CLAHE processing.
[9]:
# --- Batch MRI Processing with DALI Numpy Reader ---
import nvidia.dali.fn as fn
import nvidia.dali.types as types
from nvidia.dali.pipeline import Pipeline
def create_mri_clahe_pipeline(
mri_data_path, batch_size=4, tiles_x=8, tiles_y=8, clip_limit=2.0
):
"""
Create a DALI pipeline that reads MRI .npy files and applies CLAHE.
Args:
mri_data_path: Path to directory containing .npy files
batch_size: Number of slices to process per batch
tiles_x, tiles_y: CLAHE tile grid parameters
clip_limit: CLAHE contrast limiting parameter
Returns:
DALI pipeline for batch MRI processing
"""
@dali.pipeline_def(batch_size=batch_size, num_threads=2, device_id=0)
def mri_processing_pipeline():
# Read .npy files using DALI's numpy reader
# This efficiently loads numpy arrays directly into DALI pipeline
mri_slices = fn.readers.numpy(
file_root=mri_data_path,
file_filter="*.npy",
device="cpu",
random_shuffle=False,
pad_last_batch=True,
)
# Normalize to uint8 if needed (most MRI data comes as float)
# Check data type and normalize to 0-255 range
mri_slices = fn.cast(mri_slices, dtype=types.FLOAT)
# Normalize to [0, 1] range first
min_val = fn.reductions.min(mri_slices)
max_val = fn.reductions.max(mri_slices)
mri_normalized = (mri_slices - min_val) / (max_val - min_val + 1e-8)
# Scale to [0, 255] and convert to uint8
mri_uint8 = fn.cast(mri_normalized * 255, dtype=types.UINT8)
# Add channel dimension to make it HWC format (required by CLAHE)
# For 2D data (H, W), add axis at position 2 to get (H, W, 1)
# First assign HW layout, then expand to add channel dimension
mri_uint8 = fn.reshape(mri_uint8, layout="HW")
mri_uint8 = fn.expand_dims(mri_uint8, axes=2, new_axis_names="C")
# Move to GPU for CLAHE processing
mri_gpu = mri_uint8.gpu()
# Apply CLAHE on GPU
clahe_output = fn.clahe(
mri_gpu,
tiles_x=tiles_x,
tiles_y=tiles_y,
clip_limit=clip_limit,
luma_only=False, # For grayscale, luma_only should be False
)
return mri_uint8, clahe_output
return mri_processing_pipeline()
# Check if we have MRI data available
dali_extra_path = os.environ.get("DALI_EXTRA_PATH")
if dali_extra_path and os.path.exists(dali_extra_path):
# MRI data is in nested subdirectories: STU00001/SER00001/*.npy
mri_path = os.path.join(
dali_extra_path, "db/3D/MRI/Knee/npy_2d_slices/STU00001/SER00001"
)
if os.path.exists(mri_path):
npy_files = glob.glob(os.path.join(mri_path, "*.npy"))
if len(npy_files) >= 4:
print(f"Processing knee MRI slices with DALI...")
print(f"Found {len(npy_files)} slices in STU00001/SER00001/")
print(f"Path: {mri_path}")
# Create and build pipeline
batch_size = min(4, len(npy_files))
mri_pipe = create_mri_clahe_pipeline(
mri_data_path=mri_path,
batch_size=batch_size,
tiles_x=8,
tiles_y=8,
clip_limit=3.0, # Higher clip limit for medical imaging
)
mri_pipe.build()
# Run pipeline
print(f"\nRunning batch CLAHE on {batch_size} MRI slices...")
outputs = mri_pipe.run()
original_batch, clahe_batch = outputs
# Convert to numpy for visualization
original_np = [
np.array(original_batch[i].as_cpu()).squeeze()
for i in range(batch_size)
]
clahe_np = [
np.array(clahe_batch[i].as_cpu()).squeeze()
for i in range(batch_size)
]
# Visualize results in a grid
fig, axes = plt.subplots(2, batch_size, figsize=(20, 10))
for i in range(batch_size):
# Original MRI
axes[0, i].imshow(original_np[i], cmap="gray", vmin=0, vmax=255)
axes[0, i].set_title(f"Original Slice {i+1}")
axes[0, i].axis("off")
# CLAHE enhanced MRI
axes[1, i].imshow(clahe_np[i], cmap="gray", vmin=0, vmax=255)
axes[1, i].set_title(f"CLAHE Enhanced {i+1}")
axes[1, i].axis("off")
plt.suptitle(
"Batch MRI Processing: Original vs CLAHE Enhanced",
fontsize=16,
y=0.98,
)
plt.tight_layout()
plt.show()
# Compute contrast improvement statistics
print("\nContrast Improvement Analysis:")
print("=" * 60)
for i in range(batch_size):
orig_std = np.std(original_np[i])
clahe_std = np.std(clahe_np[i])
improvement = clahe_std / orig_std if orig_std > 0 else 1.0
print(f"Slice {i+1}:")
print(
f" Original - Mean: {original_np[i].mean():.1f}, Std: {orig_std:.1f}"
)
print(
f" Enhanced - Mean: {clahe_np[i].mean():.1f}, Std: {clahe_std:.1f}"
)
print(f" Contrast improvement: {improvement:.2f}x")
print()
print("Batch processing complete!")
print(
"Note: CLAHE reveals subtle tissue structures in the MRI slices."
)
else:
print(f"Warning: Not enough MRI files found ({len(npy_files)} < 4)")
print("Need at least 4 files for batch demonstration")
else:
print(f"Warning: MRI path not found: {mri_path}")
print(
"Expected path: $DALI_EXTRA_PATH/db/3D/MRI/Knee/npy_2d_slices/STU00001/SER00001/"
)
else:
print("Warning: DALI_EXTRA_PATH not set or invalid")
print("To use this feature, set the environment variable:")
print("export DALI_EXTRA_PATH=/path/to/DALI_extra")
print("\nThe knee MRI data should be at:")
print("$DALI_EXTRA_PATH/db/3D/MRI/Knee/npy_2d_slices/STU00001/SER00001/")
Processing knee MRI slices with DALI...
Found 5 slices in STU00001/SER00001/
Path: /home/exthymic/DALI_extra/db/3D/MRI/Knee/npy_2d_slices/STU00001/SER00001
Running batch CLAHE on 4 MRI slices...
Contrast Improvement Analysis:
============================================================
Slice 1:
Original - Mean: 5.3, Std: 19.7
Enhanced - Mean: 13.7, Std: 33.4
Contrast improvement: 1.70x
Slice 2:
Original - Mean: 5.1, Std: 20.1
Enhanced - Mean: 11.8, Std: 33.1
Contrast improvement: 1.65x
Slice 3:
Original - Mean: 4.8, Std: 19.2
Enhanced - Mean: 12.7, Std: 31.8
Contrast improvement: 1.66x
Slice 4:
Original - Mean: 4.7, Std: 19.6
Enhanced - Mean: 12.2, Std: 30.4
Contrast improvement: 1.55x
Batch processing complete!
Note: CLAHE reveals subtle tissue structures in the MRI slices.

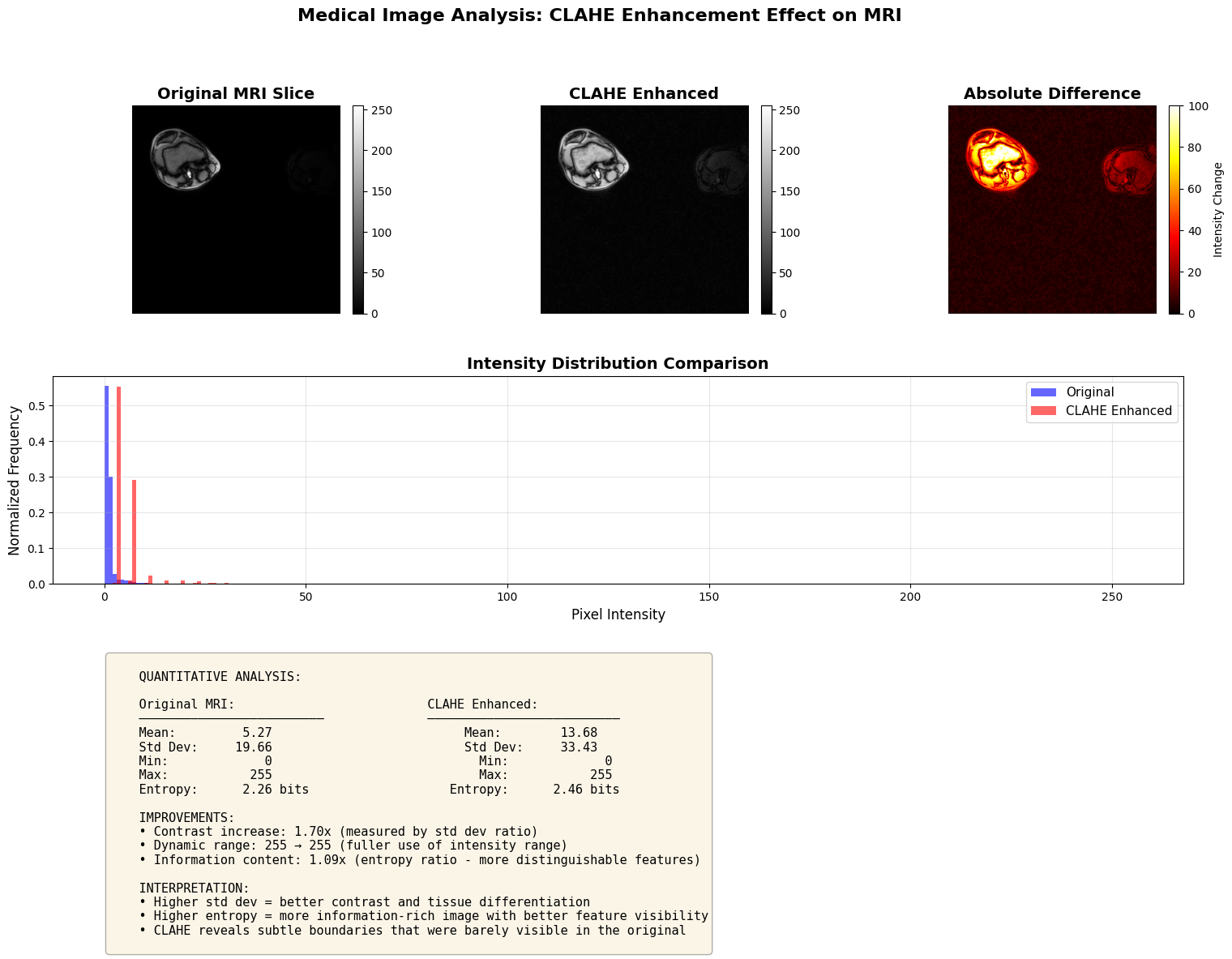

Understanding CLAHE’s Effect on Medical Images#
Let’s analyze how CLAHE transforms the intensity distribution of MRI data, which helps understand why it’s so effective for medical imaging.
[10]:
# --- Histogram Analysis for Medical Imaging ---
# Check if we have MRI results from previous cell
if (
"original_np" in locals()
and "clahe_np" in locals()
and len(original_np) > 0
):
# Analyze the first slice in detail
orig_slice = original_np[0]
clahe_slice = clahe_np[0]
# Create comprehensive visualization
fig = plt.figure(figsize=(18, 12))
gs = fig.add_gridspec(3, 3, hspace=0.3, wspace=0.3)
# Row 1: Images
ax1 = fig.add_subplot(gs[0, 0])
im1 = ax1.imshow(orig_slice, cmap="gray", vmin=0, vmax=255)
ax1.set_title("Original MRI Slice", fontsize=14, fontweight="bold")
ax1.axis("off")
plt.colorbar(im1, ax=ax1, fraction=0.046, pad=0.04)
ax2 = fig.add_subplot(gs[0, 1])
im2 = ax2.imshow(clahe_slice, cmap="gray", vmin=0, vmax=255)
ax2.set_title("CLAHE Enhanced", fontsize=14, fontweight="bold")
ax2.axis("off")
plt.colorbar(im2, ax=ax2, fraction=0.046, pad=0.04)
ax3 = fig.add_subplot(gs[0, 2])
diff = np.abs(clahe_slice.astype(float) - orig_slice.astype(float))
im3 = ax3.imshow(diff, cmap="hot", vmin=0, vmax=100)
ax3.set_title("Absolute Difference", fontsize=14, fontweight="bold")
ax3.axis("off")
plt.colorbar(
im3, ax=ax3, fraction=0.046, pad=0.04, label="Intensity Change"
)
# Row 2: Histograms
ax4 = fig.add_subplot(gs[1, :])
ax4.hist(
orig_slice.ravel(),
bins=256,
alpha=0.6,
color="blue",
label="Original",
range=(0, 255),
density=True,
)
ax4.hist(
clahe_slice.ravel(),
bins=256,
alpha=0.6,
color="red",
label="CLAHE Enhanced",
range=(0, 255),
density=True,
)
ax4.set_xlabel("Pixel Intensity", fontsize=12)
ax4.set_ylabel("Normalized Frequency", fontsize=12)
ax4.set_title(
"Intensity Distribution Comparison", fontsize=14, fontweight="bold"
)
ax4.legend(fontsize=11)
ax4.grid(True, alpha=0.3)
# Row 3: Statistics
ax5 = fig.add_subplot(gs[2, :])
ax5.axis("off")
# Calculate statistics
orig_mean = orig_slice.mean()
orig_std = orig_slice.std()
orig_min = orig_slice.min()
orig_max = orig_slice.max()
clahe_mean = clahe_slice.mean()
clahe_std = clahe_slice.std()
clahe_min = clahe_slice.min()
clahe_max = clahe_slice.max()
# Calculate entropy (measure of information content)
orig_hist, _ = np.histogram(
orig_slice.ravel(), bins=256, range=(0, 255), density=True
)
clahe_hist, _ = np.histogram(
clahe_slice.ravel(), bins=256, range=(0, 255), density=True
)
orig_entropy = -np.sum(orig_hist * np.log2(orig_hist + 1e-10))
clahe_entropy = -np.sum(clahe_hist * np.log2(clahe_hist + 1e-10))
stats_text = f"""
QUANTITATIVE ANALYSIS:
Original MRI: CLAHE Enhanced:
───────────────────────── ──────────────────────────
Mean: {orig_mean:6.2f} Mean: {clahe_mean:6.2f}
Std Dev: {orig_std:6.2f} Std Dev: {clahe_std:6.2f}
Min: {orig_min:6.0f} Min: {clahe_min:6.0f}
Max: {orig_max:6.0f} Max: {clahe_max:6.0f}
Entropy: {orig_entropy:6.2f} bits Entropy: {clahe_entropy:6.2f} bits
IMPROVEMENTS:
• Contrast increase: {(clahe_std/orig_std):.2f}x (measured by std dev ratio)
• Dynamic range: {orig_max-orig_min:.0f} → {clahe_max-clahe_min:.0f} (fuller use of intensity range)
• Information content: {(clahe_entropy/orig_entropy):.2f}x (entropy ratio - more distinguishable features)
INTERPRETATION:
• Higher std dev = better contrast and tissue differentiation
• Higher entropy = more information-rich image with better feature visibility
• CLAHE reveals subtle boundaries that were barely visible in the original
"""
ax5.text(
0.05,
0.95,
stats_text,
transform=ax5.transAxes,
fontsize=11,
verticalalignment="top",
fontfamily="monospace",
bbox=dict(boxstyle="round", facecolor="wheat", alpha=0.3),
)
plt.suptitle(
"Medical Image Analysis: CLAHE Enhancement Effect on MRI",
fontsize=16,
fontweight="bold",
y=0.98,
)
plt.show()
print("Analysis complete!")
print("\nKey Insight for Medical Imaging:")
print(" CLAHE adaptively enhances local contrast in each tissue region,")
print(" making it ideal for MRI where different tissues have overlapping")
print(" intensity ranges but important local boundaries.")
elif "image" in locals():
# Fall back to single-image analysis from section 8
print("Analyzing single MRI slice from section 8...")
# Apply CLAHE to the single image for comparison
opencv_clahe = apply_opencv_clahe(
image, tiles_x=8, tiles_y=8, clip_limit=3.0
)
fig, axes = plt.subplots(1, 3, figsize=(18, 6))
axes[0].imshow(image.squeeze(), cmap="gray", vmin=0, vmax=255)
axes[0].set_title("Original", fontsize=14)
axes[0].axis("off")
axes[1].imshow(opencv_clahe.squeeze(), cmap="gray", vmin=0, vmax=255)
axes[1].set_title("CLAHE Enhanced", fontsize=14)
axes[1].axis("off")
axes[2].hist(
image.ravel(), bins=50, alpha=0.6, color="blue", label="Original"
)
axes[2].hist(
opencv_clahe.ravel(), bins=50, alpha=0.6, color="red", label="CLAHE"
)
axes[2].set_title("Intensity Distributions", fontsize=14)
axes[2].legend()
axes[2].grid(True, alpha=0.3)
plt.tight_layout()
plt.show()
else:
print("No MRI data available for histogram analysis")
print(" Please run the previous cells to load MRI data first.")
Analysis complete!
Key Insight for Medical Imaging:
CLAHE adaptively enhances local contrast in each tissue region,
making it ideal for MRI where different tissues have overlapping
intensity ranges but important local boundaries.
CLAHE on Color Images: WebP Example#
Now let’s demonstrate CLAHE on a color photograph using a WebP image from DALI_extra.
Important: DALI’s GPU CLAHE only supports luma_only=True (the default), which processes the luminance channel in LAB color space. This is the recommended approach for RGB images as it:
Preserves natural color relationships
Produces visually superior results
Matches OpenCV’s LAB-based CLAHE behavior
Runs efficiently on GPU
If you need per-channel RGB processing (luma_only=False), you must use the CPU operator.
Make sure you use RGB channel order for DALI CLAHE. OpenCV’s default is BGR channel order.
The cat image (db/single/webp/lossy/cat-3591348_640.webp) is perfect for demonstrating:
RGB processing: Standard web image format (3-channel RGB)
Natural scenes: Real-world photography with varying lighting conditions
Luminance-based enhancement: How CLAHE improves contrast while preserving colors
[11]:
# Configuration for color image CLAHE processing
# Set USE_LUMA_ONLY to control how CLAHE processes color images:
#
# True (default): Process only luminance in LAB color space
# - Preserves color relationships better
# - More natural-looking results for color images
# - Supported on both GPU and CPU
# - GPU ONLY supports this mode
#
# False: Process each RGB channel independently
# - Enhances contrast in each channel separately
# - Can introduce color shifts
# - ONLY works with DALI CPU operator (not supported on GPU)
#
USE_LUMA_ONLY = (
True # Default and GPU-only mode. Set to False for per-channel (CPU only)
)
Understanding Implementation Differences#
GPU vs CPU CLAHE Support:
The GPU implementation only supports luma_only=True (the default), which processes the luminance channel in LAB color space. This is the recommended mode for RGB images as it preserves color relationships.
When to use each setting:
``USE_LUMA_ONLY = True`` (default, GPU-supported): Processes luminance in LAB color space
✅ GPU-accelerated (fast!)
✅ Works on both GPU and CPU
✅ Preserves color relationships better
✅ More natural-looking results for photographs
✅ OpenCV and DALI produce nearly identical results
``USE_LUMA_ONLY = False``: Processes RGB channels independently
⚠️ CPU ONLY - GPU does not support this mode
✅ Good for specific use cases requiring per-channel enhancement
⚠️ May introduce color artifacts
⚠️ Slower (CPU-only)
Why the difference? The GPU implementation prioritizes the most common and visually superior mode (luma_only=True) for optimal performance. Per-channel RGB processing would require extracting and processing each channel separately, which is less efficient and produces inferior results for most applications.
Try it yourself: Change
USE_LUMA_ONLYabove and re-run the next cell to see the difference! Note that setting it to False will use CPU processing.
[12]:
# --- CLAHE on Color Images: Cat WebP Example ---
import numpy as np
import cv2
import matplotlib.pyplot as plt
import os
import nvidia.dali.fn as fn
import nvidia.dali.types as types
from nvidia.dali.pipeline import Pipeline
# Load cat image from DALI_extra
dali_extra_path = os.environ.get("DALI_EXTRA_PATH")
if dali_extra_path and os.path.exists(dali_extra_path):
cat_image_path = os.path.join(
dali_extra_path, "db/single/webp/lossy/cat-3591348_640.webp"
)
if os.path.exists(cat_image_path):
print(f"Loading cat image from DALI_extra...")
print(f"Path: {cat_image_path}")
# Load the cat image using OpenCV (it will be in BGR format)
cat_bgr = cv2.imread(cat_image_path)
if cat_bgr is not None:
# Convert BGR to RGB for proper display
cat_rgb = cv2.cvtColor(cat_bgr, cv2.COLOR_BGR2RGB)
print(f"Image loaded: shape={cat_rgb.shape}, dtype={cat_rgb.dtype}")
print(f"Value range: [{cat_rgb.min()}, {cat_rgb.max()}]")
# Determine device based on USE_LUMA_ONLY setting
# GPU supports luma_only=True, but NOT luma_only=False
device_to_use = "gpu" if USE_LUMA_ONLY else "cpu"
# Apply OpenCV CLAHE
print(f"\nApplying OpenCV CLAHE (luma_only={USE_LUMA_ONLY})...")
opencv_clahe_rgb = apply_opencv_clahe(
cat_rgb,
tiles_x=8,
tiles_y=8,
clip_limit=2.0,
)
# Apply DALI CLAHE
print(
f"Applying DALI {device_to_use.upper()} CLAHE (luma_only={USE_LUMA_ONLY})..."
)
pipe_rgb = MemoryPipeline(
cat_rgb,
tiles_x=8,
tiles_y=8,
clip_limit=2.0,
device=device_to_use,
luma_only=USE_LUMA_ONLY,
)
pipe_rgb.build()
outputs_rgb = pipe_rgb.run()
dali_clahe_rgb = outputs_rgb[0].as_cpu().as_array()[0]
# Calculate metrics
mse_ocv_dali, mae_ocv_dali = calculate_metrics(
opencv_clahe_rgb, dali_clahe_rgb
)
# Display results
fig, axes = plt.subplots(1, 3, figsize=(20, 7))
axes[0].imshow(cat_rgb)
axes[0].set_title(
"Original Cat Image", fontsize=14, fontweight="bold"
)
axes[0].axis("off")
axes[1].imshow(opencv_clahe_rgb)
axes[1].set_title(
f"OpenCV CLAHE (luma_only={USE_LUMA_ONLY})",
fontsize=14,
fontweight="bold",
)
axes[1].axis("off")
axes[2].imshow(dali_clahe_rgb)
axes[2].set_title(
f"DALI {device_to_use.upper()} CLAHE (luma_only={USE_LUMA_ONLY})",
fontsize=14,
fontweight="bold",
)
axes[2].axis("off")
processing_type = (
"Luminance-Only Processing (GPU)"
if USE_LUMA_ONLY
else "Per-Channel Processing (CPU)"
)
plt.suptitle(
f"CLAHE on Color Image: {processing_type}", fontsize=16, y=0.98
)
plt.tight_layout()
plt.show()
# Show difference map
fig, axes = plt.subplots(1, 4, figsize=(22, 6))
axes[0].imshow(cat_rgb)
axes[0].set_title("Original", fontsize=12, fontweight="bold")
axes[0].axis("off")
axes[1].imshow(opencv_clahe_rgb)
axes[1].set_title("OpenCV CLAHE", fontsize=12, fontweight="bold")
axes[1].axis("off")
axes[2].imshow(dali_clahe_rgb)
axes[2].set_title(
f"DALI {device_to_use.upper()} CLAHE",
fontsize=12,
fontweight="bold",
)
axes[2].axis("off")
# Difference map between OpenCV and DALI
diff_rgb = np.abs(
opencv_clahe_rgb.astype(float) - dali_clahe_rgb.astype(float)
)
diff_rgb_display = np.mean(
diff_rgb, axis=2
) # Average across RGB channels for visualization
im = axes[3].imshow(diff_rgb_display, cmap="hot", vmin=0, vmax=50)
axes[3].set_title(
f"Difference (OpenCV - DALI {device_to_use.upper()})",
fontsize=12,
fontweight="bold",
)
axes[3].axis("off")
plt.colorbar(
im,
ax=axes[3],
fraction=0.046,
pad=0.04,
label="Mean Abs Difference",
)
plt.tight_layout()
plt.show()
# Print comparison metrics
print("\n" + "=" * 60)
print(f"COLOR IMAGE CLAHE COMPARISON (luma_only={USE_LUMA_ONLY})")
print("=" * 60)
print(
f"OpenCV vs DALI {device_to_use.upper()}: MSE = {mse_ocv_dali:.4f}, MAE = {mae_ocv_dali:.4f}"
)
print("\nImage Statistics:")
print(
f"Original - Mean: {cat_rgb.mean():.1f}, Std: {cat_rgb.std():.1f}"
)
print(
f"OpenCV - Mean: {opencv_clahe_rgb.mean():.1f}, Std: {opencv_clahe_rgb.std():.1f}"
)
print(
f"DALI {device_to_use.upper():6} - Mean: {dali_clahe_rgb.mean():.1f}, Std: {dali_clahe_rgb.std():.1f}"
)
contrast_orig = cat_rgb.std()
contrast_opencv = opencv_clahe_rgb.std()
contrast_dali = dali_clahe_rgb.std()
print(f"\nContrast Improvement:")
print(f"OpenCV: {contrast_opencv/contrast_orig:.2f}x")
print(
f"DALI {device_to_use.upper():6} {contrast_dali/contrast_orig:.2f}x"
)
if USE_LUMA_ONLY:
print(
"\nNote: With luma_only=True, CLAHE processes only the luminance channel in LAB color space."
)
print(
"This preserves color relationships and produces more natural-looking results."
)
print(
"GPU DALI supports this mode and provides fast acceleration."
)
print(
"Both OpenCV and DALI use similar LAB-based processing for luma_only=True."
)
else:
print(
"\nNote: With luma_only=False, CLAHE is applied to each RGB channel independently."
)
print(
"This can enhance contrast but may introduce color shifts compared to luma_only=True."
)
print(
"This mode requires CPU processing as GPU does not support per-channel RGB mode."
)
else:
print(f"Error: Failed to load image from {cat_image_path}")
else:
print(f"Error: Cat image not found at {cat_image_path}")
print(
"Expected path: $DALI_EXTRA_PATH/db/single/webp/lossy/cat-3591348_640.webp"
)
else:
print(
"Error: DALI_EXTRA_PATH environment variable not set or path doesn't exist"
)
print("Please set it to your DALI_extra repository path:")
print("export DALI_EXTRA_PATH=/path/to/DALI_extra")
Loading cat image from DALI_extra...
Path: /home/exthymic/DALI_extra/db/single/webp/lossy/cat-3591348_640.webp
Image loaded: shape=(427, 640, 3), dtype=uint8
Value range: [0, 255]
Applying OpenCV CLAHE (luma_only=True)...
Applying DALI GPU CLAHE (luma_only=True)...
============================================================
COLOR IMAGE CLAHE COMPARISON (luma_only=True)
============================================================
OpenCV vs DALI GPU: MSE = 11.0366, MAE = 2.3678
Image Statistics:
Original - Mean: 88.1, Std: 63.6
OpenCV - Mean: 103.3, Std: 67.4
DALI GPU - Mean: 102.3, Std: 67.1
Contrast Improvement:
OpenCV: 1.06x
DALI GPU 1.05x
Note: With luma_only=True, CLAHE processes only the luminance channel in LAB color space.
This preserves color relationships and produces more natural-looking results.
GPU DALI supports this mode and provides fast acceleration.
Both OpenCV and DALI use similar LAB-based processing for luma_only=True.
[ ]:
