VSS Warehouse Blueprint - 2D Vision AI with Agents Profile

Overview

Introduction

The VSS Warehouse Blueprint’s 2D Vision AI with Agents Profile is a comprehensive guide to building a 2D intelligent video analytics system. It provides a detailed overview of the system architecture, data flow, and key components.

Deployment Architecture

Components and Interactions

The diagram depicts VSS Warehouse 2D Vision AI with Agents Profile, emphasizing 2D single-camera detection, tracking, and behavior analytics for safety events and metrics. Below is a breakdown of the components and their interactions.

1. Input Source

   • Videos: Raw video data stored in a filesystem, serving as input for processing.

   • NvStreamer (link): A microservice that streams videos via RTSP (Real-Time Streaming Protocol) to the VIOS (Video IO & Storage). NvStreamer can be swapped with real-world cameras.

2. Video IO & Storage (VIOS) (link):

   • VIOS ingests video streams from NvStreamer via RTSP.

   • It records the streams and forwards them (via RTSP) to the DeepStream microservice for further processing.

3. DeepStream (link):

   • DeepStream processes RTSP streams for 2D single-camera detection and tracking, utilizing the RT-DETR (Real-Time Detection Transformer) model (link) to generate precise 2D bounding boxes for diverse objects including people, humanoid robots, autonomous vehicles, and warehouse equipment.

   • RT-DETR features an EfficientViT/L2 backbone, pretrained on warehouse scene datasets for accurate 2D object detection in industrial environments.

   • It sends frame data, including detected and tracked object IDs, in Protobuf format to the Kafka messaging system via the mdx-raw topic.

4. Kafka (Messaging System) (link):

   • Kafka serves as the central hub for data distribution, using Protobuf for all data exchanges.

   • It also functions as a control bus, managing notifications (in JSON, via mdx-notification) for calibration updates, such as new ROI or tripwire definitions.

5. Behavior Analytics (link):

   • This microservice consumes mdx-raw data (Protobuf) from Kafka.

   • It processes the data to generate behavior analytics, safety insights, and metrics.

   • The resulting data, in Protobuf format, is sent back to Kafka for indexing into Elasticsearch.

6. Storage

   • ELK (Elasticsearch, Logstash, Kibana) (link): Logstash retrieves mdx-raw outputs and safety violation frames from Kafka, converts Protobuf to JSON, stores the data in Elasticsearch, and supports querying and visualization.

7. Visualization

   • Kibana UI (link): A user interface for visualizing analytics data stored in Elasticsearch.

   • VIOS UI (link): A separate interface for interacting with the VIOS system, receiving JSON notifications from Kafka.

   • Video Analytics UI (link): A browser based user interface for visualizing the moving objects, live camera feeds along with events and metrics. This is a sample UI to interact with the underneath data through Video Analytics API.

8. External Interfaces

   • API Gateway and MCP (link): Enables external systems to interact with the events data through API calls.

9. Agents

   • Agentic Reference UI (link): The Warehouse Blueprint incorporates an agentic AI system that provides natural language interaction capabilities for querying warehouse safety incidents, generating reports, and retrieving visual information from warehouse cameras.

Key Technologies

• Microservices: Components like NvStreamer, VIOS, DeepStream, and Behavior Analytics are modular microservices.

• RTSP: Facilitates real-time video streaming.

• Protobuf: Ensures efficient, compact data exchange.

• Kafka: Manages data distribution and control messaging.

• ELK Stack: Supports storage, logging, and visualization.

• JSON: Used for notifications and calibration data.

Setup and Configuration

see Quickstart Guide

Testing and Validation

Kibana UI

Note

In the new Kibana UI (versions 8.0 and later), “Index Patterns” have been renamed to “Data Views”.

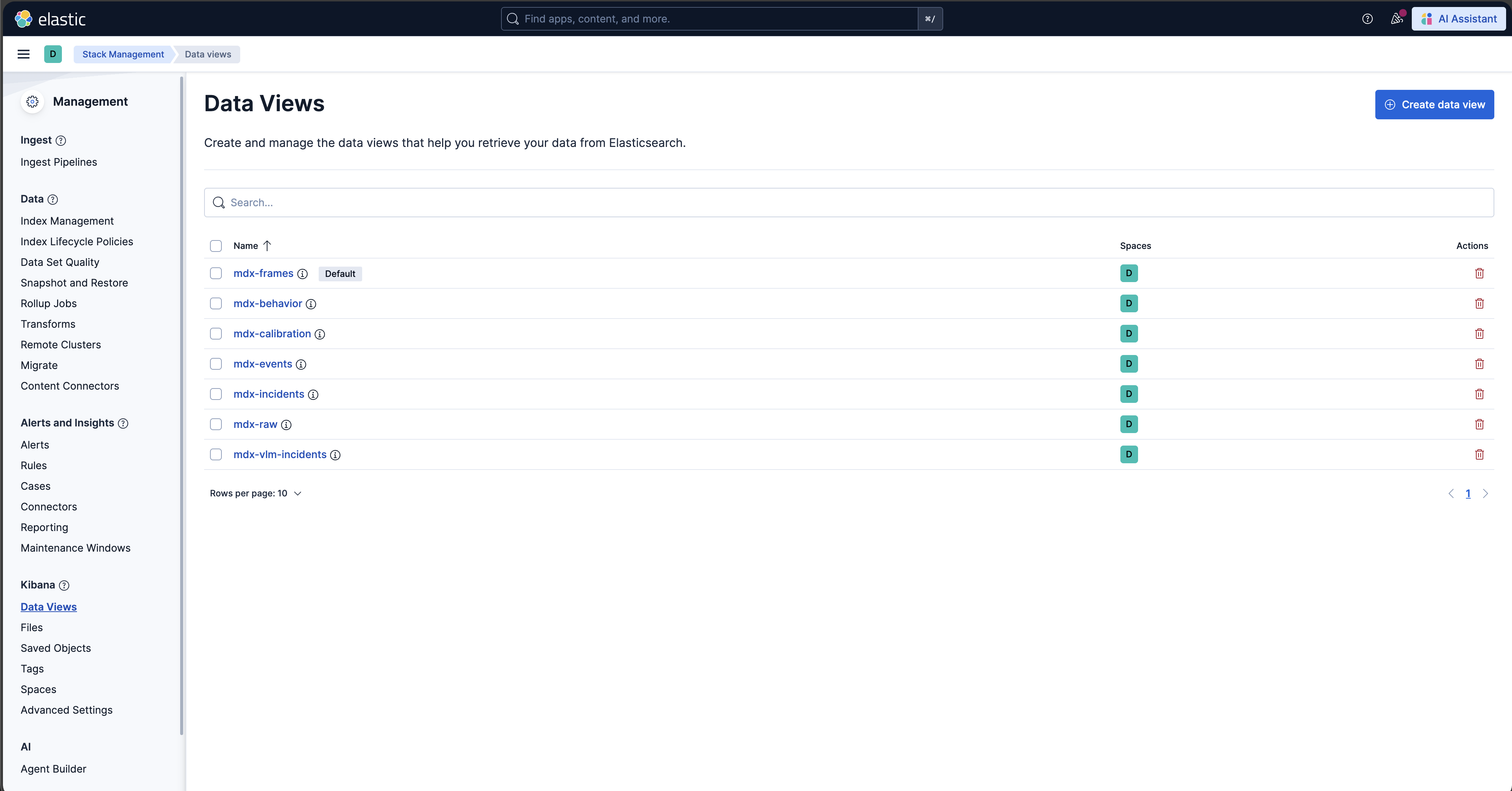

Check for Events, Frames and Behavior Data Views in Kibana

1. Launch Chrome browser

2. In the address bar enter http://<IP_address>:5601

In the user interface, navigate to the Management -> Stack Management section and select Data Views under Kibana. If the data views are not visible, create new data view (via “Create data view” button on the top right corner) for mdx-raw, mdx-frames and mdx-behavior.

Browse the Kibana UI, discover the data views and visualize the data.

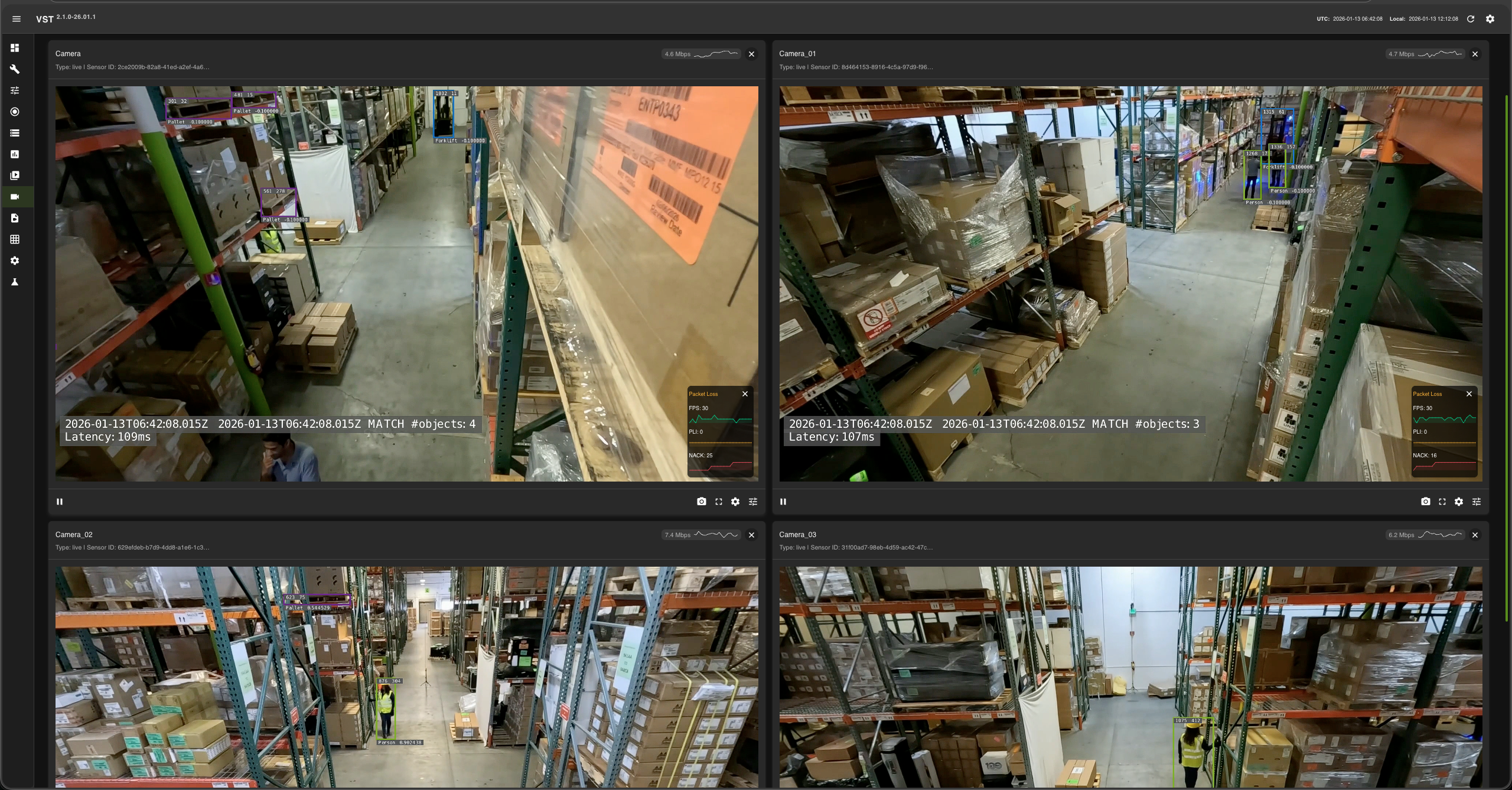

VIOS UI

Please note: At this point the web-based application is only available for Chrome browser running on Linux, Windows or MacOS, details can be found in VIOS docs.

1. Launch Chrome browser

2. In the address bar enter http://<IP_address>:30888/vst/

Configure and View

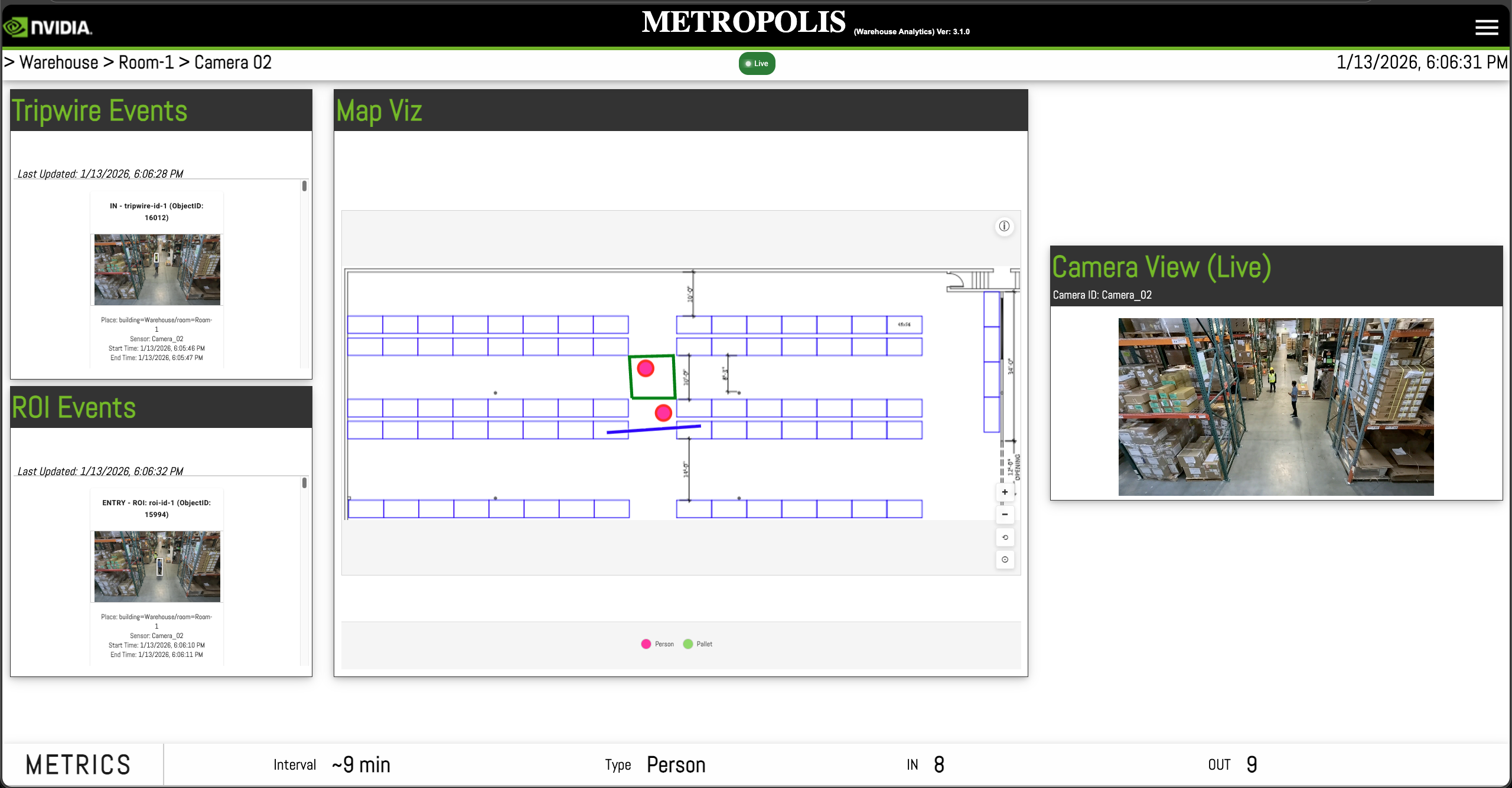

Reference Video Analytics UI

We provide a sample browser-based user interface for visualizing the moving objects, live camera feeds along with events and metrics. Details can be found in Reference Video Analytics UI.

1. Launch Chrome browser

2. In the address bar enter http://<IP_address>:3002

Configure and View

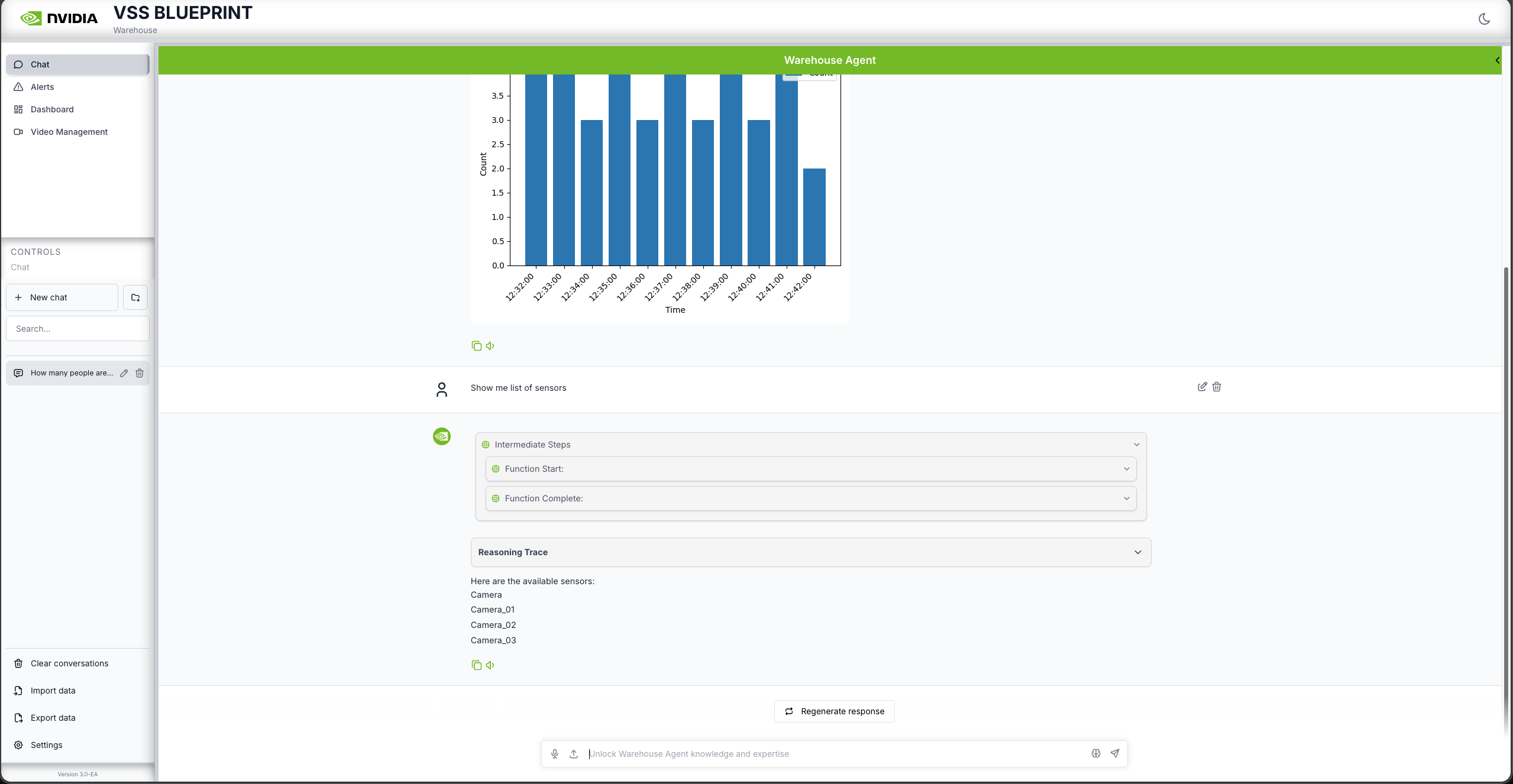

Reference Agentic UI

The browser-based interface supports Chat, Alerts, Dashboard, and Video Management modes. Details can be found in Reference Agentic UI.

1. Launch Chrome browser

2. In the address bar enter http://<IP_address>:3000

Configure and View

KPI & Metrics

Performance

Latency Measurements (p50)

System	Model	No. of streams	Fps	(NvStreamer + VIOS + DeepStream) latency	Behavior-analytics latency	E2E latency
NVIDIA DGX Spark + ARM Cortex-X925/A725 20-Core (4.0GHz)	RT-DETR	4	30	56 ms	24 ms	80 ms

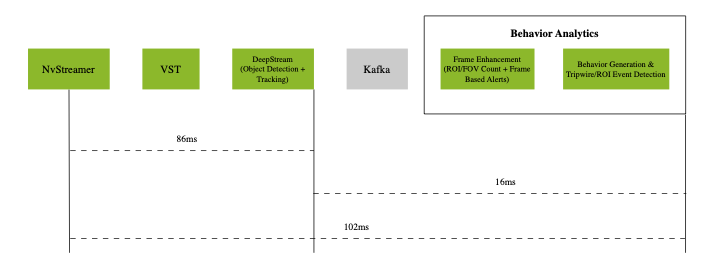

Latency Measurements on DGX Spark (p50)

The above diagram shows the p50 latency of the VSS Warehouse 2D Blueprint, measured using an NVIDIA DGX Spark + ARM Cortex-X925/A725 20-Core (4.0GHz) with 4 streams at 30 fps for RT-DETR model.

The system demonstrates the following p50 latency breakdown:

• Video pipeline (nvStreamer + VIOS + DeepStream): 56 ms with DGX Spark for RT-DETR model

• Behavior analytics pipeline: 24 ms with DGX Spark

The end-to-end system latency is 80 ms with DGX Spark at p50.

Note

The latency may vary based on the hardware, the number of objects in a scene, the number of ROIs and tripwires, and the machine’s load.

Customization

The Blueprint supports several levels of customization:

• Data Level: Add, remove, or replace cameras while maintaining the existing workflow

• Model Level: Fine-tune perception models or integrate different LLM models to better suit your use cases

• Application Level: Build new microservices or applications using the provided APIs and components

• Microservice Level: Modify existing microservices from source code to extend functionality

Adding New Cameras

Step 1: Prepare video sources

Using recorded videos

Place your video files in the $MDX_SAMPLE_APPS_DIR/videos/<SAMPLE_VIDEO_DATASET> directory and set the .env file accordingly.

Using live RTSP streams

Update deployments/warehouse/camera_configs/camera_info.json to define camera configurations declaratively. The following steps (sensor info file, environment variables, and calibration) apply when using live RTSP streams.

1. Create a Sensor Info File (camera_info.json):

   {
     "sensors": [
       {
         "camera_name": "camera-01",
         "rtsp_url": "rtsp://<IP_address:port>/stream1"
       },
       {
         "camera_name": "camera-02",
         "rtsp_url": "rtsp://<IP_address:port>/stream1"
       }
     ]
   }


   Required fields: camera_name, rtsp_url

2. Configure Blueprint Configurator environment variables: Set the following in deployments/warehouse/.env:

   SENSOR_INFO_SOURCE=file
   SENSOR_FILE_PATH=<path_to_camera_info.json>


Step 2: Configure number of streams

Configuring Number of Streams

Number of streams to be processed can be configured in two ways:

1. Static Configuration: Set the NUM_STREAMS environment variable to specify the desired number of streams for video dataset or RTSP streams.

   NUM_STREAMS=4


   The configured number of streams should be less than or equal to the maximum streams supported by your hardware profile and deployment mode. Blueprint Configurator can be used to automatically cap the stream count using the formula: final_stream_count = min(NUM_STREAMS, max_streams_supported). For more details, refer to the How to Count Files Dynamically (Prerequisites) section in Blueprint Configurator Documentation.

2. Dynamic Configuration: Use the Blueprint Configurator’s prerequisite operations to automatically count the number of video files in the recorded videos directory and use that count for configuration updates.

   Note

   Dynamic Configuration cannot be used for live RTSP streams.

   Example: Automatically determine stream count from video files in the dataset directory:

   # In blueprint_config.yml
   commons:
     # Step 1: Count video files BEFORE variable processing
     prerequisites:
       2d:
         - operation_type: "file_management"
           target_directories:
             - "${MDX_DATA_DIR}/videos/warehouse-2d-app"
           file_management:
             action: "file_count"
             parameters:
               pattern: "*.mp4"
             output_variable: "available_video_count"  # Stores count (e.g., 6)

     # Step 2: Use the count to compute final stream count
     variables:
       2d:
         # Cap to minimum of: available videos, GPU limit
         - final_stream_count: "min(${available_video_count}, ${max_streams_supported})"

     # Step 3: Use computed variable in config file updates
     file_operations:
       2d:
         - operation_type: "yaml_update"
           target_file: "${DS_CONFIG_DIR}/config.yaml"
           updates:
             num_sensors: ${final_stream_count}


   How it works: If your dataset directory has 6 video files and the GPU supports a maximum of 4 streams, the configurator computes: final_stream_count = min(6, 4) = 4. For more details, refer to the How to Count Files Dynamically (Prerequisites) section in Blueprint Configurator Documentation.

Note

Refer to RT-DETR Real-Time Performance for more details on the max streams supported for a particular GPU. If GPU is not found in list, then increase the streams gradually to find the optimal number of streams that can be used

Step 3: Deploy and generate new calibration

Deploy the entire blueprint profile (bp_wh_2d) to generate the new calibration. For steps to generate calibration, see VSS Auto Calibration quickstart. Once the calibration is generated, store it, bring the Docker Compose stack down, and update the calibration file at deployments/warehouse/warehouse-2d-app/calibration/sample-data/<SAMPLE_VIDEO_DATASET>/calibration.json.

Note

• Maintain a single calibration.json file per deployment.

• Add new camera information following the schema defined in Calibration Schema.

• The imageMetadata file needs to be generated manually.

• Manually add any other attributes that are missing from the generated calibration file but are required for your use case.

• Auto Calibration requires time-synchronized videos as input. For RTSP cameras, record videos from the RTSP source (e.g. using ffmpeg or similar tools), manually trim the videos to time-synchronize them if needed, then provide them to Auto Calibration.

Step 4: Redeploy the stack to apply the new calibration

To redeploy the stack to apply the new calibration, follow the Quickstart Guide.

Model Customization

Perception Model Fine-tuning

The Blueprint uses RT-DETR (Real-Time Detection Transformer) as its primary perception model. RT-DETR features an EfficientViT/L2 backbone and is pretrained on warehouse scene datasets for precise 2D object detection in industrial environments. For details, see: 2D Single Camera Detection and Tracking.

For fine-tuning the RT-DETR model via TAO Toolkit on custom datasets, refer to: TAO RT-DETR Finetuning.

LLM Integration

Integrate different LLM services or locally deployed models in the agent.

VLM Custom Weights

The Warehouse Blueprint supports using VLM custom weights for specialized use cases. You can download custom weights from two sources:

From NGC

# Set your NGC API key if not already set
export NGC_CLI_API_KEY='your_ngc_api_key'

# Download custom weights from NGC
ngc registry model download-version <org>/<team>/<model>:<version>

# Move downloaded custom weights to desired path/folder
mv </downloaded/path/in/ngc/output> </path/to/custom/weights>

From Hugging Face

You can download from Hugging Face using either the Hugging Face CLI or Git LFS:

Option 1: Using Hugging Face CLI

# Install Hugging Face CLI if not already installed
pip install -U "huggingface_hub[cli]"

# Login to Hugging Face (required for gated models)
hf auth login

# Create a base directory where the custom weights can be downloaded
mkdir -p </path/to/custom/weights>

# Download a model
hf download <model-id> --local-dir </path/to/custom/weights>

Option 2: Using Git LFS

# Install Git LFS if not already installed
sudo apt install git-lfs
git lfs install

# Clone the model repository
git clone https://huggingface.co/<model-id> </path/to/custom/weights>

Note

Some Hugging Face models may be gated and require access approval. Visit the model page on Hugging Face and request access if needed.

Verify Downloads

After downloading custom weights, verify the directory structure and contents:

# List the contents of the weights directory
ls -lrh </path/to/custom/weights>

Typical VLM weight directories contain:

• Model configuration files (e.g., config.json)

• Model weights (e.g., pytorch_model.bin, model.safetensors, or sharded weights)

• Tokenizer files (e.g., tokenizer.json, tokenizer_config.json)

• Other metadata files

Configure Custom Weights

After downloading custom weights, update the .env file to use them:

# Set the path to custom weights
export VLM_CUSTOM_WEIGHTS="</path/to/custom/weights>"

# Update the .env file
sed -i \
    -e "s|^# VLM_CUSTOM_WEIGHTS.*|VLM_CUSTOM_WEIGHTS=\"${VLM_CUSTOM_WEIGHTS}\"|" \
    warehouse/.env

OR Update the .env file manually Set VLM_CUSTOM_WEIGHTS to the path where your custom weights are located.
VLM_CUSTOM_WEIGHTS="/path/to/custom/weights"

Application Customization

The Blueprint uses a modular microservices architecture with the following communication channels:

• Kafka message broker

• Elasticsearch database

• REST APIs

User can build their own microservices by consuming data from above channels.

For complete API documentation, see API Reference Page.

Available Service Ports

The following ports are used during the deployment, and users can leverage for any potential integration:

Service	Port
Kafka	9092
ZooKeeper	2181
Elasticsearch	9200
Kibana	5601
NvStreamer	31000
VIOS	30888/vst
Video Analytics API	8081
Reference Video Analytics UI	3002
Reference Agentic UI	3000
Nemotron	30081
CR2	30082
Phoenix UI	6006
Auto-Calibration UI	5000

Analytics Microservices Customization (Advanced)

For detailed information about customizing specific analytics microservices, refer to:

• Behavior Analytics

• Video Analytics API

Hardware Config Customization

The 2D Warehouse Blueprint requires several configuration files to be properly tuned based on your GPU hardware and deployment requirements. When changing hardware (e.g., switching from H100 to L4 GPU) or adjusting the number of video streams, multiple configuration files must be updated to ensure optimal performance and prevent GPU overload.

Configuration Files Requiring Hardware-Based Updates

The following table lists the configuration files that typically require updates when hardware changes:

Configuration File	Parameters to Update	Why Update is Needed
ds-main-config.txt	num-source-bins, max-batch-size, batch-size	Batch sizes must match stream count for optimal GPU utilization
ds-main-redis-config.txt	num-source-bins, max-batch-size, batch-size	Same as above for Redis-based deployments
vst-config.json	nv_streamer_sync_file_count	Sync file count must align with stream count
vst_config_kafka.json	max_devices_supported, always_recording	Device limits must match GPU capacity
vst_config_redis.json	max_devices_supported, always_recording	Same as above for Redis-based deployments

There are two approaches to customize these configuration files:

Approach 1: Manual Configuration

Manually update all required configuration files before deploying the blueprint. This is time consuming, error prone and often not suitable for production deployments.

# Update DeepStream main config
vi <PATH_TO_DS_CONFIG_DIR>/ds-main-config.txt
# Set: num-source-bins=0, max-batch-size=<stream_count>, batch-size=<stream_count>

# Update DeepStream Redis main config
vi <PATH_TO_DS_CONFIG_DIR>/ds-main-redis-config.txt
# Set: num-source-bins=0, max-batch-size=<stream_count>, batch-size=<stream_count>

# Update NvStreamer config
vi <PATH_TO_NVSTREAMER_CONFIG_DIR>/vst-config.json
# Set: "nv_streamer_sync_file_count": <stream_count>

# Update VST Kafka config
vi <PATH_TO_VST_CONFIG_DIR>/vst_config_kafka.json
# Set: "max_devices_supported": <max_streams>, "always_recording": true

# Update VST Redis config
vi <PATH_TO_VST_CONFIG_DIR>/vst_config_redis.json
# Set: "max_devices_supported": <max_streams>, "always_recording": true

Approach 2: Automatic Config Management using Blueprint Configurator

The Blueprint Configurator provides a declarative approach to automatically update all required configuration files based on your hardware profile and deployment mode. This is the recommended approach for production deployments and simplifies the configuration management process.

To enable the Blueprint Configurator, in Blueprint Configurator’s environment variables you must set:

ENABLE_PROFILE_CONFIGURATOR=true

By default, the Blueprint Configurator is disabled (ENABLE_PROFILE_CONFIGURATOR=false). When enabled, it runs before the Blueprint Deployment starts and adjusts configuration files based on the hardware profile and deployment mode as defined in the HARDWARE_PROFILE and MODE environment variables.

The Blueprint Configurator provides a comprehensive set of features for automated profile configuration management:

Feature	Description
Configuration File Updates	Automatically update configuration files in multiple formats: yaml_update - Updates .yaml/.yml files while preserving structure. Supports nested keys via dot notation (e.g., nested.config.value) json_update - Updates .json files with nested object support via dot notation (e.g., data.stream_count) text_config_update - Updates .txt/.conf/.cfg files. Supports key=value, key: value, and key value formats file_management - Manage files in directories (keep N files, remove extras)
Environment Variable Validation	Validate environment variables before deployment to catch configuration errors early: allowed_values - Restrict to specific values (e.g., ["none", "local", "remote"]) allowed_patterns - Wildcard matching (e.g., bp_wh_kafka*) disallowed_values - Block specific values regex - Regular expression validation Conditional validation based on other variables
Prerequisite Operations	Run operations before variable processing to dynamically determine values: file_count - Count files in a directory matching a pattern (e.g., count *.mp4 files to determine available streams) Results stored as variables for use in subsequent calculations Useful for adapting configuration to actual data availability
Variable Computations	Create computed variables for intermediate calculations and condition checking. Use case: Automatically cap stream count to GPU limits using final_stream_count: "min(${NUM_STREAMS}, ${max_streams_supported})", then reuse this value across all config files. Mathematical expressions: min(), max(), +, -, *, / Conditional expressions: "4 if ${count} > 10 else 2" Environment variable substitution: ${VAR_NAME} Value: Define once, use everywhere - ensures consistency across multiple config files

Execution Order: Prerequisite Operations → Environment Variable Validation → Variable Computations → Configuration File Updates

For detailed information on how to create custom hardware profiles and advanced configuration options, refer to the Profile Configuration Manager section in Blueprint Configurator Documentation.
