NVIDIA DOCA Allreduce Application Guide

This document provides a DOCA Allreduce collective operation implementation on top of NVIDIA® BlueField® DPU using UCX.

Allreduce is a collective operation which allows collecting data from different processing units to combine them into a global result by a chosen operator. In turn, the result is distributed back to all processing units.

Allreduce operates in stages. Firstly, each participant scatters its vector. Secondly, each participant gathers the vectors of the other participants. Lastly, each participant performs their chosen operation between all the gathered vectors. Using a sequence of different allreduce operations with different participants, very complex computations can be spread among many computation units.

Allreduce is widely used by parallel applications in high-performance computing (HPC) related to scientific simulations and data analysis, including machine learning calculation and the training phase of neural networks in deep learning.

Due to the massive growth of deep learning models and the complexity of scientific simulation tasks that utilize a network, effective implementation of allreduce is essential for minimizing communication time.

This document describes how to implement allreduce using the UCX communication framework, which leverages NVIDIA® BlueField® DPU by providing low-latency and high-bandwidth utilization of its network engine. This document describes the following types of allreduce:

• Offloaded client – processes running on the host which only submit allreduce operation requests to a daemon running on the DPU. The daemon runs on the DPU and performs the allreduce algorithm on behalf of its on-host-clients (offloaded-client).

• Non-offloaded client – processes running on the host which execute the allreduce algorithm by themselves

The application is designed to measure three metrics:

• Communication time taken by offloaded and non-offloaded allreduce operations
• Computation time taken by matrix multiplications which are done by clients until the allreduce operation is completed
• The overlap of the two previous metrics. The percentage of the total runtime during which both the allreduce and the matrix multiplications were done in parallel.

The allreduce implementation is divided into two different types of processes: clients and daemons. Clients are responsible for allocating vectors filled with data and initiating allreduce operations by sending a request with a vector to their daemon. Daemons are responsible for gathering vectors from all connected clients and daemons, applying a chosen operator on all received buffers, and then scattering the reduced result vector back to the clients.

• Offloaded mode



• Non-offloaded mode



DOCA's allreduce implementation uses Unified Communication X (UCX) to support data exchange between endpoints. It utilizes UCX's sockaddr-based connection establishment and the UCX Active Messages (AM) API for communications.

• Offloaded mode



• Non-offloaded mode



1. Connections between processes are established by UCX using IP addresses and ports of peers.
2. Allreduce vectors are sent from clients to daemons in offloaded mode, or from clients to clients in non-offloaded mode.
3. Reduce operations on vectors are done using received vectors from other daemons in offloaded mode, or other clients in non-offloaded mode.
4. Vectors with allreduce results are received by clients from daemons in offloaded mode, or are already stored in clients after completing all exchanges in non-offloaded mode.
5. After completing all allreduce operations, connections between clients are destroyed.

This application leverages the UCX framework DOCA driver.

1. Parse application argument.
   Copy

   Copied!




   doca_argp_init();


   1. Initialize arg parser resources and register DOCA general parameters.
      Copy

      Copied!




      register_allreduce_params();


   2. Register UCX allreduce application parameters.
      Copy

      Copied!




      doca_argp_start();


   3. Parse all registered parameters.
2. UCX initialization.
   Copy

   Copied!




   allreduce_ucx_init();


   1. Initialize hash table of connections.
      Copy

      Copied!




      ucp_init();


   2. Create UCP context.
      Copy

      Copied!




      ucp_worker_create();


   3. Create UCP worker.
      Copy

      Copied!




      ucp_worker_set_am_recv_handler();


   4. Set AM handler for receiving connection check packets.
3. Initialization of the allreduce connectivity.
   Copy

   Copied!




   communication_init();


   1. Initialize hash table of allreduce super requests.
   2. Set "receive callback" for handshake messages.
   3. If daemon or non-offloaded client:
      Copy

      Copied!




      allreduce_ucx_am_set_recv_handler();


      1. Set AM handler for receiving allreduce requests from clients.
         Copy

         Copied!




         allreduce_ucx_listen();


      2. Initialize UCX listening function. This creates a UCP listener.
         Copy

         Copied!




         connections_init();


   4. Initialize all connections.
      1. Go over all destination addresses.
      2. Connect to each peer. Repeat until a successful send occurs (to check connectivity).
         Copy

         Copied!




         ucp_am_send_nbx();
         allreduce_ucx_request_wait();


      3. Insert the connection to the hash table of connections.
         Copy

         Copied!




         allreduce_outgoing_handshake();


   5. Scatter handshake message to peers/daemon to make sure they all have the same -s, -i, -b, and -d flags.
4. Daemon: Start UCX progress.
   Copy

   Copied!




   daemon_run();
       allreduce_ucx_am_set_recv_handler();


   1. Set AM handler to receive allreduce requests from clients.
      Copy

      Copied!




      while (running)
          allreduce_ucx_progress();


   2. Perform UCP worker progress.
   3. Invoke callbacks for incoming messages by calling allreduce_ucx_progress.
5. Client.
   Copy

   Copied!




   client_run();
       allreduce_vectors_init();


   1. Allocate buffers to store allreduce initial data and results.
      Copy

      Copied!




      allreduce_ucx_am_set_recv_handler();


   2. Set an AM handler for receiving allreduce results.
      Copy

      Copied!




      allreduce_barrier();


   3. Perform allreduce barrier. Check that all daemons and clients are active.
      1. Submit a batch of allreduce operations with 0 byte.
      2. Wait for completions.
         Copy

         Copied!




         allreduce_metrics_init();


   4. Reset metrics and vectors.
   5. Submit some batches and calculate estimated network time.
   6. Allocate matrices to multiply.
   7. Estimate how many matrix multiplications could have been performed instead of networking (same time windows).
   8. Calculate the actual computation time of these matrix multiplications.
      Copy

      Copied!




      Do num-batches (flag) times:
          allreduce_vectors_reset();
          allreduce_batch_submit();
          cpu_exploit();
          allreduce_batch_wait();
          allreduce_metrics_calculate();


   9. Reset vectors.
   10. Submit a batch of allreduce operations to daemon/peer (depends on mode).
   11. Perform matrix multiplications during a time period which is approximately equal to doing a single batch of allreduce operations and calculate the actual time cost.
   12. Wait for the allreduce operation to complete and calculate time cost.
   13. Update metrics.
       Copy

       Copied!




       allreduce_metrics_print();


   14. Print summary of allreduce benchmarking.
6. Arg parser destroy.
   Copy

   Copied!




   doca_argp_destroy();


7. Communication destroy.
   1. Clean up connections.
      Copy

      Copied!




      allreduce_ucx_disconnect();


      1. Remove the connection from the hash table of the connections.
         Copy

         Copied!




         ucp_ep_close_nbx();


      2. Close inner UCP endpoint.
      3. Wait for the completion of the UCP endpoint closure.
      4. Destroy connection.
      5. Free connections array.
   2. Destroy the hash table of the allreduce super requests.
8. Destroy UCX context.
   Copy

   Copied!




   g_hash_table_destroy();


   1. Destroy the hash table of the connections.
      Copy

      Copied!




      ucp_listener_destroy();


   2. If the UCP listener was created, destroy it.
      Copy

      Copied!




      ucp_worker_destroy();


   3. Destroy UCP worker.
      Copy

      Copied!




      ucp_cleanup();


   4. Destroy UCP context.

1. Refer to the following documents:
   • NVIDIA DOCA Installation Guide for details on how to install BlueField-related software.
   • NVIDIA DOCA Troubleshooting Guide for any issue you may encounter with the installation, compilation, or execution of DOCA applications.
2. The allreduce binary is located under /opt/mellanox/doca/applications/allreduce/bin/doca_allreduce. To build all the applications together, Run:
   Copy

   Copied!




   cd /opt/mellanox/doca/applications/
   meson build
   ninja -C build




3. To build the allreduce sample only:
   1. Edit the following flags in /opt/mellanox/doca/applications/meson_option.txt:
      • Set enable_all_applications to false
      • Set enable_allreduce to true
   2. Run the commands in step 2.
      Note:

      The doca_allreduce application is created under ./build/allreduce/src/.

   Application usage:

   Copy

   Copied!




   Usage: doca_allreduce [DOCA Flags] [Program Flags]
   DOCA Flags:
     -h, --help                    Print a help synopsis
     -v, --version                 Print program version information
     -l, --log-level               Set the log level for the program <CRITICAL=0, DEBUG=4>

   Program Flags:
     -r, --role                    Run DOCA UCX allreduce process as: "client" or "daemon"
     -m, --mode <allreduce_mode>   Set allreduce mode: "offloaded", "non-offloaded" (valid for client only)
     -p, --port <port>             Set default destination port of daemons/clients, used for IPs without a port (see '-a' flag)
     -c, --num-clients <num_clients> Set the number of clients which participate in allreduce operations (valid for daemon only)
     -s, --size <size>             Set size of vector to do allreduce for
     -d, --datatype <datatype>     Set datatype ("byte", "int", "float", "double") of vector elements to do allreduce for
     -o, --operation <operation>   Set operation ("sum", "prod") to do between allreduce vectors
     -b, --batch-size <batch_size> Set the number of allreduce operations submitted simultaneously (used for handshakes by daemons)
     -i, --num-batches <num_batches> Set the number of batches of allreduce operations (used for handshakes by daemons)
     -t, --listen-port <listen_port> Set listening port of daemon or client
     -a, --address <ip address>    Set comma-separated list of destination IPv4/IPv6 addresses and ports optionally (<ip_addr>:[<port>]) of daemons or clients





4. Running the application on BlueField:
   • All daemons should be deployed before clients. Only after connecting to their peers are they able to handle clients.
   • Pre-run setup:

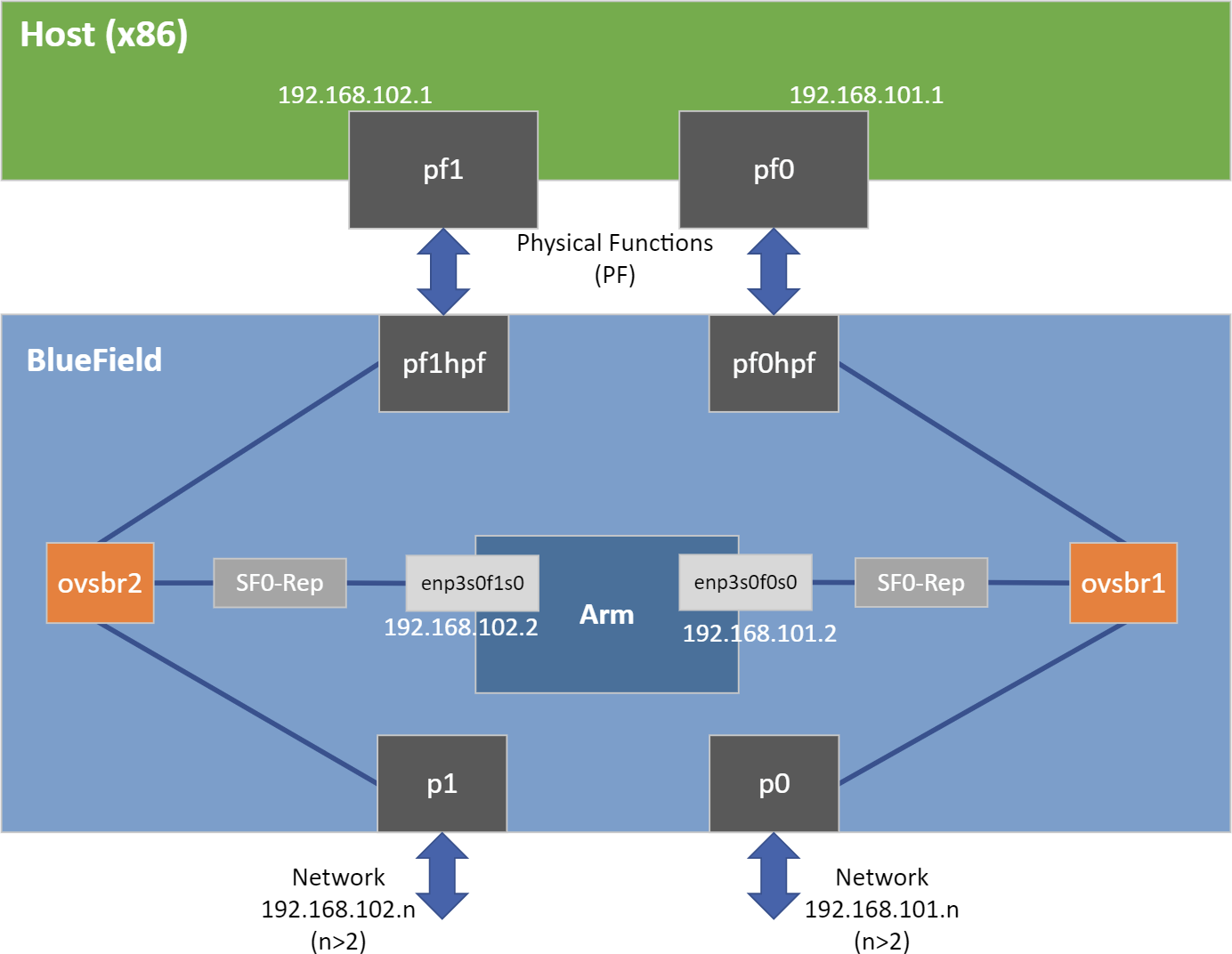

     UCX probes the system for any available net/IB devices and, by default, tries to create a multi-device connection. This means that if some network devices are available but provide an unreachable path from the daemon to the peer/client, UCX may still use that path. A common case is that a daemon tries to connect to a different BlueField using tmfifo_net0 which is connected to the host only. To fix this issue, follow these steps:

     1. Use the UCX env variable UCX_NET_DEVICES to set usable devices. For example:
        Copy

        Copied!




        export UCX_NET_DEVICES=enp3s0f0s0,enp3s0f1s0
        /opt/mellanox/doca/applications/allreduce/bin/doca_allreduce -r daemon -t 34001 -c 1 -s 100 -o sum -d float


        Or:
        Copy

        Copied!




        env UCX_NET_DEVICES=enp3s0f0s0,enp3s0f1s0 /opt/mellanox/doca/applications/allreduce/bin/doca_allreduce -r daemon -t 34001 -c 1 -s 100 -o sum -d float





     2. Get the mlx device name and port of a SF to limit the UCX network interfaces and allow IB. For example:

        Copy

        Copied!




        BlueField> show_gids
        DEV	PORT	INDEX	GID					IPv4  		VER	DEV
        ---	----	-----	---					------------        ---	---
        mlx5_2	1	0	    fe80:0000:0000:0000:0052:72ff:fe63:1651		     v2	 enp3s0f0s0
        mlx5_3	1	0	    fe80:0000:0000:0000:0032:6bff:fe13:f13a		     v2	 enp3s0f1s0

        BlueField> UCX_NET_DEVICES=enp3s0f0s0,enp3s0f1s0,mlx5_2:1,mlx5_3:1 /opt/mellanox/doca/applications/allreduce/bin/doca_allreduce -r daemon -t 34001 -c 1 -s 100 -o sum -d float





   • CLI example for running a client:
     Copy

     Copied!




     /opt/mellanox/doca/applications/allreduce/bin/doca_allreduce -r client -m offloaded -t 34001 -a 10.21.211.3:35001 -s 65535 -i 16 -b 128 -o sum -d float -i 16 -b 128


     Note:

     The flags -s, -i, -b, and -d must be the same for all clients and daemons participating in the allreduce operation.

   • CLI example for running a daemon:
     Copy

     Copied!




     /opt/mellanox/doca/applications/allreduce/bin/doca_allreduce -r daemon -t 34001 -c 2 -a 10.21.211.3:35001,10.21.211.4:36001 -s 65535 -o sum -d float


     Note:

     The flag -a is necessary for communicating with other daemons. In case of an offloaded client, the address must be that of the daemon which performs the allreduce operations for them. In case of a daemon or non-offloaded clients, the flag could be a single or multiple addresses of other daemons/non-offloaded clients which exchange their local allreduce results.

     Note:

     The flag -c must be specified for daemon processes only. It indicates how many clients submit their allreduce operations to the daemon.

     Note:

     The daemon listens to incoming connection requests on all available IPs, but the actual communication after the initial "UCX handshake" does not necessarily use the same device used for the connection establishment.

5. Running the application on the host, CLI example:
   Copy

   Copied!




   /opt/mellanox/doca/applications/allreduce/bin/doca_allreduce -r client -m non-offloaded -t 34001 -a 10.21.211.3:35001,10.21.211.4:36001 -s 65535 -i 16 -b 128 -o sum -d float
   /opt/mellanox/doca/applications/allreduce/bin/doca_allreduce -r client -m offloaded -p 34001 -a 192.168.100.2 -s 65535 -i 16 -b 128 -o sum -d float


   Note:

   Refer to section "Running DOCA Application on Host" in NVIDIA DOCA Virtual Functions User Guide.

Refer to NVIDIA DOCA Arg Parser User Guide for more information.

• /opt/mellanox/doca/applications/allreduce/src/allreduce.c
• /opt/mellanox/doca/applications/allreduce/src/allreduce_client.c
• /opt/mellanox/doca/applications/allreduce/src/allreduce_client.h
• /opt/mellanox/doca/applications/allreduce/src/allreduce_core.c
• /opt/mellanox/doca/applications/allreduce/src/allreduce_core.h
• /opt/mellanox/doca/applications/allreduce/src/allreduce_daemon.c
• /opt/mellanox/doca/applications/allreduce/src/allreduce_daemon.h
• /opt/mellanox/doca/applications/allreduce/src/allreduce_ucx.c
• /opt/mellanox/doca/applications/allreduce/src/allreduce_ucx.h
• /opt/mellanox/doca/applications/allreduce/bin/allreduce_client_params.json
• /opt/mellanox/doca/applications/allreduce/bin/allreduce_daemon_params.json
