NVIDIA DOCA IPS Application Guide

This document provides an intrusion prevention system (IPS) implementation on top of NVIDIA® BlueField® DPU.

Intrusion prevention system (IPS) is an application that monitors a network for malicious activity or policy violations.

IPS uses the deep packet inspection (DPI) engine to scan network flow for malicious content based on predefined Suricata signatures. Packets that are deemed malicious are dropped and a corresponding message is printed.

IPS supports NetFlow protocol for sending data from the DPU to remote NetFlow collector for further analysis.

Connection tracking is also supported for tracking all network connections or flows which helps the identification of all the packets that make up a flow for better handling of the network traffic.

This document describes how to build and run the IPS application both on the host and on the DPU.

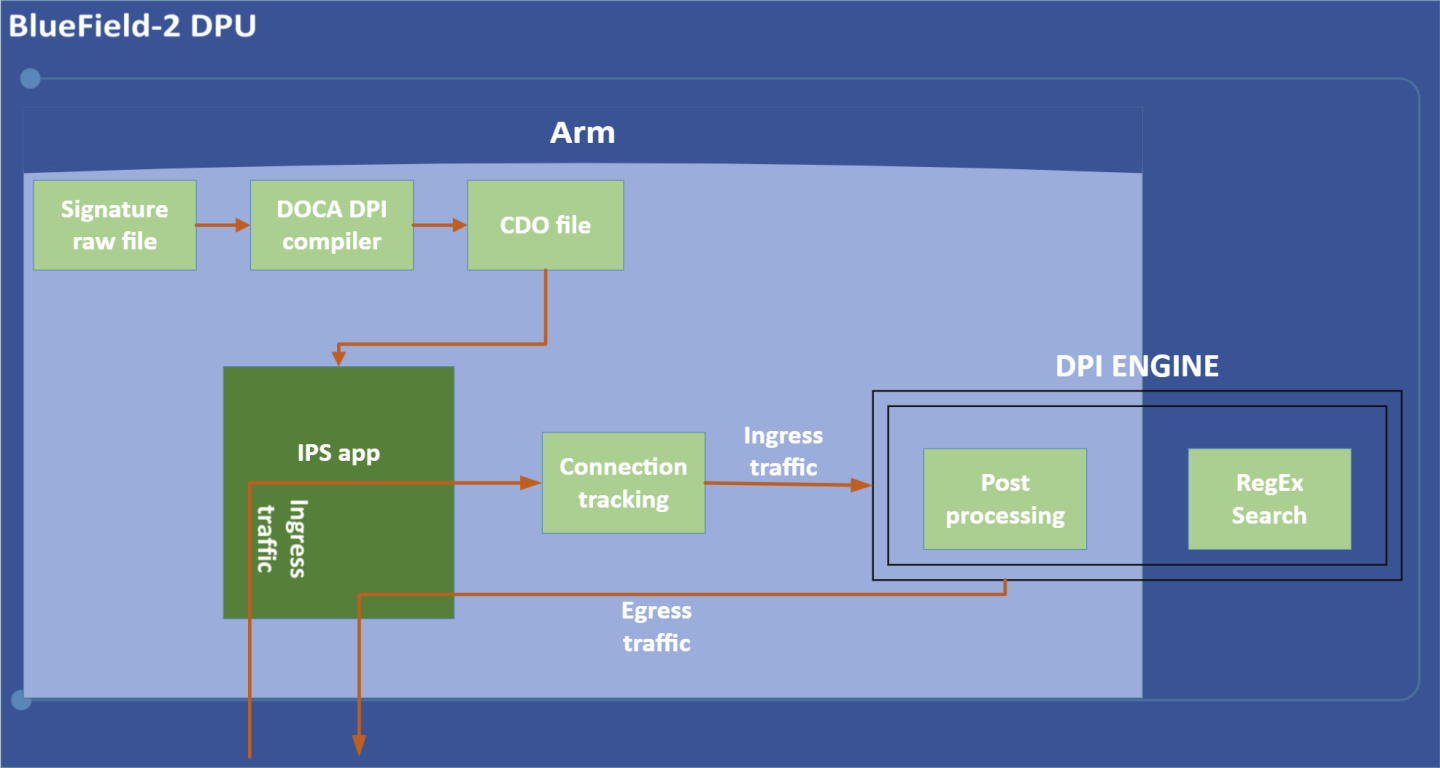

The IPS application is designed to run as "bump-on-the-wire" on the BlueField instance, it intercepts the traffic coming from the wire, and passes it to peer port.


IPS runs on top of DPDK-based stateful flow tracking (SFT) to identify the flow that each packet belongs to, then uses DPI to process L7 classification.


  1. Signatures are compiled by DPI compiler and then loaded to DPI engine. See DOCA DPI Compiler for more information.
  2. Ingress traffic is identified using the stateful table module which utilizes the connection tracking hardware offloads.
  3. Traffic is scanned against DPI-engine-compiled signature DB.
  4. Post-processing is performed for match decision.
  5. Matched flows are identified and drop actions can be offloaded to the hardware to increase performance as no further inspection is needed.
  6. Flow termination is done by a configurable aging timer set in the SFT to 60 seconds. When a flow is offloaded, it cannot be tracked and destroyed.

This application leverages the following DOCA libraries:

  1. Parse application argument.
    Copy
    Copied!


    doca_argp_init();

    1. Initialize Arg Parser resources.
    2. Register DOCA general flags.
      Copy
      Copied!


      register_ips_params();

    3. Register IPS application flags.
      Copy
      Copied!


      doca_argp_start();

    4. Parsing DPDK flags and calling rte_eal_init() function.
    5. Parsing APP flags.
  2. Initialize DPDK.
    Copy
    Copied!


    dpdk_init();

    1. Initialize SFT.
    2. Initialize DPDK ports, including mempool allocation.
  3. Initialize IPS application resources including DPI engine and NetFlow.
    Copy
    Copied!


    ips_init();

  4. Configure DPI packet processing.
    Copy
    Copied!


    ips_worker_lcores_run();

    1. Configure DPI enqueue packets.
    2. Send jobs to RegEx engine.
    3. Configure DPI dequeue packets.
  5. If Netflow is enabled.
    Copy
    Copied!


    send_netflow_record();

  6. IPS destroy.
    Copy
    Copied!


    ips_destroy();

    1. Stop and free DPI resources.
    2. Destroy netflow resources.
    3. Stop SFT.
    4. Free IPS resources.
  7. Arg parser destroy.
    Copy
    Copied!


    doca_argp_destroy();

    1. Free DPDK.

  1. Refer to the following documents:
  2. The IPS application binary is located under /opt/mellanox/doca/applications/ips/bin/doca_ips. To build all the applications, run:
    Copy
    Copied!


    cd /opt/mellanox/doca/applications/ meson build ninja -C build

  3. To build the IPS application only:
    1. Edit the following flags in /opt/mellanox/doca/applications/meson_option.txt:
      • Set enable_all_applications to false
      • Set enable_ips to true
    2. Run the commands in step 2.
      Note:

      doca_ips is created under ./build/ips/src/.

    Application usage:

    Copy
    Copied!


    Usage: doca_ips [DPDK Flags] -- [DOCA Flags] [Program Flags] DOCA Flags: -h, --help Print a help synopsis -v, --version Print program version information -l, --log-level Set the log level for the app <CRITICAL=0, DEBUG=4> Program Flags: -p, --print-match Prints FID when matched in DPI engine -n <source_id>, --netflow exports data from BlueField to remote DOCA Telemetry service, also sets source_id to be written to the Netflow packet. -o, --output-csv <path> Path to the output of the CSV file -c, --cdo <path> Path to CDO file compiled from a valid PDD -f, --fragmented Enables processing fragmented packets

    Note:

    For additional information on available flags for DPDK, use -h before the -- separator:

    Copy
    Copied!


    /opt/mellanox/doca/applications/ips/bin/doca_ips -h

    Note:

    For additional information on the application, use -h after the -- separator:

    Copy
    Copied!


    /opt/mellanox/doca/applications/ips/bin/doca_ips -- -h


  4. Running the application on BlueField:
    • Pre-run setup.
      1. The IPS example is based on DPDK libraries. Therefore, the user is required to provide DPDK flags and allocate huge pages. Run:
        Copy
        Copied!


        echo 2048 > /sys/kernel/mm/hugepages/hugepages-2048kB/nr_hugepages

      2. Make sure the RegEx engine is active:
        Copy
        Copied!


        systemctl status mlx-regex

        If the status is inactive (Active: failed), run:
        Copy
        Copied!


        systemctl start mlx-regex


    • CLI example for running the app:
      Copy
      Copied!


      /opt/mellanox/doca/applications/ips/bin/doca_ips -a 0000:03:00.0,class=regex -a auxiliary:mlx5_core.sf.4,sft_en=1 -a auxiliary:mlx5_core.sf.5,sft_en=1 –– --cdo /root/ips.cdo -p -n

      Note:

      The SFT supports a maximum of 64 queues. Therefore, the application cannot be run with more than 64 cores. To limit the number of cores, run:

      Copy
      Copied!


      /opt/mellanox/doca/examples/ips/bin/doca_ips -a 0000:03:00.0,class=regex -a auxiliary:mlx5_core.sf.4,sft_en=1 -a auxiliary:mlx5_core.sf.5,sft_en=1 -l 0-64 –– --cdo /root/ips.cdo -p -n

      This limits the application to use 65 cores (core-0 to core-64). That is 1 core for the main thread and 64 cores to serve as workers.

      Note:

      The flags -a 0000:03:00.0,class=regex -a auxiliary:mlx5_core.sf.4,sft_en=1 -a auxiliary:mlx5_core.sf.5,sft_en=1 are necessary for proper usage of the application. Modifying these flags results in unexpected behavior as only 2 ports are supported. The SF numbers are arbitrary and configurable. The RegEx device, however, is not and must be initiated on port 0.

      Note:

      Sub-functions must be enabled according to Scalable Function Setup Guide.

  5. Running the application on the host, CLI example:
    Copy
    Copied!


    cd /opt/mellanox/doca/applications/ips/ ./doca_ips -a 0000:21:00.0,class=regex -a 0000:21:00.3 -a 0000:21:00.4 -- --cdo ~/ips.cdo

    Note:

    Refer to section "Running DOCA Application on Host" in NVIDIA DOCA Virtual Functions User Guide.

  6. To run doca_ips using a JSON file:
    Copy
    Copied!


    doca_ips --json [json_file]

    For example:
    Copy
    Copied!


    cd /opt/mellanox/doca/applications/ips/bin ./doca_ips –-json ips_params.json

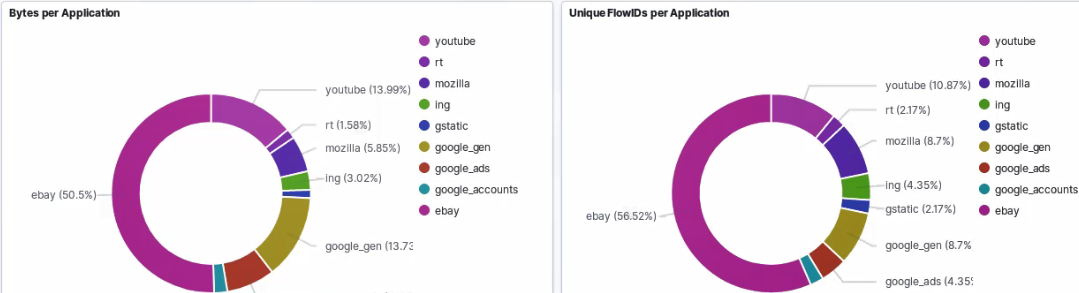

NetFlow collector UI example:


The NetFlow module uses the DOCA's Telemetry NetFlow library to export NetFlow packets in the NetFlow v9 format. The usage of telemetry is hardcoded to send packets to a collector set on the host connected to the Bluefield device through the RShim interface, 192.168.100.2:2055.

It is recommended to use the DOCA telemetry service as an aggregator service to export records instead of exporting directly from the client side which requires enabling IPC.

Refer to the NVIDIA DOCA Telemetry Service Guide for more information.

Refer to NVIDIA DOCA Arg Parser User Guide for more information.

Flag Type Short Flag Long Flag/JSON Key Description JSON Content
DPDK Flags a devices Adds a PCIe device into the list of devices to probe
Copy
Copied!


"devices": [ {"device": "regex", "id": "0000:03:00.0"}, {"device": "sf", "id": "4","sft": true}, {"device": "sf", "id": "5","sft": true}, ]

l core-list Lists cores to run on
Copy
Copied!


"core-list": "0-4"

General Flags l log-level Sets the log level for the application:
  • CRITICAL=0
  • ERROR=1
  • WARNING=2
  • INFO=3
  • DEBUG=4
Copy
Copied!


"log-level": 4

v version Print program version information N/A
h help Prints a help synopsis N/A
Program Flags p print-match Prints FID when matched in DPI engine
Copy
Copied!


"print-match": true

n netflow Exports data from BlueField to remote DTS, IP is set to 192.168.100.2 which is the host's IP using the RShim interface. Also sets source_id to be written to the NetFlow packet.
Copy
Copied!


"netflow": 0

o output-csv Path to the output of the CSV file
Copy
Copied!


"output-csv": "/tmp/ ips_stats.csv"

c cdo Path to CDO file compiled from a valid PDD
Note:

cdo is a mandatory flag.

Copy
Copied!


"cdo": "/tmp/ips.cdo"

f fragmented Enables processing fragmented packets
Copy
Copied!


"fragmented": false

The IPS example supports a container-based deployment. Refer to the NVIDIA DOCA Container Deployment Guide for more information.

Application-specific configuration steps may be found on NGC under the application's container page.

For instructions on running the gRPC application server on BlueField, refer to NVIDIA DOCA gRPC Infrastructure User Guide.


To run the Python client of the gRPC-enabled application:

Copy
Copied!


./doca_ips_gRPC_client.py -d/--debug <server address[:server port]>


For example:

Copy
Copied!


/opt/mellanox/doca/examples/ips/bin/grpc/client/doca_ips_gRPC_client.py 192.168.104.2
