Developer Guide
NVIDIA DOCA Developer Guide
This document details the recommended steps to set up an NVIDIA DOCA development environment.
This guide is intended for software developers aiming to modify existing NVIDIA® DOCA applications or develop their own DOCA-based software.
For steps to install DOCA on NVIDIA® BlueField® DPU, refer to the NVIDIA DOCA Installation Guide. This guide focuses on the recommended flow for developing DOCA-based software, and will target the following environments:
- BlueField DPU is accessible and can be used during the development and testing process
- Working within a development container
- BlueField DPU is inaccessible, and the development happens on the host or on a different server
- Cross-compilation from the host
- Working within a development container on top of QEMU running on the host
It is recommended to follow the former case, leveraging the DPU during the development and testing process.

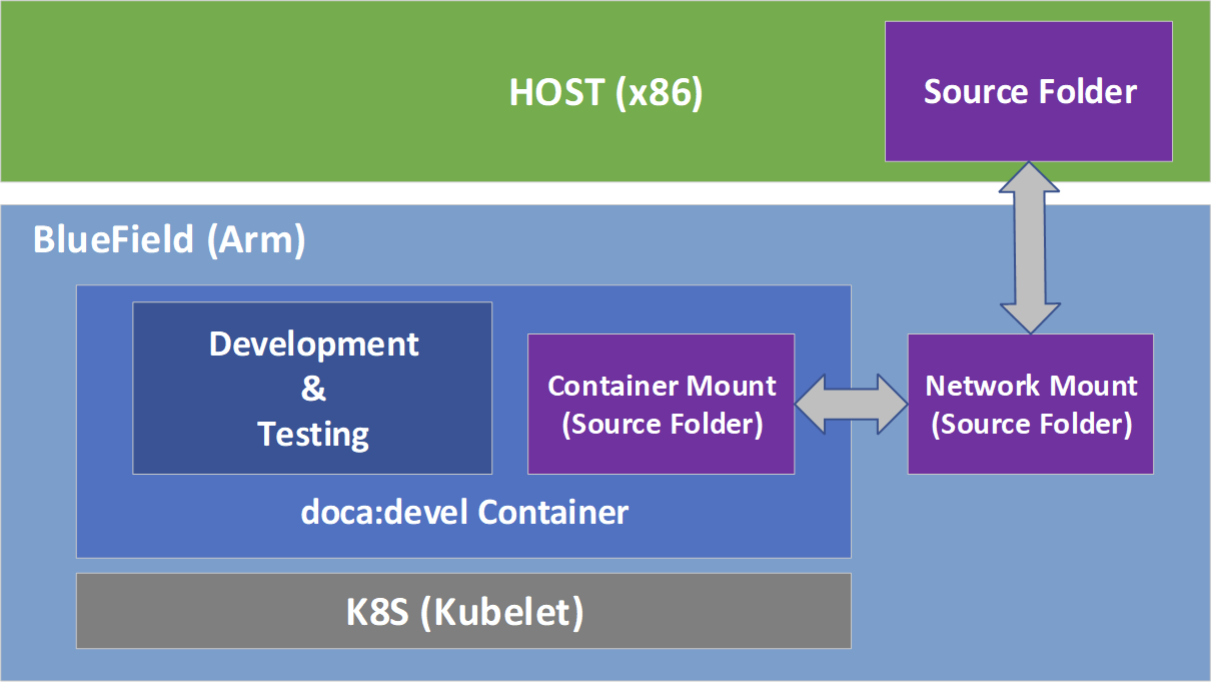

2.1. Setup
A DOCA development container is created as part of the DOCA base image containers and it is recommended that it is deployed on top of the DPU. The doca:devel
container may be found on NGC, and the full instructions for deploying the DOCA container on the DPU can be found on the NVIDIA DOCA Container Deployment Guide.
The development container supports multiple deployment techniques. Refer to the "DOCA Development Containers" section in the NVIDIA DOCA Container Deployment Guide for more information.
The development container allows developers to develop and test their DOCA-based software in a developer-friendly environment that comes pre-shipped with a set of handy development tools. In contrast to the BlueField OS that is meant to be an efficient runtime environment for DOCA products, the development container is focused on improving the development experience and is designed for that purpose.
2.2. Development
It is recommended to do the development within the doca:devel
container.
That said, some developers prefer different integrated development environments (IDEs) or development tools, and sometimes will prefer working using a graphical IDE, at least until it is time to compile the code. As such, the recommendation is to mount a network share to the DPU (refer to NVIDIA DOCA DPU CLI for more information) and mount it to the container as well. While in a docker-based deployment this is straightforward, in the Kubernetes-based deployment it requires updating the "hostPath" field in the container's .yaml file:
…
- mountPath: /doca_devel
name: input-output
resources:
…
# Shared host <-> container folder (directory shared with the hosting DPU)
- name: input-output
hostPath:
path: /tmp/doca_devel # This field should point at the desired directory
type: DirectoryOrCreate
The container's .yaml
file is sensitive to indentations. Please make sure to use only spaces (''), and to keep each indentation level at a width of 2 space characters.
Having the same code folder accessible from the IDE and the container helps prevent edge cases where the compilation fails due to a typo in the code, but the typo is only fixed locally within the container and not propagated to the main source folder.
2.3. Testing
The container is marked as "privileged", hence it can directly access the HW capabilities of the BlueField DPU. This means that once the tested program compiles successfully, it can be directly tested from within the container without the need to copy it to the DPU and running it there.
2.4. Publishing
Once the program passes the testing phase, it should be prepared for deployment. While some proof-of-concept (POC) programs are just copied "as-is" in their binary form, most deployments will probably be in the form of a package (.deb
/.rpm
) or a container.
Construction of the binary package can be done as-is inside the current doca:devel
container, or as part of a CI pipeline that will leverage the same development container as part of it.
For the construction of a container to ship the developed software, it is recommended to use a multi-staged build that ships the software on top of the runtime-oriented DOCA base images:
- doca:base-rt – Slim DOCA runtime environment
- doca:full-rt – Full DOCA runtime environment similar to the BlueField OS
The runtime DOCA base images, alongside more details about their structure, can be found under the same NGC page that hosts the doca:devel
image.
For a multi-staged build, it is recommended to compile the software inside the doca:devel
container, and later copy it to one of the runtime container images. All relevant images must be pulled directly from NGC (using docker pull
) to the container registry of the DPU.

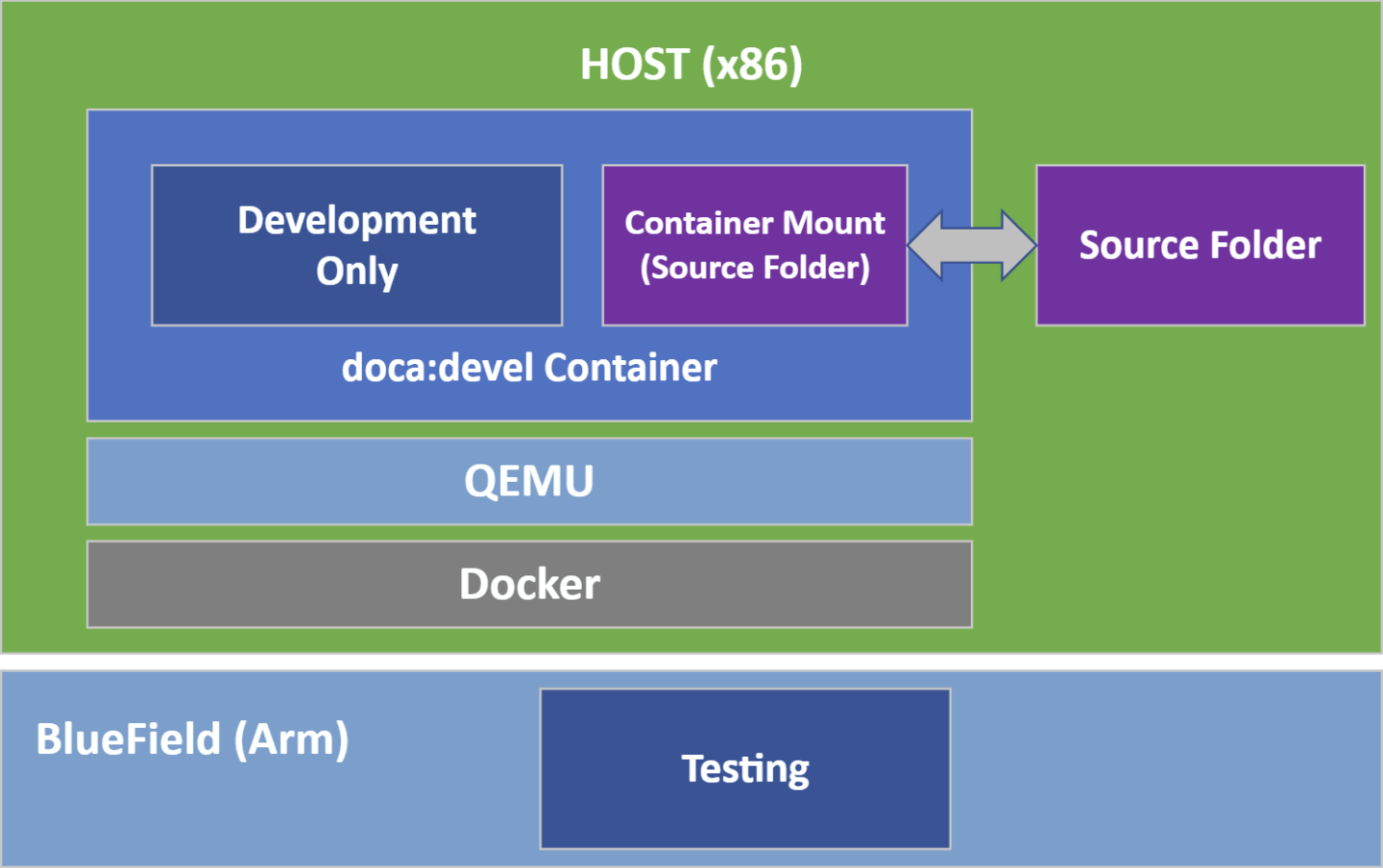

If the development process needs to be done without access to a BlueField DPU, the recommendation is to use a QEMU-based deployment of a container on top of a regular x86 server. The development container for the host will be the same doca:devel
image we mentioned previously.
3.1. Setup
- Make sure Docker is installed on your host. Run:
docker version
If it is not installed, visit the official Install Docker Engine webpage for installation instructions.
- Install QEMU on the host.
Note:
This step is for x86 hosts only. If you are working on an aarch64 host, move to the next step.
- For an Ubuntu host, run:
sudo apt-get install qemu binfmt-support qemu-user-static sudo docker run --rm --privileged multiarch/qemu-user-static --reset -p yes
- For a CentOS/RHEL 7.x host, run:
sudo yum install epel-release sudo yum install qemu-system-arm
- For a CentOS 8.0/8.2 host, run:
sudo yum install epel-release sudo yum install qemu-kvm
- For a Fedora host, run:
sudo yum install qemu-system-aarch64
- For an Ubuntu host, run:
- If you are using CentOS or Fedora on the host, verify if
qemu-aarch64.conf
exists. Run:$ cat /etc/binfmt.d/qemu-aarch64.conf
echo ":qemu-aarch64:M::\x7fELF\x02\x01\x01\x00\x00\x00\x00\x00\x00\x00\x00\x00\x02\x00\xb7:\xff\xff\xff\xff\xff\xff\xff\xfc\xff\xff\xff\xff\xff\xff\xff\xff\xfe\xff\xff:/usr/bin/qemu-aarch64-static:" > /etc/binfmt.d/qemu-aarch64.conf
- If you are using CentOS or Fedora on the host, restart system binfmt. Run:
$ sudo systemctl restart systemd-binfmt
- To load and execute the development container, refer to the "Docker Deployment" section of the NVIDIA DOCA Container Deployment Guide.
3.2. Development
Much like the development phase using a BlueField DPU, it is recommended to develop within the container running on top of QEMU.
3.3. Testing
While the compilation can be performed on top of the container, testing the compiled software must be done on top of a BlueField DPU. This is because the QEMU environment emulates an aarch64 architecture, but it does not emulate the hardware devices present on the BlueField DPU. Therefore, the tested program will not be able to access the devices needed for its successful execution, thus mandating that the testing is done on top of a physical DPU.
Make sure that the DOCA version used for compilation is the same as the version installed on the DPU used for testing.
3.4. Publishing
The publishing process is identical to the publishing process when using a BlueField DPU.

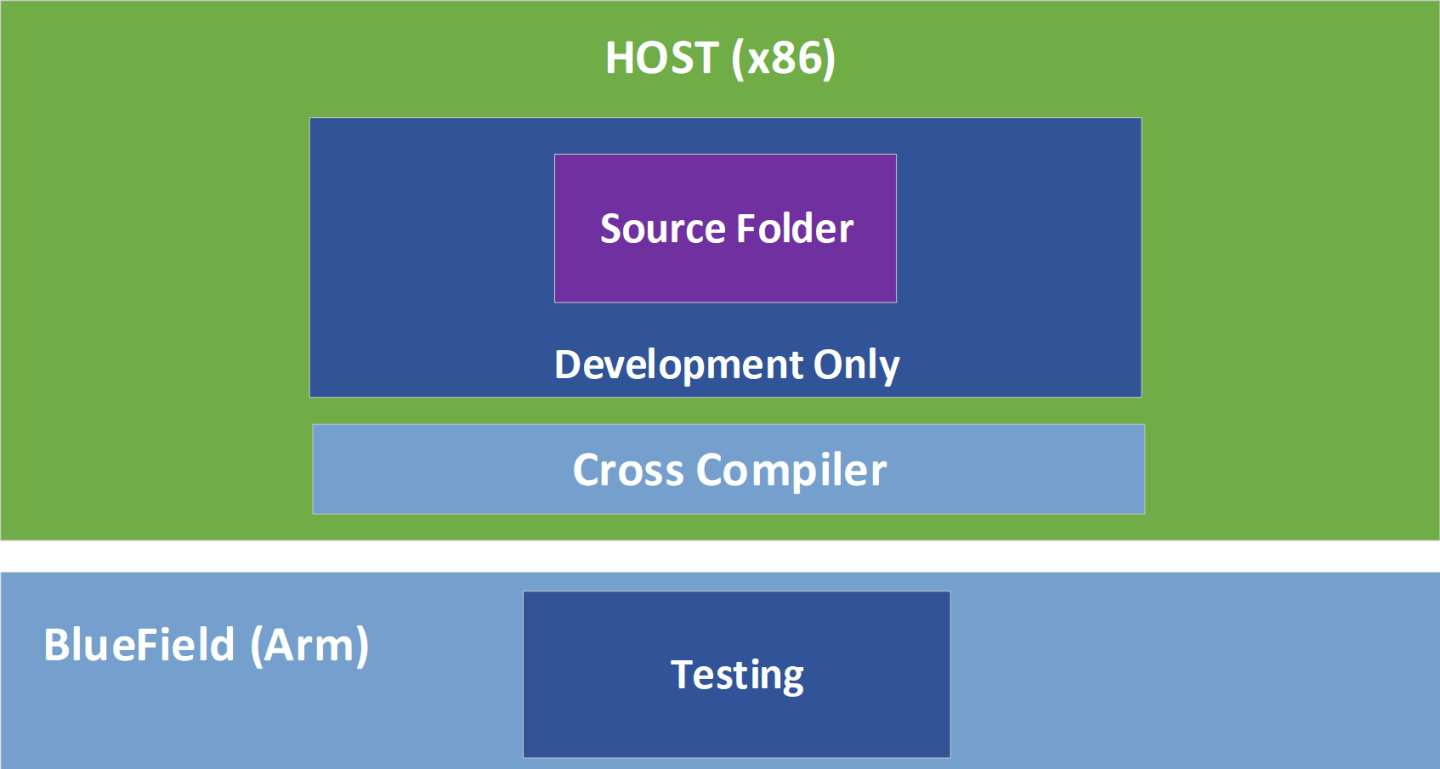

In a typical setup, developers prefer to work on a familiar host since compilation is often significantly faster there. Therefore, developers may work on their host while cross-compiling their project to the DPU's Arm architecture.
4.1. Setup
- Install Docker and QEMU your host. See steps 1-4 under section Setup.
- Download the
doca-cross
component as described in NVIDIA DOCA Installation Guide and unpack it under the/root
directory. Inside this directory one can find:-
arm64_armv8_linux_gcc
– cross file containing specific information about the cross compiler and the host machine -
DOCA_cross.sh
– script which handles all the required dependencies and pre-installations steps - A
.txt
file used by the script
-
- To load the development container, refer to section "Docker Deployment" of the NVIDIA DOCA Container Deployment Guide.
Note:
It is important to ensure that the same DOCA version is used in the development container and the DOCA metapackages installed on the host.
- Start running the container using the container's image ID while mapping the
doca-cross
directory to the container's/doca_devel
directory:sudo docker run -v /root/doca-cross/:/doca_devel --privileged -it -e container=docker <image_id>
Now the shell will be redirected to be within the container.
- Run the preparation script to copy all the Arm dependencies required for DOCA's cross compilation. The script will be in the mapped directory named
doca_devel
.(container) /# cd doca_devel/ (container) /doca_devel# ./DOCA_cross.sh
- Exit the container and run the same script from the host side:
(host) /root/doca-cross# ./DOCA_cross.sh
The
/root/doca-cross
directory is now fully configured and prepared for cross-compilation against DOCA. - Update the environment variables to point at the linaro cross-compiler:
export PATH=${PATH}:/opt/gcc-linaro/<linaro_version_dir>/aarch64-linux-gnu/bin:/opt/gcc-linaro/<linaro_version_dir>/bin
Everything is set up and the cross-compilation can now be used.
Note:Make sure to update the command according to the Linaro version installed by the script in the previous step.
<linaro_version_dir>
can be found under/opt/gcc-linaro/
.Note:Cross-compilation requires Meson version ≥0.61.2 to be installed on the host. This is already provided as part of DOCA's installation.
4.2. DOCA and CUDA Setup
- To cross-compile DOCA and CUDA applications, you must install CUDA Toolkit 1.6:
- The first toolkit installation is for x86 architecture. Select
x86_64
. - The second toolkit installation is for Arm. Select
arm64-sbsa
and thencross
. - Select your host operating system, architecture, OS distribution, and version and select the installation type. It is recommended to use the deb (local) type.
- The first toolkit installation is for x86 architecture. Select
- Execute the following exports:
export CPATH=/usr/local/cuda/targets/sbsa-linux/include:$CPATH export LD_LIBRARY_PATH=/usr/local/cuda/targets/sbsa-linux/lib:$LD_LIBRARY_PATH export PATH=/usr/local/cuda/bin:/usr/local/cuda-11.6/bin:$PATH
- Verify the
meson
version is at least 0.61.2.Everything is set up and the cross-compilation can now be used.
4.3. Development
It is recommended to develop normally while remembering to compile using the cross-compilation configuration file arm64_armv8_linux_gcc
which can be found under the doca-cross
directory.
The following is an example procedure for cross-compiling DOCA applications from the host and to the Arm architecture:
- Enable the meson cross-compilation option in
/opt/mellanox/doca/applications/meson_options.txt
by settingenable_cross_compilation_to_dpu
totrue
. - Cross-compile the DOCA applications:
/opt/mellanox/doca/applications # meson cross-build --cross-file /root/doca-cross/arm64_armv8_linux_gcc /opt/mellanox/doca/applications # ninja -C cross-build
The cross-compiled binaries are created under the
cross-build
directory. - Cross-compile the DOCA and CUDA application:
- Set flag for GPU-enabled cross-compilation,
enable_gpu_support
, in/opt/mellanox/doca/applications/meson_options.txt
totrue
. - Run the compilation command as follows:
/opt/mellanox/doca/applications # meson cross-build --cross-file /root/doca-cross/arm64_armv8_linux_gcc -Dcuda_ccbindir=aarch64-linux-gnu-g++ /opt/mellanox/doca/applications # ninja -C cross-build
The cross-compiled binaries are created under the
cross-build
directory.
- Set flag for GPU-enabled cross-compilation,
Due to the system's use of the PKG_CONFIG_PATH
environment variable, it is crucial that the cross file include the following:
[built-in options]
pkg_config_path = ''
This definition, already provided as part of the supplied cross file, guarantees that meson does not accidently use the build system's environment variable during the cross build.
4.4. Testing
While the compilation can be performed on top of the host, testing the compiled software must be done on top of a BlueField-2 DPU. This is because the tested program is not able to access the devices needed for its successful execution, which mandates that the testing is performed on top of a physical DPU.
Make sure that the DOCA version used for compilation is the same as the version installed on the DPU used for testing.
4.5. Publishing
The publishing process is identical to the publishing process when using a BlueField DPU.
