NVIDIA DOCA Developer Quick Start Guide
This guide details the basic steps to bring up the NVIDIA DOCA development environment and to build and run the DOCA reference applications provided along with the DOCA software framework package.
DOCA brings together a wide range of powerful APIs, libraries, and frameworks for programming and accelerating modern data center infrastructures. Like NVIDIA® CUDA® for GPUs, DOCA is a consistent and essential resource across all existing and future generations of DPU products. This document is intended for those wishing to develop applications using the DOCA framework.
Not sure which installation type to use? To expand on different DOCA user types and the relevant installation for each, see NVIDIA BlueField and DOCA User Types.
Install the DPU into your host according to the installation instructions in the DPU's hardware user guide. The steps include installing the DPU into the PCIe slot and properly securing it in the chassis. Make sure your host OS is listed under the "Supported Operating Systems" section in the NVIDIA DOCA Installation Guide for Linux.
As part of the installation process, you must provide your NVIDIA account information. Get your NVIDIA Developer Zone access here.
Download NVIDIA SDK Manager (SDKM) and install it on the machine hosting the DPU.
- For Ubuntu/Debian host, run:
host# sudo apt install ./sdkmanager_[version]-[build]_amd64.deb
- For RedHat/CentOS host, run:
host# sudo yuminstall ./sdkmanager_[version]-[build#].x86_64.rpm

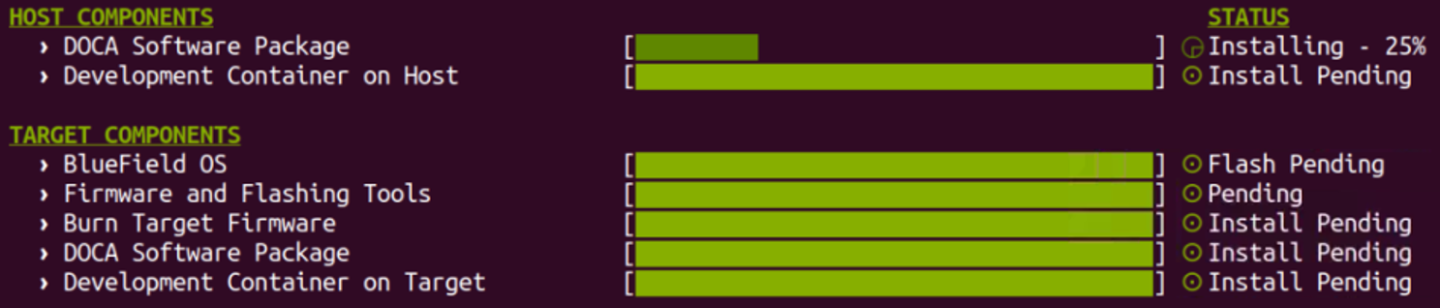

SDKM installs all required development software on both the host and DPU. The following command installs or upgrades the required software on the DPU and host, flashes the new OS image and firmware, configures a network interface between the host and the DPU (RShim), and more. Run this command on the host as a non-root user:
host# sdkmanager --cli install --logintype devzone --product DOCA --version latest --targetos Linux --host --target BLUEFIELD2_DPU_TARGETS --flash all
During installation, you must perform the following steps:
- Provide root password to the host machine
- Set a new password to access the BlueField DPU (default username:
ubuntu)
DOCA software can also be installed manually using apt-get via the standard Linux Debian Package Manager. See the NVIDIA DOCA Installation Guide for Linux for more.
DOCA package assets (e.g., references, tools) are located on the DPU and on the host under /opt/mellanox/doca/.
The DOCA package includes a set of reference applications to facilitate developer on-boarding. Please refer to the NVIDIA DOCA Applications Overview and NVIDIA DOCA Programming Guides Overview for more information. To run the DOCA File Scan reference application which performs high-speed hardware RegEx acceleration using the RegEx engine:
- Allocate huge pages and verify that the RegEx engine is active:
# sudo echo 2048 > /sys/kernel/mm/hugepages/hugepages-2048kB/nr_hugepages # systemctl start mlx-regex
- Compile the example RegEx rules file:
# rxpc -f /opt/mellanox/doca/applications/file_scan/bin/regex_rules.txt -p 0.01 -o /tmp/regex_rules
- Run the application using the following command:
# /opt/mellanox/doca/applications/file_scan/bin/doca_file_scan -p 03:00.0 -r /tmp/regex_rules.rof2.binary -d /opt/mellanox/doca/applications/file_scan/bin/data_to_scan.txt -l 60 Successful result: "Job 0 complete. Detected 7 match(es)"
Note:All parameters are available in the NVIDIA DOCA File Scan Application Guide.
To learn more about NVIDIA BlueField DPUs, visit NVIDIA BlueField DPU Documentation.
