NAT

NVIDIA DOCA NAT Application Guide

This document provides a NAT implementation on top of NVIDIA® BlueField® DPU.

A network address translation (NAT) application leverages the DPU's hardware capability to switch packets with local IP addresses to global ones and vise versa.

The NAT application is based on DOCA Flow, used for the programming of the DPU's hardware. NAT can operate in three modes:

  • Static mode – application gets pairs of local IP address and global IP address from the user using a JSON file
  • Dynamic mode – user provides pool of global IP addresses that can be used. The application should pick 1 address from the pool for new local area network (LAN) IP address and use it. Upon session close, address are returned to the pool.
  • PAT mode (DNS offload) – the user provides 1 global address to use. In addition, the user provides mapping between the local port address to the global port. For each packet, the local address is replaced with the global one and ports are replaced according to mapping table.

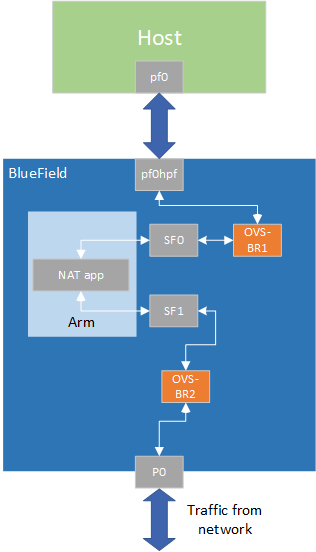

The NAT application is design to run on the DPU. The DPU intercepts ingress traffic from both wire and host, switches the relevant IP address and port according to data configured by the user, and forwards it to the egress port.

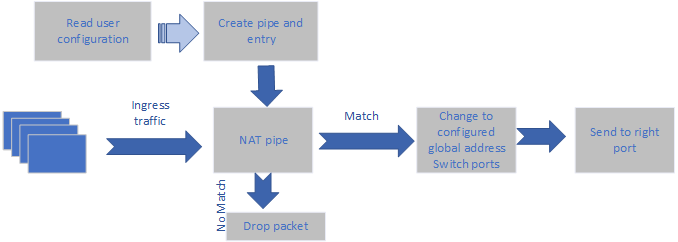

NAT runs on the DPU to classify packets.

The app should be configured using a JSON file which includes the operation mode.

3.1. Static Mode

For static mode, the JSON file should include pairs of local and global IP addresses. No change for ports in this mode.


3.2. Dynamic Mode

The user must provide a pool of global IP addresses to use. The application allocates a global address to every miss in the pipe (new local address).

If no more global addresses are available in the pool, the user gets an error message and the packet is sent as is.

The application performs a callback to remove the matching of global and local IPs and returns the address to the pool.


3.3. PAT (NAT Offload) Mode

The user provides a global address to replace all local addresses in the user LAN.

The user provides a matching of local IP and port to global port.

The application changes the local IP of every match to the global IP provided by the user and updates the port number according to user configuration.


This application leverages the following DOCA libraries:

  1. Parse application argument.
    1. Initialize arg parser resources and register DOCA general parameters.
      Copy
      Copied!


      doca_argp_init();

    2. Register application parameters.
      Copy
      Copied!


      register_nat_params()

    3. Parse the arguments.
      Copy
      Copied!


      doca_argp_start();

      1. Parse DPDK flags and invoke handler for calling the rte_eal_init() function.
      2. Parse app parameters.
  2. DPDK initialization.
    Copy
    Copied!


    dpdk_init();

    Calls rte_eal_init() to initialize EAL resources with the provided EAL flags.

  3. DPDK port initialization and start.
    Copy
    Copied!


    dpdk_queues_and_ports_init();

    1. Initialize DPDK ports, including mempool allocation.
    2. Initialize hairpin queues if needed.
    3. Bind hairpin queues of each port to its peer port.
  4. NAT initialization.
    Copy
    Copied!


    nat_init();

    1. DOCA Flow and DOCA Flow port initialization.
  5. Init user configuration rules into app structure.
    Copy
    Copied!


    parsing_nat_rules();

  6. Init pipes and entry according to rules.
    Copy
    Copied!


    nat_pipes_init

  7. Wait for signal to end application.
  8. NAT Destroy.
    Copy
    Copied!


    nat_destroy();

  9. DPDK ports and queues destruction.
    Copy
    Copied!


    dpdk_queues_and_ports_fini();

  10. DPDK finish.
    Copy
    Copied!


    dpdk_fini();

    1. Calls rte_eal_destroy() to destroy initialized EAL resources.
  11. Arg parser destroy.
    Copy
    Copied!


    doca_argp_destroy();

  1. Refer to the following documents:
  2. The NAT binary is located under /opt/mellanox/doca/applications/nat/bin/doca_nat. To build all the applications together, run:
    Copy
    Copied!


    cd /opt/mellanox/doca/applications/ meson build ninja -C build

  3. To build only the NAT application:
    1. Edit the following flags in /opt/mellanox/doca/applications/meson_options.txt:
      • Set enable_all_applications to false
      • Set enable_nat to true
    2. Run the commands in step 2.
      Note:

      doca_file_integrity is created under ./build/file_integrity/src/.

    Application usage:

    Copy
    Copied!


    Usage: doca_nat [DPDK Flags] -- [DOCA Flags] [Program Flags] DOCA Flags: -h, --help Print a help synopsis -v, --version Print program version information -l, --log-level Set the log level for the program <CRITICAL=20, ERROR=30, WARNING=40, INFO=50, DEBUG=60> Program Flags: -m, --mode <mode> Set nat mode -r, --nat-rules <path> Path to the JSON file with nat rules -lan --lan-intf <sfX> Interface of traffic from lan to wan -wan --wan-intf <sfX> Interface of traffic from wan to lan

    Note:

    For additional information on available flags for DPDK, use -h before the -- separator:

    Copy
    Copied!


    /opt/mellanox/doca/applications/nat/bin/doca_nat -h

    Note:

    For additional information on the application, use -h after the -- separator:

    Copy
    Copied!


    /opt/mellanox/doca/applications/nat/bin/doca_nat -- -h


  4. Running the application on BlueField:
    1. The NAT example is based on DPDK libraries. Therefore, the user is required to provide DPDK flags and allocate huge pages:
      Copy
      Copied!


      sudo echo 2048 > /sys/kernel/mm/hugepages/hugepages-2048kB/nr_hugepages

    2. CLI example for running the application:
      Copy
      Copied!


      /opt/mellanox/doca/applications/nat/bin/doca_nat -a auxiliary:mlx5_core.sf.4,dv_flow_en=2 -a auxiliary:mlx5_core.sf.5,dv_flow_en=2 -- -m static -r /opt/mellanox/doca/applications/nat/bin/nat_static_rules.json -lan sf3 -wan sf4

      Note:

      The flag -a auxiliary:mlx5_core.sf.4 -a auxiliary:mlx5_core.sf.5 is mandatory for proper usage of the application. Modifying this flag results in unexpected behavior as only 2 ports are supported. The SF number is arbitrary and configurable.

      Note:

      SFs must be enabled according to Scalable Function Setup Guide.

  5. To run doca_nat using a JSON file:
    Copy
    Copied!


    doca_nat --json [json_file]

    For example:
    Copy
    Copied!


    cd /opt/mellanox/doca/applications/nat/bin ./doca_nat --json nat_params.json


For more information, refer to NVIDIA DOCA Arg Parser User Guide.

Flag Type Short Flag Long Flag/JSON Key Description JSON Content
DPDK Flags a devices Add a PCIe device into the list of devices to probe
Copy
Copied!


"devices": [ {"device": "sf", "id": "4","hws": true}, {"device": "sf", "id": "5","hws": true}, ]

General Flags l log-level Set the log level for the application:
  • CRITICAL=20
  • ERROR=30
  • WARNING=40
  • INFO=50
  • DEBUG=60
Copy
Copied!


"log-level": 60

v version Print program version information N/A
h help Print a help synopsis N/A
Program Flags m mode Set NAT mode
Copy
Copied!


"mode": "static"

r nat-rules Path to the JSON file with NAT rules
Copy
Copied!


"nat-rules": "nat_static_rules.json"

lan Lan-intf Name of LAN interface
Copy
Copied!


"lan-intf": "sf3"

wan Wan-intf Name of WAN interface
Copy
Copied!


"wan-intf": "sf4"

  • /opt/mellanox/doca/applications/nat/src/nat.c
