Broadcasted Refinement#

What Is Broadcasted Refinement?#

Broadcasted refinement leverages the special broadcasting ability of inherits and specializes arcs. These two arcs are built for downstream refinement allowing you to author new opinions on the inherited or specialized namespace in any downstream layer stack. All prims with an inherits or specializes arc targeting that namespace will receive those opinions and apply them according to LIVERPS.

This type of refinement works on instances too.

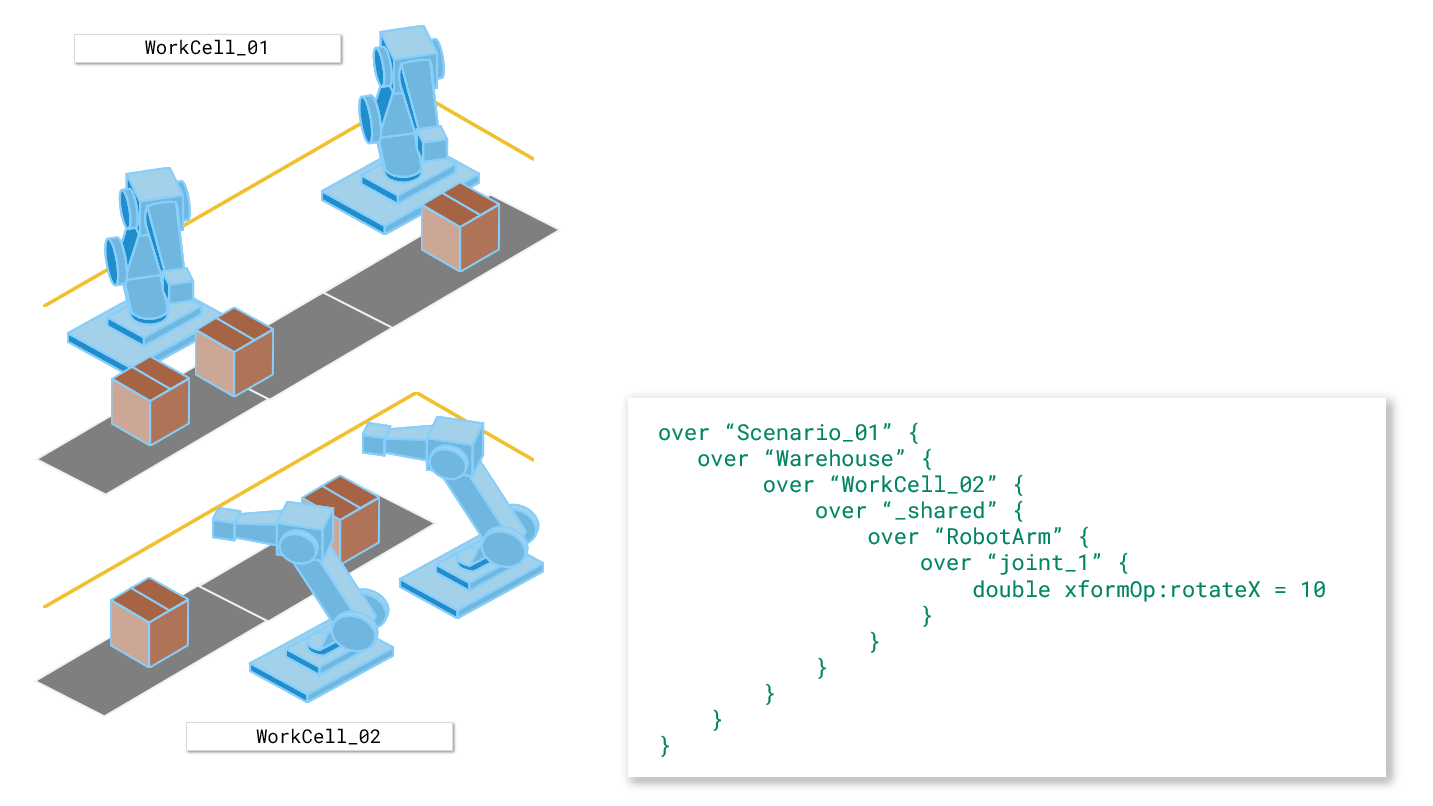

../../_images/broadcasted-refinement.png

Broadcast refinement leverages opinions on inherits and specializes arcs.#

In this example, both robot arms in “WorkCell_02” inherit from /Warehouse/WorkCell_02/_shared/RobotArm and the robot arms in “WorkCell_01” do not. As a result when we author on opinion in the /Scenario_01/Warehouse/WorkCell_02/_shared/RobotArm namespace with a new pose, the opinion is broadcasted to the robot arms in “WorkCell_02”. The robot arms in “WorkCell_01” keep the original poses. The result would be a new prototype shared among instances that received the new pose.

Exercise: Broadcasted Refinement#

Introduction#

In this exercise, you will learn broadcasted refinement, a powerful technique that leverages inherits and specializes arcs to efficiently apply changes to multiple instances simultaneously. You’ll use a specialize arc to broadcast damage stamps to all boxes on a pallet, observe how this creates a new prototype, and understand the efficiency benefits of this approach compared to individual instance modifications.

Exploring the Specialize Arc Structure#

In this scenario, all the boxes on a pallet were damaged. We want to label all the boxes with the “Damaged” stamp. We could add a new arc to all the affected boxes one by one, but for this example, we’re going to use a specialize arc to broadcast the change to all of the boxes on the pallet.

  1. Run in the terminal:

Windows:

.\scripts\usdview.bat .\instancing\ex_sg_broadcasted_refine\Scenario.usd --camera ExCam_01

Linux:

./scripts/usdview.sh ./instancing/ex_sg_broadcasted_refine/Scenario.usd --camera ExCam_01

Tip

Click Camera > Select Camera > ExCam_01 if you ever lose your place in the scene or want to get back to this camera position.

  1. Click on the top left box in the Viewport.

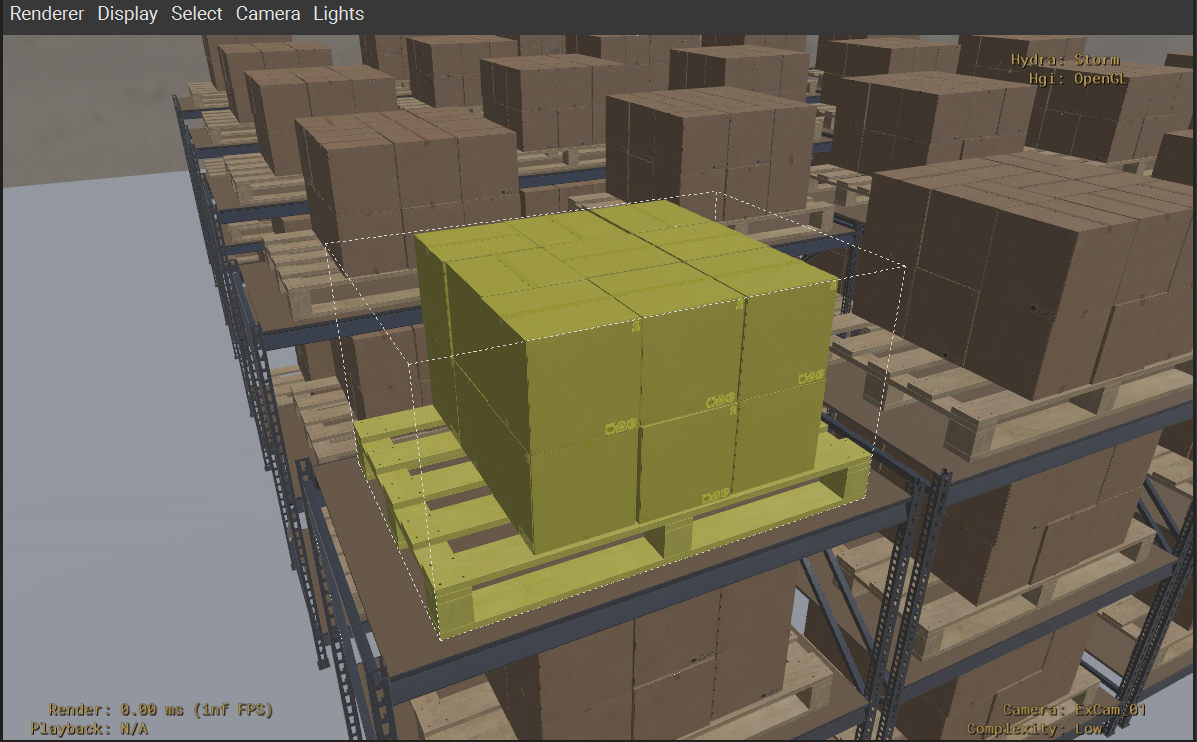

  1. Press the “\” key to select the enclosing model.

This will select the next model up the prim hierarchy, a “BoxPallet_A01” assembly.

  1. Hover your mouse over the Tree View panel and press the “F” key to frame the selected prim in the Tree View.

You should see “BoxPallet_A01_03” selected in the Tree View panel.

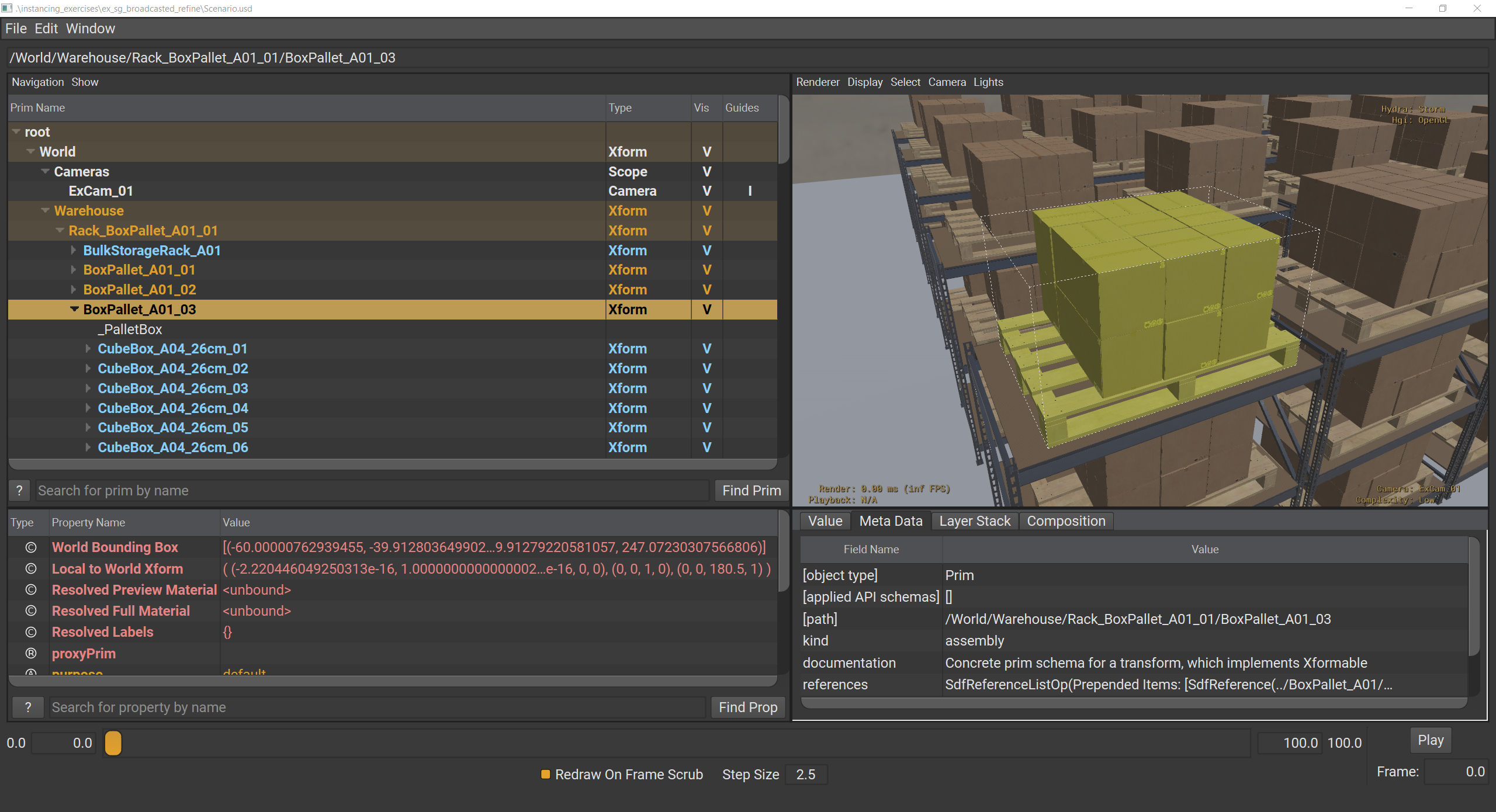

  1. Click the triangle to the left of the select prim in the Tree View to expand the select prim’s hierarchy.

Notice that there is a prim “_PalletBox” enclosed within the “BoxPallet_A01” asset. This is a class prim included as a specialize arc target for every box on that pallet. We can author opinions in “_PalletBox” that will be applied to all boxes on that pallet.

Applying Broadcasted Refinement#

  1. Click Window > Interpreter to open the Interpreter window.

  2. Run the following code in the Interpreter window:

1from pathlib import Path
2stage = usdviewApi.stage
3prim = stage.OverridePrim("/World/Warehouse/Rack_BoxPallet_A01_01/BoxPallet_A01_03/_PalletBox")
4stage_path = Path(stage.GetRootLayer().identifier)
5decals_path = stage_path.parent.parent / "src_assets" / "Assets" / "Utilities" / "MiscDecals" / "MiscDecals.usd"
6prim.GetReferences().AddReference(str(decals_path), "/_MixinOverrides/DamagedStamp")

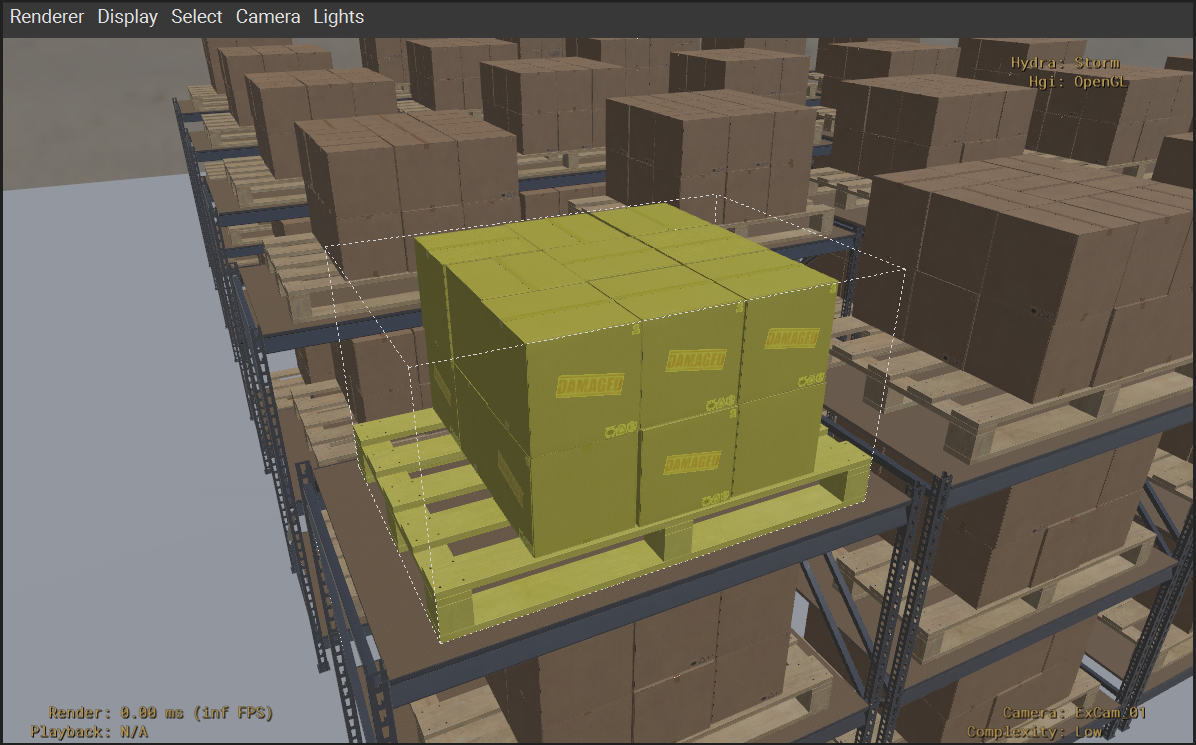

Notice how all the boxes on the pallet closest to the camera now show a stamp that says, “Damaged”. In this case, we added the same reference as in the Ad Hoc Composition Arc Addition Refinement exercise, but this could also have been direct opinions authored in the /World/Warehouse/Rack_BoxPallet_A01_01/BoxPallet_A01_03/_PalletBox of this layer. We authored one opinion that rippled changes to all the boxes.

Analyzing the Impact on Stage Statistics#

  1. Run the following code in the Interpreter window:

1from pprint import pprint
2stats = UsdUtils.ComputeUsdStageStats(usdviewApi.stage)
3pprint(stats)

This prints a breakdown of the prim and instancing stats. Here’s a summarized comparison to the basic instancing scenario:

Scenario

Prims

Instances

Prototypes

Instancing

1711

1450

3

Broadcasted Refinement

1747

1450

4

Key observations:

  • The prim count increased by 36 prims (from 1711 to 1747)

  • The instance count remained the same (1450)

  • A new prototype was created (from 3 to 4 prototypes)

  • All boxes on the pallet now share the same new prototype with the damage stamp

  • This approach is more efficient than adding individual references to each box

Broadcasted refinement is most beneficial when you need to apply the same modification to multiple instances that share a common specialize or inherit target.

  1. Close usdview.

Conclusion#

You’ve successfully learned broadcasted refinement, a powerful technique that leverages inherits and specializes arcs to efficiently apply changes to multiple instances simultaneously. By authoring a single opinion on a shared target, you can broadcast modifications to all instances that inherit or specialize from that target, making this approach ideal for bulk modifications across related instances.
