Deinstancing Refinement#

What Is Deinstancing Refinement?#

The simplest way to edit or override an instance is to disable instancing for that instance.

Deinstance refinement#

At any point downstream, we can enable or disable instancing on a prim. If we have a use case where we just need to open one box, what we’ll do is we’ll set instanceable = false and now we can apply the overrides to open thet box.

If you just have one thing that needs to be promoted to be treated uniquely from the rest of the copies, it’s totally reasonable to deinstance it in a stronger layer.

You will still benefit from all the performance benefits from composition and modular asset reuse. You are just losing a little bit of the instancing performance benefits for the copy you deinstanced.

Deinstancing is simple and convenient, but if you find yourself wanting to deinstance many copies of a prototype to introduce more diversity in your scenes, then one or more of the other refinement techniques may be better suited.

Exercise: Deinstance Refinement#

Introduction#

In this exercise, you will learn the simplest refinement technique: deinstancing. You’ll disable instancing on specific instanceable prims to regain full editability, then observe how this affects stage statistics. This approach trades some optimization for complete control over individual instances.

We will pretend we’ve been asked to hide the decal on box similar to Exercise: Instance Editability, but this time we will apply the override successfully using deinstance refinement.

Deinstancing a Single Instance#

If we wanted to hide the decal on a box, a simple approach is to use deinstancing. We will lose some optimization in the process, but get back full editability for that copy of the box.

  1. Run in the terminal:

Windows:

.\scripts\usdview.bat .\instancing\ex_sg_deinstance_refine\Scenario.usd  --camera ExCam_01

Linux:

./scripts/usdview.sh ./instancing/ex_sg_deinstance_refine/Scenario.usd --camera ExCam_01

Tip

Click Camera > Select Camera > ExCam_01 if you ever lose your place in the scene or want to get back to this camera position.

  1. Click on the top left box in the Viewport.

  1. Click Window > Interpreter to open the Interpreter window.

  2. Run the following code in the Interpreter window:

1box = usdviewApi.prim
2box.SetInstanceable(False)
3decal = box.GetChild("SM_CubeBox_A04_Decal_01")
4decal_vis = decal.GetAttribute("visibility")
5decal_vis.Set(UsdGeom.Tokens.invisible)

Tip

usdview has a special UsdViewApi object–accessible from usdviewApi in the Interpreter window–that gives us convenient context-aware access to our selections.

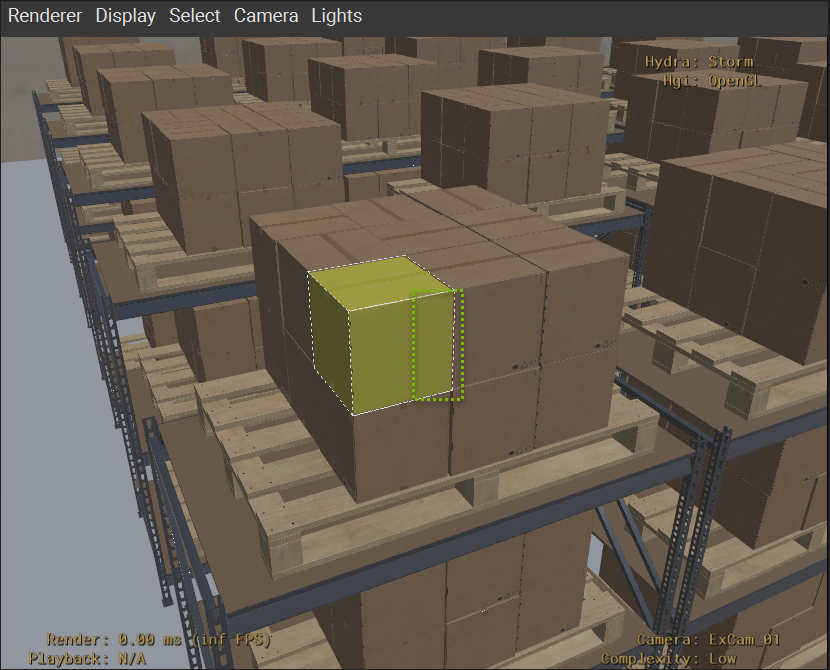

In Step 2, we selected the instanceable prim we want to deistance. We can get a Usd.Prim object for our selection using usdviewApi.prim. This code deinstanced the cube box asset by setting instanceable = false. We were then able to edit the child decal prim to hide it without any problems. Your box should look like this now with the hidden decal:

  1. Run the following code in the Interpreter window:

1from pprint import pprint
2stats = UsdUtils.ComputeUsdStageStats(usdviewApi.stage)
3pprint(stats)

The trade-off is that we are introducing more total prims by using less instancing. Here’s a summarized comparison:

Scenario

Prims

Instances

Prototypes

Instancing

1711

1450

3

1 Deinstanced Box

1741

1449

3

This is reasonable if you need to make a small amount of targeted edits to instances. It’s simple and convenient. If we need to make broader, sweeping changing, then some of the other refinement technique may be better suited.

Let’s deinstance another instanceable prim to see how that impacts the stage statistics.

Deinstancing Multiple Instances#

Let’s say we needed to make changes to more boxes. Let’s apply the same decal visibility change to another box.

  1. Click on the box to the right of your current selection in the Viewport.

  1. Run the following code in the Interpreter window:

1box = usdviewApi.prim
2box.SetInstanceable(False)
3decal = box.GetChild("SM_CubeBox_A04_Decal_01")
4decal_vis = decal.GetAttribute("visibility")
5decal_vis.Set(UsdGeom.Tokens.invisible)

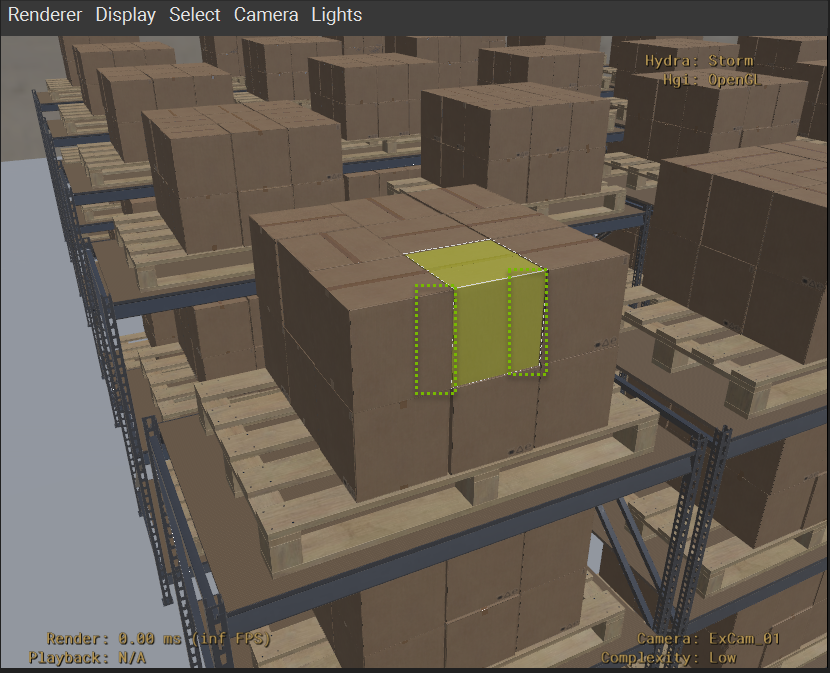

The decal on that box should now be hidden too.

  1. Run the following code in the Interpreter window:

1from pprint import pprint
2stats = UsdUtils.ComputeUsdStageStats(usdviewApi.stage)
3pprint(stats)

The more we deinstance, the more optimizations we lose. Here’s a summarized comparison:

Scenario

Prims

Instances

Prototypes

Instancing

1711

1450

3

1 Deinstanced Box

1741

1449

3

2 Deinstanced Boxes

1771

1448

3

You can see that the complexity scales linearly the more box assets that we deinstance. This will vary though depending on the variety and complexity of the assets you deinstance.

For identical overrides like we’ve applied on these two boxes, it would be more optimal for OpenUSD to create a new prototype that could be share by the decal-less boxes. In the next units, we will learn about other refinement techniques that do just that.

  1. Close usdview.

Conclusion#

You’ve successfully learned deinstancing refinement, the simplest technique for gaining full editability over specific instances. While this approach trades some performance optimization for complete control, you’ve seen how it enables precise modifications to individual repeated assets when needed, making it ideal for unique cases requiring detailed customization.
