Body Pose Estimation

BodyPoseNet is an NVIDIA-developed multi-person body pose estimation network included in the TAO Toolkit. It aims to predict the skeleton for every person in a given input image, which consists of keypoints and the connections between them. BodyPoseNet follows a single-shot, bottom-up methodology, so there is no need for a person detector. The pose/skeleton output is commonly used as input for applications like activity/gesture recognition, fall detection, and posture analysis, among others.

BodyPoseNet supports the following sub-tasks:

• dataset_convert

• train

• evaluate

• inference

• prune

• export

These tasks may be invoked from the TAO Toolkit Launcher using the following command line convention:




tao bpnet <sub_task> <args_per_subtask>


where args_per_subtask are the command line arguments required for a given subtask. Each of these sub-tasks are explained in detail below.

The BodyPoseNet apps in TAO Toolkit expect data in COCO format for training and evaluation.

See the Data Annotation Format page for more information about the COCO data format.

The Sloth and Label Studio tools may be used for labeling.

The BodyPoseNet app requires the data in a specific JSON format to be converted to TFRecords using thedataset_convert tool, which requires a configuration file as input. The configuration file details and sample usage examples are included in the following sections.

The dataset_convert tool takes in a defined JSON data format and converts it to the TFRecords format that the BpNet model ingests. See the following sections for sample usage examples.

Create a Configuration File for the Dataset Converter

The dataset_convert tool provides several configurable parameters. The parameters are encapsulated in a spec file, which defines the dataset structure needed to convert data from COCO format to the TFRecords format that the BodyPoseNet trainer can ingest. This spec file is required to run any of the dataset_convert, train, evaluate, or inference commands for BpNet.

A sample dataset configuration file is shown below.




{
    "dataset": "coco",
    "root_directory_path": "/workspace/tao-experiments/bpnet/data",
    "train_data": {
        "images_root_dir_path": "train2017",
        "mask_root_dir_path": "train_mask2017",
        "annotation_root_dir_path": "annotations/person_keypoints_train2017.json"
    },
    "test_data": {
        "images_root_dir_path": "val2017",
        "mask_root_dir_path": "val_mask2017",
        "annotation_root_dir_path": "annotations/person_keypoints_val2017.json"
    },
    "duplicate_data_with_each_person_as_center": true,
    "categories": [
        {
            "supercategory": "person",
            "id": 1,
            "name": "person",
            "num_joints": 17,
            "keypoints": [
                "nose","left_eye","right_eye","left_ear","right_ear",
                "left_shoulder","right_shoulder","left_elbow","right_elbow",
                "left_wrist","right_wrist","left_hip","right_hip",
                "left_knee","right_knee","left_ankle","right_ankle"
            ],
            "skeleton": [
                [16,14],[14,12],[17,15],[15,13],[12,13],[6,12],[7,13],[6,7],
                [6,8],[7,9],[8,10],[9,11],[2,3],[1,2],[1,3],[2,4],[3,5],[4,6],[5,7]
            ],
            "skeleton_edge_names": [
                ["left_ankle", "left_knee"], ["left_knee", "left_hip"], ["right_ankle", "right_knee"],
                ["right_knee", "right_hip"], ["left_hip", "right_hip"], ["left_shoulder", "left_hip"],
                ["right_shoulder", "right_hip"], ["left_shoulder", "right_shoulder"], ["left_shoulder", "left_elbow"],
                ["right_shoulder", "right_elbow"], ["left_elbow", "left_wrist"], ["right_elbow", "right_wrist"],
                ["left_eye","right_eye"], ["nose","left_eye"], ["nose","right_eye"],
                ["left_eye","left_ear"], ["right_eye","right_ear"], ["left_ear", "left_shoulder"],
                ["right_ear", "right_shoulder"]
            ]
        }
    ],
    "visibility_flags": {
        "value": {
            "visible": 2,
            "occluded": 1,
            "not_labeled": 0
        },
        "mapping": {
            "visible": "visible",
            "occluded": "occluded",
            "not_labeled": "not_labeled"
        }
    },
    "data_filtering_params": {
        "min_acceptable_height": 32,
        "min_acceptable_width": 32,
        "min_acceptable_kpts": 5,
        "min_acceptable_interperson_dist_ratio": 0.3
    }
}





tao bpnet dataset_convert -d <path/to/dataset_spec>
                          -o <path_to_output_tfrecords>
                          -m <'train'/'test'>
                          --generate_masks


Here’s an example usage of dataset converter tool to convert a COCO-trained dataset to TFRecords:




tao bpnet dataset_convert -d /workspace/examples/bpnet/data_pose_config/coco_spec.json
                          -o /workspace/tao-experiments/bpnet/data/train
                          -m 'train'
                          --generate_masks


Required Arguments

• -d, --dataset_spec: The path to the JSON dataset spec containing the config for exporting .tfrecords.

• -o, --output_filename: The output file name. Note that this will be appended with -fold-<num>-of-<total>

Optional Arguments

• -h, --help: Show the help message.

• -m, --mode: This corresponds to the train_data and test_data fields in the spec. The default value is train.

• --check_files: Check if the files, including images and masks, exist in the given root data directory.

• --generate_masks: Generate and save masks of regions with unlabeled people. This is used for training.

To perform training for BodyPoseNet, several components need to be configured, each with their own parameters.

The specification file for BodyPoseNet training configures these components of the training pipe:

• Trainer

• Dataloader

• Augmentation

• Label Processor

• Model

• Optimizer

• Loss

Trainer

Here’s a sample list of parameters to configure the BpNet trainer.




__class_name__: BpNetTrainer
checkpoint_dir: /workspace/tao-experiments/bpnet/models/exp_m1_unpruned
log_every_n_secs: 30
checkpoint_n_epoch: 5
num_epoch: 100
summary_every_n_steps: 20
infrequent_summary_every_n_steps: 0
validation_every_n_epoch: 5
max_ckpt_to_keep: 100
random_seed: 42
pretrained_weights: null
load_graph: False
finetuning_config:
  is_finetune_exp: False
  checkpoint_path: null
  ckpt_epoch_num: 0
use_stagewise_lr_multipliers: True
dataloader:
  ...
  augmentation_config:
    ...
  label_processor_config:
    ...
model:
  ...
optimizer:
  ...
loss:
  ...


The following table describes the trainer parameters:

Model

The BodyPoseNet model can be constructed/configured using the model option in the spec file.

The following is a sample model config to instantiate bodyposenet model with pretrained weights.




pretrained_weights: /workspace/tao-experiments/bpnet/pretrained_model/tlt_bodyposenet_vtrainable_v1.0/model.tlt
load_graph: False
model:
 __class_name__: BpNetLiteModel
 backbone_attributes:
   architecture: vgg
   mtype: default
   use_bias: False
 stages: 3
 heat_channels: 19
 paf_channels: 38
 use_self_attention: False
 data_format: channels_last
 use_bias: True
 regularization_type: l1
 kernel_regularization_factor: 5.0e-4
 bias_regularization_factor: 0.0
 kernel_initializer: random_normal


The following table describes the trainer parameters:

Loss

This section describes how to configure the cost function to select the type of loss.




loss:
  __class_name__: BpNetLoss


The following table describes the parameters used to configure loss:

Optimizer

This section describes how to configure the optimizer and learning-rate schedule:




optimizer:
  __class_name__: WeightedMomentumOptimizer
  learning_rate_schedule:
    __class_name__: SoftstartAnnealingLearningRateSchedule
    soft_start: 0.05
    annealing: 0.5
    base_learning_rate: 2.e-5
    min_learning_rate: 8.e-08
    last_step: null
  grad_weights_dict: null
  weight_default_value: 1.0
  momentum: 0.9
  use_nesterov: False


The following table describes the parameters used to configure the optimizer:

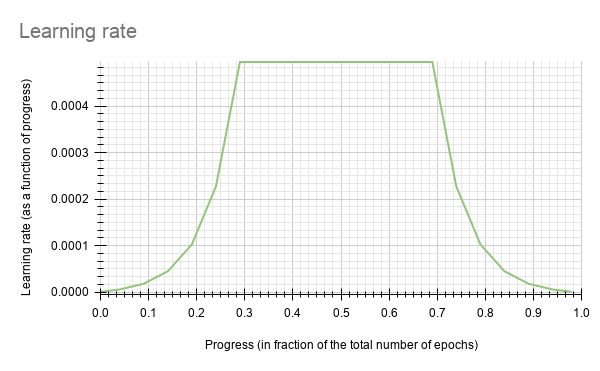

BodyPoseNet currently supports the soft_start annealing learning rate schedule. The learning rate when plotted as a function of the training progress (0.0, 1.0) results in the following curve:

In this experiment, the soft_start was set as 0.05 and annealing as 0.5, with the minimum learning rate as 8e-8 and maximum learning rate, or base_learning_rate, as 2e-5.

Dataloader

This section helps you configure the dataloader as follows:

• Defining data paths you want to train on

• Image configuration

• The target pose configuration to use

• Normalization configuration

• Augmentation configuration, which is expanded upon in the next section

• The label processor or ground truth generator configuration, which is expanded upon in the next section




dataloader:
  __class_name__: BpNetDataloader
  batch_size: 10
  shuffle_buffer_size: 20000
  image_config:
    image_dims:
      height: 256
      width: 256
      channels: 3
    image_encoding: jpg
  pose_config:
    __class_name__: BpNetPoseConfig
    target_shape: [32, 32]
    pose_config_path: /workspace/examples/bpnet/model_pose_config/bpnet_18joints.json
  dataset_config:
    root_data_path: /workspace/tao-experiments/bpnet/data/
    train_records_folder_path: /workspace/tao-experiments/bpnet/data
    train_records_path: [train-fold-000-of-001]
    val_records_folder_path: /workspace/tao-experiments/bpnet/data
    val_records_path: [val-fold-000-of-001]
    dataset_specs:
      coco: /workspace/examples/bpnet/data_pose_config/coco_spec.json
  normalization_params:
    image_scale: [256.0, 256.0, 256.0]
    image_offset: [0.5, 0.5, 0.5]
    mask_scale: [255.0]
    mask_offset: [0.0]
  augmentation_config:
    ...
  label_processor_config:
    ...


The following table describes the dataloader parameters:

Augmentation Module

The augmentation module provides some basic on-the-fly augmentation options. Here is a sample augmentation_config element:




augmentation_config:
  __class_name__: AugmentationConfig
  spatial_augmentation_mode: person_centric
  spatial_aug_params:
    flip_lr_prob: 0.5
    flip_tb_prob: 0.0
    rotate_deg_max: 40.0
    rotate_deg_min: -40.0
    zoom_prob: 0.0
    zoom_ratio_min: 1.0
    zoom_ratio_max: 1.0
    translate_max_x: 40.0
    translate_min_x: -40.0
    translate_max_y: 40.0
    translate_min_y: -40.0
    use_translate_ratio: False
    translate_ratio_max: 0.2
    translate_ratio_min: -0.2
    target_person_scale: 0.6
  identity_spatial_aug_params: null


spatial_aug_params: This module supports basic spatial augmentation such as flip, zoom, rotate, and translate, which may be configured.

Label Processor Module

The label processor module provides the required parameters to change ground truth feature map generation. Here is a sample label_processor_config element:




label_processor_config:
  paf_gaussian_sigma: 0.03
  heatmap_gaussian_sigma: 7.0
  paf_ortho_dist_thresh: 1.0


After following the steps to Generate Tfrecords and Masks to create TFRecords ingestible by the TAO training and setting up a train_spec, you are now ready to start training the bodypose estimation network.

The following command outlines the BodyPoseNet training command:




tao bpnet train -e <path/to/train_spec>
                -r <path/to/result directory>
                -k <key>
                --gpus <num_gpus>


Required Arguments

• -e, --experiment_spec_file: The path to the train_spec file. The path may be absolute or relative to the working directory.

• -r, --results_dir: The path to a folder where experiment outputs should be written, including checkpoints, logs etc.

• -k, –key: A user-specific encoding key to save or load a .tlt model.

Optional Arguments

• -h, --help: Prints the help message.

• -l, --log_level: Sets the logging level.

• --gpus: The number of GPUs to use and processes to launch for training. The default value is 1.

• --gpu_index: The indices of the GPUs to use for training. The GPUs are referenced as per the indices mentioned in the ./deviceQuery CUDA samples.

To perform evaluation and inference for BodyPoseNet, you need to configure several components, each with their own parameters in an inference spec file.

Here’s a sample list of parameters to config BpNet infer specification for evaluation and inference.




model_path: /workspace/tao-experiments/bpnet/models/exp_m1_unpruned/bpnet_model.tlt
train_spec: /workspace/examples/bpnet/specs/bpnet_train_m1_coco.yaml
input_shape: [368, 368]
# choose from: {pad_image_input, adjust_network_input, None}
keep_aspect_ratio_mode: adjust_network_input
output_stage_to_use: null
output_upsampling_factor: [8, 8]
heatmap_threshold: 0.1
paf_threshold: 0.05
multi_scale_inference: False
scales: [0.5, 1.0, 1.5, 2.0]


The inference task for BpNet may be used to visualize the pose predictions. An example of the command for this task is shown below:




tao bpnet inference --inference_spec <path/to/inference_spec>
                    --model_filename <path/to/model_filename>
                    --input_type <image/dir/json>
                    --input <path/to/input>
                    --results_dir <results directory>
                    --dump_visualizations
                    -k $KEY

tao bpnet inference --inference_spec $SPECS_DIR/infer_spec.yaml \
                    --model_filename $USER_EXPERIMENT_DIR/models/exp_m1_unpruned/$MODEL_CHECKPOINT \
                    --input_type json \
                    --input $USER_EXPERIMENT_DIR/data/viz_example_data.json \
                    --results_dir $USER_EXPERIMENT_DIR/results/exp_m1_unpruned/infer_default \
                    --dump_visualizations \
                    -k $KEY


Required Parameters

• -i, --inference_spec: The path to an inference spec file

• -k, --key: The key to load the model. This is a required parameter for an encrypted .tlt model,but is optional for a TRT .engine.

• --results_dir: The path to a folder where experiment outputs should be written

• --input_type: The input type, either image, dir, or json

• --input: The absolute or relative path to the input to run inference on

Optional Parameters

• -h, --help: Prints the help message.

• -l, --log_level: Sets the logging level.

• -m, --model_filename: The path to the model file to use for inference. When specified, this path overrides the model_path in inference spec file.

• --image_root_path: The root directory path to the image(s). If specified, image paths are assumed to be relative to this. This is relevant if the input_type is json.

• --dump_visualizations: If enabled, saves images with inference visualization to the results/images_annotated directory.

The inference tool produces two outputs:

• Frame-by-frame keypoint labels in <results_dir>/detection.json.

• Images with keypoint results rendered are saved to <results_dir>/images_annotated (when --dump_visualizations is enabled)

Execute evaluate on a BodyPoseNet model.

Note that you must first create TFRecords for this test set by following the steps listed in the Pre-processing the Dataset section.




tao bpnet evaluate [-h] -i <inference_spec>
                        -d <dataset_spec>
                        -m <model_file>
                        -r <results directory>
                        -k <key>


Required Arguments

• -i, --inference_spec: The inference spec file to set up the evaluation experiment.

• -k, --key: The key to load the model. This is a required parameter for an encrypted .tlt model, but is optional for a TRT .engine.

• -d, --dataset_spec: The path to the datset_spec to run evaluation on. The model is evaluated on the test_data specified in the dataset_spec.

• -r, --results_dir: The path to a folder where experiment outputs should be written.

Optional Arguments

• -h, --help: Prints the help message.

• -l, --log_level: Sets the logging level.

• -m, --model_filename: The path to the model file to use for evaluation. When specified, this path overrides the model_path in inference spec file.

Pruning removes parameters from the model to reduce the model size without compromising the integrity of the model itself using the prune command.

The prune task includes these parameters:




tao bpnet prune -m <pretrained_model>
                -o <output_file>
                -k <key>
                [-n <normalizer>]
                [-eq <equalization_criterion>]
                [-pg <pruning_granularity>]
                [-pth <pruning threshold>]
                [-nf <min_num_filters>]
                [-el [<excluded_list>]


Required Arguments

• -m, --model: The path to the pretrained model for pruning

• -o, --output_file: The path to the output pruned model

• -k, --key: The key to load a .tlt model

Optional Arguments

• -h, --help: Prints the help message.

• -n, –normalizer: Specify max to normalize by dividing each norm by the maximum norm within a layer; specify L2 to normalize by dividing by the L2 norm of the vector comprising all kernel norms. The default value is max.

• -eq, --equalization_criterion: Criteria to equalize the stats of inputs to an element-wise op layer or depth-wise convolutional layer. This parameter is useful for resnets and mobilenets. The options are arithmetic_mean, geometric_mean, union, and intersection (default: union).

• -pg, -pruning_granularity: The number of filters to remove at a time (default:8)

• -pth: The threshold to compare the normalized norm against (default:0.1)

• -nf, --min_num_filters: The minimum number of filters to keep per layer (default:16)

• -el, --excluded_layers: A list of excluded_layers (e.g. -i item1 item2) (default: [])

After pruning, the model needs to be retrained. See Re-train the Pruned Model for more details.

Using the Prune Command

Here’s an example of using the prune task:




tao bpnet prune -m /workspace/tao-experiments/bpnet/models/exp_m1_unpruned/bpnet_model.tlt
                -o /workspace/tao-experiments/bpnet/models/exp_m1_pruned/bpnet_model.pruned-0.2.tlt
                -eq union
                -pth 0.2
                -k $KEY


Once the model has been pruned, there might be a slight decrease in accuracy because some previously useful weights may have been removed. To regain the accuracy, we recommend retraining this pruned model over the same dataset using the train task, as documented in the Train the model section, with an updated spec file that points to the newly pruned model as the pretrained model file. All other parameters may be retained in the spec file from the previous training.

To load the pruned model, set the load_graph flag in train_spec to true.

The BodyPoseNet model application in the TAO Toolkit includes an export sub-task to export and prepare a trained BodyPoseNet model for verification and deployment. The export sub-task optionally generates the calibration cache for TensorRT INT8 engine calibration.

Exporting the model decouples the training process from deployment and allows conversion to TensorRT engines outside the TAO environment. TensorRT engines are specific to each hardware configuration and should be generated for each unique inference environment. This may be interchangeably referred to as a .trt or .engine file. The same exported TAO model may be used universally across training and deployment hardware. This is referred to as the .etlt file, or encrypted TAO file. During model export, the TAO model is encrypted with a private key, which is required when you deploy this model for inference.

Choose Network Input Resolution for Deployment

The network input resolution of the model is one of the major factors that determine the accuracy of bottom-up approaches. Bottom-up methods have to feed the whole image at once, resulting in smaller resolution per person. Hence, higher-input resolution will yield better accuracy, especially on small- and medium-scale persons (w.r.t the image scale). Also note that with higher input resolution, the runtime of the CNN will also be higher. Therefore, the accuracy/runtime tradeoff should be decided based on the accuracy and runtime requirements for the target usecase.

Height of the desired network

You will need to choose a resolution that works best depending on the target use case and the compute or latency constraints. If your application involves pose estimation for one or more persons close to the camera, such that the scale of the person is relatively large, then you can go with a smaller network input resolution. Whereas if you are targeting use for persons with smaller relative scales, as with crowded scenes, you might want to go with a higher network input resolution. For instance, if your application has a person with height of about 25% of the image, the final resized height would be as follows:

• 56px for network height of 224

• 72px for network height of 288

• 80px for network height of 320

The network with 320 height has maximum resolution for the person and hence would be more accurate.

Width of the desired network

Once you freeze the height of the network, the width can be decided based on the aspect ratio for your input data used during deployment time. Or you can also follow a standard multiple of 32/64 closest to the aspect ratio.

Illustration of accuracy/runtime variation for different resolutions

Note that these are approximate runtimes/accuracies for the default architecture and train_spec. Any changes to the architecture or params will yield different results. This is primarily to get a better sense of which resolution would suit your needs. The runtimes provided are for the CNN

You can expect to see a 7-10% mAP increase in the area=medium category when going from 224x320 to 288x384, and an additional 7-10% mAP when you go to 320x448. The accuracy for area=large remains almost the same across these resolutions, so you can stick to a lower resolution if this is what you need. As per COCO keypoint evaluation, the medium area is defined as persons occupying less than the area between 36^2 to 96^2. Anything above it is categorized as large.

INT8 Mode Overview

TensorRT engines can be generated in INT8 mode to run with lower precision, and thus improve performance. This process requires a cache file that contains scale factors for the tensors to help combat quantization errors, which may arise due to low-precision arithmetic. The calibration cache is generated using a calibration tensorfile when export is run with the --data_type flag set to int8. Pre-generating the calibration information and caching it removes the need for calibrating the model on the inference machine. Moving the calibration cache is usually much more convenient than moving the calibration tensorfile since it is a much smaller file and can be moved with the exported model. Using the calibration cache also speeds up engine creation, as building the cache can take several minutes to generate depending on the size of the Tensorfile and the model itself.

The export tool can generate an INT8 calibration cache by ingesting a sampled subset of training data. You need to create a sub-sampled directory of random images that best represent your test dataset. We recommend using at least 10-20% of the training data. The more data provided during calibration, the closer int8 inferences are to fp32 inferences. A helper script is provided with the sample notebook to select the subset data from the given training data based on several criteria, like minimum number of persons in the image, minimum number of keypoints per person, etc.

Based on the evaluation results of the INT8 model, you might need to adjust the number of sampled images or the kind of selected to images to better represent test dataset. You can also use a portion of data from the test data for calibration to improve the results.

FP16/FP32 Model

The calibration.bin is only required if you need to run inference at INT8 precision. For FP16/FP32 based inference, the export step is much simpler. All that is required is to provide a model from the train step to export to convert it into an encrypted TAO model.

Export the BodyPoseNet Model

The following are command line arguments for the export command:




tao bpnet export [-h] -m <path to the .tlt model file generated by tao train>
                      -k <key>
                      [-o <path to output file>]
                      [--cal_data_file <path to tensor file>]
                      [--cal_image_dir <path to the directory images to calibrate the model]
                      [--cal_cache_file <path to output calibration file>]
                      [--data_type <Data type for the TensorRT backend during export>]
                      [--batches <Number of batches to calibrate over>]
                      [--max_batch_size <maximum trt batch size>]
                      [--max_workspace_size <maximum workspace size]
                      [--batch_size <batch size to TensorRT engine>]
                      [--experiment_spec <path to experiment spec file>]
                      [--engine_file <path to the TensorRT engine file>]
                      [--verbose Verbosity of the logger]
                      [--input_dims Input dimensions to use for network]
                      [--backend Intermediate model type to export to]
                      [--force_ptq Flag to force PTQ]


Required Arguments

• -m, --model: The path to the .tlt model file to be exported using export

• -k, --key: The key used to save the .tlt model file

• -t, --backend: The backend type used to convert to .etlt model file.

Optional Arguments

• -o, --output_file: The path to save the exported model to. The default path is <input_file>.etlt.

• --e, -experiment_spec: The experiment_spec used for training.

• --data_type: The desired engine data type. The options are fp32, fp16, and int8. A calibration cache will be generated in int8 mode. The default value is fp32. If using int8 mode, the following INT8 arguments are required.

• -s, --strict_type_constraints: A Boolean flag to indicate whether or not to apply the TensorRT strict_type_constraints when building the TensorRT engine. Note this is only for applying the strict type of int8 mode.

INT8 Export Mode Required Arguments

• --cal_image_dir: The directory of images that is preprocessed and used for calibration.

• --cal_data_file: The tensorfile generated using images in cal_image_dir for calibrating the engine. If this already exists, it is directly used to calibrate the engine. The INT8 tensorfile is a binary file that contains the preprocessed training samples.

INT8 Export Optional Arguments

• --cal_cache_file: The path to save the calibration cache file to. The default value is ./cal.bin. If this file already exists, the calibration step is skipped.

• --batches: The number of batches to use for calibration and inference testing. The default value is 10.

• --batch_size: The batch size to use for calibration. The default value is 1.

• --max_batch_size: The maximum batch size of the TensorRT engine. The default value is 1.

• --max_workspace_size: The maximum workspace size of the TensorRT engine. The default value is 2 * (1 << 30).

• --experiment_spec: The experiment_spec used for training. This argument is used to obtain the parameters to preprocess the data used for calibration.

• --engine_file: The path to the serialized TensorRT engine file. Note that this file is hardware specific and cannot be generalized across GPUs. Use this argument to quickly test your model accuracy using TensorRT on the host. As the TensorRT engine file is hardware specific, you cannot use this engine file for deployment unless the deployment GPU is identical to the training GPU.

• --force_ptq: A Boolean flag to force post-training quantization on the exported .etlt model.

Sample usage for the export sub-task

The following is a sample command to export a BodyPoseNet model in INT8 mode. This command shows usage of the --cal_image_dir option for a BodyPoseNet model calibration.




# Export `.etlt` model, Calibrate model and Convert to TensorRT engine (INT8).
  tao bpnet export
      -m /workspace/tao-experiments/bpnet/models/exp_m1_retrain/bpnet_model.tlt
      -o /workspace/tao-experiments/bpnet/models/exp_m1_final/bpnet_model.etlt
      -k $KEY
      -d $IN_HEIGHT,$IN_WIDTH,$IN_CHANNELS
      -e $SPECS_DIR/bpnet_retrain_m1_coco.txt
      -t tfonnx
      --data_type int8
      --cal_image_dir /workspace/tao-experiments/bpnet/data/train2017/
      --cal_cache_file /workspace/tao-experiments/bpnet/models/exp_m1_final/calibration.$IN_HEIGHT.$IN_WIDTH.bin
      --cal_data_file /workspace/tao-experiments/bpnet/models/exp_m1_final/coco.$IN_HEIGHT.$IN_WIDTH.tensorfile
      --batch_size 1
      --batches 5000
      --max_batch_size 1
      --data_format channels_last
      --engine_file /workspace/tao-experiments/bpnet/models/exp_m1_final/bpnet_model.$IN_HEIGHT.$IN_WIDTH.int8.engine


The following is a sample command to export a BodyPoseNet model in INT8 mode:




# Export `.etlt` model and Convert to TensorRT engine (FP16).
tao bpnet export
    -m /workspace/tao-experiments/bpnet/models/exp_m1_retrain/bpnet_model.tlt
    -o /workspace/tao-experiments/bpnet/models/exp_m1_final/bpnet_model.etlt
    -k $KEY
    -d $IN_HEIGHT,$IN_WIDTH,$IN_CHANNELS
    -e $SPECS_DIR/bpnet_retrain_m1_coco.txt
    -t tfonnx
    --data_type fp16
    --batch_size 1
    --max_batch_size 1
    --data_format channels_last
    --engine_file /workspace/tao-experiments/bpnet/models/exp_m1_final/bpnet_model.$IN_HEIGHT.$IN_WIDTH.fp16.engine


Evaluate the exported TRT Model

Evaluating the exporter TRT .engine is similar to evaluating .tlt.

Follow the instructions as described in the Create an Inference Specification File section to create the infer_spec file. Note that the adjust_network_input mode in keep_aspect_ratio_mode is not supported for the exported TRT model, so pad_image_input (Strict mode) should be used instead. Follow the instructions in the Evaluate the Model section to evaluate the TRT model.

You can run evaluation of the .tlt model in strict mode as well to compare with the accuracies of the INT8/FP16/FP32 models for any drop in accuracy. The FP16/FP32 models should have little or no drop in accuracy when compared to the .tlt model in this step. The INT8 models would have similar accuracies (or comparable within a 2-3% mAP range) to the .tlt model.

If the accuracy of the INT8 model seems to degrade significantly compared to the corresponding FP16 version, it could be caused by the following:

• There wasn’t enough data in the calibration tensorfile used to calibrate the model.

• The training data is not entirely representative of your test images, and the calibration may be incorrect. Therefore, you may either regenerate the calibration tensorfile with more batches of the training data and recalibrate the model, or add a portion of data from the test set.

Export the Deployable BodyPoseNet Model

Once the INT8/FP16/FP32 model is verified, you need to re-export the model so it can be used to run on inference platforms like Deepstream. You will use the same guidelines as in the Exporting the Model section, but you need to add the --sdk_compatible_model flag to the export command, which adds a few non-traininable post-process layers to the model to enable compatibility with the inference pipelines. You should re-use the calibration tensorfile (--cal_data_file) generated in the previous step to keep it consistent, but you will need to regenerate the cal_cache_file and the .etlt model.

The following is a sample command to export a BodyPoseNet model in INT8 mode (similar to previous section), which can be deployed in the inference pipelines.




tao bpnet export
    -m /workspace/tao-experiments/bpnet/models/exp_m1_retrain/bpnet_model.tlt
    -o /workspace/tao-experiments/bpnet/models/exp_m1_final/bpnet_model.deploy.etlt
    -k $KEY
    -d $IN_HEIGHT,$IN_WIDTH,$IN_CHANNELS
    -e $SPECS_DIR/bpnet_retrain_m1_coco.txt
    -t tfonnx
    --data_type int8
    --cal_image_dir /workspace/tao-experiments/bpnet/data/train2017/
    --cal_cache_file /workspace/tao-experiments/bpnet/models/exp_m1_final/calibration.$IN_HEIGHT.$IN_WIDTH.deploy.bin
    --cal_data_file /workspace/tao-experiments/bpnet/models/exp_m1_final/coco.$IN_HEIGHT.$IN_WIDTH.tensorfile
    --batch_size 1
    --batches 5000
    --max_batch_size 1
    --data_format channels_last
    --engine_file /workspace/tao-experiments/bpnet/models/exp_m1_final/bpnet_model.$IN_HEIGHT.$IN_WIDTH.int8.deploy.engine
    --sdk_compatible_model


The tao-converter tool is provided with the TAO Toolkit to facilitate the deployment of TAO trained models on TensorRT and/or Deepstream. This section elaborates on how to generate a TensorRT engine using tao-converter.

For deployment platforms with an x86-based CPU and discrete GPUs, the tao-converter is distributed within the TAO docker. Therefore, we suggest using the docker to generate the engine. However, this requires that the user adhere to the same minor version of TensorRT as distributed with the docker. The TAO docker includes TensorRT version 8.0.

Instructions for x86

For an x86 platform with discrete GPUs, the default TAO package includes the tao-converter built for TensorRT 8.2.5.1 with CUDA 11.4 and CUDNN 8.2. However, for any other version of CUDA and TensorRT, please refer to the overview section for download. Once the tao-converter is downloaded, follow the instructions below to generate a TensorRT engine.

1. Unzip the zip file on the target machine.

2. Install the OpenSSL package using the command:

   Copy

   Copied!




   sudo apt-get install libssl-dev


3. Export the following environment variables:




$ export TRT_LIB_PATH=”/usr/lib/x86_64-linux-gnu”
$ export TRT_INC_PATH=”/usr/include/x86_64-linux-gnu”


4. Run the tao-converter using the sample command below and generate the engine.

Instructions for Jetson

For the Jetson platform, the tao-converter is available to download in the NVIDIA developer zone. You may choose the version you wish to download as listed in the overview section. Once the tao-converter is downloaded, please follow the instructions below to generate a TensorRT engine.

1. Unzip the zip file on the target machine.

2. Install the OpenSSL package using the command:

   Copy

   Copied!




   sudo apt-get install libssl-dev


3. Export the following environment variables:




$ export TRT_LIB_PATH=”/usr/lib/aarch64-linux-gnu”
$ export TRT_INC_PATH=”/usr/include/aarch64-linux-gnu”


1. For Jetson devices, TensorRT comes pre-installed with Jetpack. If you are using older JetPack, upgrade to JetPack-5.0DP.

2. Run the tao-converter using the sample command below and generate the engine.

Using the tao-converter




tao converter input_file
                  -k <encryption_key>
                  -d <input_dimensions>
                  -o <comma separated output nodes>
                  [-c <path to calibration cache file>]
                  [-e <path to output engine>]
                  [-b <calibration batch size>]
                  [-m <maximum batch size of the TRT engine>]
                  [-t <engine datatype>]
                  [-w <maximum workspace size of the TRT Engine>]
                  [-i <input dimension ordering>]
                  [-p <optimization_profiles>]
                  [-s]
                  [-u <DLA_core>]
                  [-h]


Required Arguments

• input_file: The path to the .etlt model exported using export.

• -k, --key: The key used to encode the .tlt model when doing the training.

Optional Arguments

• -e: The path to save the engine to. The default path is ./saved.engine.

• -t: The desired engine data type, which generates a calibration cache if in INT8 mode. The default value is fp32. The options are fp32, fp16, int8.

• -w: The maximum workspace size for the TensorRT engine. The default value is 1073741824(1<<30)

• -i: The input-dimension ordering. The default value is nchw. The options are nchw, nhwc, nc.

• -p: Optimization profiles for .etlt models with dynamic shape. Use a comma-separated list of optimization profile shapes in the format <input_name>,<min_shape>,<opt_shape>,<max_shape>, where each shape has the format: <n>x<c>x<h>x<w>. This can be specified multiple times if there are multiple input tensors for the model.

• -s: A Boolean value specifying whether to apply TensorRT strict-type constraints when building the TensorRT engine.

• -u: Use DLA core. Specify the DLA core index when building the TensorRT engine on Jetson devices.

INT8 Mode Arguments

• -c: The path to calibration cache file( only used in INT8 mode). The default value is ./cal.bin.

• -b: The batch size used during the export step for INT8 calibration cache generation. (default: 8).

• -m: The maximum batch size for the TensorRT engine. The default value is 16. If out-of-memory issues occur, decrease the batch size accordingly.

Example usage for BodyPoseNet




# Set dimensions of desired output model for inference/deployment
INPUT_SHAPE=288x384x3
# Set input name
INPUT_NAME=input_1:0
# Set opt profile shapes
MAX_BATCH_SIZE=1
OPT_BATCH_SIZE=1

# Convert to TensorRT engine (FP16).
tao converter /workspace/tao-experiments/bpnet/models/exp_m1_final/bpnet_model.deploy.etlt
                -k $KEY
                -t fp16
                -e /workspace/tao-experiments/bpnet/models/exp_m1_final/bpnet_model.$IN_HEIGHT.$IN_WIDTH.fp16.deploy.engine
                -p ${INPUT_NAME},1x$INPUT_SHAPE,${OPT_BATCH_SIZE}x$INPUT_SHAPE,${MAX_BATCH_SIZE}x$INPUT_SHAPE

# Convert to TensorRT engine (INT8).
tao converter /workspace/tao-experiments/bpnet/models/exp_m1_final/bpnet_model.deploy.etlt
                -k $KEY
                -t int8
                -c /workspace/tao-experiments/bpnet/models/exp_m1_final/calibration.$IN_HEIGHT.$IN_WIDTH.deploy.bin
                -e /workspace/tao-experiments/bpnet/models/exp_m1_final/bpnet_model.$IN_HEIGHT.$IN_WIDTH.fp16.deploy.engine
                -p ${INPUT_NAME},1x$INPUT_SHAPE,${OPT_BATCH_SIZE}x$INPUT_SHAPE,${MAX_BATCH_SIZE}x$INPUT_SHAPE


Deploying to DeepStream 6.0

The pretrained model for BodyPoseNet provided through NGC is available by default with DeepStream 6.0.

For more details, refer to DeepStream TAO Integration for BodyPoseNet.
