Deploying to DeepStream for MaskRCNN
NVIDIA Docs Hub  NVIDIA TAO  NVIDIA TAO Toolkit v4.0  Deploying to DeepStream for MaskRCNN

The deep learning and computer vision models that you’ve trained can be deployed on edge devices, such as a Jetson Xavier or Jetson Nano, a discrete GPU, or in the cloud with NVIDIA GPUs. TAO Toolkit has been designed to integrate with DeepStream SDK, so models trained with TAO Toolkit will work out of the box with DeepStream SDK.

DeepStream SDK is a streaming analytic toolkit to accelerate building AI-based video analytic applications. This section will describe how to deploy your trained model to DeepStream SDK.

To deploy a model trained by TAO Toolkit to DeepStream we have two options:

  • Option 1: Integrate the .etlt model directly in the DeepStream app. The model file is generated by export.

  • Option 2: Generate a device-specific optimized TensorRT engine using TAO Deploy. The generated TensorRT engine file can also be ingested by DeepStream.

  • Option 3 (Deprecated for x86 devices): Generate a device-specific optimized TensorRT engine using TAO Converter.

Machine-specific optimizations are done as part of the engine creation process, so a distinct engine should be generated for each environment and hardware configuration. If the TensorRT or CUDA libraries of the inference environment are updated (including minor version updates), or if a new model is generated, new engines need to be generated. Running an engine that was generated with a different version of TensorRT and CUDA is not supported and will cause unknown behavior that affects inference speed, accuracy, and stability, or it may fail to run altogether.

Option 1 is very straightforward. The .etlt file and calibration cache are directly used by DeepStream. DeepStream will automatically generate the TensorRT engine file and then run inference. TensorRT engine generation can take some time depending on size of the model and type of hardware.

Engine generation can be done ahead of time with Option 2: TAO Deploy is used to convert the .etlt file to TensorRT; this file is then provided directly to DeepStream. The TAO Deploy workflow is similar to TAO Converter, which is deprecated for x86 devices in TAO version 4.0.0 but is still required for deployment to Jetson devices.

See the Exporting the Model section for more details on how to export a TAO model.

TensorRT Open Source Software (OSS)

MaskRCNN, requires the generateDetectionPlugin, multilevelCropAndResizePlugin, resizeNearestPlugin and multilevelProposeROI plugins from the TensorRT OSS build.

If the deployment platform is x86 with an NVIDIA GPU, follow the TensorRT OSS on x86 instructions. On the other hand, if your deployment is on NVIDIA Jetson platform, follow the TensorRT OSS on Jetson (ARM64) instructions.

TensorRT OSS on x86

Building TensorRT OSS on x86:

  1. Install Cmake (>=3.13).

    Note

    TensorRT OSS requires cmake >= v3.13, so install cmake 3.13 if your cmake version is lower than 3.13c

    Copy
    Copied!



    sudo apt remove --purge --auto-remove cmake
wget https://github.com/Kitware/CMake/releases/download/v3.13.5/cmake-3.13.5.tar.gz
tar xvf cmake-3.13.5.tar.gz
cd cmake-3.13.5/
./configure
make -j$(nproc)
sudo make install
sudo ln -s /usr/local/bin/cmake /usr/bin/cmake

  2. Get GPU architecture. The GPU_ARCHS value can be retrieved by the deviceQuery CUDA sample:

    Copy
    Copied!



    cd /usr/local/cuda/samples/1_Utilities/deviceQuery
sudo make
./deviceQuery

    If the /usr/local/cuda/samples doesn’t exist in your system, you could download deviceQuery.cpp from this GitHub repo. Compile and run deviceQuery.

    Copy
    Copied!



    nvcc deviceQuery.cpp -o deviceQuery
./deviceQuery

    This command will output something like this, which indicates the GPU_ARCHS is 75 based on CUDA Capability major/minor version.

    Copy
    Copied!



    Detected 2 CUDA Capable device(s)

Device 0: "Tesla T4"
  CUDA Driver Version / Runtime Version          10.2 / 10.2
  CUDA Capability Major/Minor version number:    7.5

  3. Build TensorRT OSS:

    Copy
    Copied!



    git clone -b 21.08 https://github.com/nvidia/TensorRT
cd TensorRT/
git submodule update --init --recursive
export TRT_SOURCE=`pwd`
cd $TRT_SOURCE
mkdir -p build && cd build

    Note

    Make sure your GPU_ARCHS from step 2 is in TensorRT OSS CMakeLists.txt. If GPU_ARCHS is not in TensorRT OSS CMakeLists.txt, add -DGPU_ARCHS=<VER> as below, where <VER> represents GPU_ARCHS from step 2.

    Copy
    Copied!



    /usr/local/bin/cmake .. -DGPU_ARCHS=xy  -DTRT_LIB_DIR=/usr/lib/x86_64-linux-gnu/ -DCMAKE_C_COMPILER=/usr/bin/gcc -DTRT_BIN_DIR=`pwd`/out
make nvinfer_plugin -j$(nproc)

    After building ends successfully, libnvinfer_plugin.so* will be generated under \`pwd\`/out/.

  4. Replace the original libnvinfer_plugin.so*:

    Copy
    Copied!



    sudo mv /usr/lib/x86_64-linux-gnu/libnvinfer_plugin.so.8.x.y ${HOME}/libnvinfer_plugin.so.8.x.y.bak   // backup original libnvinfer_plugin.so.x.y
sudo cp $TRT_SOURCE/`pwd`/out/libnvinfer_plugin.so.8.m.n  /usr/lib/x86_64-linux-gnu/libnvinfer_plugin.so.8.x.y
sudo ldconfig

TensorRT OSS on Jetson (ARM64)

  1. Install Cmake (>=3.13)

    Note

    TensorRT OSS requires cmake >= v3.13, while the default cmake on Jetson/Ubuntu 18.04 is cmake 3.10.2.

    Upgrade TensorRT OSS using:

    Copy
    Copied!



    sudo apt remove --purge --auto-remove cmake
wget https://github.com/Kitware/CMake/releases/download/v3.13.5/cmake-3.13.5.tar.gz
tar xvf cmake-3.13.5.tar.gz
cd cmake-3.13.5/
./configure
make -j$(nproc)
sudo make install
sudo ln -s /usr/local/bin/cmake /usr/bin/cmake

  2. Get GPU architecture based on your platform. The GPU_ARCHS for different Jetson platform are given in the following table.

    Jetson Platform

    GPU_ARCHS

    Nano/Tx1

    53

    Tx2

    62

    AGX Xavier/Xavier NX

    72

  3. Build TensorRT OSS:

    Copy
    Copied!



    git clone -b 21.03 https://github.com/nvidia/TensorRT
cd TensorRT/
git submodule update --init --recursive
export TRT_SOURCE=`pwd`
cd $TRT_SOURCE
mkdir -p build && cd build

    Note

    The -DGPU_ARCHS=72 below is for Xavier or NX, for other Jetson platform, change 72 referring to GPU_ARCHS from step 2.

    Copy
    Copied!



    /usr/local/bin/cmake .. -DGPU_ARCHS=72  -DTRT_LIB_DIR=/usr/lib/aarch64-linux-gnu/ -DCMAKE_C_COMPILER=/usr/bin/gcc -DTRT_BIN_DIR=`pwd`/out
make nvinfer_plugin -j$(nproc)

    After building ends successfully, libnvinfer_plugin.so* will be generated under ‘pwd’/out/.

  4. Replace "libnvinfer_plugin.so*" with the newly generated.

    Copy
    Copied!



    sudo mv /usr/lib/aarch64-linux-gnu/libnvinfer_plugin.so.8.x.y ${HOME}/libnvinfer_plugin.so.8.x.y.bak   // backup original libnvinfer_plugin.so.x.y
sudo cp `pwd`/out/libnvinfer_plugin.so.8.m.n  /usr/lib/aarch64-linux-gnu/libnvinfer_plugin.so.8.x.y
sudo ldconfig

Integrating the model with DeepStream

For MaskRCNN, you will need to build the TensorRT open source plugins and custom bounding-box parser. The instructions are provided in the TensorRT Open Source Software (OSS) section above, and the required code can be found in this GitHub repo.

To integrate the models with DeepStream, you will need the following:

  • The DeepStream SDK (download from the DeepStream SDK Download Page). The installation instructions for DeepStream are provided in the DeepStream Development Guide.

  • An exported .etlt model file and optional calibration cache for INT8 precision.

  • TensorRT 7+ OSS Plugins

  • A labels.txt file containing the labels for classes in the order in which the networks produce outputs.

  • A sample config_infer_*.txt file to configure the nvinfer element in DeepStream. The nvinfer element handles everything related to TensorRT optimization and engine creation in DeepStream.

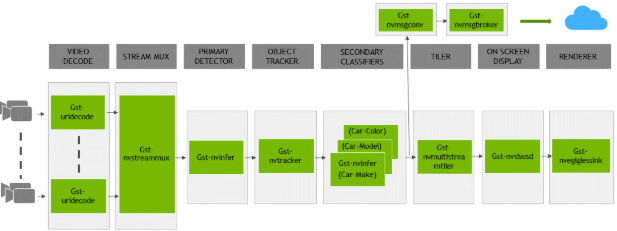

TDeepStream SDK ships with an end-to-end reference application that is fully configurable. You can configure input sources, the inference model, and output sinks. The app requires a primary object-detection model, followed by an optional secondary classification model. The reference application is installed as deepstream-app. The graphic below shows the architecture of the reference application:



Typically, two or more configuration files are used with this app. In the install directory, the config files are located in samples/configs/deepstream-app or sample/configs/tlt_pretrained_models. The main config file configures all the high-level parameters in the pipeline above. This will set the input source and resolution, number of inferences, tracker, and output sinks. The other supporting config files are for each individual inference engine. The inference-specific configuration files are used to specify the models, inference resolution, batch size, number of classes, and other customizations. The main configuration file will call all the supporting configuration files.

Here are some configuration files in samples/configs/deepstream-app for reference:

  • source4_1080p_dec_infer-resnet_tracker_sgie_tiled_display_int8.txt: The main configuration file

  • config_infer_primary.txt: The supporting configuration file for the primary detector in the pipeline above

  • config_infer_secondary_*.txt: The supporting configuration file for the secondary classifier in the pipeline above

The deepstream-app will only work with the main config file. This file will most likely remain the same for all models and can be used directly from the DeepStream SDK with little to no change. You will only need to modify or create config_infer_primary.txt and config_infer_secondary_*.txt.

Integrating a MaskRCNN Model

To run a MaskRCNN model in DeepStream, you need a label file and a DeepStream configuration file. In addition, you need to compile the TensorRT 7+ open source software and MaskRCNN output parser for DeepStream.

See here for a GitHub page containing a DeepStream sample with documentation on how to run inference using the trained MaskRCNN models from TAO Toolkit.

Prerequisites for MaskRCNN Model

  • MaskRCNN requires the generateDetectionPlugin, multilevelCropAndResizePlugin, resizeNearestPlugin and multilevelProposeROI plugins, which are available in the TensorRT open source repo. Detailed instructions to build TensorRT OSS can be found in the TensorRT Open Source Software (OSS) section.

  • MaskRCNN requires custom output parsers that are not built-in inside the DeepStream SDK. The source code to build custom bounding box parsers for MaskRCNN is available here. The following instructions can be used to build bounding box parser:

    1. Install git-lfs (git >= 1.8.2):

      Copy
      Copied!



      curl -s https://packagecloud.io/install/repositories/github/git-lfs/
script.deb.sh | sudo bash
sudo apt-get install git-lfs
git lfs install

    2. Download Source Code with SSH or HTTPS:

      Copy
      Copied!



      git clone -b release/tlt3.0 https://github.com/NVIDIA-AI-IOT/deepstream_tlt_apps

    3. Build the parser:

      Copy
      Copied!



      // or Path for DS installation
export CUDA_VER=10.2         // CUDA version, e.g. 10.2
make

      This generates libnvds_infercustomparser_tlt.so in the directory post_processor.

Label File

If the COCO annotation file has the following in “categories”:

Copy
Copied!



[{'supercategory': 'person', 'id': 1, 'name': 'person'},
 {'supercategory': 'car', 'id': 2, 'name': 'car'}]

Then the corresponding maskrcnn_labels.txt file will be as follows:

Copy
Copied!



BG
person
car

Run deepstream-app as follows:

Copy
Copied!



deepstream-app -c <deepstream-app config file>

Also, you can use deepstream-mrcnn-test to run the MaskRCNN model. See the README under $DS_TOP/source/apps/sample_apps/deepstream-mrcnn-test/.

DeepStream Configuration File

The configuration file is used by deepstream-app (see the Deepstream Configuration Guide for more details). You need to enable the display-mask under the osd group to see the mask visual view:

Copy
Copied!



[osd]
enable=1
gpu-id=0
border-width=3
text-size=15
text-color=1;1;1;1;
text-bg-color=0.3;0.3;0.3;1
font=Serif
display-mask=1
display-bbox=0
display-text=0
Nvinfer config file

The Nvinfer configuration file is used in the nvinfer plugin; see the Deepstream plugin manual for more details. The following are key parameters for running the MaskRCNN model:

Copy
Copied!



tlt-model-key=<tlt_encode or TLT Key used during model export>
tlt-encoded-model=<Path to TLT model>
parse-bbox-instance-mask-func-name=<post process parser name>
custom-lib-path=<path to post process parser lib>
network-type=3 ## 3 is for instance segmentation network
output-instance-mask=1
labelfile-path=<Path to label file>
int8-calib-file=<Path to optional INT8 calibration cache>
infer-dims=<Inference resolution if different than provided>
num-detected-classes=<# of classes if different than default>

Here’s an example:

Copy
Copied!



[property]
gpu-id=0
net-scale-factor=0.017507
offsets=123.675;116.280;103.53
model-color-format=0
tlt-model-key=<tlt_encode or TLT Key used during model export>
tlt-encoded-model=<Path to TLT model>
parse-bbox-instance-mask-func-name=NvDsInferParseCustomMrcnnTLT
custom-lib-path=<path to post process parser lib>
network-type=3 ## 3 is for instance segmentation network
labelfile-path=<Path to MaskRCNN label file>
int8-calib-file=<Path to optional INT8 calibration cache>
infer-dims=<Inference resolution if different than provided>
num-detected-classes=3
uff-input-blob-name=Input
output-blob-names=generate_detections;mask_fcn_logits/BiasAdd
batch-size=1
## 0=FP32, 1=INT8, 2=FP16 mode
network-mode=2
interval=0
gie-unique-id=1
#no cluster
## 0=Group Rectangles, 1=DBSCAN, 2=NMS, 3= DBSCAN+NMS Hybrid, 4 = None(No clustering)
## MRCNN supports only cluster-mode=4; Clustering is done by the model itself
cluster-mode=4
output-instance-mask=1

[class-attrs-all]
pre-cluster-threshold=0.8
