Introductory Example

This tutorial steps through the process of solving a 2D flow for the Lid Driven Cavity (LDC) example using physics-informed neural networks (PINNs) from NVIDIA’s Modulus software framework. In this tutorial, you will learn how to:

  1. generate a 2D geometry using Modulus’ geometry module;

  2. set up the boundary conditions;

  3. select the flow equations to be solved;

  4. interpret the different losses and tune the network; and

  5. do basic post-processing.

Note

The tutorial assumes that you have successfully downloaded the Modulus repository.

Problem Description

The geometry for the problem is shown in Fig. 3. The domain is a square cavity whose sides are each 0.1 m long. We define the center of the square as the origin of a Euclidean coordinate frame, with the x direction going left to right (increasing to the right), and the y direction going down to up (increasing up). The left, right, and bottom sides of the square domain are stationary walls, while the top wall moves in the x direction to the right at 1 \(m/s\).

An important quantity for fluid flow problems is the Reynolds number, a unitless quantity that helps describe whether flow will be more laminar (sheet-like) or turbulent. The Reynolds number is a function of the flow speed, the “characteristic length” of the problem (in this case, the cavity height), and the kinematic velocity (which we will define below). For this problem, we have chosen these quantities so that the Reynolds number is 10, indicating a more laminar flow.

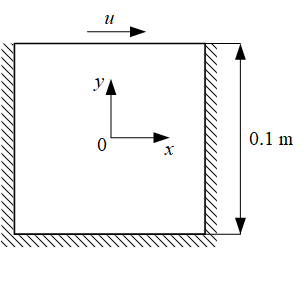

Fig. 3 Lid driven cavity geometry

Case Setup

We first summarize the key concepts and how they relate to Modulus’ features. (For a more detailed discussion, please see Basic methodology.) Solving any physics-driven simulation that is defined by differential equations requires information about the domain of the problem and its governing equations and boundary conditions. Users can define the domain using Modulus’ Constructive Solid Geometry (CSG) module, the STL module, or data from external sources like text files in comma-separated values (CSV) format, NumPy files, or HDF5 files. Once you have this geometry or point cloud, it can be sub-sampled into two sets: points on the boundaries to satisfy the boundary conditions, and interior regions to minimize the PDE/ODE residuals.

Note

From v22.03 Modulus will support APIs and architectures to solve the problems using only data, only physics, or a hybrid of the two. Modulus also now uses PyTorch as the backend framework (Release Notes). The major APIs for generating the neural networks, generating and sampling geometries have remained the same, however there is a change in how these things come together to solve the problem.

The lid-driven cavity flow problem is solved using a fully physics-driven method.

Note

The python script for this problem can be found at examples/ldc/ldc_2d.py

Importing the required packages

Start by importing required packages for creating the geometry and neural network, and plotting the results.

Copy
Copied!


from sympy import Symbol, Eq, Abs import modulus from modulus.hydra import to_absolute_path, instantiate_arch, ModulusConfig from modulus.solver import Solver from modulus.domain import Domain from modulus.geometry.primitives_2d import Rectangle from modulus.domain.constraint import ( PointwiseBoundaryConstraint, PointwiseInteriorConstraint, ) from modulus.domain.validator import PointwiseValidator from modulus.domain.inferencer import PointwiseInferencer from modulus.key import Key from modulus.eq.pdes.navier_stokes import NavierStokes from modulus.utils.io import ( csv_to_dict, ValidatorPlotter, InferencerPlotter, )

Creating a PDE Node

The LDC example uses the 2D steady-state incompressible Navier-Stokes equations to model fluid flow. The Navier-Stokes equations are a system of coupled partial differential equations (PDEs) that describe the flow velocity and pressure at every point in the domain. The two independent variables of the problem represent position: \(x\) and \(y\). We will solve for three variables: \(u\) is the flow velocity in the \(x\) direction, \(v\) is the flow velocity in the \(y\) direction, and \(p\) is the pressure at a given point. The incompressible Navier-Stokes equations have two parameters: the kinematic velocity \(\nu\), and the density of the fluid \(\rho\). Modulus can solve problems with nonconstant \(\nu\) and \(\rho\), but we leave them constant to keep this example simple.

If we assume that the density is a constant and rescale so that \(\rho\) is 1, then the equations take the following form.

(1)\[\begin{split}\begin{aligned} \frac{\partial u}{\partial x} + \frac{\partial v}{\partial y} &= 0\\ u\frac{\partial u}{\partial x} + v\frac{\partial u}{\partial y} &= -\frac{\partial p}{\partial x} + \nu \left(\frac{\partial^2 u}{\partial x^2} + \frac{\partial^2 u}{\partial y^2} \right)\\ u\frac{\partial v}{\partial x} + v\frac{\partial v}{\partial y} &= -\frac{\partial p}{\partial y} + \nu \left(\frac{\partial^2 v}{\partial x^2} + \frac{\partial^2 v}{\partial y^2} \right)\end{aligned}\end{split}\]

The first equation, the continuity equation, expresses that the flow is incompressible (mathematically, that the flow is “divergence free”). The second and third equations are the momentum or momentum balance equations.

Line 27 of the example shows how we call the NavierStokes function to tell Modulus that we want to solve the Navier-Stokes equations. We set the kinematic viscosity nu=0.01 and the density rho=1.0. We set time=False because this is a steady-state problem (time is not a variable), and dim=2 because this is a 2D problem. The function returns a list of Node objects, which we will need to keep for later.

Copy
Copied!


ns = NavierStokes(nu=0.01, rho=1.0, dim=2, time=False)

Creating a Neural Network Node

We will create a neural network to approximate the solution of the Navier-Stokes equations for the given boundary conditions. The neural network will have two inputs \(x, y\) and three outputs \(u, v, p\).

Modulus comes with several different neural network architectures. Different architectures may perform better or worse on different problems. “Performance” may refer to any combination of time to solution, total memory use, or efficiency when scaling out on a cluster of parallel computers. For simplicity and not necessarily for best performance, we will use a fully connected neural network in this example.

We create the neural network by calling Modulus’ instantiate_arch function. The input_keys argument specifies the inputs, and the output_keys argument the outputs. We specify each input or output as a Key object whose string label is the same as the label of the corresponding Symbol object. For example, the input Key("x") on line 29 refers to the Symbol("x") later in the file, on line 39. A Key class is used for describing inputs and outputs used for graph unroll/evaluation. The most basic key is just a string that is used to represent the name of inputs or outputs of the model.

Setting cfg=cfg.arch.fully_connected selects the default FullyConnectedArch neural network architecture. This tells Modulus to use a multi-layer perceptron (MLP) neural network with 6 layers. Each layer contains 512 perceptrons and uses the “swish” (also known as SiLU) activation function. All these parameters – e.g., the number of layers, the number of perceptrons in each layer, and the activation function to use for each layer – are user configurable. For this example, the default values are known to work, though they might not be optimal.

Lines 26-33 of the example show the complete process of first creating the PDE node ns, then creating the neural network node flow_net, and finally creating a list nodes of all these nodes.

Copy
Copied!


# make list of nodes to unroll graph on ns = NavierStokes(nu=0.01, rho=1.0, dim=2, time=False) flow_net = instantiate_arch( input_keys=[Key("x"), Key("y")], output_keys=[Key("u"), Key("v"), Key("p")], cfg=cfg.arch.fully_connected, ) nodes = ns.make_nodes() + [flow_net.make_node(name="flow_network")]

Once all the PDEs and architectures are defined, we will create a list of nodes to pass to different constraints that need to be satisfied for this problem. The constraints include equations, residuals, and boundary conditions.

Using Hydra to Configure Modulus

Hydra configuration files are at the heart of using Modulus. Each configuration file is a text file in YAML format. Most of Modulus’ features can be customized through Hydra. More information can be found in Modulus Configuration.

We show the configuration file for this example below.

Copy
Copied!


defaults: - modulus_default - arch: - fully_connected - scheduler: tf_exponential_lr - optimizer: adam - loss: sum - _self_ scheduler: decay_rate: 0.95 decay_steps: 4000 training: rec_validation_freq: 1000 rec_inference_freq: 2000 rec_monitor_freq: 1000 rec_constraint_freq: 2000 max_steps: 10000 batch_size: TopWall: 1000 NoSlip: 1000 Interior: 4000 graph: func_arch: true

We now create the geometry for the LDC example problem. “Geometry” refers to the physical shapes of the domain and its boundaries. The geometry can be created either before or after creating the PDE and the neural network. Modulus lets users create the geometry in different ways. For this example, we will use Modulus’ CSG module. The CSG module supports a wide variety of primitive shapes. In 2D, these shapes include rectangles, circles, triangles, infinite channels, and lines. In 3D, they include spheres, cones, cuboids, infinite channels, planes, cylinders, tori, tetrahedra, and triangular prisms. Users can construct more complicated geometries by combining these primitives using operations like addition, subtraction, and intersection. Please see the API documentation for more details on each shape as well as updates on newly added geometries.

We begin by defining the required symbolic variables for the geometry and then generating the 2D square geometry by using the Rectangle geometry object. In Modulus, a Rectangle is defined using the coordinates for two opposite corner points. The symbolic variable will be used to later sub-sample the geometry to create different boundaries, interior regions, etc. while defining constraints. Lines 36-40 of the example show the process of defining a simple geometry.

Copy
Copied!


# make geometry height = 0.1 width = 0.1 x, y = Symbol("x"), Symbol("y") rec = Rectangle((-width / 2, -height / 2), (width / 2, height / 2))

To visualize the geometry, you can sample either on the boundary or in the interior of the geometry. One such way is shown below where the sample_boundary method samples points on the boundary of the geometry. The sample_boundary can be replaced by sample_interior to sample points in the interior of the geometry.

The var_to_polyvtk function will generate a .vtp point cloud file for the geometry. This file can be viewed using tools like ParaView or any other point cloud plotting software.

Copy
Copied!


samples = geo.sample_boundary(1000) var_to_polyvtk(samples, './geo')

The geometry module also features functionality like translate and rotate to generate shapes in arbitrary orientation. The use of these will be covered in upcoming tutorials.

Setting up the Domain

The Domain object contains the PDE and its boundary conditions, as well as the Validator and Inferencer objects in this example. Modulus calls the PDE and its boundary conditions “constraints.” The PDE, in particular, constrains the outputs on the interior of the domain. The Domain and the configuration options both in turn will be used to create an instance of the Solver class.

Lines 42-43 of the example show how to create a Domain object. We will add constraints separately, later in the example.

Copy
Copied!


# make ldc domain ldc_domain = Domain()

Apart from constraints, you can add various other utilities to the Domain such as monitors, validation data, or points on which to do inference. Each of these is covered in detail in this example.

Adding constraints to the Domain can be thought of as adding specific constraints to the neural network optimization problem. For this physics-driven problem, these constraints are the boundary conditions and equation residuals. The goal is to satisfy the boundary conditions exactly, and have the interior (PDE) residual (a measure of the error) go to zero. The constraints can be specified within Modulus using classes like PointwiseBoundaryConstrant and PointwiseInteriorConstraint. Modulus then constructs a loss function – a measure of the neural network’s approximation error – from the constraints. By default, Modulus will use L2 (sum of squares) loss, but it is possible to change this. The optimizer will train the neural network by minimizing the loss function. This way of specifying the constraints is called soft constraints. In what follows, we will explain how to specify the constraints.

Boundary Constraints

To create a boundary condition constraint in Modulus, first sample the points on that part of the geometry, then specify the nodes you want to evaluate on those points, and finally assign them the desired true values.

“Sample the points” refers to creating a set of points that live on that part of the geometry. The “nodes” here refer to the list of PDE and neural network nodes created on line 33 of the example. Some examples and documentation will use in place of “evaluate,” a phrase like “unroll the nodes” on “unroll the graph on the list of nodes.” “Unroll” means “construct the computational graph on the list of nodes.”

That last point calls for some elaboration. Each Constraint takes in a list of Nodes with each Node having a list of input and output Keys. The inputs to the Constraint are just the coordinates (x and y in this example) and the output is a loss value. As part of computing the loss value, the Constraint might have a model that computes intermediate quantities. In this example, the interior Constraint requires derivatives of the output with respect to the input in order to compute residuals of the continuity and momentum equations. The loss value comes from the sum of squares of those residuals. Internally, Modulus needs to figure out how to evaluate the model and the PDE and compute the required intermediate quantities (the derivatives, for example). This amounts to connecting nodes (quantities to compute) with edges (methods for combining quantities to compute other quantities) to create a “computational graph” for that Constraint. This process is what we typically refer to as “unrolling the graph”.

We sample a boundary by using a PointwiseBoundaryConstraint object. This will sample the entire boundary of the geometry you specify in the geometry argument when creating the object. For this example, once you set geometry=rec, all the sides of the rectangle are sampled. A particular boundary of the geometry can be sub-sampled by using the criteria argument. This can be any symbolic function defined using the sympy library. For example, to sample the top wall, wet set criteria=Eq(y,height/2).

The constraint’s outvar argument specifies the desired values for the boundary condition as a dictionary. For example, outvar={"u": 1.0, "v": 0.0} says that the value of the u output is 1.0 on that boundary, and the value of the v output is 0.0 on that boundary.

The constraint’s batch_size argument specifies the number of points to sample on each boundary.

Note
  • The criteria argument is optional. With no criteria, all the boundaries in the geometry are sampled.

  • The network directory will only show the points sampled in a single batch. However, the total points used in the training can be computed by further multiplying the batch size by batch_per_epoch parameter. The default value of this is set to 1000. In the example above, the total points sampled on the Top BC will be \(1000 \times 1000 = 1000000\).

For the LDC problem, we define the top wall with a \(u\) velocity equal to 1 \(m/s\) in the \(+ve\) x-direction, and define the velocity on all other walls as stationary (\(u,v = 0\)). Fig. 4 shows that this can give rise to sharp discontinuities, wherein the \(u\) velocity jumps sharply from \(0\) to \(1.0\). As outlined in the theory explanation Spatial Weighting of Losses (SDF weighting), this sharp discontinuity can be avoided by specifying the weighting for this boundary such that the weight of the loss varies continuously and is 0 on the boundaries. You can use the function \(1.0 - 20.0|x|\) as shown in Fig. 4 for this purpose. Similar to the advantages of weighting losses for equations (see Fig. 28), eliminating such discontinuities speeds up convergence and improves accuracy.

Weights to any variables can be specified as an input to the lambda_weighting parameter.

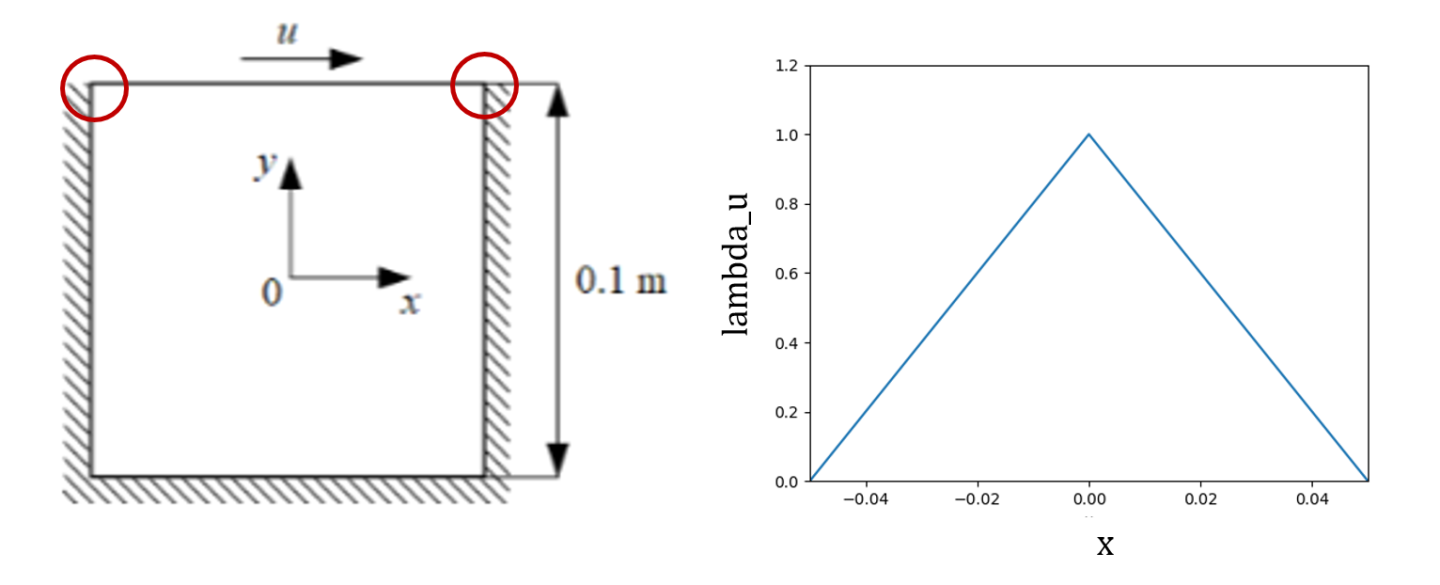

Fig. 4 Weighting the sharp discontinuities in the boundary condition

PDE Constraints

This example problem’s PDEs need to be enforced on all the points in the interior of the geometry to achieve the desired solution. Analogously to the boundaries, this requires first sampling the points inside the required geometry, then specifying the nodes to evaluate on those points, and finally assigning them the true values that you want for them.

We use the PointwiseInteriorConstraint class to sample points in the interior of a geometry. Its outvar argument specifies the equations to solve as a dictionary. For the 2D LDC case, the continuity equation and the momentum equations in \(x\) and \(y\) directions are needed. Therefore, the dictionary has keys for 'continuity', 'momentum_x' and 'momentum_y'. Each of these keys has the corresponding value 0. This represents the desired residual for these keys at the chosen points (in this case, the entire interior of the LDC geometry). A nonzero value is allowed, and behaves as a custom forcing or source term. More examples of this can be found in the later chapters of this User Guide. To see how the equation keys are defined, you can look at the Modulus source or see the API documentation (modulus/eq/pdes/navier_stokes.py).

As an example, the definition of 'continuity' is presented here.

Copy
Copied!


... # set equations self.equations = {} self.equations['continuity'] = rho.diff(t) + (rho*u).diff(x) + (rho*v).diff(y) + (rho*w).diff(z) ...

The equations below show the part of the loss function corresponding to each of the three equations in the system of PDEs.

(2)\[L_{continuity}= \frac{V}{N} \sum_{i=0}^{N} ( 0 - continuity(x_i,y_i))^2\]
(3)\[L_{momentum_{x}}= \frac{V}{N} \sum_{i=0}^{N} ( 0 - momentum_{x}(x_i,y_i))^2\]
(4)\[L_{momentum_{y}}= \frac{V}{N} \sum_{i=1}^{n} (0 - momentum_{y}(x_i, y_i))^2\]

The bounds parameter determines the range for sampling the values for variables \(x\) and \(y\). The lambda_weighting parameter is used to determine the weights for different losses. In this problem, you will weight each equation at each point by its distance from the boundary by using the Signed Distance Field (SDF) of the geometry. This implies that the points away from the boundary have a larger weight compared to the ones closer to the boundary. This weighting leads to faster convergence since it avoids discontinuities at the boundaries (see section Spatial Weighting of Losses (SDF weighting)).

Note

The lambda_weighting parameter is optional. If not specified, the loss for each equation/boundary variable at each point is weighted equally.

Copy
Copied!


# top wall top_wall = PointwiseBoundaryConstraint( nodes=nodes, geometry=rec, outvar={"u": 1.0, "v": 0}, batch_size=cfg.batch_size.TopWall, lambda_weighting={"u": 1.0 - 20 * Abs(x), "v": 1.0}, # weight edges to be zero criteria=Eq(y, height / 2), ) ldc_domain.add_constraint(top_wall, "top_wall") # no slip no_slip = PointwiseBoundaryConstraint( nodes=nodes, geometry=rec, outvar={"u": 0, "v": 0}, batch_size=cfg.batch_size.NoSlip, criteria=y < height / 2, ) ldc_domain.add_constraint(no_slip, "no_slip") # interior interior = PointwiseInteriorConstraint( nodes=nodes, geometry=rec, outvar={"continuity": 0, "momentum_x": 0, "momentum_y": 0}, batch_size=cfg.batch_size.Interior, lambda_weighting={ "continuity": Symbol("sdf"), "momentum_x": Symbol("sdf"), "momentum_y": Symbol("sdf"), }, ) ldc_domain.add_constraint(interior, "interior")

Adding Validation Node

“Validation” means comparing the approximate solution computed by Modulus with data representing results obtained by some other method. The results could come from any combination of simulation or experiment. This section shows how to set up such a validation domain in Modulus. Here, we use results from OpenFOAM, an open-source computational fluid dynamics (CFD) solver that discretizes the Navier-Stokes equations on a mesh and solves them using nonlinear and linear solvers not based on neural networks. Results can be imported into Modulus from any of various standard file formats, including .csv, .npz, or .vtk. Modulus requires that the data be converted into a dictionary of NumPy variables for input and output. For a .csv file, this can be done using the csv_to_dict function.

The validation data is then added to the domain using PointwiseValidator. The dictionary of generated NumPy arrays for input and output variables is used as an input.

Copy
Copied!


# add validator mapping = {"Points:0": "x", "Points:1": "y", "U:0": "u", "U:1": "v", "p": "p"} openfoam_var = csv_to_dict( to_absolute_path("openfoam/cavity_uniformVel0.csv"), mapping ) openfoam_var["x"] += -width / 2 # center OpenFoam data openfoam_var["y"] += -height / 2 # center OpenFoam data openfoam_invar_numpy = { key: value for key, value in openfoam_var.items() if key in ["x", "y"] } openfoam_outvar_numpy = { key: value for key, value in openfoam_var.items() if key in ["u", "v"] } openfoam_validator = PointwiseValidator( nodes=nodes, invar=openfoam_invar_numpy, true_outvar=openfoam_outvar_numpy, batch_size=1024, plotter=ValidatorPlotter(), ) ldc_domain.add_validator(openfoam_validator)

We create a Solver with the configuration options cfg and the Domain that we just finished setting up. We then call the solve() method on the Solver to solve the problem.

Copy
Copied!


# make solver slv = Solver(cfg, ldc_domain) # start solver slv.solve()

The file set up for Modulus is now complete. You are now ready to solve the CFD simulation using Modulus’ neural network solver.

Training the model

Executing the Python script will train the neural network.

Copy
Copied!


python ldc_2d.py

The console should print the losses at each step. You can also use Tensorboard to monitor the losses graphically as training progresses. We will explain how to set up and use Tensorboard below.

Setting up Tensorboard

Tensorboard is a great tool for visualization of machine learning experiments. To visualize the various training and validation losses, Tensorboard can be set up as follows:

  1. In a separate terminal window, navigate to the working directory of the example (examples/ldc/ in this case)

  2. Type in the following command on the command line:

    Copy
    Copied!


    tensorboard --logdir=./ --port=7007

    Specify the port you want to use. This example uses 7007. Once running, the command prompt shows the url that you will use to display the results.

  3. To view results, open a web browser and go to the url shown by the command prompt. An example would be: http://localhost:7007/#scalars. A window as shown in Fig. 5 should open up in the browser window.

The Tensorboard window displays the various losses at each step during the training. The AdamOptimizer loss is the total loss computed by the network. The loss_continuity, loss_momentum_x and loss_momentum_y determine the loss computed for the continuity and Navier-Stokes equations in the \(x\) and \(y\) directions, respectively. The loss_u and loss_v determine how well the boundary conditions are satisfied (soft constraints).


Fig. 5 Tensorboard Interface.

Output Files

The checkpoint directory is saved based on the results recording frequency specified as the 'rec_results_freq' configuration option. The network directory folder (in this case 'outputs/') contains the following important files/directories.

  1. optim_checkpoint.pth, flow_network.pth: Optimizer checkpoint and flow network saved during training.

  2. constraints: This directory contains the data computed on the points added to the domain using add_constraint(). The data are stored as .vtp files, which can be viewed using visualization tools like Paraview. You will see the true and predicted values of all the nodes that were passed to the nodes argument of the constraint. For example, the ./constraints/Interior.vtp will have the variables for pred_continuity and true_continuity representing the network predicted and the true value set for continuity. Figure Fig. 6 shows the comparison between true and computed continuity. This directory is useful to see how well the boundary conditions and equations are being satisfied at the sampled points.

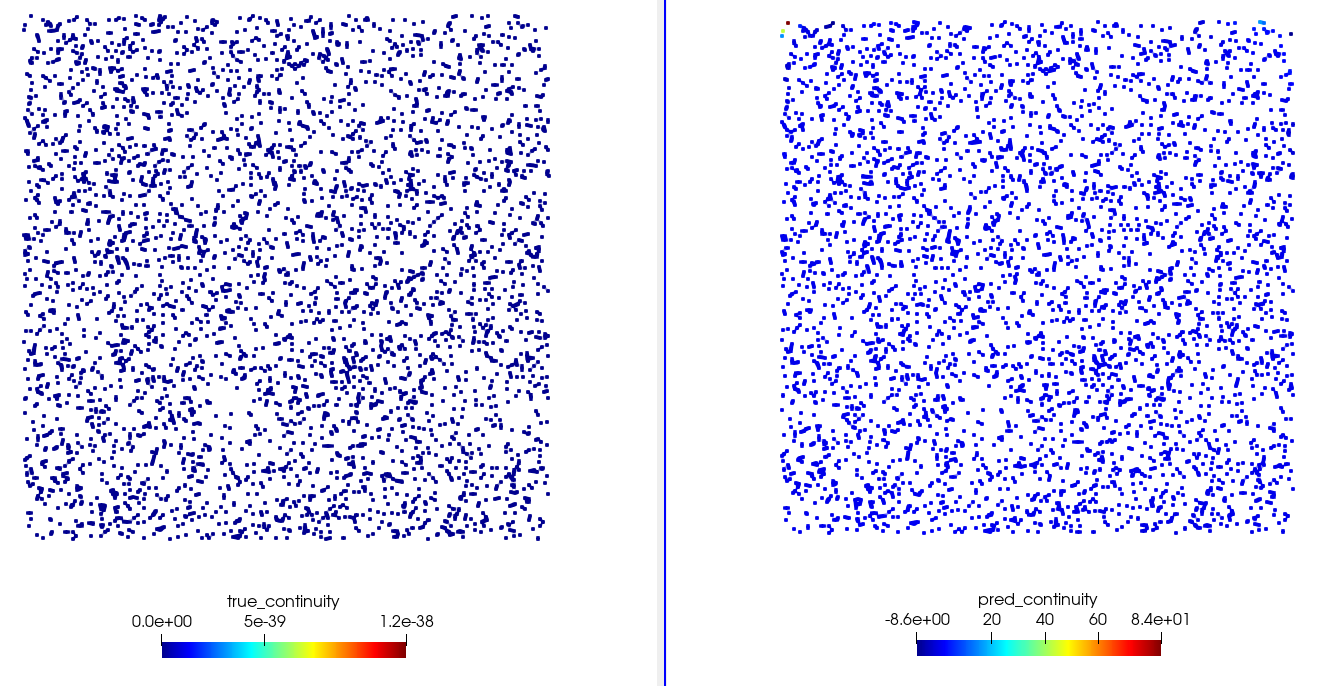

Fig. 6 Visualization using Paraview. Left: Continuity as specified in the domain definition. Right: Computed continuity after training.

  1. validators: This directory contains the data computed on the points added in the domain using add_validator(). This domain is more useful for validating the data with respect to a reference solution. The data are stored as .vtp and .npz files (based on the save_filetypes configuration option). The .vtp files can be viewed using visualization tools like Paraview. The .vtp and .npz files in this directory will report predicted, true (validation data), pred (model’s inference) on the chosen points. For example, the ./validators/validator.vtp contains variables like true_u, true_v, true_p, and pred_u, pred_v, pred_p corresponding to the true and the network predicted values for the variables \(u\), \(y\), and \(p\). Figure Fig. 7 shows the comparison between true and Modulus predicted values of such variables.

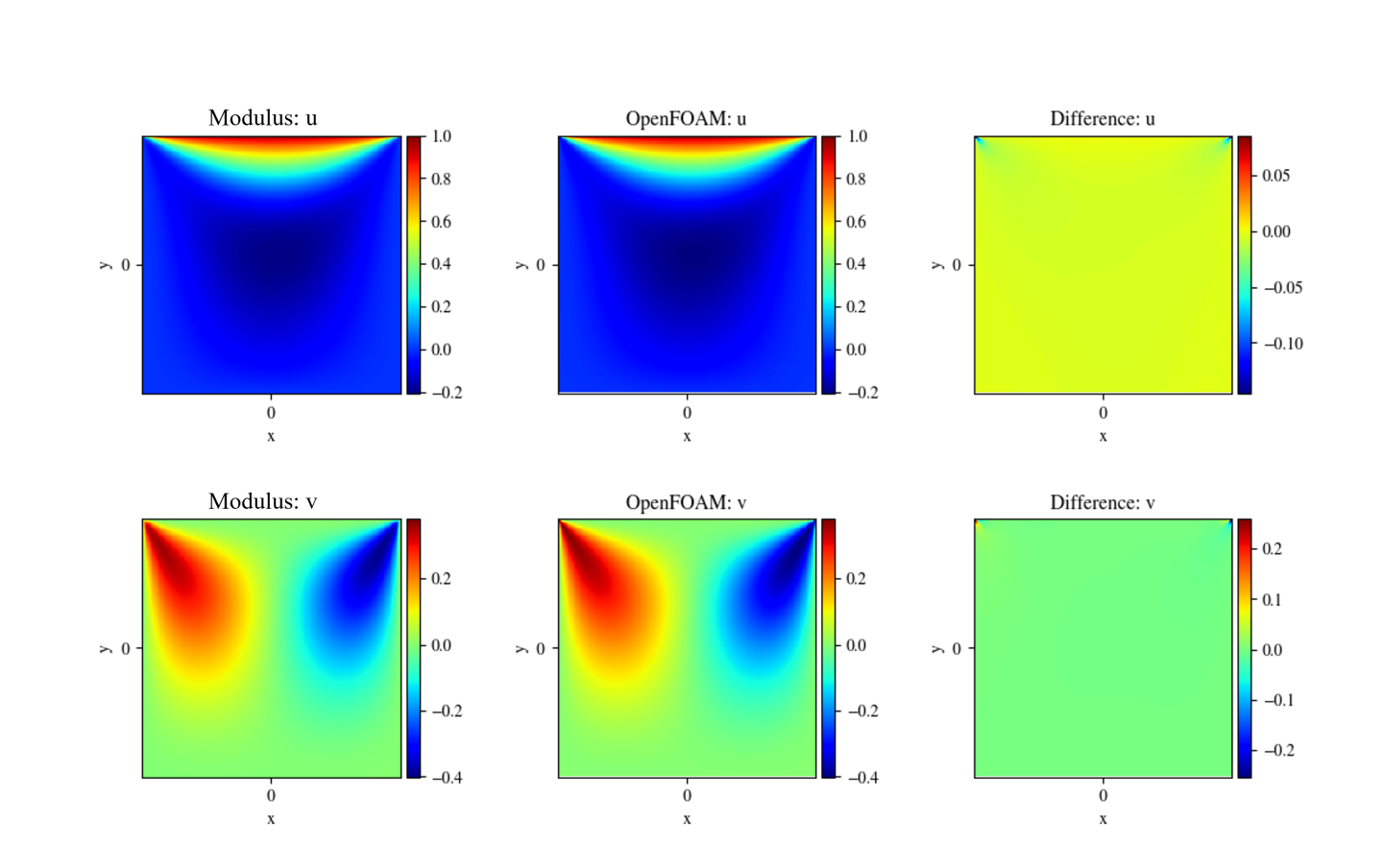

Fig. 7 Comparison with OpenFOAM results

Monitor Node

Modulus allows you to monitor desired quantities by plotting them every fixed number of iterations in Tensorboard as the simulation progresses, and analyze convergence based on the relative changes in the monitored quantities. A PointwiseMonitor can be used to create such an feature. Examples of such quantities can be point values of variables, surface averages, volume averages or any derived quantities that can be formed using the variables being solved.

The flow variables are available as PyTorch tensors. You can perform tensor operations to create any desired derived variable of your choice. The code below shows the monitors for continuity and momentum imbalance in the interior.

The points to sample can be selected using the sample_interior and sample_boundary methods.

Copy
Copied!


... # add monitors global_monitor = PointwiseMonitor( rec.sample_interior(4000, bounds={x: (-width/2, width/2), y: (-height/2, height/2)}), output_names=["continuity", "momentum_x", "momentum_y"], metrics={ "mass_imbalance": lambda var: torch.sum( var["area"] * torch.abs(var["continuity"]) ), "momentum_imbalance": lambda var: torch.sum( var["area"] * (torch.abs(var["momentum_x"]) + torch.abs(var["momentum_y"])) ), }, nodes=nodes, ) ldc_domain.add_monitor(global_monitor)

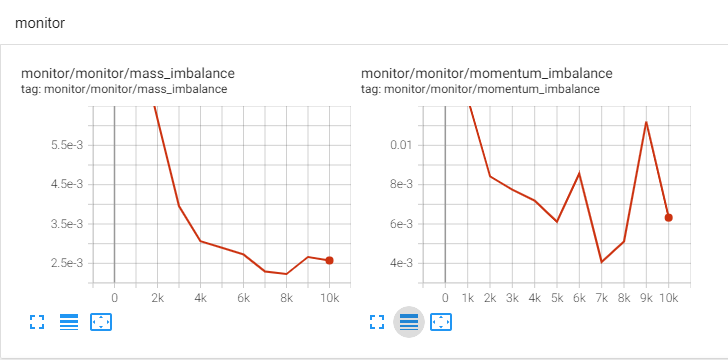

Fig. 8 LDC Monitors in Tensorboard

Inferencer Node

Modulus also allows you to plot the results on arbitrary domains. You can then monitor these domains in Paraview or Tensorboard itself. More details on how to add Modulus information to Tensorboard can be found in TensorBoard in Modulus. The code below shows use of PointwiseInferencer.

Copy
Copied!


# add inferencer data grid_inference = PointwiseInferencer( nodes=nodes, invar=openfoam_invar_numpy, output_names=["u", "v", "p"], batch_size=1024, plotter=InferencerPlotter(), ) ldc_domain.add_inferencer(grid_inference, "inf_data")

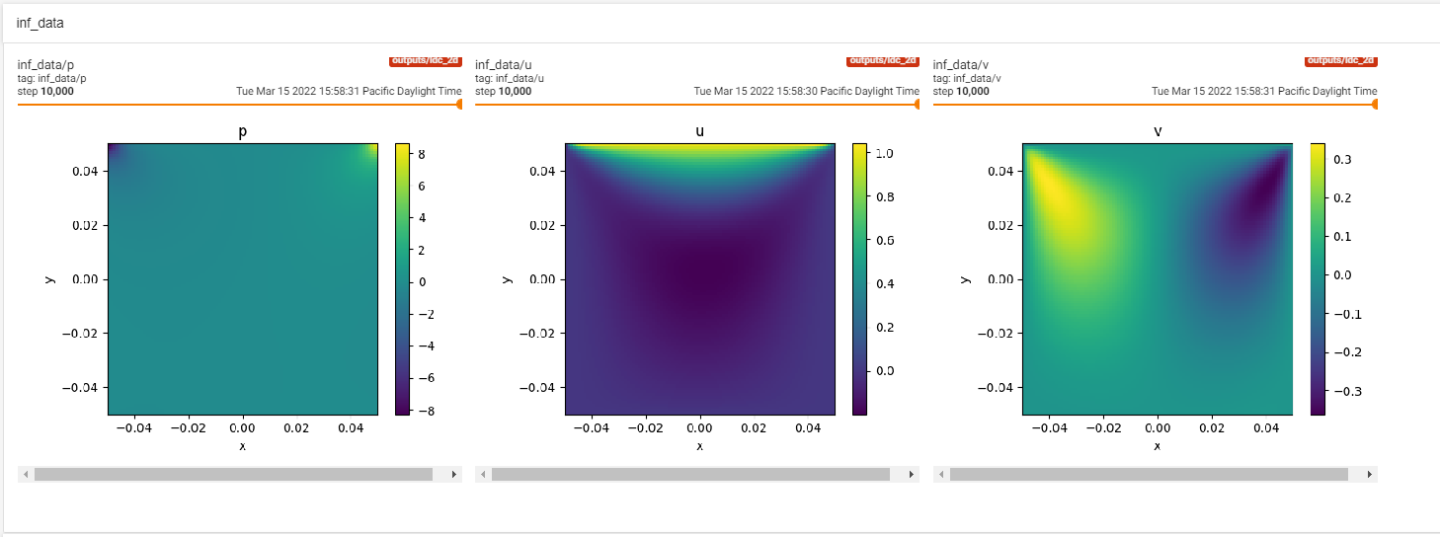

Fig. 9 LDC Inference in Tensorboard
