# Scalar Transport: 2D Advection Diffusion

## Introduction

In this tutorial, you will use an advection-diffusion transport equation for temperature along with the Continuity and Navier-Stokes equation to model the heat transfer in a 2D flow. In this tutorial you will learn:

1. How to implement advection-diffusion for a scalar quantity.

2. How to create custom profiles for boundary conditions and to set up gradient boundary conditions.

3. How to use additional constraints like IntegralBoundaryConstraint to speed up convergence.

Note

This tutorial assumes that you have completed tutorial Introductory Example and have familiarized yourself with the basics of the Modulus APIs.

## Problem Description

In this tutorial, you will solve the heat transfer from a 3-fin heat sink. The problem describes a hypothetical scenario wherein a 2D slice of the heat sink is simulated as shown in the figure. The heat sinks are maintained at a constant temperature of 350 $$K$$ and the inlet is at 293.498 $$K$$. The channel walls are treated as adiabatic. The inlet is assumed to be a parabolic velocity profile with 1.5 $$m/s$$ as the peak velocity. The kinematic viscosity $$\nu$$ is set to 0.01 $$m^2/s$$ and the Prandtl number is 5. Although the flow is laminar, the Zero Equation turbulence model is kept on.

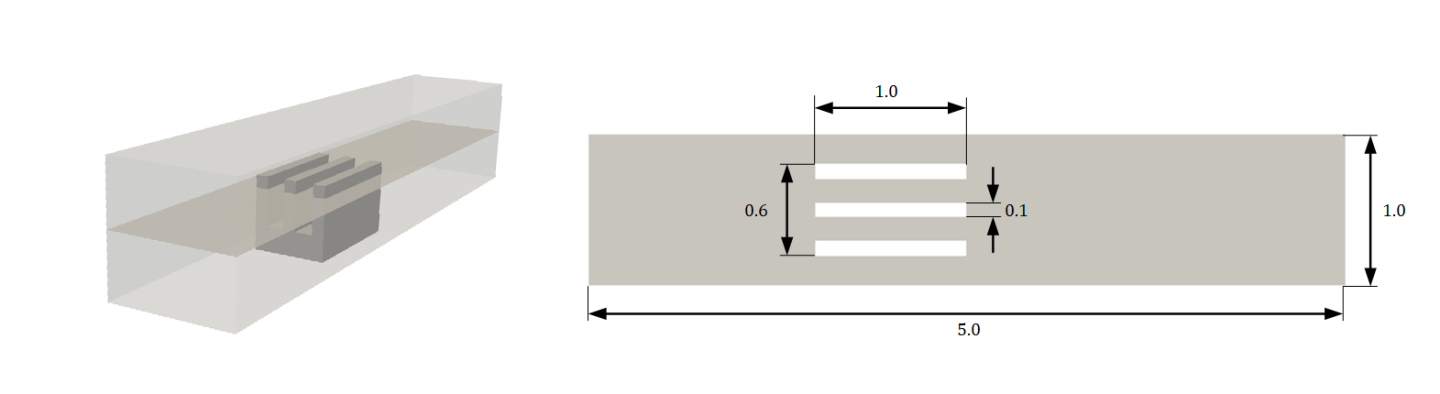

Fig. 67 2D slice of three fin heat sink geometry (All dimensions in $$m$$)

## Case Setup

Note

The python script for this problem can be found at examples/three_fin_2d/heat_sink.py.

### Importing the required packages

In this tutorial you will make use of Channel2D geometry to make the duct. Line geometry can be used to make inlet, outlet and intermediate planes for integral boundary conditions. The AdvectionDiffusion equation is imported from the PDES module. The parabola and GradNormal are imported from appropriate modules to generate the required boundary conditions.

Copy
Copied!

import torch
import numpy as np
from sympy import Symbol, Eq

import modulus
from modulus.hydra import to_absolute_path, instantiate_arch, ModulusConfig
from modulus.solver import Solver
from modulus.domain import Domain
from modulus.geometry.primitives_2d import Rectangle, Line, Channel2D
from modulus.utils.sympy.functions import parabola
from modulus.utils.io import csv_to_dict
from modulus.eq.pdes.basic import NormalDotVec
from modulus.eq.pdes.turbulence_zero_eq import ZeroEquation
from modulus.domain.constraint import (
PointwiseBoundaryConstraint,
PointwiseInteriorConstraint,
IntegralBoundaryConstraint,
)
from modulus.domain.monitor import PointwiseMonitor
from modulus.domain.validator import PointwiseValidator
from modulus.key import Key
from modulus.node import Node
from modulus.geometry import Parameterization, Parameter


### Creating Geometry

To generate the geometry of this problem, use Channel2D for duct and Rectangle for generating the heat sink. The way of defining Channel2D is same as Rectangle. The difference between a channel and a rectangle is that a channel is infinite and composed of only two curves and a rectangle is composed of four curves that form a closed boundary.

Line is defined using the x and y coordinates of the two endpoints and the normal direction of the curve. The Line requires the x coordinates of both the points to be same. A line in arbitrary orientation can then be created by rotating the Line object.

The following code generates the geometry for the 2D heat sink problem.

Copy
Copied!

# params for domain
channel_length = (-2.5, 2.5)
channel_width = (-0.5, 0.5)
heat_sink_origin = (-1, -0.3)
nr_heat_sink_fins = 3
gap = 0.15 + 0.1
heat_sink_length = 1.0
heat_sink_fin_thickness = 0.1
inlet_vel = 1.5
heat_sink_temp = 350
base_temp = 293.498
nu = 0.01
diffusivity = 0.01 / 5

# define sympy varaibles to parametize domain curves
x, y = Symbol("x"), Symbol("y")

# define geometry
channel = Channel2D(
(channel_length, channel_width), (channel_length, channel_width)
)
heat_sink = Rectangle(
heat_sink_origin,
(
heat_sink_origin + heat_sink_length,
heat_sink_origin + heat_sink_fin_thickness,
),
)
for i in range(1, nr_heat_sink_fins):
heat_sink_origin = (heat_sink_origin, heat_sink_origin + gap)
fin = Rectangle(
heat_sink_origin,
(
heat_sink_origin + heat_sink_length,
heat_sink_origin + heat_sink_fin_thickness,
),
)
heat_sink = heat_sink + fin
geo = channel - heat_sink

inlet = Line(
(channel_length, channel_width), (channel_length, channel_width), -1
)
outlet = Line(
(channel_length, channel_width), (channel_length, channel_width), 1
)

x_pos = Parameter("x_pos")
integral_line = Line(
(x_pos, channel_width),
(x_pos, channel_width),
1,
parameterization=Parameterization({x_pos: channel_length}),
)


### Defining the Equations, Networks and Nodes

In this problem, you will make two separate network architectures for solving flow and heat variables to achieve increased accuracy.

Additional equations (compared to tutorial Turbulent physics: Zero Equation Turbulence Model) for imposing Integral continuity (NormalDotVec), AdvectionDiffusion and GradNormal are specified and the variable to compute is defined for the GradNormal and AdvectionDiffusion.

Also, it is possible to detach certain variables from the computation graph in a particular equation if you want to decouple it from rest of the equations. This uses the .detach() method in the backend to stop the computation of gradient . In this problem, you can stop the gradient calls on $$u$$ , $$v$$. This prevents the network from optimizing $$u$$ , and $$v$$ to minimize the residual from the advection equation. In this way, you can make the system one way coupled, where the heat does not influence the flow, but the flow influences the heat. Decoupling the computations this way can help the convergence behavior.

Copy
Copied!

# make list of nodes to unroll graph on
ze = ZeroEquation(
nu=nu, rho=1.0, dim=2, max_distance=(channel_width - channel_width) / 2
)
ns = NavierStokes(nu=ze.equations["nu"], rho=1.0, dim=2, time=False)
normal_dot_vel = NormalDotVec(["u", "v"])
flow_net = instantiate_arch(
input_keys=[Key("x"), Key("y")],
output_keys=[Key("u"), Key("v"), Key("p")],
cfg=cfg.arch.fully_connected,
)
heat_net = instantiate_arch(
input_keys=[Key("x"), Key("y")],
output_keys=[Key("c")],
cfg=cfg.arch.fully_connected,
)

nodes = (
ns.make_nodes()
+ ze.make_nodes()
+ gn_c.make_nodes()
+ normal_dot_vel.make_nodes()
+ [flow_net.make_node(name="flow_network")]
+ [heat_net.make_node(name="heat_network")]
)


### Setting up the Domain and adding Constraints

The boundary conditions described in the problem statement are implemented in the code shown below. Key 'normal_gradient_c' is used to set the gradient boundary conditions. A new variable $$c$$ is defined for the solving the advection diffusion equation.

(147)$c=(T_{actual} - T_{inlet})/273.15$

In addition to the continuity and Navier-Stokes equations in 2D, you will have to solve the advection diffusion equation (148) (with no source term) in the interior. The thermal diffusivity $$D$$ for this problem is 0.002 $$m^2/s$$.

(148)$u c_{x} + v c_{y} = D (c_{xx} + c_{yy})$

You can use integral continuity planes to specify the targeted mass flow rate through these planes. For a parabolic velocity of 1.5 $$m/s$$, the integral mass flow is $$1$$ which is added as an additional constraint to speed up the convergence. Similar to tutorial Introductory Example you can define keys for 'normal_dot_vel' on the plane boundaries and set its value to 1 to specify the targeted mass flow. Use the IntegralBoundaryConstraint constraint to define these integral constraints. Here the integral_line geometry was created with a symbolic variable for the line’s x position, x_pos. The IntegralBoundaryConstraint constraint will randomly generate samples for various x_pos values. The number of such samples can be controlled by batch_size argument, while the points in each sample can be configured by integral_batch_size argument. The range for the symbolic variables (in this case x_pos) can be set using the parameterization argument.

These planes (lines for 2D geometry) would then be used when the NormalDotVec PDE that will compute the dot product of normal components of the geometry and the velocity components. The parabolic profile can be created by using the parabola function by specifying the variable for sweep, the two intercepts and max height.

Copy
Copied!

# make domain
domain = Domain()

# inlet
inlet_parabola = parabola(
y, inter_1=channel_width, inter_2=channel_width, height=inlet_vel
)
inlet = PointwiseBoundaryConstraint(
nodes=nodes,
geometry=inlet,
outvar={"u": inlet_parabola, "v": 0, "c": 0},
batch_size=cfg.batch_size.inlet,
)

# outlet
outlet = PointwiseBoundaryConstraint(
nodes=nodes,
geometry=outlet,
outvar={"p": 0},
batch_size=cfg.batch_size.outlet,
)

# heat_sink wall
hs_wall = PointwiseBoundaryConstraint(
nodes=nodes,
geometry=heat_sink,
outvar={"u": 0, "v": 0, "c": (heat_sink_temp - base_temp) / 273.15},
batch_size=cfg.batch_size.hs_wall,
)

# channel wall
channel_wall = PointwiseBoundaryConstraint(
nodes=nodes,
geometry=channel,
outvar={"u": 0, "v": 0, "normal_gradient_c": 0},
batch_size=cfg.batch_size.channel_wall,
)

# interior flow
interior_flow = PointwiseInteriorConstraint(
nodes=nodes,
geometry=geo,
outvar={"continuity": 0, "momentum_x": 0, "momentum_y": 0},
batch_size=cfg.batch_size.interior_flow,
compute_sdf_derivatives=True,
lambda_weighting={
"continuity": Symbol("sdf"),
"momentum_x": Symbol("sdf"),
"momentum_y": Symbol("sdf"),
},
)

# interior heat
interior_heat = PointwiseInteriorConstraint(
nodes=nodes,
geometry=geo,
batch_size=cfg.batch_size.interior_heat,
lambda_weighting={
},
)

# integral continuity
def integral_criteria(invar, params):
sdf = geo.sdf(invar, params)
return np.greater(sdf["sdf"], 0)

integral_continuity = IntegralBoundaryConstraint(
nodes=nodes,
geometry=integral_line,
outvar={"normal_dot_vel": 1},
batch_size=cfg.batch_size.num_integral_continuity,
integral_batch_size=cfg.batch_size.integral_continuity,
lambda_weighting={"normal_dot_vel": 0.1},
criteria=integral_criteria,
)
domain.add_constraint(integral_continuity, "integral_continuity")


The validation data comes from a 2D simulation computed using OpenFOAM and the code to import it can be found below.

Copy
Copied!

# add validation data
mapping = {
"Points:0": "x",
"Points:1": "y",
"U:0": "u",
"U:1": "v",
"p": "p",
"d": "sdf",
"nuT": "nu",
"T": "c",
}
openfoam_var = csv_to_dict(
to_absolute_path("openfoam/heat_sink_zeroEq_Pr5_mesh20.csv"), mapping
)
openfoam_var["nu"] += nu
openfoam_var["c"] += -base_temp
openfoam_var["c"] /= 273.15
openfoam_invar_numpy = {
key: value for key, value in openfoam_var.items() if key in ["x", "y", "sdf"]
}
openfoam_outvar_numpy = {
key: value
for key, value in openfoam_var.items()
if key in ["u", "v", "p", "c"]  # Removing "nu"
}
openfoam_validator = PointwiseValidator(
nodes=nodes,
invar=openfoam_invar_numpy,
true_outvar=openfoam_outvar_numpy,
)

# monitors for force, residuals and temperature
global_monitor = PointwiseMonitor(
geo.sample_interior(100),
output_names=["continuity", "momentum_x", "momentum_y"],
metrics={
"mass_imbalance": lambda var: torch.sum(
var["area"] * torch.abs(var["continuity"])
),
"momentum_imbalance": lambda var: torch.sum(
var["area"]
* (torch.abs(var["momentum_x"]) + torch.abs(var["momentum_y"]))
),
},
nodes=nodes,
)

force = PointwiseMonitor(
heat_sink.sample_boundary(100),
output_names=["p"],
metrics={
"force_x": lambda var: torch.sum(var["normal_x"] * var["area"] * var["p"]),
"force_y": lambda var: torch.sum(var["normal_y"] * var["area"] * var["p"]),
},
nodes=nodes,
)

peakT = PointwiseMonitor(
heat_sink.sample_boundary(100),
output_names=["c"],
metrics={"peakT": lambda var: torch.max(var["c"])},
nodes=nodes,
)
domain.add_monitor(peakT)


## Training the model

Once the python file is setup, the training can be started by executing the python script.

Copy
Copied!

python heat_sink.py


## Results and Post-processing

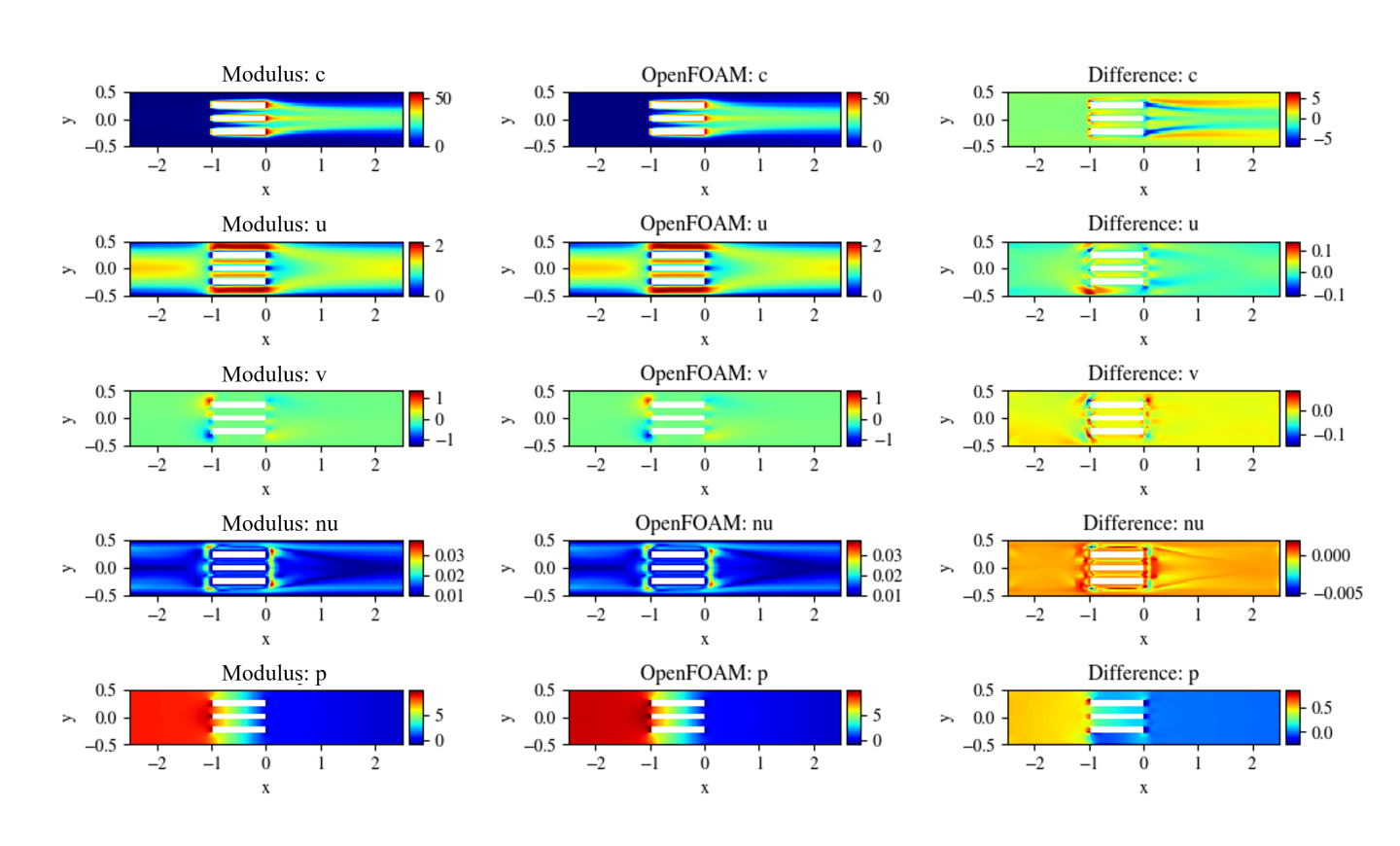

The results for the Modulus simulation are compared against the OpenFOAM data in Fig. 68.

Fig. 68 Left: Modulus. Center: OpenFOAM. Right: Difference
