NVStreamer

Introduction

NVStreamer is an NVIDIA developer software that enables storing and serving of video files that can then be streamed using the RTSP protocol. It is particularly useful for testing with VIOS, as it provides an alternative means to cameras for creating video sources as input to VIOS. Specifically, it provides a mechanism to test specific video files as VIOS inputs. VIOS can be configured to receive RTSP streams as if they were originating from an ONVIF-S camera.

NVStreamer provides an option to either upload the videos from webUI or read the videos from the local file system. The local video files can be mounted inside the NVStreamer container and it will start streaming the video files.

NVStreamer Dashboard

Open a web browser (we suggest Chrome) and navigate to this address (on the same system or another one on the same network):

http://[NVStreamer-IP]:31000

Note

HTTP, (not HTTPS) where [NVStreamer-IP] is the host IP address on the local network (you can use ifconfig on the terminal to verify the IP).

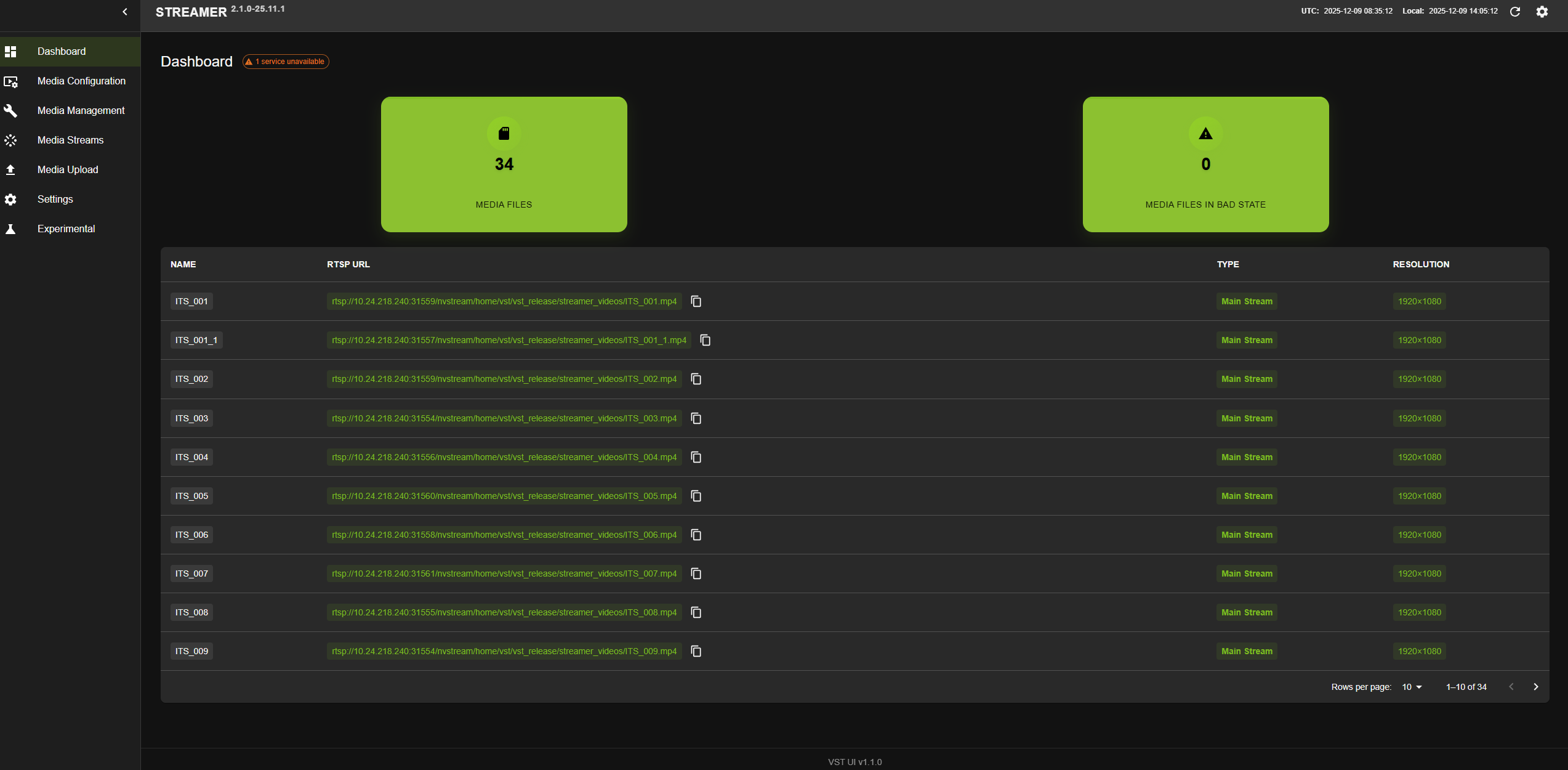

The following UX will open, you can see the all the available video streams and corresponding RTSP URLs like below.

Uploading Videos to NVStreamer

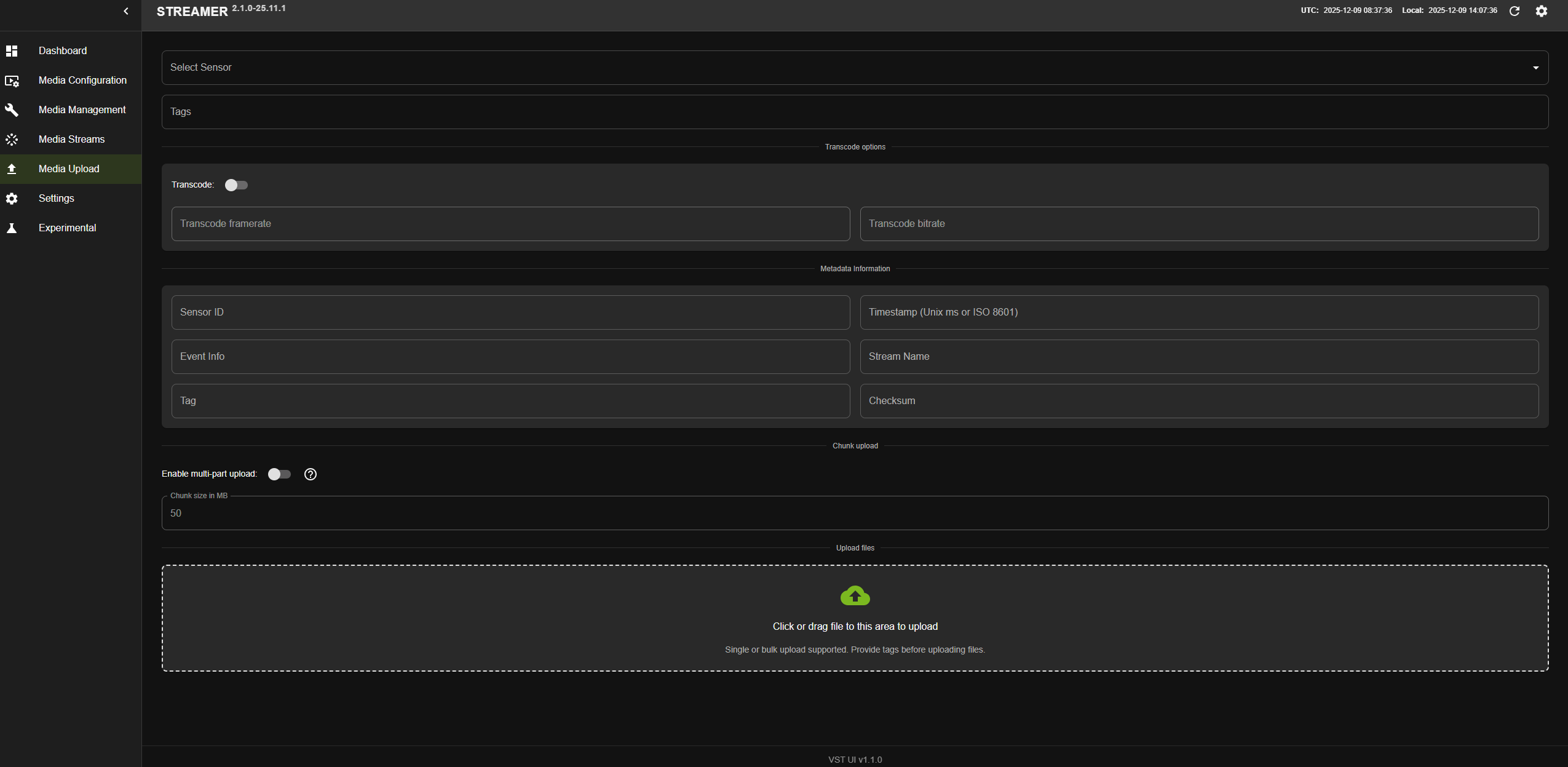

To upload videos from the web UI:

1. Click on the Media Upload tab on the left sidebar.

2. Drag and drop the videos to upload, or click to select videos from your file system.

3. Monitor the upload progress - a green progress line will appear at the bottom left.

4. Once complete, the file name will appear in gray.

5. An RTSP stream will be automatically created with the file name.

6. Check the NVStreamer Dashboard to see the new RTSP stream.

Streaming Videos from NVStreamer

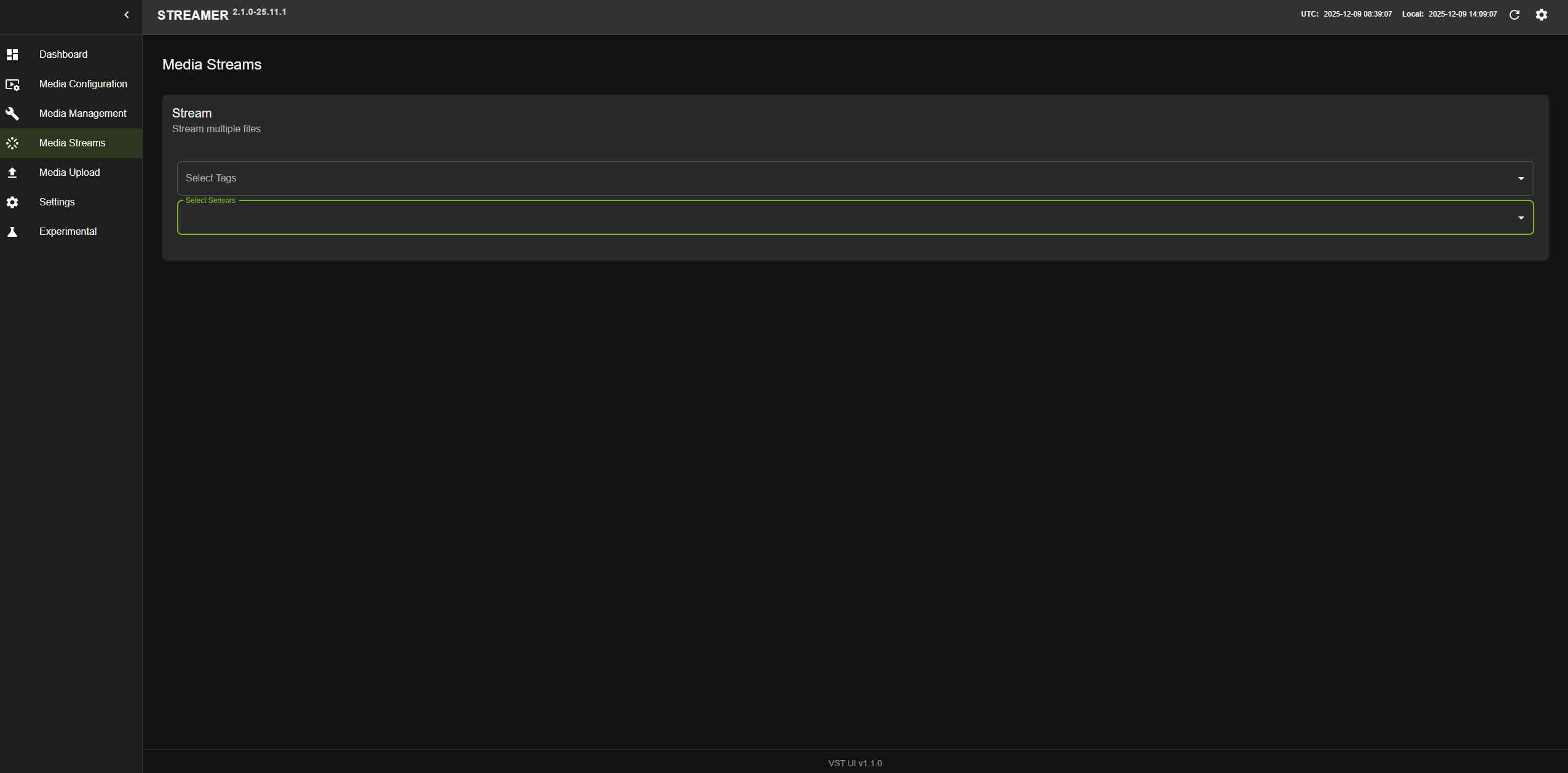

To stream videos using webRTC:

1. Navigate to the Streams tab on the left sidebar.

2. All uploaded videos will be listed in the NVStreamer Dashboard.

3. Select the video you want to stream.

4. The video will begin streaming via webRTC.

Remove Files

To remove files from NVStreamer:

1. Go to the Management tab in the UI.

2. Select the Delete files option.

3. Select the file from the dropdown menu.

4. Click the Delete button.

NVStreamer Configuration

Synchronize Streaming of Videos

NVStreamer provides a mechanism to synchronize the streaming of videos. This is useful for testing with VIOS, as it provides an alternative means to cameras for creating video sources which are synchronized with each other with respect to time.

To enable synchronized streaming:

1. Set the config parameter nv_streamer_sync_file_count to specify the number of files to sync with respect to each other.

2. Ensure all files to be synced have the same encoding attributes (resolution, frame rate, bitrate, duration).

3. If files have different encoding attributes, use the following ffmpeg commands to standardize them:

   1. Cut the video to make the duration the same:

      ffmpeg -i input.mp4 -t 10 output.mp4


   2. Remove bframes and modify key-intervals:

      ffmpeg -i input.mp4 -vcodec libx264 -crf 25 -x264opts "bframes=0:keyint=30" output.mp4


4. Upload the standardized files to NVStreamer.

NVStreamer Config Parameters

Following table describes the parameters in NVStreamer config file:

NVStreamer config file

Key	Description	Typical Value
network	Section to define all Network related parameters
“server_domain_name”	Server domain name	“vst-service”
“stunurl_list”	STUN server address	[“stun.l.google.com:19302”]
“static_turnurl_list”	TURN server address	[]
“coturn_turnurl_list_with_secret”	Coturn Turnurl list with secret	[]
“use_coturn_auth_secret”	Enable/Disable Coturn Auth secret	FALSE
“use_twilio_stun_turn”	Enable/Disable Twilio	FALSE
“twilio_account_sid”	Twilio Account Sid	“”
“rx_socket_buffer_size”	RX socket buffer size	1000000
“tx_socket_buffer_size”	TX socket buffer size	1000000
“twilio_auth_token”	Auth token for Twilio	“”
“ntp_servers”	NTP server address	[“time.google.com”]
“use_sensor_ntp_time”	If true then forward camera/nvstreamer ntp time in SR reports to the clients. Otherwise provide current ntp time in SR report.	TRUE
“max_webrtc_out_connections”	Max number of webrtc output connections at a given time	8
“max_webrtc_in_connections”	Max number of webrtc input connections at a given time	8
“webservice_access_control_list”	An Access Control List allows restrictions to be put on the list of IP addresses which have access to the web server. The ACL is a comma separated list of IP subnets, where each subnet is pre-pended by either a - or a + sign. A plus sign means allow, where a minus sign means deny. If a subnet mask is omitted, such as -1.2.3.4, this means to deny only that single IP address.	“+10.42.0.0/32”
“use_reverse_proxy”	Enable/Disable reverse proxy	FALSE
“reverse_proxy_server_address”	Reverse proxy server address	“REVERSE_PROXY_SERVER_ADDRESS:100”
“rtsp_server_port”	User given rtsp port number	8554
“rtsp_server_instances_count”	Number of RTSP server instances	8
“rtsp_server_use_socket_poll”	Enable/Disable socket poll for RTSP server	TRUE
“rtsp_preferred_network_iface”	Preferred network interface for RTSP streaming	“eth1”
“rtcp_rtp_port_multiplex”	Enable RTCP/RTP port multiplexing	TRUE
“rtsp_streaming_over_tcp”	Enable / Disable RTSP Streaming over TCP	FALSE
“rtsp_server_reclamation_client_timeout_sec”	Timeout for RTSP Server reclamation client	10
“stream_monitor_interval_secs”	Stream Monitor interval in seconds	2
“rtp_udp_port_range”	RTP UDP port range for streaming	“31000-31200”
“udp_latency_ms”	UDP latency in milliseconds	200
“udp_drop_on_latency”	Enable/Disable dropping frames on high UDP latency	FALSE
“webrtc_latency_ms”	Latency for webrtc in milliseconds	500
“enable_frame_drop”	Enable/Disable frame drop	TRUE
“webrtc_video_quality_tunning”	webRTC video quality tunning	{“resolution_2160”:{“bitrate_start”:20000,”bitrate_range”:[15000,25000],”qp_range_I”:[0,30],”qp_range_P”:[0,51]},”resolution_1440”:{“bitrate_start”:10000,”bitrate_range”:[8000,15000],”qp_range_I”:[10,30],”qp_range_P”:[10,30]},”resolution_1080”:{“bitrate_start”:5000,”bitrate_range”:[3000,8000],”qp_range_I”:[10,30],”qp_range_P”:[10,30]},”resolution_720”:{“bitrate_start”:3000,”bitrate_range”:[2000,5000],”qp_range_I”:[10,30],”qp_range_P”:[10,30]},”resolution_480”:{“bitrate_start”:1000,”bitrate_range”:[800,3000],”qp_range_I”:[10,30],”qp_range_P”:[10,30]}}
“webrtc_peer_conn_timeout_sec”	Timeout duration in seconds for peer connection establishment	10
“enable_grpc”	Enable/Disable gRPC server	FALSE
“grpc_server_port”	gRPC server port number	“50051”
“webrtc_in_audio_sender_max_bitrate”	Maximum bitrate for WebRTC input audio sender	128000
“webrtc_in_video_degradation_preference”	WebRTC input video degradation preference (resolution/framerate)	“resolution”
“webrtc_in_video_sender_max_framerate”	Maximum framerate for WebRTC input video sender	30
“remote_vst_address”	Cloud VST Address	13.0.0.1:30000
“webrtc_port_range”	Min and Max Port Range for webRTC	{“min”:30001,”max”:30100}
“enable_websocket_pingpong”	Enable/Disable websocket ping pong messages	FALSE
“websocket_keep_alive_ms”	Timeout for websocket to keep alive	5000
onvif	Section to define all ONVIF related parameters
“device_discovery_timeout_secs”	Device discovery timeout to receive probe match message from device	10
“onvif_request_timeout_secs”	Timeout to receive ONVIF command response from device	10
“device_discovery_freq_secs”	Device discovery frequency in secs	5
“device_discovery_interfaces”	Network interface for device discovery e.g eth0, eth1	[]
“max_devices_supported”	Limiting maximum number of devices	8
“default_bitrate_kbps”	Value of bitrate setting on device	8000
“default_framerate”	Value of framerate setting on device	30
“default_resolution”	Value of resolution setting on device	“1920x1080”
“default_gov_length”	Value of GOV length setting on device	60
data	Section to define all VST data related parameters
“storage_config_file”	Path to storage configuration JSON file	./configs/vst_storage.json
“storage_threshold_percentage”	% value of storage occupancy when aging policy triggers	95
“storage_monitoring_frequency_secs”	Monitor storage usage with frequency in seconds	2
“nv_streamer_directory_path”	Directory to store files in nvstreamer	“/home/vst/vst_release/vst_data/”
“nv_streamer_loop_playback”	Enable/Disable looping in nvstreamer	FALSE
“nv_streamer_seekable”	Enable/Disable seeking in nvstreamer	FALSE
“nv_streamer_sync_playback”	Enable/Disable synchronized playback in nvstreamer	FALSE
“nv_streamer_sync_file_count”	Number of files to sync in nvstreamer	4
“nv_streamer_max_upload_file_size_MB”	Maximum file upload size in nvstreamer	10000
“nv_streamer_media_container_supported”	Media containers supported in nvstreamer	[“mp4”,”mkv”]
“nv_streamer_rtsp_server_output_buffer_size_kb”	Buffer size for RTSP server output in KB	800
“nv_streamer_metadata_container_supported”	Metadata containers supported in nvstreamer	[“json”]
“supported_video_codecs”	Video codec supported for video recording	[“h264”,”h265”]
“supported_audio_codecs”	Audio codec supported for audio recording and decode	[“pcmu”,”pcma”,”mpeg4-generic”]
“enable_aging_policy”	Enable/Disable aging policy of video files	TRUE
“max_video_download_size_MB”	Limiting the maximum video download size	1000
“always_recording”	Enable/Disable always ON recording	FALSE
“event_recording”	Enable/Disable event-based recording	FALSE
“event_record_length_secs”	Event recording duration in seconds	10
“record_buffer_length_secs”	Recording buffer length in seconds	2
“use_software_path”	Enable allows processing on CPU otherwise on GPU	FALSE
“use_webrtc_inbuilt_encoder”	WebRTC inbuilt encoder type (empty for default)	“”
“webrtc_in_fixed_resolution”	Fixed resolution for WebRTC input	“1280x720”
“webrtc_in_max_framerate”	Maximum framerate for WebRTC input	30
“webrtc_in_video_bitrate_thresold_percentage”	WebRTC input video bitrate threshold percentage	50
“webrtc_in_passthrough”	Enable/Disable WebRTC input passthrough mode	FALSE
“webrtc_sender_quality”	webrtc input quality	“pass_through”
“enable_rtsp_server_sei_metadata”	Enable SEI support for rtsp server	TRUE
“enable_proxy_server_sei_metadata”	Enable SEI support for proxy server	TRUE
“gpu_indices”	GPU indices	[]
“webrtc_out_enable_insert_sps_pps”	webRTC Out Enable / Disable SPS PPS insertion	TRUE
“webrtc_out_set_iframe_interval”	webRTC Out set I-Frame Interval	30
“webrtc_out_set_idr_interval”	webRTC Out set IDR Interval	256
“webrtc_out_min_drc_interval”	webRTC Out minimum interval between DRC requests	5
“webrtc_out_encode_fallback_option”	WebRTC output encoder fallback option (software/hardware)	“software”
“webrtc_out_default_resolution”	Default resolution for WebRTC output	“1920x1080”
“webrtc_out_enc_quality_tuning”	WebRTC output encoder quality tuning preset	“ultra_low_latency”
“webrtc_out_enc_preset”	WebRTC output encoder preset	“ultra_fast”
“enable_drc”	Enable/Disable Dynamic Rate Control for WebRTC	TRUE
“device_name”	Device Name for edge VST	“VST_EDGE”
“device_location”	Device Location for edge VST	“6th_Floor”
“enable_dec_low_latency_mode”	Enable/Disable low latency in decoder	FALSE
“enable_avsync_udp_input”	Enable/Disable AV sync for UDP input	TRUE
“use_standalone_udp_input”	Enable/Disable standalone UDP input mode	FALSE
“enable_silent_audio_in_udp_input”	Enable/Disable silent audio in UDP input	FALSE
“enable_udp_input_dump”	Enable/Disable UDP input dump for debugging	FALSE
“use_webrtc_hw_dec”	Enable/Disable WebRTC hardware decoder	TRUE
“recorder_enable_frame_drop”	Enable/Disable frame drop in recorder	TRUE
“recorder_max_frame_queue_size_bytes”	Maximum frame queue size for recorder in bytes	16000000
“use_centralize_local_db”	Enable/Disable Centralized local db	TRUE
“enable_mega_simulation”	Enable/Disable Mega simulation	FALSE
“mega_simulation_delay_min_ms”	Mega simulation delay min ms	0
“mega_simulation_delay_max_ms”	Mega simulation delay max ms	0
“mega_simulation_base_time”	Mega simulation base time	2025-02-14T06:30:00.000000Z
notifications	Section to define all Notifications related parameters
“enable_notification”	Enable notification of device events on message broker	FALSE
“use_message_broker”	Message Broker to use (Kafka/Redis)	“kafka”
“message_broker_topic”	Topic/event used in message broker	“vst.event”
“enable_notification_consumer”	Enable/Disable notification consumer	TRUE
“use_message_broker_consumer”	Message Broker to use (Kafka/Redis)	“kafka”
“message_broker_topic_consumer”	Topic/event used in message broker	“mdx-bev”
“message_broker_payload_key”	Payload key used in message broker	“sensor.id”
“redis_server_env_var”	Redis server address:port	REDIS_SVC_SERVICE_HOST:6379
“kafka_server_address”	Kafka server address and port	“10.0.0.1:9092”
debug	Section to define all Debug related parameters
“enable_perf_logging”	Enable/Disable perf logging	TRUE
“enable_qos_monitoring”	Enable/Disable QOS logging	TRUE
“qos_logfile_path”	QOS log file path	/root/vst_release/webroot/log/
“qos_data_capture_interval_sec”	QOS log capture interval	1
“qos_data_publish_interval_sec”	QOS log publish interval	5
“enable_gst_debug_probes”	Enable/Disable gstreamer probes	TRUE
“enable_prometheus”	Enable/Disable stats update on prometheus	FALSE
“prometheus_port”	prometheus port number	8080
“enable_highlighting_logs”	Enable certain logs highlighting by special colors	TRUE
“enable_debug_apis”	Enable/Disable Debug apis	TRUE
“dump_webrtc_input_stats”	Enable/Disable webRTC IN stats	FALSE
“enable_frameid_in_webrtc_stream”	Enable/Disable frameid in webRTC Stream	FALSE
“enable_network_bandwidth_notification”	Enable/Disable network bandwidth notification	FALSE
“enable_latency_logging”	Enable/Disable latency logging	FALSE
“update_record_details_in_sec”	Update record details in seconds	70
overlay	Section to define all overlay related parameters
“video_metadata_server”	Server to fetch Metadata from	“10.0.0.1:9200/mdx-raw*”
“video_metadata_query_batch_size_num_frames”	Size of metadata to fetch	300
“use_video_metadata_protobuf”	Use Protobuf spec for metadata parsing	TRUE
“enable_gem_drawing”	Enable/Disable GEM drawing	TRUE
“calibration_file_path”	Path to calibration file	“/home/vst/vst_release/configs/calibration.json”
“calibration_mode”	Calibration mode	“synthetic”
“use_camera_groups”	Enable/Disable camera groups	TRUE
“enable_recentering”	Enable/Disable recentering	FALSE
“floor_map_file_path”	Path to floor map file	“/home/vst/vst_release/configs/Top.png”
“3d_overlay_sensor_name”	3D overlay sensor name	“bev-sensor-1”
“bbox_tolerance_ms”	Bounding box tolerance in milliseconds	0
“analytic_server_address”	Analytic server address	“”
“overlay_color_code”	Overlay color code
“overlay_text_font_type”	Font type for overlay text	“DejaVuSansMono.ttf”
security	Section to define all security related parameters
“use_https”	Enable/Disable https	TRUE
“use_rtsp_authentication”	Enable/Disable RTSP proxy stream authentication	TRUE
“use_http_digest_authentication”	Enable/Disable HTTP user authentication	TRUE
“use_multi_user”	Enable/Disable multi-user support	FALSE
“enable_user_cleanup”	Enable/Disable automatic user cleanup	FALSE
“session_max_age_sec”	Session maximum age in seconds	2592000
“multi_user_extra_options”	Extra options for multi-user cookies	[“Secure”,”SameSite=none”]
“nv_org_id”	NGC ORG ID	ngc_org_id
“nv_ngc_key”	NGC Key	ngc_key
