Secure Channel

NVIDIA DOCA Secure Channel Application Guide

This document provides a secure channel implementation on top of NVIDIA® BlueField® DPU.

DOCA Comm Channel is a secure, network independent communication channel between the host and the NVIDIA® BlueField® DPU.

Comm channel allows the host to control services on the DPU, activate certain offloads, or exchange messages using client-server framework. Communication is based on RDMA queue-pairs (QPs). Each packet that is sent by the QPs consists of two parts: Header and data. The header is a 32-bit structure that holds metadata on the msg to allow the use of a handshake protocol, credit incremental over data packets, and error handling.

The client (host) side is able to communicate only with one server at a time while the server side is able to communicate with multiple clients.

The API allows communication between any PF/VF/SF on the host to the service on the Arm.

Secure channel allows the user to select the message size and amount to be exchanged between the client and the server to simulate heavy load on the channel.

A secure channel application runs on client mode (host) and server mode (DPU). Once a channel is open, messages can flow from both sides. Each endpoint holds 2 RDMA QPs, one for send operations and one for receive operations.

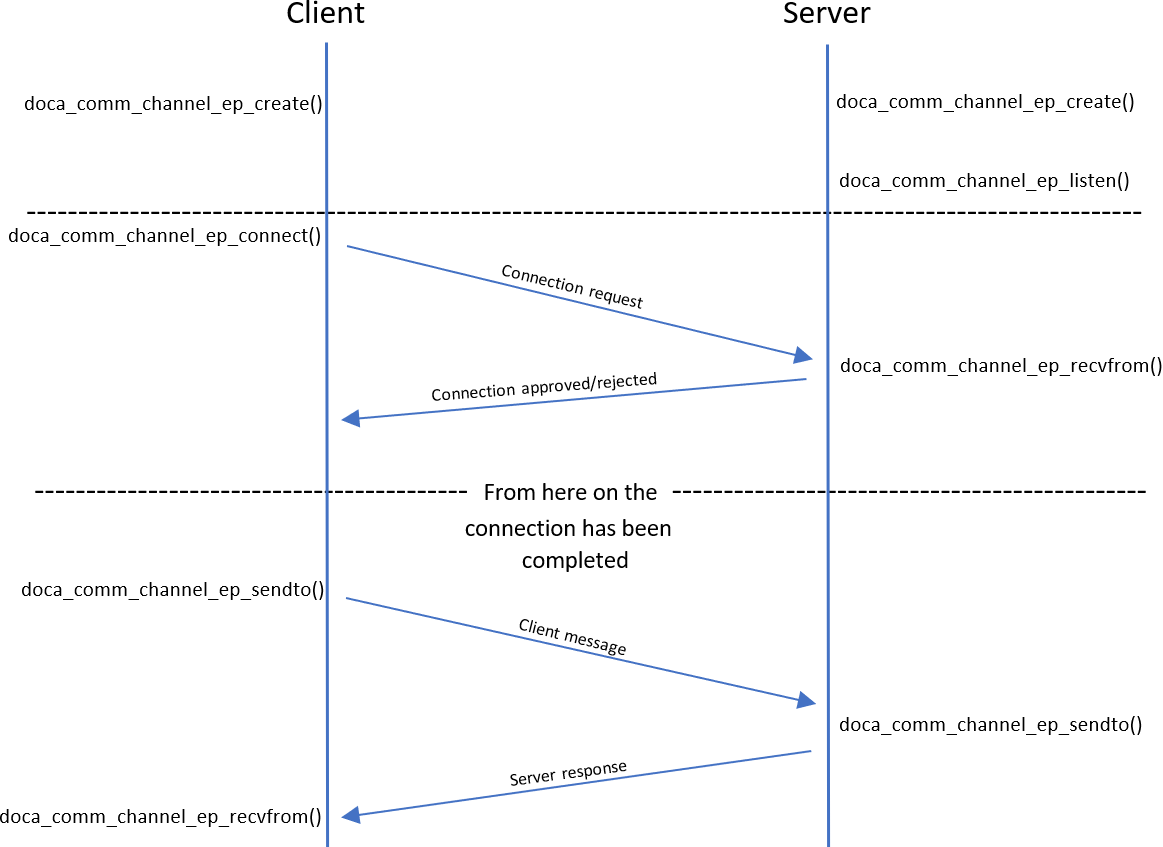

The secure channel application runs on top of the DOCA Comm Channel API. Full connection flow between the client and the server is illustrated in the following:


  1. Both sides initiate create().
  2. Server listens and waits for new connections.
  3. Server initiates recvfrom() to indicate it is ready to exchange messages.
  4. Client executes connect() to server and starts connection initialization.
  5. Client sends first message to server.
  6. Server sends a response.

This application leverages the DOCA Comm Channel library.

  1. Parse application argument.
    1. Initialize the arg parser resources and register DOCA general parameters.
      Copy
      Copied!


      doca_argp_init();

    2. Register application parameters.
      Copy
      Copied!


      register_secure_channel_params();

    3. Parse application flags.
      Copy
      Copied!


      doca_argp_start();

  2. Run main logic.
    Copy
    Copied!


    sc_start();

    1. Initiate synchronization mechanism between send and receive threads.
    2. Initiate Comm Channel endpoint.
    3. Server side starts listening for new connections and client side connects to server.
    4. Initiate signal masking and epoll file descriptor.
    5. Start send and receive threads. Both threads share the same Comm Channel so each one must "lock" the channel before any send/receive operation.
    6. Send thread prints total number of messages successfully sent.
    7. Once Ctrl+C is entered in the shell, receive thread prints the total number of messages successfully received.
    8. Close and destroy resources.

BlueField-2 firmware version 24.35.1012 or later.

  1. Refer to the following documents:
  2. The URL filtering example binary is located under /opt/mellanox/doca/applications/secure_channel/bin/doca_secure_channel. To build all the applications together, run:
    Copy
    Copied!


    cd /opt/mellanox/doca/applications/ meson build ninja -C build

  3. To build only the secure channel application:
    1. Edit the following flags in /opt/mellanox/doca/applications/meson_options.txt:
      • Set enable_all_applications to false
      • Set enable_secure_channel to true
    2. Run the commands in step 2.
      Note:

      doca_secure_channel is created under ./build/secure_channel/src/.

    Application usage:

    Copy
    Copied!


    Usage: doca_secure_channel [DOCA Flags] [Program Flags] DOCA Flags: -h, --help Print a help synopsis -v, --version Print program version information -l, --log-level Set the log level for the program <CRITICAL=20, ERROR=30, WARNING=40, INFO=50, DEBUG=60> Program Flags: -s, --msg-size Message size to be sent -n, --num-msgs Number of messages to be sent -p, --pci-addr DOCA Comm Channel device PCI address -r, --rep-pci DOCA Comm Channel device representor PCI address (needed only on DPU)

    Note:

    For additional information on the app, use -h:

    Copy
    Copied!


    /opt/mellanox/doca/applications/secure_channel/bin/doca_secure_channel -h


  4. CLI example for running the app on BlueField:
    Copy
    Copied!


    /opt/mellanox/doca/applications/secure_channel/bin/doca_secure_channel -s 256 -n 10 -p 03:00.0 -r b1:00.0

  5. CLI example for running the app on the host:
    Copy
    Copied!


    /opt/mellanox/doca/applications/secure_channel/bin/doca_secure_channel -s 1024 -n 100 -p b1:00.0

    Note:

    Refer to section "Running DOCA Application on Host" in NVIDIA DOCA Virtual Functions User Guide.

  6. To run doca_secure_channel using a JSON file:
    Copy
    Copied!


    doca_secure_channel --json [json_file]

    For example:
    Copy
    Copied!


    cd /opt/mellanox/doca/applications/secure_channel/bin ./doca_secure_channel --json sc_server_params.json


Refer to NVIDIA DOCA Arg Parser Programming Guide for more information.

Flag Type Short Flag Long Flag/JSON Key Description JSON Content
General Flags l log-level Sets the log level for the application:
  • CRITICAL=20
  • ERROR=30
  • WARNING=40
  • INFO=50
  • DEBUG=60
Copy
Copied!


"log-level": 60

v version Print program version information N/A
h help Print a help synopsis N/A
Program Flags s msg-size Message size in bytes
Note:

This is a mandatory flag.

Copy
Copied!


"msg-size": 128

n num-msgs Number of messages to send on both sides
Note:

This is a mandatory flag.

Copy
Copied!


"num-msgs": 256

p pci-addr DOCA Comm Channel device PCIe address
Note:

This is a mandatory flag.

Copy
Copied!


"pci-addr": 03:00.1

r rep-pci DOCA Comm Channel device representor PCIe address
Note:

This is a mandatory flag.

Copy
Copied!


"rep-pci": b1:00.1

  • /opt/mellanox/doca/applications/secure_channel/src
