DeepStream-3D Sensor Fusion Multi-Modal Application and Framework

View as Markdown

This deepstream-3d-lidar-sensor-fusion sample application showcases multi-modal sensor fusion pipelines for LiDAR and camera data using the DS3D framework. This application with DS3D framework could setup different LiDAR/RADAR/Camera sensor fusion models, late fusion inference pipelines with several key features.

  • Camera processing pipeline leveraging DeepStream’s generic 2D video pipeline with batchMeta.
  • Custom ds3d::dataloader for LiDAR capture with pre-processing options.
  • Custom ds3d::databridge converts DeepStream NvBufSurface and GstNvDsPreProcessBatchMeta data into shaped based tensor data ds3d::Frame2DGuard and ds3d::FrameGuard formats, and embeds key-value pairs within ds3d::datamap.
  • ds3d::mixer for efficient merging of camera, LiDAR and any sensor data into ds3d::datamap.
  • ds3d::datafilter followed by libnvds_tritoninferfilter.so for multi-modal ds3d::datamap inference and custom pre/post-processing.
  • ds3d::datasink with ds3d_gles_ensemble_render for 3D detection result visualization with a multi-view display.

The deepstream-3d-lidar-sensor-fusion sample application and source code is located at app/sample_apps/deepstream-3d-lidar-sensor-fusion/ for your reference.

There are 2 multi-modal sensor fusion pipelines for LiDAR and camera data, enabling 3D detections.

Example 1. BEVFusion Multi-Modal with 6-Camera Plus 1-LiDAR Data Fusion Pipeline

Refer to the provided instructions for the setup. DS3D BEVFusion Setup with Triton

  • Processes data from 6 cameras and 1 LiDAR.
  • Utilizes pre-trained PyTroch BEVFusion model, optimized for NVIDIA GPUs using TensorRT and CUDA by CUDA-BEVFusion.
  • PyTriton multi-modal inference module (triton-lmm) simplifies Python model integration, allowing inclusion of any Python inference.
  • The ds3d::datafilter based triton inference through gRPC.
  • Visualizes the ds3d::datamap through 6 camera views, projecting LiDAR data into each. Additionally, it provides a top view and a front view of the same LiDAR data for easier comprehension.

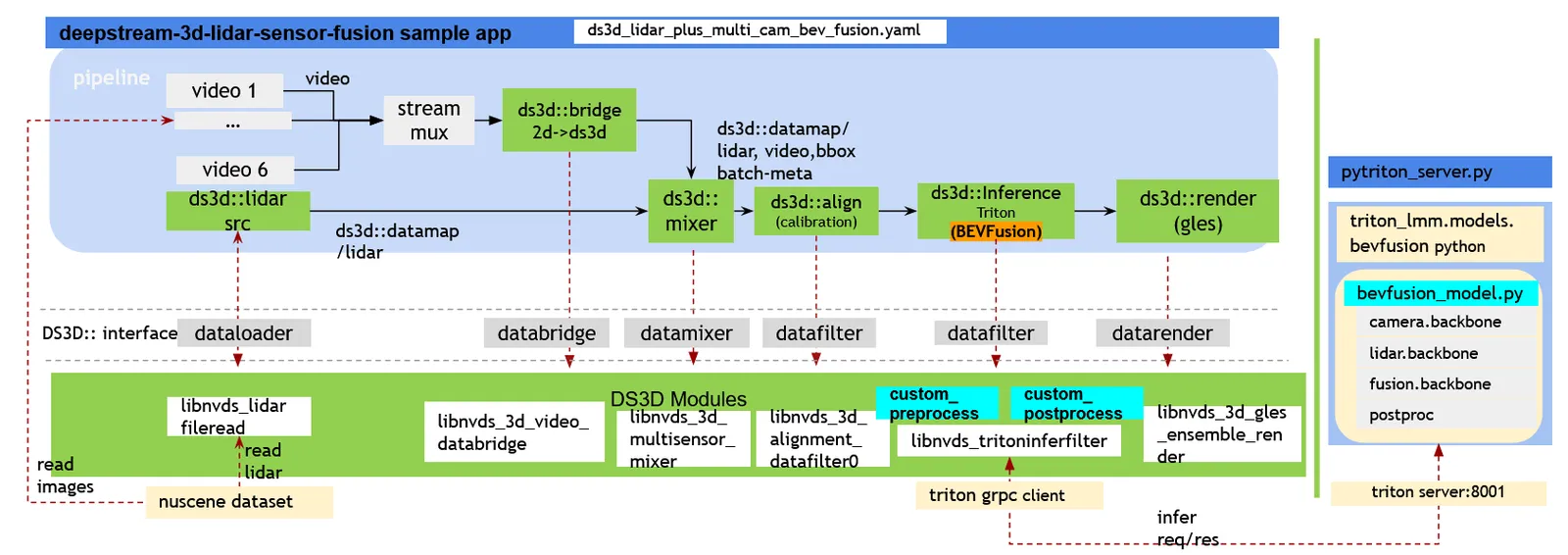

DS-3D Lidar-Camera BEVFusion pipeline overview

Example 2. V2XFusion multi-modal batched 4-Camera and 4-LiDAR Inference Pipeline:

Refer to the provided instructions for the setup. DS3D V2XFusion setup

  • Processes data from a single camera and a LiDAR, utilizing a batch size of 4.
  • Utilizes pre-trained V2XFusion model which is based on BEVFusion and BEVHeight.
  • Build the V2X ONNX model into TensorRT for GPU acceleration.
  • Visualizes 4 batched camera and lidar data together into multiviews.

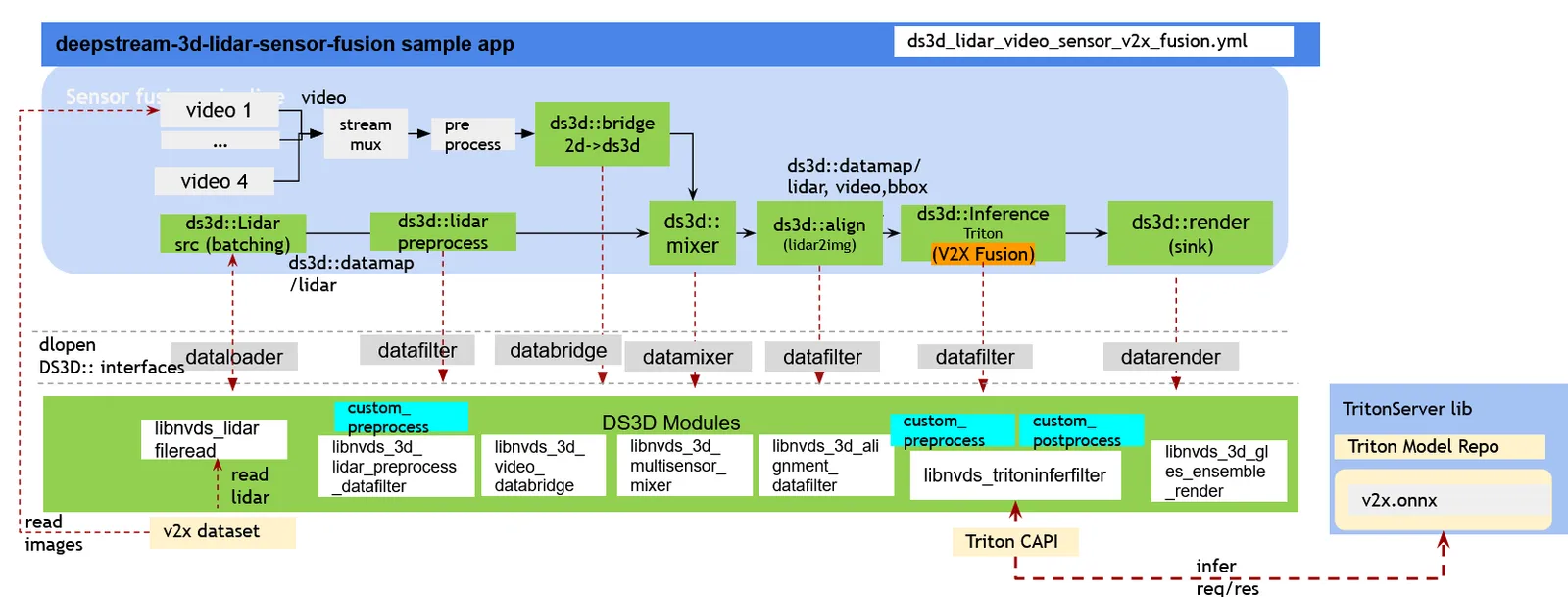

DS-3D Lidar-Camera V2XFusion pipeline overview

Quick Start

  • The following development packages must be installed.

    • GStreamer-1.0
    • GStreamer-1.0 Base Plugins
    • GLES library
    • libyaml-cpp-dev

  • Download and install DeepStream SDK locally on the host. Follow instructions at page Install the DeepStream SDK with method 1 or 2 to install DeepStream SDK locally.

    BEVFusion requires a local installation of DeepStream SDK which includes the scripts to build/run the container, model and dataset for ease of use.

  • Prerequisites before starting the container.

    # run cmdline outside of the container
    $ export DISPLAY=0.0 # set the correct display number if DISPLAY is not exported
    $ xhost +
    $ cd /opt/nvidia/deepstream/deepstream/sources/apps/sample_apps/deepstream-3d-lidar-sensor-fusion
    # make directory for dataset and model repo in host, it would be mounted into the container for bevfusion tests
    $ sudo chmod -R a+rw . # Grant read/write permission for all of the files in this folder
    $ mkdir -p data bevfusion/model_root

If any scripts are run outside of container, or if file read/write permission errors are experienced, please run the commands with sudo -E.

Users have to run the following command line on every terminal outside of the container or seeing errors such as xhost: unable to open display

$ export DISPLAY=0.0 # set the correct display number if DISPLAY is not exported
$ xhost +

  • Bevfusion and V2XFusion Setup difference.

    • BEVFusion would build a new local docker image deepstream-triton-bevfusion:{xx.xx} on top of deepstream-triton base image ghcr.io/nvidia/deepstream:{xx.xx.xx}-triton-multiarch to install all CUDA-BEVFusion dependencies, build offline models, and setup triton server for gRPC remote inference on x86 dGPU. and client fusion pipeline could be running on x86 and Jetson.

    • V2XFusion setup instructions inside deepstream-triton base container ghcr.io/nvidia/deepstream:{xx.xx.xx}-triton-multiarch and inference through Triton CAPI(native) locally. It also supports Jetson test on host without container if Triton dependencies installed manually.

    deepstream-triton-bevfusion:{xx.xx}, {xx.xx} is from deepstream sdk major.minor version number installed on local. ghcr.io/nvidia/deepstream:{xx.xx.xx}-triton-multiarch, {xx.xx.xx} is matched from DeepStream containers (the same deepstream multiarch repository serves both x86 and Jetson)

BEVFusion pipeline Demo Setup

  • Prepare all required containers, inference models, sample dataset. Refer to the detailed provided instructions in DS3D BEVFusion setup

All the following command line for BEVFusion setup are run outside of the container unless other comments specified

  • BEVFusion pipeline Quick start.

    • Option 1: build bevfusion model container, start triton server and finally run the pipeline.

      Run the following command line to build a local bevfusion model container deepstream-triton-bevfusion:{DS_VERSION_NUM} on x86 with dGPU.

      $ cd /opt/nvidia/deepstream/deepstream/sources/apps/sample_apps/deepstream-3d-lidar-sensor-fusion
      $ bevfusion/docker_build_bevfusion_image.sh ghcr.io/nvidia/deepstream:{xx.xx.xx}-triton-multiarch

      Download the models from https://nvidia.box.com/shared/static/t1t67uytge97tn4q7xteehtauutaqxz7 directly, then run the following command line to move the model to designated directory and build TensorRT engine files on x86 with dGPU.

      $ mkdir -p bevfusion/model_root
      $ sudo cp {PATH TO YOUR model.zip DOWNLOAD} /opt/nvidia/deepstream/deepstream/sources/apps/sample_apps/deepstream-3d-lidar-sensor-fusion/bevfusion/model_root/model.zip
      $ bevfusion/docker_run_generate_trt_engine_models.sh bevfusion/model_root

      Start triton server with the models built from last step on x86 with dGPU.

      $ bevfusion/docker_run_triton_server_bevfusion.sh bevfusion/model_root

      Open another terminal to start deepstream 3d sensor fusion pipeline with bevfusion config on x86.

      $ export NUSCENE_DATASET_URL="https://github.com/NVIDIA/DeepStream/raw/main/src/apps/sample_apps/deepstream-3d-lidar-sensor-fusion/data/nuscene.tar.gz"
      $ cd /opt/nvidia/deepstream/deepstream/sources/apps/sample_apps/deepstream-3d-lidar-sensor-fusion
      # this cmdline is also preparing the dataset for pipeline tests.
      # this config file would project lidar data back to camera view in display.
      $ bevfusion/docker_run_ds3d_sensor_fusion_bevfusion_pipeline.sh ds3d_lidar_plus_multi_cam_bev_fusion.yaml
      # OR
      # this config file would keep clear lidar and camera data in display, meanwhile show labels in each view.
      $ bevfusion/docker_run_ds3d_sensor_fusion_bevfusion_pipeline.sh ds3d_lidar_plus_multi_cam_bev_fusion_with_label.yaml

      See more details about the instructions in DS3D BEVFusion setup

    • Option 2: Once users setup everything ready from Option 1, and keep tritonserver running, and make sure dataset downloaded, then users can run the cmdline inside deepstream-triton container.

      Start deepstream triton container after model and dataset are ready in Option 1. export DOCKER_GPU_ARG="--runtime nvidia" for Jetson. see more details how to modify config file to setup Jetson test DS3D BEVFusion setup

      $ cd /opt/nvidia/deepstream/deepstream/sources/apps/sample_apps/deepstream-3d-lidar-sensor-fusion
      # make directory for dataset and model repo in host, it would be mounted into the container for bevfusion tests
      $ mkdir -p data bevfusion/model_root
      $ export DOCKER_GPU_ARG="--gpus all" # for x86
      # export DOCKER_GPU_ARG="--runtime nvidia" # for Jetson
      # start the container interactively, and mount dataset and model folder into the container for tests
      $ docker run $DOCKER_GPU_ARG -it --rm --ipc=host --net=host --privileged -v /tmp/.X11-unix:/tmp/.X11-unix \
       -e DISPLAY=$DISPLAY \
       -w /opt/nvidia/deepstream/deepstream/sources/apps/sample_apps/deepstream-3d-lidar-sensor-fusion \
       -v ./data:/opt/nvidia/deepstream/deepstream/sources/apps/sample_apps/deepstream-3d-lidar-sensor-fusion/data \
       -v ./bevfusion/model_root:/opt/nvidia/deepstream/deepstream/sources/apps/sample_apps/deepstream-3d-lidar-sensor-fusion/bevfusion/model_root \
       ghcr.io/nvidia/deepstream:{xx.xx.xx}-triton-multiarch

      Start deepstream bevfusion pipeline, run cmdline inside of the container.

      # run cmdline inside of this container
      $ cd /opt/nvidia/deepstream/deepstream/sources/apps/sample_apps/deepstream-3d-lidar-sensor-fusion
      $ deepstream-3d-lidar-sensor-fusion -c ds3d_lidar_plus_multi_cam_bev_fusion.yaml
      # Or render with the 3D-bbox labels.
      $ deepstream-3d-lidar-sensor-fusion -c ds3d_lidar_plus_multi_cam_bev_fusion_with_label.yaml

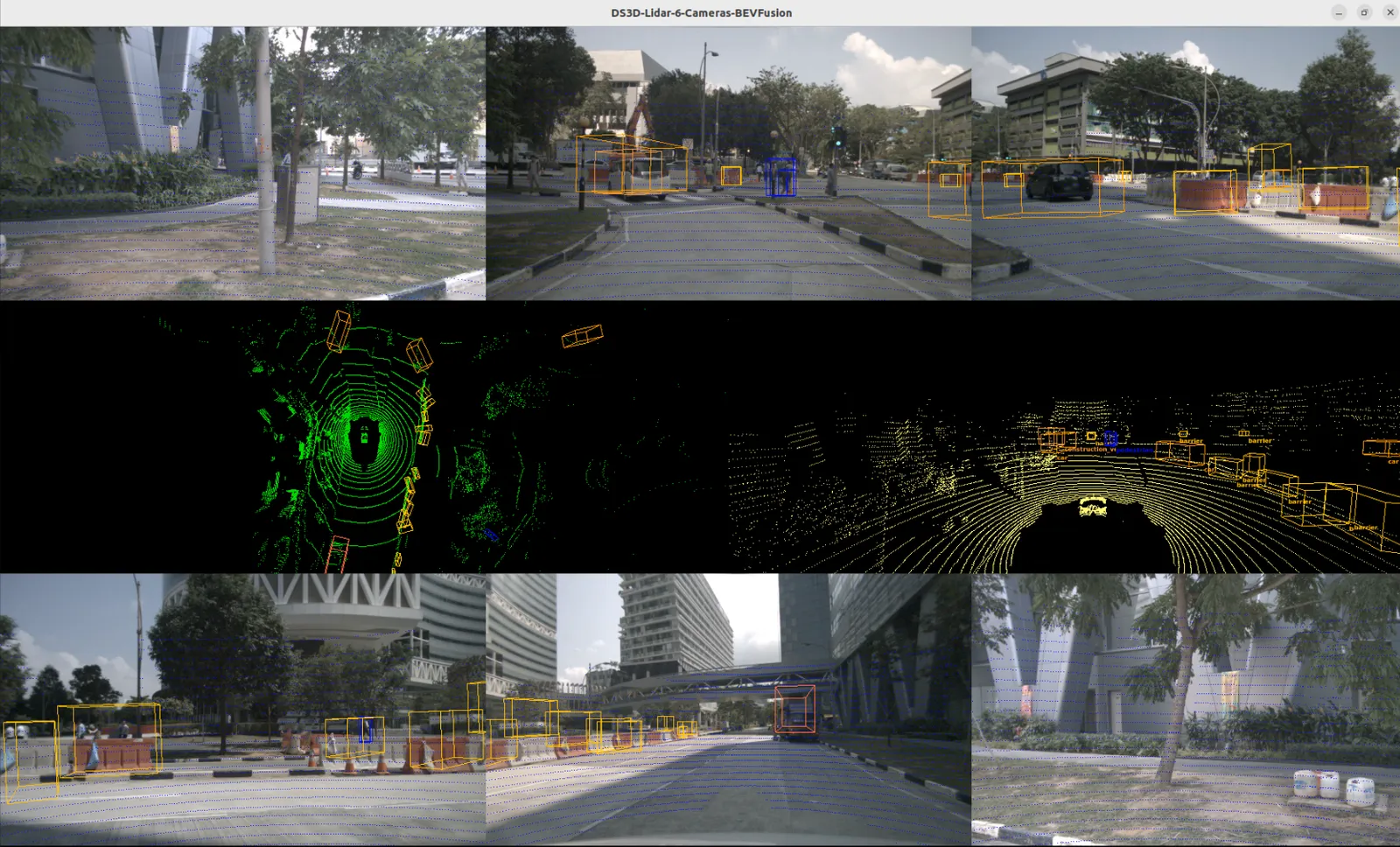

    • BEVFusion Pipeline rendering results with nuscene dataset(nuscene dataset terms of use https://www.nuscenes.org/terms-of-use )

DS-3D Lidar-Camera BEVFusion Snapshot

V2XFusion pipeline Demo Setup

Refer to the detailed provided instructions in DS3D V2XFusion Setup

  • Start the deepstream-triton base container for V2XFusion tests.

    Skip this step if users have installed Triton dependencies manually on Jetson host.

    # running cmdline outside of the container
    $ xhost +
    # export DOCKER_GPU_ARG="--runtime nvidia --privileged" # for Jetson Orin
    $ export DOCKER_GPU_ARG="--gpus all" # for x86
    # start the container interactively
       $ docker run $DOCKER_GPU_ARG -it --rm --ipc=host --net=host -v /tmp/.X11-unix:/tmp/.X11-unix \
        -e DISPLAY=$DISPLAY \
        -w /opt/nvidia/deepstream/deepstream/sources/apps/sample_apps/deepstream-3d-lidar-sensor-fusion \
        ghcr.io/nvidia/deepstream:{xx.xx.xx}-triton-multiarch
    # {xx.xx.xx} is deepstream sdk version number

    With this docker run container, the following instructions of v2XFusion setup are running inside of this container. If this step skipped on Jetson, the following instructions are running on host directly.

  • Install dependencies

    $ pip install gdown python-lzf # with sudo if running on Jetson host

  • Prepare all required inference models, optimize the models and sample dataset

    Follow instructions in Download V2XFusion Models and Build TensorRT Engine Files to download the original V2X dataset.

    Note: The example dataset is provided by https://air.tsinghua.edu.cn/DAIR-V2X/english/index.html. For each dataset an user elects to use, the user is responsible for checking if the dataset license is fit for the intended purpose.

    $ cd /opt/nvidia/deepstream/deepstream/sources/apps/sample_apps/deepstream-3d-lidar-sensor-fusion/v2xfusion/scripts
    $ gdown 1gjOmGEBMcipvDzu2zOrO9ex_OscUZMYY
    $ ./prepare.sh dataset# with sudo if running on Jetson host

  • Start V2XFusion pipeline once models and dataset are ready.

    # run the cmdline inside deepstream-triton container
    $ cd /opt/nvidia/deepstream/deepstream/sources/apps/sample_apps/deepstream-3d-lidar-sensor-fusion
    $ deepstream-3d-lidar-sensor-fusion -c ds3d_lidar_video_sensor_v2x_fusion.yml
    • Users could see the pipeline running on display.

Build application From Source

  • To compile the sample app deepstream-3d-lidar-sensor-fusion inside of container:
$ cd /opt/nvidia/deepstream/deepstream/sources/apps/sample_apps/deepstream-3d-lidar-sensor-fusion
$ make
$ sudo make install

In Docker containers, sudo is not required for this install step.

To compile the sources, run make with sudo -E or root permission.

DS3D Components used in this sample application

This section describes the DS3D components used in the deepstream-3d-lidar-sensor-fusion pipeline.

LiDAR Data Loading

  • ds3d::dataloader (implemented in libnvds_lidarfileread.so)

    • Reads a list of LiDAR point cloud files from disk into a ds3d::datamap format.
    • Source code resides in /opt/nvidia/deepstream/deepstream/sources/libs/ds3d/dataloader/lidarsource.
    • Refer to the README within that directory for compilation and installation instructions.
    • See more details in DS3D Custom lib specification Custom Dataloader libnvds_lidarfileread Configuration Specifications

Video Data Bridging Into DS3D ds3d::datamap

Video Data Bridging Into DS3D ds3d::datamap

  • ds3d::databridge (implemented in libnvds_3d_video_databridge.so)

    • Transfers 2D video buffers into the ds3d::datamap format.
    • DeepStream expects the 2D buffer to be in video/x-raw(memory:NVMM) format (e.g., output from nvv4l2decoder).
    • See more details in DS3D databridge specification Configuration file

    Note: A ds3d::datamap is a generic data structure consisting of key-value pairs. It serves as the primary input and output buffer format for components within the DeepStream ds3d framework.

Data Mixing

  • ds3d::datamixer (implemented in libnvds_3d_multisensor_mixer.so)

    • Combines video data (2D) and LiDAR data (3D) into a single ds3d::datamap.
    • The mixer operates at a user-specified frame rate. The processing speed might be limited by the slowest input source.
    • See more details in DS3D mixer specification Configuration file

LiDAR/Camera Data Alignment/Calibration Filtering

LiDAR Data V2X Preprocess Filtering

  • ds3d::datafilter (implemented in libnvds_3d_lidar_preprocess_datafilter.so)

  • ds3d custom point cloud data to point pillar scatter data conversion (implemented in libnvds_3d_lidar_preprocess_datafilter.so)

    • Implement the V2XFusion model pointpillar scatter data conversion function to adapt to ds3d lidar preprocess ds3d::datafilter
    • Refer to the /opt/nvidia/deepstream/deepstream/sources/libs/ds3d/datafilter/lidar_preprocess/README

LiDAR/Camera Data GLES Rendering

Data Inference Filtering

  • ds3d::datafilter (implemented in libnvds_tritoninferfilter.so)

    • Executes multi-modal data inference using the Triton Inference Server. Any data element from the ds3d::datamap can be forwarded to Triton. It supports both Triton CAPI and gRPC modes. Custom pre-processing and post-processing might be required depending on the specific inference task.

    • See more details in libnvds_tritoninferfilter Configuration Specifications

  • ds3d custom V2XFusion model inputs preprocessing library (implemented in libnvds_3d_v2x_infer_custom_preprocess.so)

    • Prepare and copy constant parameters and data for the tensor inputs of the V2XFusion model
    • Copy pointpillar scatter data to the model input tensor
    • Refer to /opt/nvidia/deepstream/deepstream/sources/libs/ds3d/inference_custom_lib/ds3d_v2x_infer_custom_preprocess/README

Custom Post-Processing for LiDAR Detection

  • ds3d custom postprocessing library (implemented in libnvds_3d_infer_postprocess_lidar_detection.so)

    • Performs custom post-processing operations on the sensor fusion results (3D detection objects). The interface inherits from nvdsinferserver::IInferCustomProcessor.
    • Source code resides in /opt/nvidia/deepstream/deepstream/sources/libs/ds3d/inference_custom_lib/ds3d_lidar_detection_postprocess.
    • Refer to the README within that directory for compilation and installation instructions.

  • ds3d custom V2XFusion outputs postprocessing library (implemented in libnvds_3d_v2x_infer_custom_postprocess.so)

    • Parse the output tensor data from V2XFusion model
    • Calculate 3D bboxes from the output tensor data
    • Refer to /opt/nvidia/deepstream/deepstream/sources/libs/ds3d/inference_custom_lib/ds3d_v2x_infer_custom_postprocess/README

BEVFusion Model Inference with Triton-LMM

  • triton_lmm Python module for bevfusion

    • A Python module based on Triton and PyTriton, designed for multi-modal inference. It simplifies the integration of Python-based inference models into the Triton server. This sample application leverages the BEVFusion model (Python version) using this module.
    • source code resides in app/sample_apps/deepstream-3d-lidar-sensor-fusion/python/triton_lmm
    • Python module license Apache-2.0

DS3D Custom Components Configuration Specifications

See more details in the DS_3D supported custom components specifications section in the DeepStream-3D Custom Apps and Libs Tutorials.
