Gst-nvds3dmixer

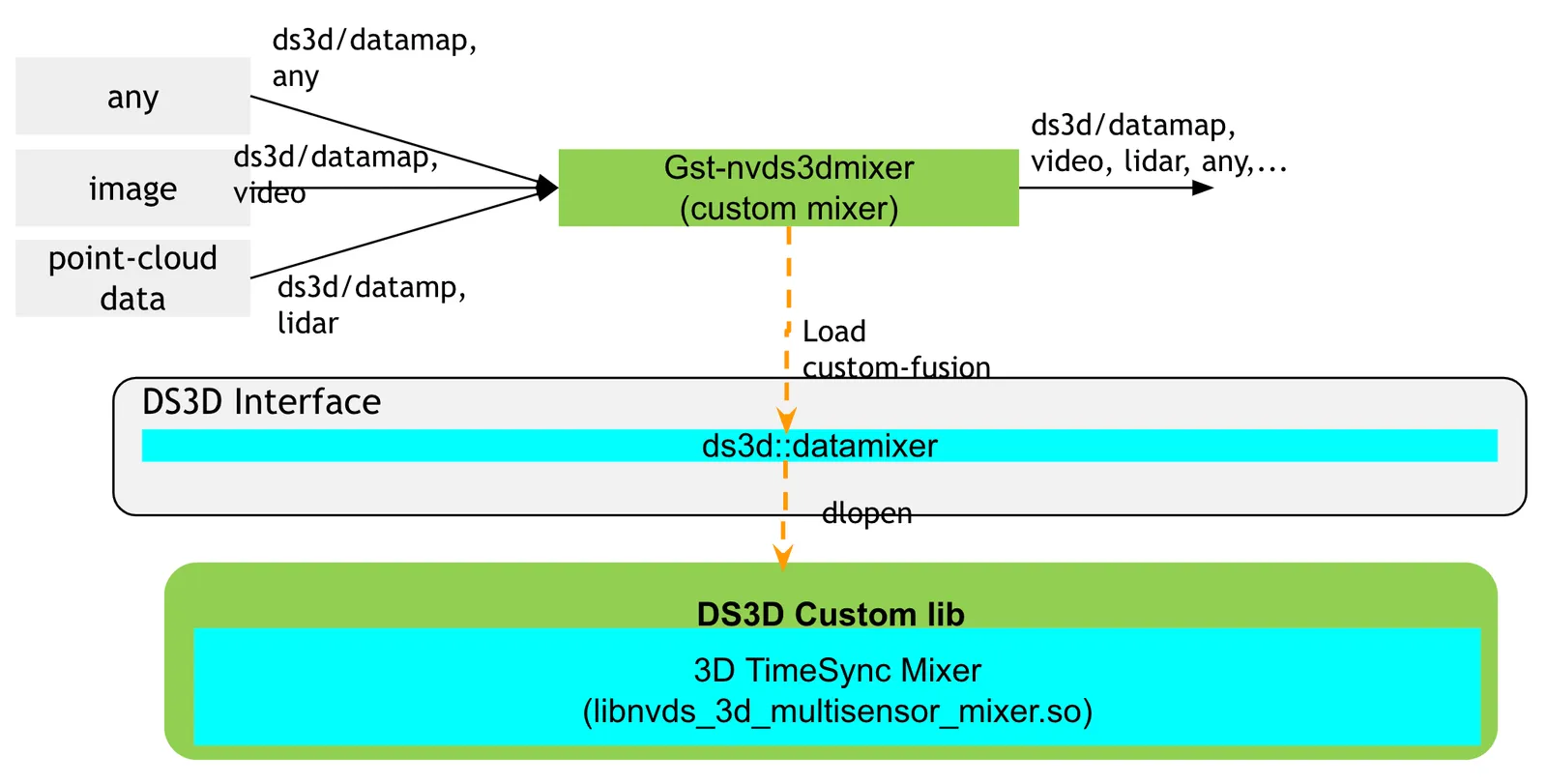

The Gst-nvds3dmixer plugin is a customizable plugin which provides a custom library interface to load component ds3d::datamixer.

nvds3dmixer mix buffers from N input pads into one output pad.

The Plugin is fully configured through YAML format content or file.

Gst-nvds3dmixer properties Specifications

Gst-nvds3dmixer Properties.

Custom library Interfaces

The plugin parse the config file or content and set SinkCaps and SrcCaps. load a custom ds3d::datamixer from custom_lib_path. Create this datamixer by custom_create_function.

Supported DS3D Data mixers

Custom low level library: libnvds_3d_multisensor_mixer.so

Custom low level library: libnvds_3d_multisensor_mixer.so

Mix buffers from N input pads into one output pad.

Inputs and Outputs

• Inputs (support N input pads)

  • ds3d/datamap

• Control parameters

  • config-file
  • config-content

• Output

  • ds3d/datamap

• sink_caps

  • parsed from config-file: in_caps: ds3d/datamap.

• src_caps

  • parsed from config-file: out_caps: ds3d/datamap.

• Example Inputs X 2 and Output

Configuration file

Example:

name: multisensor_mixer
type: ds3d::datamixer
in_caps: ds3d/datamap
out_caps: ds3d/datamap
custom_lib_path: libnvds_3d_multisensor_mixer.so
custom_create_function: createMultiSensorMixer
config_body:
    #timeout in milliseconds;
    timeout: 50
    #force_sync == true will force mixer to wait for buffers from ALL inputs
    force_sync: true

Video mixer configuration options
