TAO Toolkit Integration with DeepStream

NVIDIA TAO toolkit is a simple, easy-to-use training toolkit that requires minimal coding to create vision AI models using the user’s own data. Using TAO toolkit, users can transfer learn from NVIDIA pre-trained models to create their own model. Users can add new classes to an existing pre-trained model, or they can re-train the model to adapt to their use case. Users can use model pruning capability to reduce the overall size of the model.

Pre-trained models

There are 2 types of pre-trained models that users can start with - purpose-built pre-trained models and meta-architecture vision models. Purpose-built pre-trained models are highly accurate models that are trained on millions of objects for a specific task. The pre-trained weights for meta-architecture vision models merely act as a starting point to build more complex models. These pre-trained weights are trained on Open image dataset and they provide a much better starting point for training versus starting from scratch or starting from random weights. With the latter choice, users can choose from 100+ permutations of model architecture and backbone. See the illustration below.

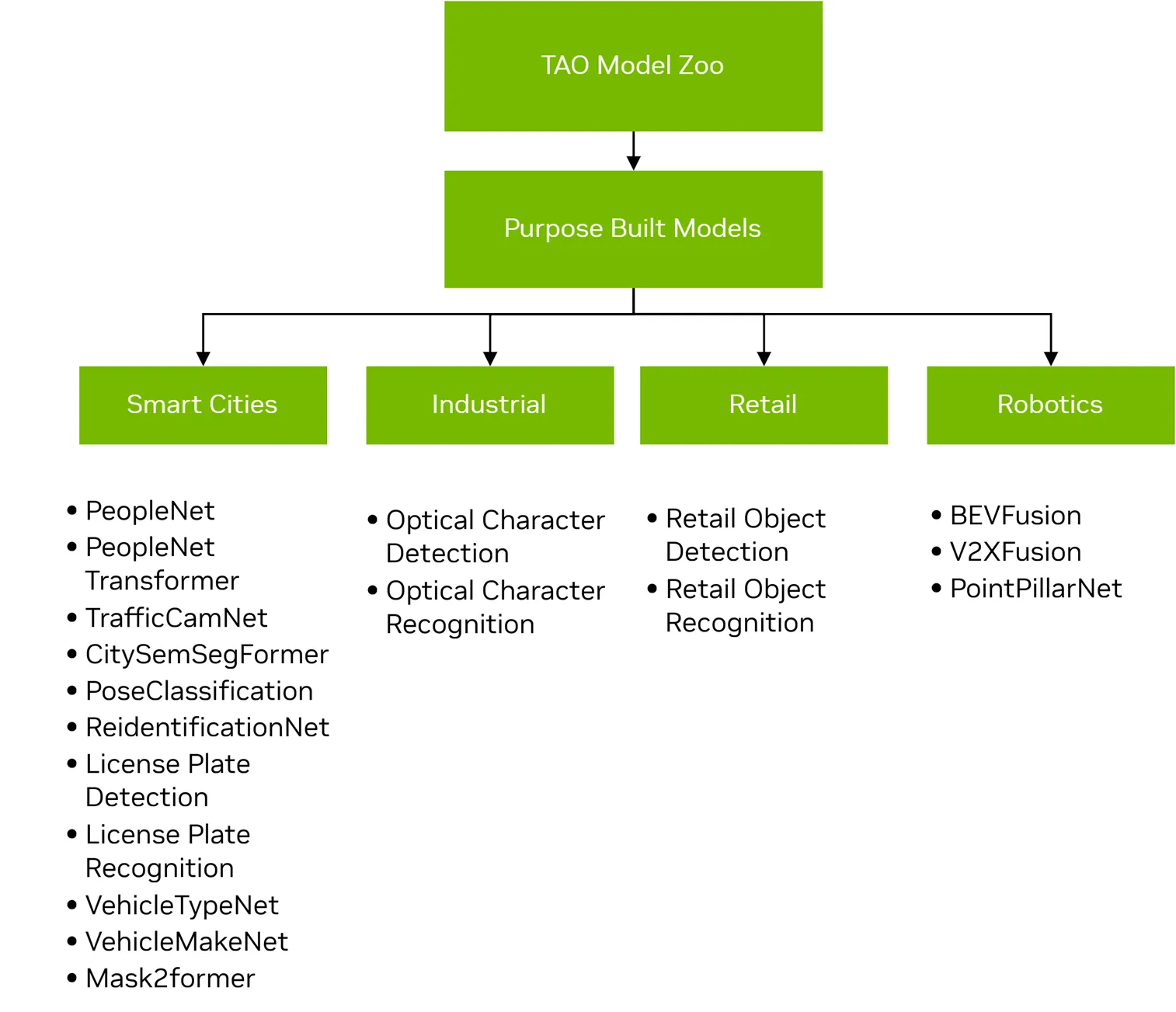

TAO toolkit Pretrained Models

TAO toolkit pretrained models - use cases

Model Name	Description	NGC Instance	TAO Finetuning
TrafficCamNet	4 class object detection network to detect cars in an image.	nvidia/tao/trafficcamnet	Yes
PeopleNet	3 class object detection network to detect people in an image.	nvidia/tao/peoplenet	Yes
VehicleMakeNet	Resnet18 model to classify a car crop into 1 out 20 car brands.	nvidia/tao/vehiclemakenet	Yes
VehicleTypeNet	Resnet18 model to classify a car crop into 1 out 6 car types.	nvidia/tao/vehicletypenet	Yes
License Plate Detection	Object Detection network to detect license plates in an image of a car.	nvidia/tao/lpdnet	Yes
License Plate Recognition	Model to recognize characters from the image crop of a License Plate.	nvidia/tao/lprnet	Yes
PeopleSemSegNet	Semantic segmentation of persons in an image.	nvidia/tao/peoplesemsegnet	Yes
CitySemSegFormer	Semantic segmentation of persons in an image.	nvidia/tao/citysemsegformer	Yes
Optical Character Detection	Network to detect characters in an image.	nvidia/tao/ocdnet	Yes
Optical Character Recognition	Model to recognise characters from a preceding OCDNet model.	nvidia/tao/ocrnet	Yes
Retail Object Detection	DINO (DETR with Improved DeNoising Anchor Boxes) based object detection network to detect retail objects on a checkout counter.	nvidia/tao/retail_object_detection	Yes
Retail Object Recognition	Embedding generator model to recognize objects on a checkout counter.	nvidia/tao/retail_object_recognition	Yes
ReIdentificationNet	Re-Identification network to generate embeddings for identifying persons in different scenes.	nvidia/tao/reidentificationnet	Yes
Pose Classification	Pose classification network to classify poses of people from their skeletons.	nvidia/tao/poseclassificationnet	Yes
PeopleNet Transformer	3 class object detection network to detect people in an image.	nvidia/tao/peoplenet_transformer	Yes
BodyPose3DNet	3D human pose estimation network to predict 34 keypoints in 3D of a person in an image.	nvidia/tao/bodypose3dnet	Yes
PointPillarNet	Objects detection from a LIDAR point cloud file.	nvidia/tao/pointpillarnet	Yes
Mask2Former	Instance segmentation network to predict pixel-accurate masks for detected objects in an image.	nvidia/tao/mask2former	Yes

Most models trained with TAO toolkit are natively integrated for inference with DeepStream. If the model is integrated, it is supported by the reference deepstream-app. If the model is not natively integrated in the SDK, you can find a reference application on the GitHub repo. See the table below for information on the models supported. For models integrated into deepstream-app, we have provided sample config files for each of the networks. The sample config files are available in the deepstream_tao_apps_configs folder. The table below also lists config files for each model.

Refer README in package /opt/nvidia/deepstream/deepstream/samples/configs/tao_pretrained_models/README.md to obtain TAO toolkit config files and models mentioned in following table.

The TAO toolkit pre-trained models table shows the deployment information of purpose-built pre-trained models.

TAO toolkit pre-trained models in DeepStream

Pre-Trained model	DeepStream reference app	Config files	DLA supported
TrafficCamNet	deepstream-app	`deepstream_app_source1_trafficcamnet.txt`, `config_infer_primary_trafficcamnet.txt`, `labels_trafficnet.txt`	Yes
PeopleNet	deepstream-app	`deepstream_app_source1_peoplenet.txt`, `config_infer_primary_peoplenet.txt`, `labels_peoplenet.txt`	Yes
PointPillarNet	deepstream-lidar-inference-app	`config_lidar_triton_infer.yaml`	No
VehicleMakeNet	deepstream-app	`deepstream_app_source1_dashcamnet_vehiclemakenet_vehicletypenet.txt`, `config_infer_secondary_vehiclemakenet.txt`, `labels_vehiclemakenet.txt`	Yes
VehicleTypeNet	deepstream-app	`deepstream_app_source1_dashcamnet_vehiclemakenet_vehicletypenet.txt`, `config_infer_secondary_vehicletypenet.txt`, `labels_vehicletypenet.txt`	Yes
CitySemSegFormer	deepstream_tao_apps	`seg_app_unet.yml`, `pgie_citysemsegformer_tao_config.txt`	Yes
License Plate Detection	deepstream_tao_apps		No
License Plate Recognition	deepstream_tao_apps		No
PoseClassificationNet	deepstream_tao_apps		No
BodyPose3DNet	deepstream_tao_apps		No
Retail Object Recognition	deepstream_tao_apps		No
Retail Object Detection	deepstream_tao_apps		No
PeopleNet Transformer Model	deepstream_tao_apps		No
ReIdentificationNet	deepstream_tao_apps		No
Optical Character Detection	deepstream_tao_apps		No
Optical Character Recognition	deepstream_tao_apps		No
PeopleNet Transformer	deepstream_tao_apps	`det_app_frcnn.yml`, `pgie_peoplenet_transformer_tao_config.yml`	No
Mask2Former	deepstream_tao_apps	`ins_seg_app.yml`, `pgie_mask2former_tao_config.yml`	No

The TAO toolkit models can be deployed with DeepStream sample applications.

Learn more about running the TAO models here: deepstream tao apps

For more information about TAO and how to deploy TAO models, refer to Integrating TAO Models into DeepStream chapter of TAO toolkit user guide.

For more information about deployment of architecture specific models with DeepStream, refer to deepstream tao apps Github repo.
