DeepStream extends the open source V4L2 codec plugins (here called Gst-v4l2) to support hardware-accelerated codecs.

Gst-nvvideo4linux2

Decoder

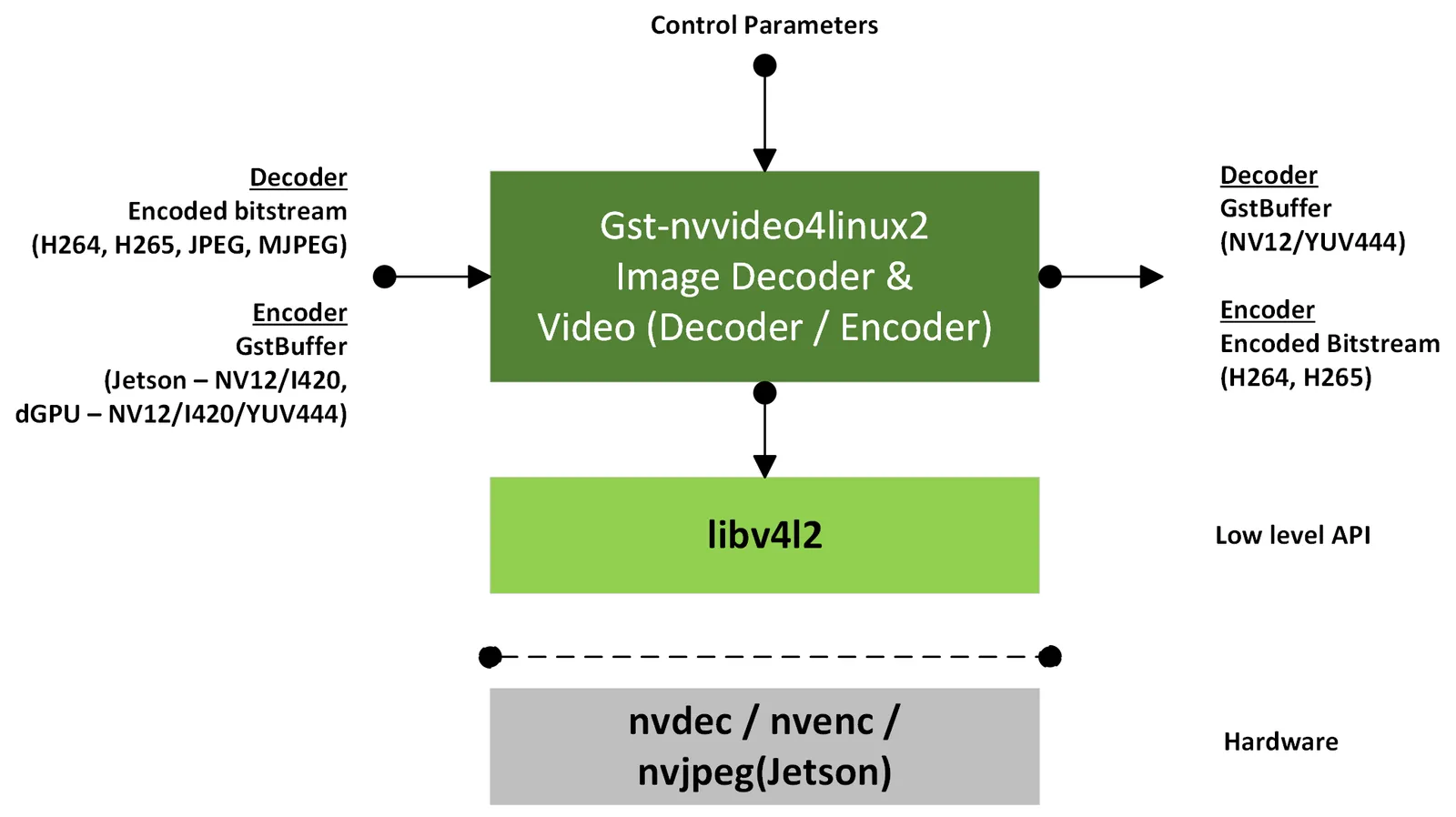

The OSS Gst-nvvideo4linux2 plugin leverages the hardware decoding engines on Jetson and DGPU platforms by interfacing with libv4l2 plugins on those platforms. It supports H.264, H.265, AV1, JPEG and MJPEG formats. The plugin accepts an encoded bitstream and uses the NVDEC hardware engine to decode the bitstream. The decoded output can be NV12 or YUV444 format which depends on the encoded stream content.

When you use the v4l2 decoder for decoding JPEG images, you must use the open source jpegparse plugin before the decoder to parse encoded JPEG images.
Also, note that JPEG and MJPEG decoding is not supported on Thor platform.

Inputs and Outputs

Inputs
- An encoded bitstream. Supported formats are H.264, H.265, AV1, JPEG and MJPEG
- H264 encoded bitstream in 8bit 4:2:0 format.
- H265 encoded bitstream in 8/10/12 bit 4:2:0 and 8/10/12 bit 4:4:4 format.
- AV1 encoded bitstream in 8bit 4:2:0 format.
Output
- H264 decoder outputs GstBuffer in 8bit semi-planar(NV12) 4:2:0 format.
- H265 decoder outputs GstBuffer in 8/10/12 bit semi-planar(NV12) 4:2:0 format, 8/10/12 bit planar(YUV444) 4:4:4 format.
- AV1 decoder outputs GstBuffer in 8bit semi-planar(NV12) 4:2:0 format.

Features

The following table summarizes the features of the Gst-nvvideo4linux2 decoder plugin.

Gst-nvvideo4linux2 plugin decoder features

Feature	Description
Supports H.264 decode	h264 encoded bitstream is decoded into 8bit NV12
Supports H.265 decode	h265 encoded bitstream is decoded into 8/10/12 bit NV12 or 8/10/12 bit YUV444 depending on the stream content
Supports JPEG/MJPEG decode	—
User-configurable CUDA memory type (Pinned/Device/Unified) for output buffers	—

10/12bit YUV444 format support is applicable only for x86/dGPU platforms.
Also, for 12bit NV12 format, the output caps shows I420_12LE. But the data is handled as semiplanar 12 bit data. This is a workaround since gstreamer v1.16 does not have the particular caps for 12 bit NV12. Downstream component should process it considering as 12bit NV12 only.

Gst Properties

The following table summarizes the Gst properties of the Gst-nvvideo4linux2 decoder plugin.

Gst-nvvideo4linux2 plugin decoder gst properties

Property	Meaning	Type and Range	Example/Notes	Platforms
capture-io-mode	Capture I/O mode (matches src pad) (0): auto - GST_V4L2_IO_AUTO (2): mmap - GST_V4L2_IO_MMAP	On dGPU: Enum “GstNvV4l2IOMode On Jetson: Enum “GstNvV4l2DecCaptureIOMode	Default: 0	dGPU Jetson
capture-buffer-dynamic-allocation	Set to enable capture buffer dynamic allocation (0): cap_buf_dyn_alloc_disabled - Capture buffer dynamic allocation disabled (1): fw_cap_buf_dyn_alloc_enabled - Capture buffer dynamic allocation enabled for forward playback (2): rw_cap_buf_dyn_alloc_enabled - Capture buffer dynamic allocation enabled for reverse playback (3): fw_rw_cap_buf_dyn_alloc_enabled - Capture buffer dynamic allocation enabled for forward and reverse playback	Enum “CaptureBufferDynamicAllocationModes	Default: 0	Jetson
cudadec-memtype	Memory type for CUDA decoder buffers. (0): memtype_device - Memory type Device (1): memtype_pinned - Memory type Host Pinned (2): memtype_unified - Memory type Unified	Enum “CudaDecMemType	Default: 2	dGPU
disable-dpb	Set to disable DPB buffer for low latency	Boolean	Default: false	Jetson
drop-frame-interval	Interval to drop the frames, e.g. a value of 5 means the decoder outputs every fifth frame, and others are dropped.	Integer, 1 to 30	Default: 0	dGPU Jetson
extract-sei-type5-data	Set to extract and attach SEI type5 unregistered data on output buffer (not supported on Thor)	Boolean	Default: false	dGPU
enable-error-check	Set to enable error check (not supported on Thor)	Boolean	Default: false	Jetson
enable-frame-type-reporting	Set to enable frame type reporting (not supported on Thor)	Boolean	Default: false	Jetson
enable-full-frame	Whether or not the data is full framed (not supported on Thor)	Boolean	Default: false	Jetson
enable-max-performance	Set to enable max performance (not supported on Thor)	Boolean	Default: false	Jetson
gpu-id	Device ID of GPU to use for decoding.	Integer	Default:0	dGPU
low-latency-mode	Set low latency mode for bitstreams having I and IPPP frames with no B frames	Boolean	Default: false	dGPU Jetson
mjpeg	Set to open MJPEG block (not supported on Thor)	Boolean	Default: false	Jetson
num-extra-surfaces	Number of surfaces in addition to min decode surfaces given by the V4L2 driver.	Integer, 1 to 24	Default: 0	dGPU Jetson
output-io-mode	Output side I/O mode (matches sink pad) On dGPU: (0): auto - GST_V4L2_IO_AUTO (2): mmap - GST_V4L2_IO_MMAP (5): dmabuf-import - GST_V4L2_IO_DMABUF_IMPORT On Jetson: (0): auto - GST_V4L2_IO_AUTO (2): mmap - GST_V4L2_IO_MMAP (3): userptr - GST_V4L2_IO_USERPTR	On dGPU: Enum “GstNvV4l2IOMode On Jetson: Enum “GstNvV4l2DecOutputIOMode	Default: 0, “auto	dGPU Jetson
sei-uuid	Set 16 bytes UUID string for SEI Parsing, extract-sei-type5-data should be TRUE	String	Default: null	dGPU
skip-frames	Type of frames to skip during decoding. 0 (decode_all): decode all frames 1 (decode_non_ref): skips non-ref frames (Applicable only on Jetson platform) 2 (decode_key): decode key frames	Enum “SkipFrame	Default: 0	dGPU Jetson

Encoder

The OSS Gst-nvvideo4linux2 plugin leverages the hardware accelerated encoding engine available on Jetson and dGPU platforms by interfacing with libv4l2 plugins on those platforms. The plugin accepts RAW data in I420/NV12 or YUV444 format. It uses the NVENC hardware engine to encode RAW input. Encoded output is in elementary bitstream supported format. To set appropriate tuning-info-id and preset-id properties please refer to Nvidia Video Codec SDK Documentation at https://docs.nvidia.com/video-technologies/video-codec-sdk/13.0/nvenc-preset-migration-guide/index.html

Inputs and Outputs

Inputs
- RAW input in I420/NV12 or YUV444 format
- 8 bit I420/NV12 and YUV444 raw formats
- 8/10 bit I420/NV12 and YUV444 raw formats
Output
- Gst Buffer with encoded output in H264, H265 and AV1 format.

Features

The following table summarizes the features of the Gst-nvvideo4linux2 encoder plugin.

Gst-nvvideo4linux2 plugin encoder features

Feature	Description
Supports H.264 encode	8 bit I420/NV12, 8bit YUV444 raw format can be encoded into h264 bitstream
Supports H.265 encode	8/10 bit I420/NV12, 8/10 bit YUV444 raw format can be encoded into h265 bitstream

8/10bit YUV444 format support is applicable only for x86/dGPU platforms.

Gst Properties

The following table summarizes the Gst properties of the Gst-nvvideo4linux2 encoder plugin.

Gst-nvvideo4linux2 plugin encoder gst properties

Property	Meaning	Type and Range	Example/Notes	Platforms
aq	Enable spatial AQ and set its strength	Unsigned Integer, 0-15	Default: 0, “auto	dGPU
bit-packetization	Whether or not Packet size is based upon Number Of bits	Boolean	Default: false	Jetson
bitrate	Sets bitrate for encoding, in bits/seconds.	Unsigned Integer	Default: 4000000	dGPU Jetson
capture-io-mode	Capture I/O mode (matches src pad) (0): auto - GST_V4L2_IO_AUTO (2): mmap - GST_V4L2_IO_MMAP (5): dmabuf-import - GST_V4L2_IO_DMABUF_IMPORT	Enum “GstNvV4l2IOMode	Default: 0, “auto	dGPU Jetson
constqp	Sets constant QP values for I:P:B frames	String, 1 to 51	Default: null	dGPU
copy-meta	Copies input metadata on output buffer	Boolean	Default: false	dGPU
copy-timestamp	Enabling the flag allows to copy the timestamps from input to the capture stream.	Boolean	Default: false	Jetson
control-rate	Sets rate control mode for v4l2 encoding (0): variable_bitrate - GST_V4L2_VIDENC_VARIABLE_BITRATE (1): constant_bitrate - GST_V4L2_VIDENC_CONSTANT_BITRATE (2): constantQP - GST_V4L2_VIDENC_CONSTANT_QP	Enum “GstV4l2VideoEncRateControlType	Default: 1, “constant_bitrate	dGPU Jetson
cq	Sets targetQuality (Constant Quality) level for VBR mode	Integer, 0-51	Default: 0, “auto	dGPU
disable-cabac	Set Entropy Coding Type CAVLC(TRUE) or CABAC(FALSE)	Boolean	Default: false	Jetson
enable-lossless	Enable lossless encoding for YUV444	Boolean	Default: false	Jetson
EnableMVBufferMeta	Enable Motion Vector Meta data for encoding	Boolean	Default: false	Jetson
EnableTwopassCBR	Enable two pass CBR while encoding	Boolean	Default: false	Jetson
extended-colorformat	Sets extended colorformat pixel values 0 to 255 in VUI Info	Boolean	Default: false	dGPU
force-idr	Force an IDR frame	Boolean	Default: false	dGPU
force-intra	Forces an INTRA frame	Boolean	Default: false	dGPU
gpu-id	Device ID of GPU to used.	Unsigned Integer	Default:0	dGPU
idrinterval	Sets IDR Frame occurrence frequency in encoded stream	Unsigned Integer	Default: 256	dGPU Jetson
iframeinterval	Sets encoding intra-frame occurrence frequency.	Unsigned Integer	Default: 30	dGPU Jetson
initqp	Set values of initQP in I:P:B order. This provides rough hint to encoder to influence the qp difference between I, P and B	String	Default: null	dGPU
insert-aud	Insert H.264 Access Unit Delimiter(AUD)	Boolean	Default: false	Jetson
insert-sps-pps	Insert H.264 SPS, PPS at every IDR frame	Boolean	Default: false	Jetson
insert-vui	Insert H.264 VUI(Video Usability Information) in SPS	Boolean	Default: false	Jetson
intra-refresh	Intra Refresh Parameters. Use string with unsigned integer values of Intra Refresh in enableIntraRefresh,intraRefreshPeriod,intraRefreshCnt in same order to set the property. e.g. 1,30,5	String	Default: null	dGPU
maxbitrate	Set maxbitrate for v4l2 encoder. This mode is specified by setting rateControlMode to VBR	Unsigned Integer	Default: 0	dGPU
maxperf-enable	Enable or Disable Max Performance mode	Boolean	Default: false	Jetson
MeasureEncoderLatency	Enable Measure Encoder latency Per Frame	Boolean	Default: false	Jetson
num-B-Frames	Number of B Frames between two reference frames (not recommended)	Unsigned Integer, 0-2	Default: 0	Jetson
num-Ref-Frames	Number of Reference Frames for encoder	Unsigned Integer, 0-8	Default: 1	Jetson
output-io-mode	Sets output side I/O mode (matches sink pad) (0): auto - GST_V4L2_IO_AUTO (2): mmap - GST_V4L2_IO_MMAP (5): dmabuf-import - GST_V4L2_IO_DMABUF_IMPORT	Enum “GstNvV4l2IOMode	Default: 0, “auto	dGPU Jetson
peak-bitrate	Peak bitrate in variable control-rate. The value must be >= bitrate (1.2*bitrate) is set by default (Default: 0)	Unsigned Integer	Default: 0	Jetson
poc-type	Set Picture Order Count type value	Unsigned Integer, 0-2	Default: 1	Jetson
preset-id	Sets CUVID Preset ID for Encoder	Unsigned Integer, 1 to 7	Default: 1	dGPU
preset-level	HW preset level for encoder. (0): DisablePreset - Disable HW-Preset (1): UltraFastPreset - UltraFastPreset for high perf (2): FastPreset - FastPreset (3): MediumPreset - MediumPreset (4): SlowPreset - SlowPreset	Enum “GstV4L2VideoEncHwPreset	Default: 1, “UltraFastPreset	Jetson
Profile	H.264/H.265 encoder profile. For H.264: (0): Baseline - GST_V4L2_H264_VIDENC_BASELINE_PROFILE (2): Main - GST_V4L2_H264_VIDENC_MAIN_PROFILE (4): High - GST_V4L2_H264_VIDENC_HIGH_PROFILE (7): High444 - GST_V4L2_H264_VIDENC_HIGH_444_PREDICTIVE For H.265: (0): Main - GST_V4L2_H265_VIDENC_MAIN_PROFILE (1): Main10 - GST_V4L2_H265_VIDENC_MAIN10_PROFILE (3): FREXT - GST_V4L2_H265_VIDENC_FREXT_PROFILE	Enum “GstV4l2VideoEncProfileType	For H.264: Default: 0 (Baseline) For H.265: Default: 0 (Main)	dGPU Jetson
Property	Meaning	Type and Range	Example/Notes	Platforms
qp-range	Sets quantization parameter range for P, I and B frame	String, 1 to 51	Default: null	dGPU Jetson
quant-b-frames	Quantization parameter for B-frames (0xffffffff=component default), use with ratecontrol-enable = 0 and preset-level = 0	Unsigned Integer, 0 - 4294967295	Default: 4294967295	Jetson
quant-i-frames	Quantization parameter for I-frames (0xffffffff=component default), use with ratecontrol-enable = 0	Unsigned Integer, 0 - 4294967295	Default: 4294967295	Jetson
quant-p-frames	Quantization parameter for P-frames (0xffffffff=component default), use with ratecontrol-enable = 0 and preset-level = 0	Unsigned Integer, 0 - 4294967295	Default: 4294967295	Jetson
ratecontrol-enable	Enable or Disable rate control mode	Boolean	Default: true	Jetson
slice-header-spacing	Slice Header Spacing number of macroblocks/bits in one packet	Unsigned Integer64	Default: 0	Jetson
SliceIntraRefreshInterval	Set SliceIntraRefreshInterval	Unsigned Integer	Default: 0	Jetson
temporalaq	Set this to enable adaptive quantization (Temporal).	Boolean	Default: false	dGPU
tuning-info-id	Sets Tuning Info Preset for encoder. (1): HighQualityPreset - Tuning Preset for High Quality (2): LowLatencyPreset - Tuning Preset for Low Latency (3): UltraLowLatencyPreset - Tuning Preset for Low Latency (4): LosslessPreset - Tuning Preset for Lossless	Enum “GstV4L2VideoEncTuingInfoPreset	Default: 2 (LowLatencyPreset)	dGPU
vbvbufsize	Set VBV buffer size in bits.	Unsigned Integer	Default: 0 (default value by encoder)	dGPU
vbvinit	Set VBV initial delay in bits	Unsigned Integer	Default: 0 (default value by encoder)	dGPU
vbv-size	virtual buffer size	Unsigned Integer	Default: 4000000	Jetson
