InfiniBand PKey Creation | NVIDIA Switch Infrastructure

Provisions a new InfiniBand Partition Key (PKey) on UFM and records it in Nautobot. The PKey is the IB fabric’s per-tenant isolation primitive. Members are attached separately through the IB PKey Member Add workflow.

For details on Partition Key creation, see the InfiniBand PKey Creation user guide.

The workflow is idempotent on the canonical PKey value. Re-running with the same PKey returns the existing record rather than allocating a duplicate.

User Interface

Form Inputs

Field	Description	Required
UFM Host	Nautobot device name of the UFM server that will own the PKey	Yes
PKey	Specific partition key to allocate (`0x` + 1-4 hex digits). Leave blank to auto-assign in `[0x0001, 0x7FFE]`	No

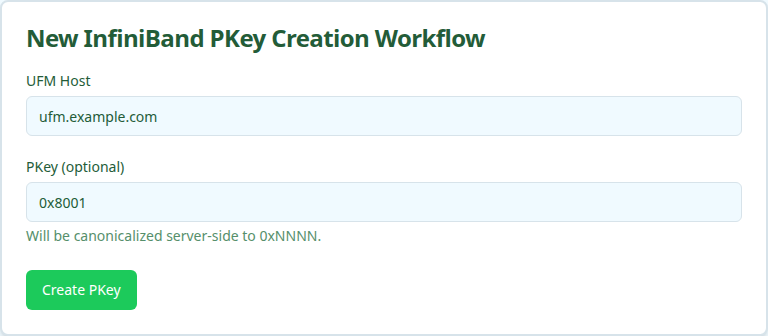

InfiniBand PKey Creation workflow form

Workflow Execution

Execution Stages

Resolve site from host via Nautobot
Validate PKey availability on UFM
Create PKey partition on UFM
Verify the PKey was propagated by the SM
Record the PKey in Nautobot
