Introduction

DiffusionGemma is a block-diffusion language model. Unlike an autoregressive (AR) model that generates one token at a time left-to-right, a block-diffusion model fills in a block of response tokens (a “canvas”) by iteratively denoising it: the canvas starts as noise and is refined over several passes, conditioned on the prompt.

This guide covers supervised fine-tuning (SFT) of the DiffusionGemma 26B-A4B model (a Mixture-of-Experts model with 26B total / ~4B active parameters) in NeMo AutoModel, with both full fine-tuning and LoRA.

The released checkpoint is available on the Hugging Face Hub: google/diffusiongemma-26B-A4B-it.

Workflow overview

StepWhat you do
1. InstallInstall NeMo AutoModel (pip or container)
2. ConfigurePick an example YAML (full SFT or LoRA) and set your dataset
3. TrainLaunch with torchrun on 8 GPUs
4. InspectRead the training/diffusion loss curves

Model Overview

DiffusionGemma couples a causal encoder with a bidirectional decoder:

  • Encoder reads the clean prompt + response sequence with causal attention.
  • Decoder denoises the canvas — the response region — with bidirectional (block-causal) attention, predicting the clean token at every canvas position.

Key training mechanics, all handled by the DiffusionGemmaSFTRecipe:

  • Uniform-random corruption. For each example a corruption level t ~ U(eps, 1) is sampled; supervised canvas positions are independently replaced with uniform random vocabulary tokens (there is no [MASK] token). The model learns to recover the clean token at every supervised canvas position.
  • Self-conditioning. The decoder optionally conditions on its own previous prediction, mixed in per example during training.
  • Frozen router. The MoE router is kept frozen during SFT; experts and dense layers are trained (full SFT) or adapted via LoRA.
  • Single-turn SFT. The loss supervises the final response turn; multi-turn histories are masked.

The recipe runs with FSDP2 + expert parallelism (EP=8) and mixed precision (fp32 master weights, bf16 compute), with a canvas length of 256.

Launch Training

DiffusionGemma SFT runs on a single 8-GPU node (EP=8). Two example configs are provided under examples/dllm_sft/:

ConfigDescription
diffusion_gemma_sft.yamlFull fine-tune on GSM8K
diffusion_gemma_lora.yamlLoRA fine-tune

Both pull the checkpoint from the Hugging Face Hub (google/diffusiongemma-26B-A4B-it) automatically. GSM8K is consumed in OpenAI chat-messages format, so generate the JSONL once before launching:

$python examples/dllm_sft/prep_gsm8k.py        # writes ./gsm8k_chat_train.jsonl

Full SFT:

$torchrun --standalone --nproc-per-node=8 \
>    examples/dllm_sft/finetune.py \
>    -c examples/dllm_sft/diffusion_gemma_sft.yaml

LoRA:

$torchrun --standalone --nproc-per-node=8 \
>    examples/dllm_sft/finetune.py \
>    -c examples/dllm_sft/diffusion_gemma_lora.yaml

Training Results

The SFT and LoRA training curves on GSM8K (first 200 steps) are shown below.

SFT

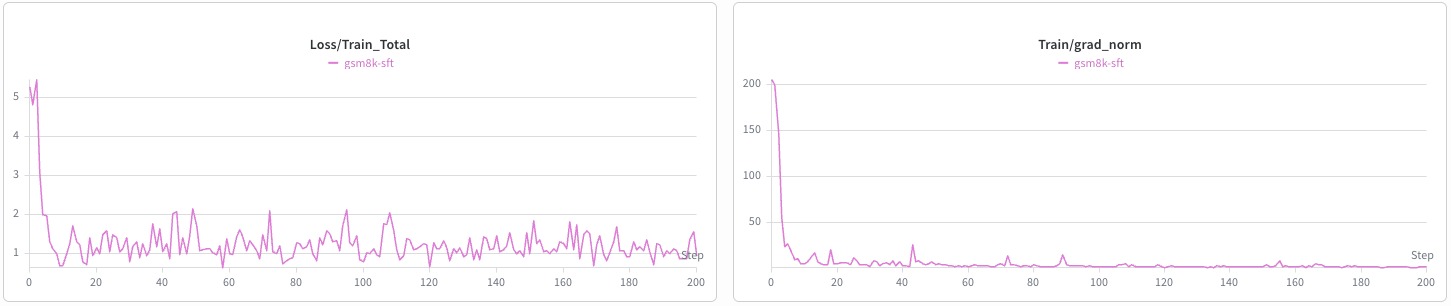

DiffusionGemma SFT training curves

LoRA

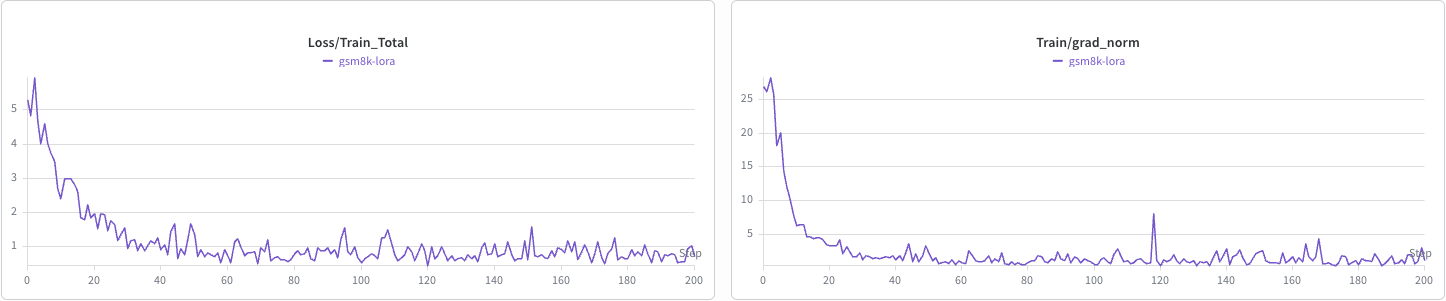

DiffusionGemma LoRA training curves

Requirements

Note: This recipe requires transformers >= 5.11.0 — the DiffusionGemma model was only added to transformers in 5.11, so earlier versions can’t load the checkpoint. Please install a compatible transformers version in your environment before running this recipe.
