Video Replayer Distributed

In this example, we extend the previous video replayer application into a multi-node distributed application. A distributed application is made up of multiple Fragments (C++ (holoscan::Fragment)/Python (holoscan.core.Fragment)), each of which may run on its own node.

In the distributed case we will:

• Create one fragment that loads a video file from disk using VideoStreamReplayerOp operator.
• Create a second fragment that will display the video using the HolovizOp operator.

These two fragments will be combined into a distributed application such that the display of the video frames could occur on a separate node from the node where the data is read.

Operators and Workflow

Here is the diagram of the operators and workflow used in this example.

This is the same workflow as the single fragment video replayer. Each operator is assigned to a separate fragment and there is now a network connection between the fragments.

Defining and Connecting Fragments

Distributed applications define fragments explicitly to isolate the different units of work that could be distributed to different nodes. In this example:

• We define two classes that inherit from Fragment:
  • Fragment1 contains an instance of VideoStreamReplayerOp named “replayer.”
  • Fragment2 contains an instance of HolovizOp name “holoviz.”
• We create an application, DistributedVideoReplayerApp. In its compose method:
  • we call make_fragment to initialize both fragments.
  • we then connect the “output” port of “replayer” operator in fragment1 to the “receivers” port of the “holoviz” operator in fragment2 to define the application workflow.
• The operators instantiated in the fragments can still be configured with parameters initialized from the YAML configuration ingested by the application using holoscan::Fragment::from_config (C++) or holoscan.core.Fragment.kwargs (Python).

1
  #include <holoscan/holoscan.hpp>
2
  #include <holoscan/operators/holoviz/holoviz.hpp>
3
  #include <holoscan/operators/video_stream_replayer/video_stream_replayer.hpp>
4

5
  class Fragment1 : public holoscan::Fragment {
6
   public:
7
    void compose() override {
8
      using namespace holoscan;
9

10
      auto replayer = make_operator<ops::VideoStreamReplayerOp>("replayer", from_config("replayer"));
11
      add_operator(replayer);
12
    }
13
  };
14

15
  class Fragment2 : public holoscan::Fragment {
16
   public:
17
    void compose() override {
18
      using namespace holoscan;
19

20
      auto visualizer = make_operator<ops::HolovizOp>("holoviz", from_config("holoviz"));
21
      add_operator(visualizer);
22
    }
23
  };
24

25
  class DistributedVideoReplayerApp : public holoscan::Application {
26
   public:
27
    void compose() override {
28
      using namespace holoscan;
29

30
      auto fragment1 = make_fragment<Fragment1>("fragment1");
31
      auto fragment2 = make_fragment<Fragment2>("fragment2");
32

33
      // Define the workflow: replayer -> holoviz
34
      add_flow(fragment1, fragment2, {{"replayer.output", "holoviz.receivers"}});
35
    }
36
  };
37

38
  int main(int argc, char** argv) {
39
    // Get the yaml configuration file
40
    auto config_path = std::filesystem::canonical(argv[0]).parent_path();
41
    config_path /= std::filesystem::path("video_replayer_distributed.yaml");
42

43
    auto app = holoscan::make_application<DistributedVideoReplayerApp>();
44
    app->config(config_path);
45
    app->run();
46

47
    return 0;
48
  }

This particular distributed application only has one operator per fragment, so the operators were added via add_operator (C++ (holoscan::Fragment::add_operator)/Python (holoscan.core.Fragment.add_operator)). In general, each fragment may have multiple operators and connections between operators within a fragment would be made using add_flow() (C++ (holoscan::Fragment::add_flow)/Python (holoscan.core.Fragment.add_flow)) method within the fragment’s compute() (C++ (holoscan::Operator::compute)/Python (holoscan.core.Operator.compute)) method.

Running the Application

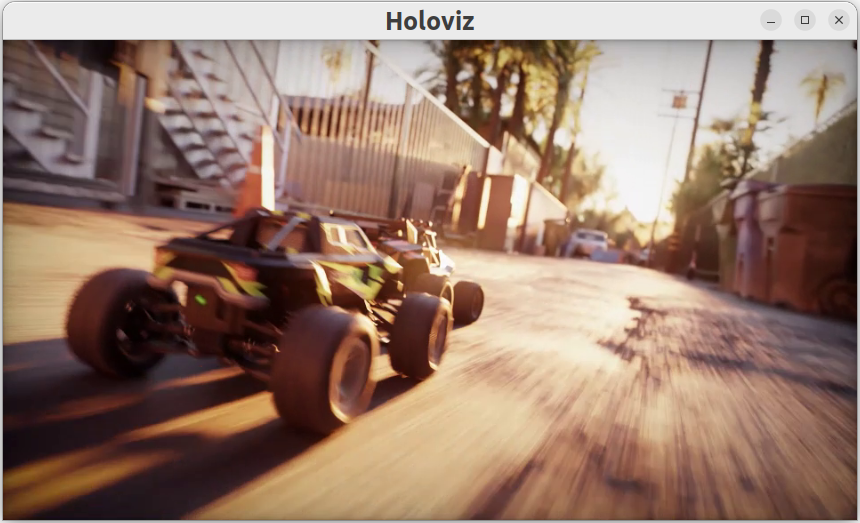

Running the application should bring up video playback of the video referenced in the YAML file.
