Tensorboard Plugin for DLProf User Guide provides instructions on how to use the plugin to analyze performance results gathered by the NVIDIA Deep Learning Profiler.

1. DLProf TensorBoard Plugin

1.1. Overview

The DLProf Plugin for TensorBoard makes it easy to visualize the performance of your models by showing Top 10 operations that took the most time, eligibility of Tensor Core operations and Tensor Core usage, as well as interactive iteration reports.

1.2. What's New in 0.9.0

  • Compatible with event files generated by DLProf v0.17.0 / r20.11.
  • DLProf plugin now supports client/server architecture.
    • All of the data is now in a relational database.
    • Load times have improved for all graphs and views.

1.3. Features

This release includes these commands and features:
  • Panelized Dashboard Summary View: A summary view comprising several panels that provide a quick overview of the performance results.
  • Top-level Key Metrics: The Summary view displays several key metrics that are used to quickly gauge the quality of the performance, including Average Iteration Time and Tensor Core Utilization.
  • Top 10 GPU Ops Node: A table in the Summary view lists the top 10 Op Nodes with the most time spent on the GPU.
  • Expert Systems Panel: This panel displays any issues detected by the DLProf Expert Systems, along with suggestions on how to address the issues and improve the models performance.
  • Iteration Summary Panel: This panel visually displays iterations. Users can quickly see how many iterations are in the model, the iterations that were aggregated/profiled, and the durations of tensor core kernels in each iteration.
  • Interactive Tables: All tables in detailed views are completely interactive, allowing the use to sort, filter, and paginate the display.
  • Interoperable Tables: Several views have the ability to drill down for more information. Selecting a row in one table will populate the next table with performance information pertaining to the selection.
  • Modified Graph Plugin: Graph plugin will color code nodes based on Tensor Core eligibility and usage.
  • XLA Visualization: The graph view displays the original ops within the compiled XLA ops in the Graph Plugin when XLA is enabled in the run.
  • Client/server architecture:
    • All of the data is now in a relational database.
    • Load times have improved for all graphs and views.

2. Quick Start

2.1. Installing Using Python Wheel

A modified version of TensorBoard 1.15 and the DLPROF Plugin for TensorBoard can be installed from the NVIDIA PY index. First, install nvidia-pyindex:

$ pip install nvidia-pyindex

Then install the DLPROF Plugin for TensorBoard:

$ pip install nvidia-tensorboard-plugin-dlprof

All previous versions of tensorboard must first be uninstalled prior to installing the DLPROF Plugin for TensorBoard. The plugin requires an NVIDIA modified version of TensorBoard. Use the following command to uninstall Tensorboard if needed.

$ pip uninstall -y tensorboard

2.2. Using the NGC Docker Container

Make sure you log into NGC as described in Prerequisites before attempting the steps in this section. Use docker pull to get the TensorFlow container from NGC:

$ docker pull nvcr.io/nvidia/tensorflow:<20.11>-tf1-py3

Where <xx.yy> is the version of the TensorFlow container that you want to pull.

Assuming the training data for the model is available in /full/path/to/training/data, you can launch the container with the following command:

$ docker run --rm --gpus=1 --shm-size=1g --ulimit memlock=-1 \
--ulimit stack=67108864 -it -p6006:6006 -v/full/path/to/training/data:/data \
nvcr.io/nvidia/tensorflow:<xx.yy>-tf1-py3

2.3. Generating TensorBoard Event Files

Event files are created directly from the Deep Learning Profiler. Refer to the Deep Learning Profiler User Guide for information on how to generate the appropriate TensorBoard Event Files.

2.4. Starting TensorBoard

TensorBoard and the GPU Plugin are installed in the TensorFlow 1.x container on the NVIDIA GPU Cloud (NGC). The container must be run with the -p6006:6006 option to open port 6006 for the TensorBoard server. (Note, use any port number such as 6007, 6008, etc.)

TensorBoard is launched directly from the container:

tensorboard --logdir <event_files>

Where <event_files> is the path to the event files directory. Once running, TensorBoard can be viewed in a browser with the URL:

http://<machine IP Address>:6006

3. DLProf Plugin

This section describes each of the available views in the DLProf Plugin. For more details on the TensorBoard web interface and a description of the TensorBoard features, go to: https://github.com/tensorflow/tensorboard/blob/master/docs/r1/graphs.md.

3.1. Overview

The following information is common to all views within the DLProf Plugin.

Terms and Definitions

Term Definition
Group Node A collection of Ops and other group nodes. This is also called a subgraph. A Group Node’s subgraph can be visualized by double-clicking the group node.
Compatible Node An Op Node whose operational type is one of many operational types that are capable of running on a Tensor Core. For example, a convolution node can have a kernel that runs on a Tensor Core, but a Const node or NoOp node cannot.
Op Node A node in the graph where an operation is performed on the incoming tensor.
Model, Graph, Network <synonyms>
Tensor Data that flows between the operations.

3.2. Pane Overview

The DLProf plugin user interface is divided into three panes:

Pane Definintion

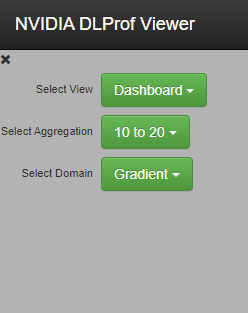

Navigation Pane This pane is where you can navigate to different views and select different NVTX ranges. Additionally, you can navigate to the online documentation and launch your email app to send us comments. Click the ‘X’ to remove the navigator Pane.
Content Pane Otherwise known as the VIEWS pane, this is where you will see all of the different pieces of the profiled neural network.
Details Pane This pane is to display additional details about the information selected in the content pane. Let’s say you’re looking at the Kernel Summary panel in the content pane, and you want to see more information about the kernels.

Click on the button (tooltip = ‘Show Kernel Details’). The detailed kernel information will appear in the Details Pane. Click the ‘X’ button to remove the details pane.

3.4. Details Pane

The Details pane holds panels that show more details about a particular area of the system.

3.4.1. Op Details Panel

The Op Details panel is displayed at the top-right of the browser underneath the TensorBoard Title Bar.

Fields

Field Definition
All Ops Aggregates the total GPU time and count for all ops in the network.
Ops Using TC Aggregates the total GPU time and count for ops in the network that use Tensor Cores.
Ops Eligible For TC, But Not Using Aggregates the total GPU time and count for ops in the network that are not using Tensor Cores but are eligible to do so.
All Other Ops Aggregates the total GPU time and counts for all other types of ops in the network.

UI Controls

Control Definition
X Closes the Details Pane

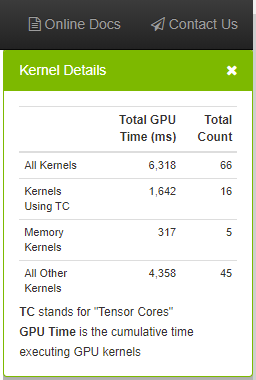

3.4.2. Kernel Details Panel

The Kernel Details panel is displayed at the top-right of the browser underneath the TensorBoard Title Bar. This panel provides key metrics about the kernels in the network aggregated over the specific iteration range.

Fields

Field Definition
All Kernels Aggregates the total GPU time and count for all kernels in the network.
Kernels Using TC Aggregates the total GPU time and count for all kernels using Tensor Cores.
Memory Kernels Aggregates the total GPU time and count for all memory kernels.
All Other Kernels Aggregates the total GPU time and count for all remaining kernel types.

UI Controls

Control Definition
X Closes the Details Pane.

4. Content Pane

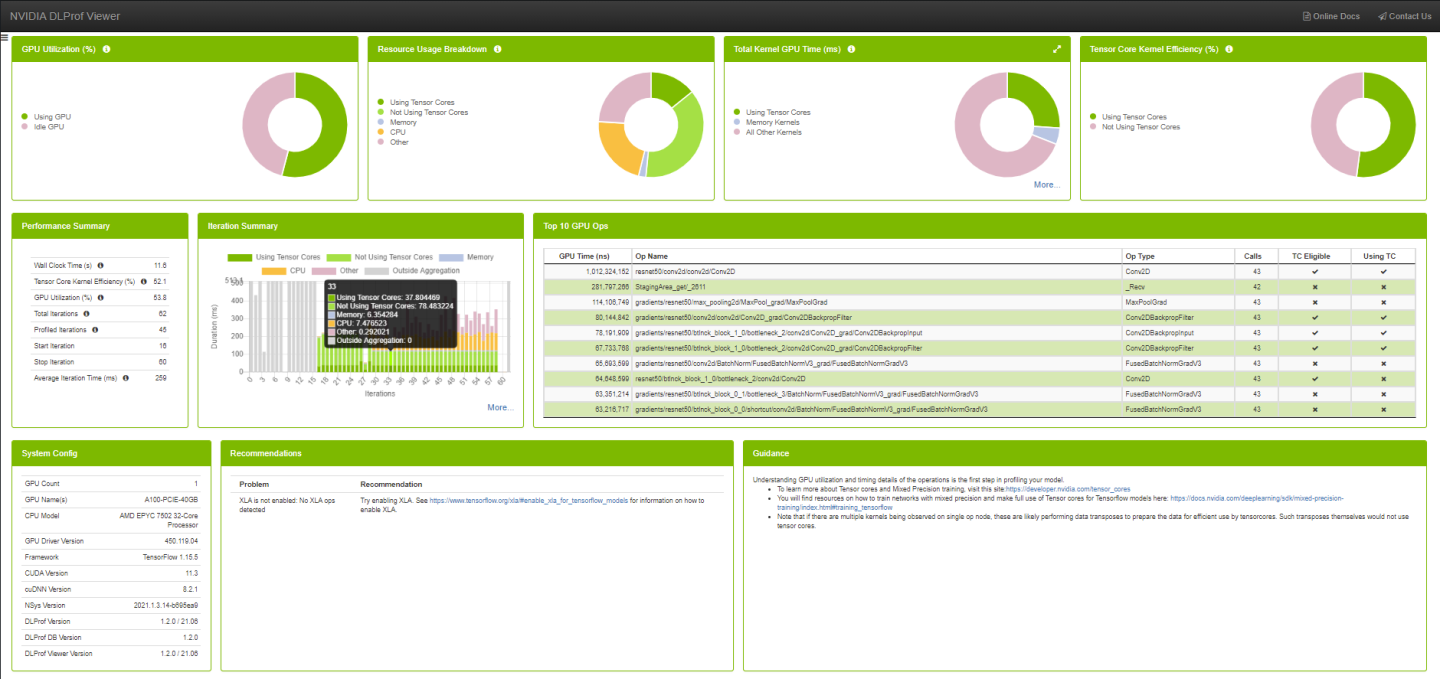

4.1. Dashboard

The Dashboard view provides a high level summary of the performance results in a panelized view. This view serves as a starting point in analyzing the results and provides several key metrics.

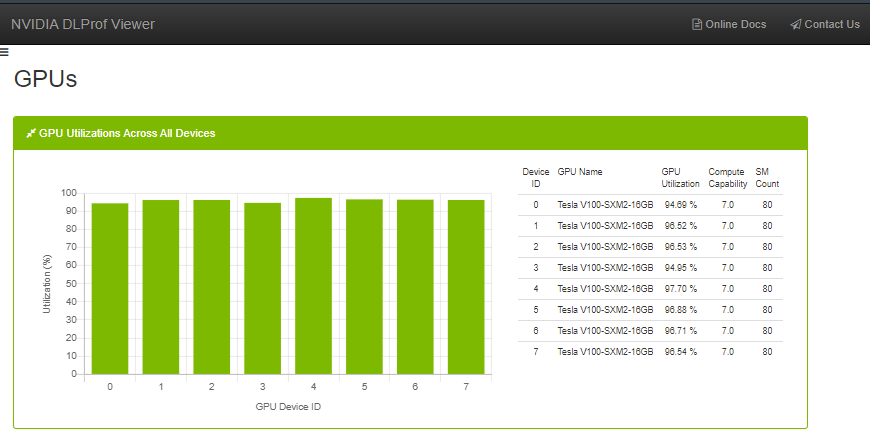

4.1.1. GPU Utilization Panel

The GPU Idle panel visually indicates the percentage of GPU utilization time during execution of aggregated iterations. Hovering over a slice in the chart will show the numeric percentage.

4.1.2. Op Summary Panel

This panel provides key metrics about the ops in the network aggregated over the specific iteration range. The charts provide a graphical representation of the data.

  • Hovering over a slice in the chart will show the aggregated GPU time.
  • Clicking a legend item will toggle its visualization in the chart.

Fields

Legend Label Definition
Ops Using TC Aggregates the total GPU time for ops in the network that use Tensor Cores.
Ops Eligible For TC Aggregates the total GPU time for ops in the network that are not using Tensor Cores but are eligible to do so.
All Other Ops Aggregates the total GPU time for all other types of ops.

UI Controls

Control Definition
Show Op Details panel in Details Pane.
More Show drop-down menu of more views.

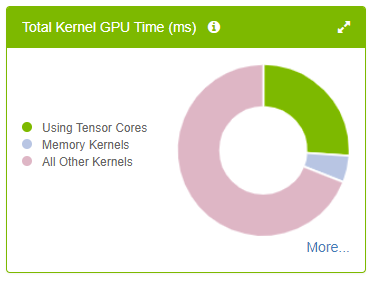

4.1.3. Kernel Summary Panel

The panel provides key metrics about the kernels in the network aggregated over the specific iteration range.

  • Hovering over a slice in the chart will show the aggregated GPU time.
  • Clicking a legend item will toggle its visualization in the chart.

Fields

Legend Label Definition
Kernels Using TC Aggregates the total GPU time for all kernels using Tensor Cores.
Memory Kernels Aggregates the total GPU time for all memory-related kernels.
All Other Kernels Aggregates the total GPU time for all remaining kernel types.

UI Controls

Control Definition
Show Kernel Details panel in Details Pane.
More... Show drop-down menu of more views.

4.1.4. Tensor Core Kernel Efficiency Panel

  • Hovering over a slice in the chart will show the percentage.
  • Clicking a legend item will toggle its visualization in the chart.

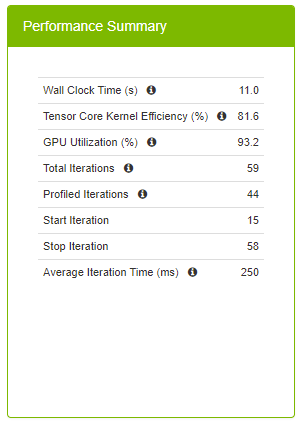

Performance Summary Panel

The Performance Summary panel provides top level key metrics about the performance data aggregated over the specific iteration range. A helpful tooltip text will appear when hovering over the ‘i’ icon.

Field Definition
Wall Clock Time This is the total run time for the aggregation range, and is defined as the time between the start time of the first op in the starting iteration on the CPU and the end time last op in the final iteration on either the CPU or GPU, whichever timestamp is greatest.
Tensor Core Kernel Efficiency % This high level metric represents the utilization of Tensor Core enabled kernels. Tensor Core operations can provide a performance improvement and should be used when possible. This metric is calculated by:

[Total GPU Time for Tensor Core kernels] / [Total GPU Time for Tensor Core Eligible Ops]

A 100% Tensor Core Utilization means that all eligible Ops are running only Tensor Core enabled kernels on the GPU. A 50% Tensor Core Utilization can mean anything from all eligible Ops are running Tensor Core kernels only half of the time to only half of all eligible Ops are running Tensor Core kernels only. This metric should be used with the Op Summary Panel to determine the quality of Tensor Core usage.

Higher is better.

GPU Utilization % Average GPU utilization across all GPUs.

Higher is better.

Total Iterations The total number of iterations found in the network.
Profiled Iterations The total number of iterations used to aggregate the performance results. This number is calculated using ‘Start Iteration’ and ‘Stop Iteration’.
Start Iteration The starting iteration number used to generate performance results.
Stop Iteration The ending iteration number used to generate performance results.
Average Iteration Time The average iteration time is the total Wall Time divided by the number of iterations.

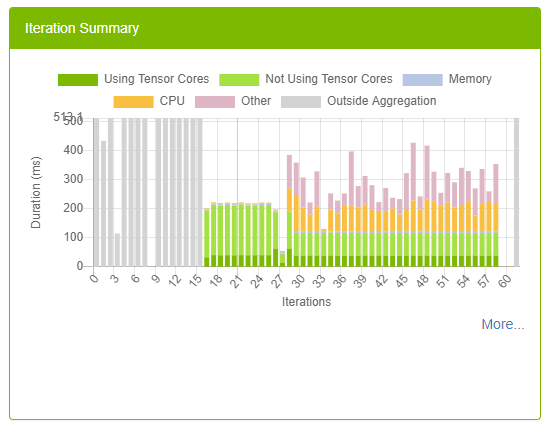

4.1.6. Iteration Summary panel

This panel visually displays iterations. Users can quickly see how many iterations are in the model, the iterations that were aggregated/profiled, and the durations of tensor core kernels in each iteration. The colors on this panel match the colors on all the other dashboard panels.

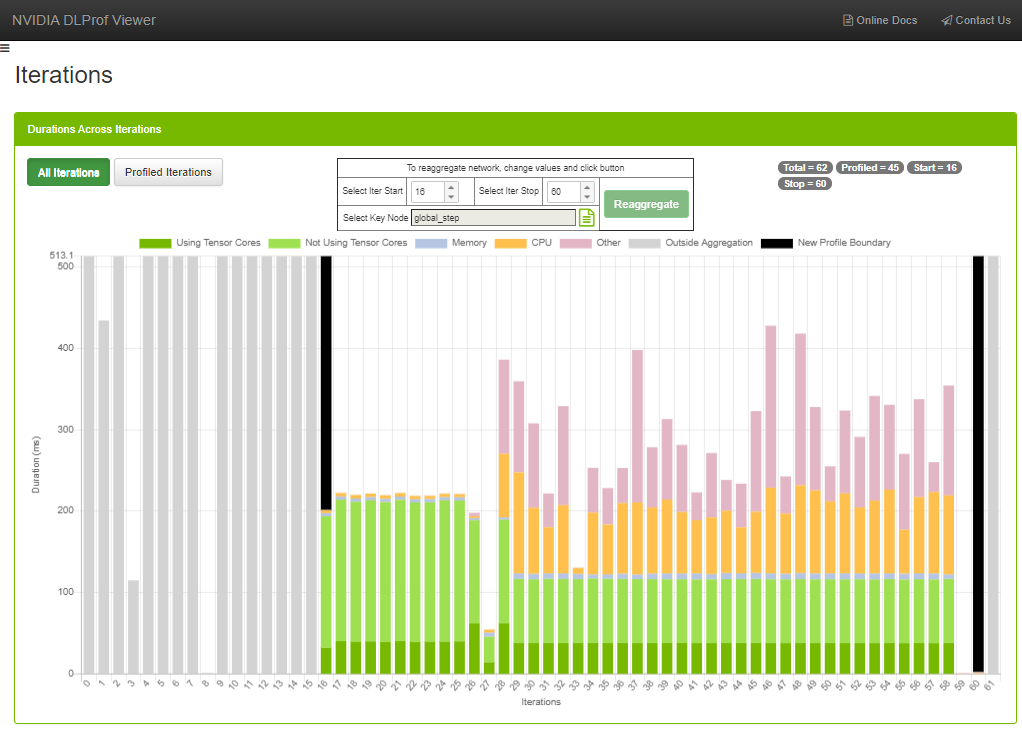

For more information on this panel, see Iterations View.

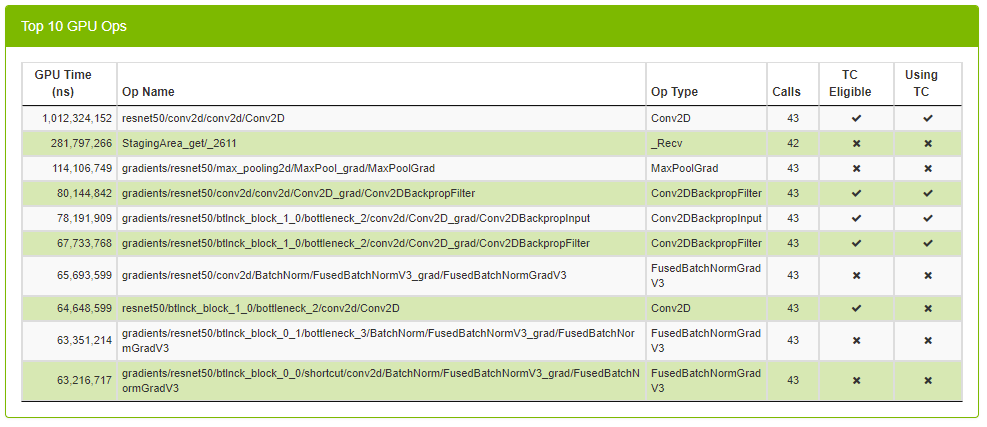

4.1.7. Top 10 GPU Ops Panel

Top 10 GPU Ops table shows the top 10 operations with the largest execution times on the GPU. This table comes pre-sorted with the order of each row in descending GPU Time. The table is not sortable or searchable.

Column Definition
GPU Time Cumulative time executing all GPU kernels launched for the op.
Op Name The name of the op.
Direction The fprop/bprop direction of the op. (only visible on PyTorch runs).
Op Type The type of the op.
Calls The number of times the op was called.
TC Eligible A true/false field indicating whether or not the op is eligible to use Tensor Core kernels.
Using TC A true/false field indicating whether or not one of the kernels launched in this op is using Tensor Cores.

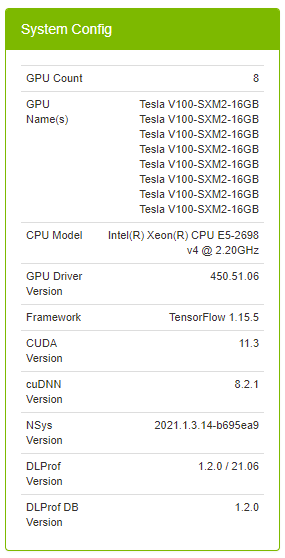

4.1.8. System Configuration Panel

Field Definition
Profile Name (Optional) Helpful label to describe the profiled network. The value in this field corresponds to the value supplied in the --profile_name command line argument in DLProf.
GPU Count The number of GPU devices found on the computer during training.
GPU Name(s) A list of the GPU devices found on the computer during training.
CPU Model The model of the CPU on the computer during training.
GPU Driver Version The version of the driver used for NVIDIA Graphics GPU.
Framework The framework used to generate profiling data (eg, TensorFlow, PyTorch).
CUDA Version The version of the CUDA parallel computing platform.
cuDNN Version The version of CUDA Deep Neural Network used during training.
NSys Version The version of Nsight Systems used during training.
DLProf Version The version of the Deep Learning Profiler used to generate the data visualized in the DLProf Plugin in TensorBoard.
DLProf Plugin Version The version of the DLProf Plugin inside TensorBoard.
TensorBoard Version The version of TensorBoard framework.

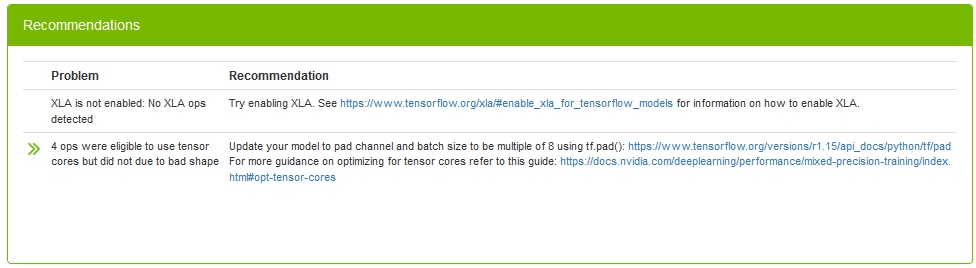

4.1.9. Recommendations Panel

The Recommendations panel displays common issues detected in the profiled network and provides potential solutions and suggestions to address the issues. The panel will only show issues that have been detected by DLProf. For a full list of potential issues that DLProf looks for, see the Expert Systems section in the Deep Learning Profiler User Guide.

The double-green arrows will show additional information about the detected problem.

Column Definition
Problem The description of the scenario that DLProf detected when profiling the network.
>> (Optional) When present, clicking on the double arrows will display a new view displaying the problem in detail.
Recommendation A recommendation or actionable feedback, a tangible suggestion that the user can do to improve the network. Clicking on a hyperlink inside the recommendation will open a new tab in the browser.

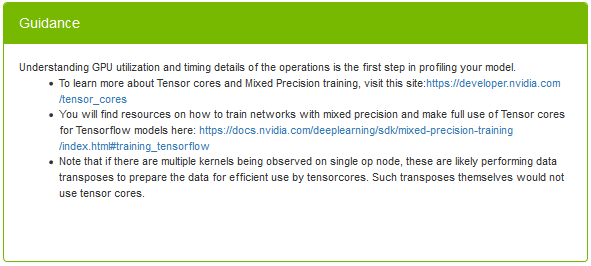

4.1.10. Guidance Panel

This panel provides static guidance to the user to help the user learn more about Tensor Cores, Mixed Precision training. The panel has hyperlinks for further reading. Clicking on a hyperlink inside the Guidance Panel will open a new tab in the browser.

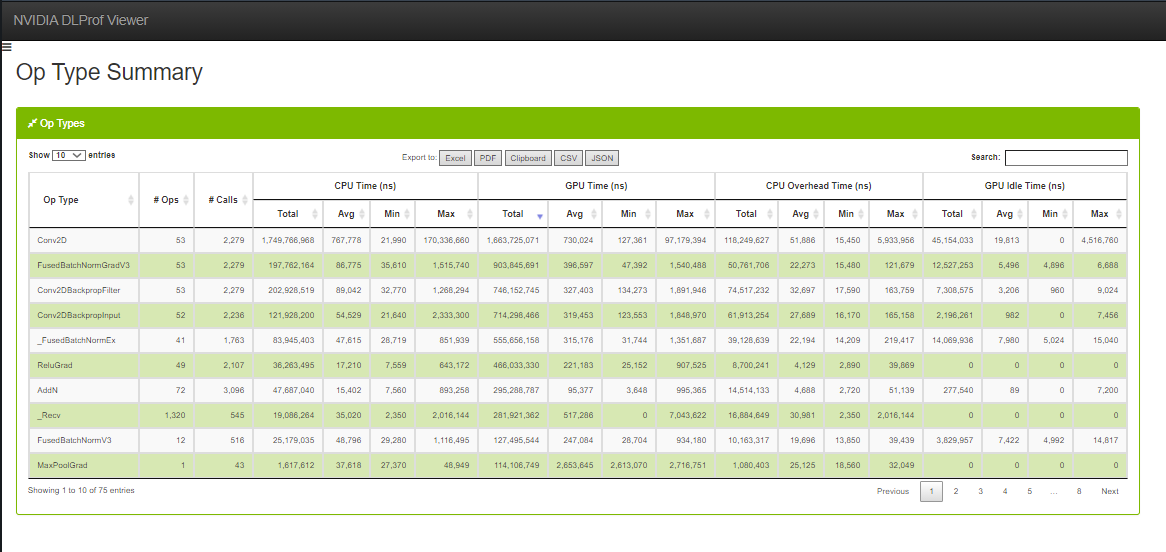

4.2. Op Type Summary

This table aggregates metrics over all op types and enables users to see the performance of all the ops in terms of its types, such as Convolutions, Matrix Multiplications, etc.

See this description for all the features available in all DataTables.

Op Type Data Table

Column name Description
Op Type The operation type.
No. Ops The number of ops that have the Op Type above.
No. Calls Number of instances that the operation was called / executed.
Total CPU Time (ns) The total CPU time of all instances of this op type.
Avg. CPU Time (ns) The average CPU time of all instances of this op type.
Min CPU Time (ns) The minimum CPU time found amongst all instances of this op type.
Max CPU Time (ns) The maximum CPU time found amongst all instances of this op type.
Total GPU Time (ns) The total GPU time of all instances of this op type.
Avg. GPU Time (ns) The average GPU time of all instances of this op type.
Min GPU Time (ns) The minimum GPU time found amongst all instances of this op type.
Max GPU Time (ns) The maximum GPU time found amongst all instances of this op type.
Total CPU Overhead Time (ns) The total CPU overhead of all instances of this op type.
Avg. CPU Overhead Time (ns) The average CPU overhead of all instances of this op type.
Min CPU Overhead Time (ns) The minimum CPU overhead found amongst all instances of this op type.
Max CPU Overhead Time (ns) The maximum CPU overhead found amongst all instances of this op type.
Total GPU Idle Time (ns) The total GPU idle time of all instances of this op type.
Avg. GPU Idle Time (ns) The average GPU idle time of all instances of this op type.
Min GPU Idle Time (ns) The minimum GPU idle time found amongst all instances of this op type.
Max GPU Idle Time (ns) The maximum GPU idle time found amongst all instances of this op type.

4.3. Ops and Kernels

This view enables users to view, search, sort all ops and their corresponding kernels in the entire network.

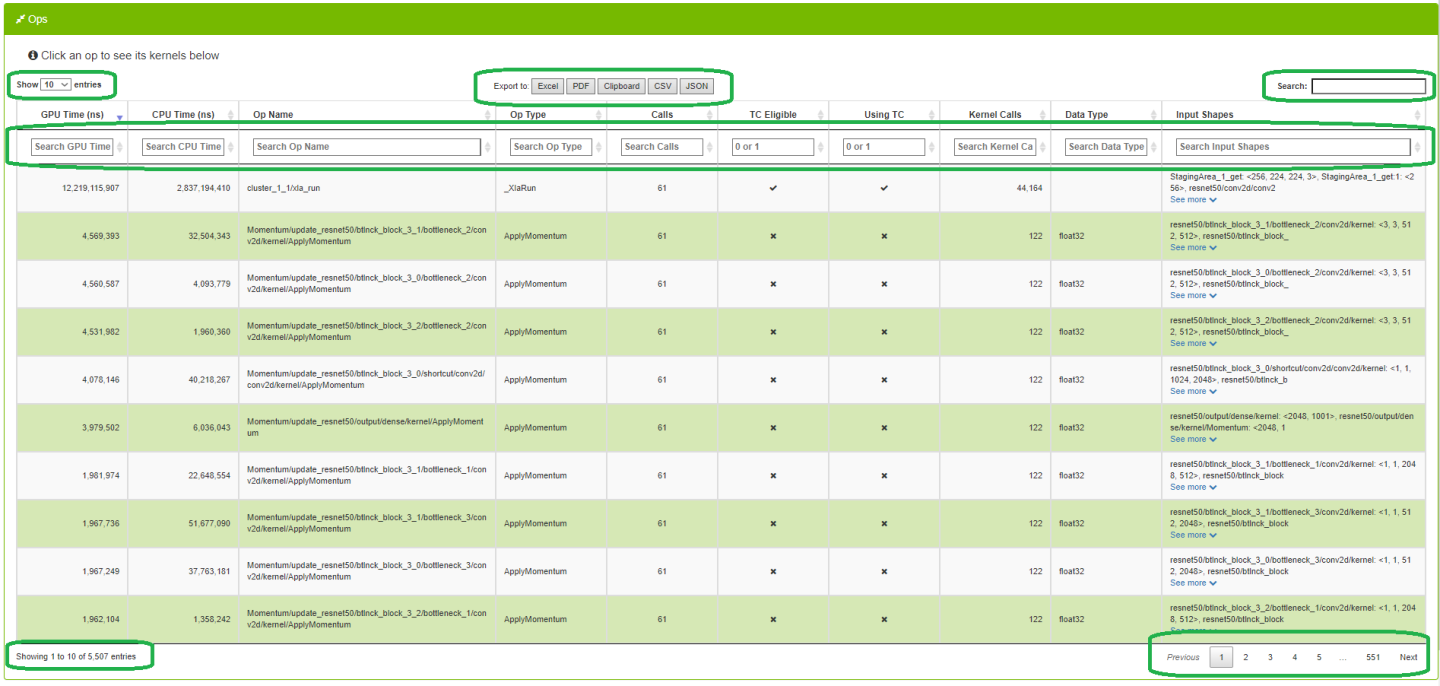

4.3.1. Ops Data Table

When a row is selected in the Ops table, a summary of each kernel for that op is displayed in the bottom table.

See this description for all the features available in all DataTables.

Entry Description
GPU Time (ns) Cumulative time executing all GPU kernels launched for the op.
CPU Time (ns) Cumulative time executing all op instances on the CPU.
Op Name The name of the op.
Direction

The fprop/bprop direction of the op. (only visible on PyTorch runs).

Op Type The operation of the op.
Calls The number of times the op was called.
TC Eligible A true/false field indicating whether or not the op is eligible to use Tensor Core kernels. To filter, type ‘1’ for true, and ‘0’ for false.
Using TC A true/false field indicating whether or not one of the kernels launched in this op is using Tensor Cores. To filter, type ‘1’ for true, and ‘0’ for false.
Kernel Calls The number of kernels launched in the op.
Data Type The data type of this op (eg, float16, int64, int32)
Input Shapes The input shapes of the op.

If the contents of this cell is more than 100 characters, a ‘See More’ hyperlink appears. When clicked, the full contents of the cell appears. When the cell is expanded, the hyperlink text is changed to ‘See Less’. When clicked, the cell collapses back to the first 100 characters.

Stack Trace

The stack trace of the op. (only visible on PyTorch runs).

If the contents of this cell is more than 100 characters, a ‘See More’ hyperlink appears. When clicked, the full contents of the cell appears. When the cell is expanded, the hyperlink text is changed to ‘See Less’. When clicked, the cell collapses back to the first 100 characters.

4.3.2. Kernel Summaries Data Table

See this description for all the features available in all DataTables.

Kernels Summary table

Entry Description
Kernel name The full name of the kernel.
Using TC A true/false field indicating whether or not the kernel is actually using a Tensor Core. To filter, type ‘1’ for true, and ‘0’ for false.
Calls The number of times this kernel was launched.
GPU Time (ns) The aggregate duration of each time the kernel was launched.
Avg (ns) The average duration of each time this kernel was launched.
Min (ns) The minimum duration of all kernel launches.
Max (ns) The maximum duration of all kernel launches.

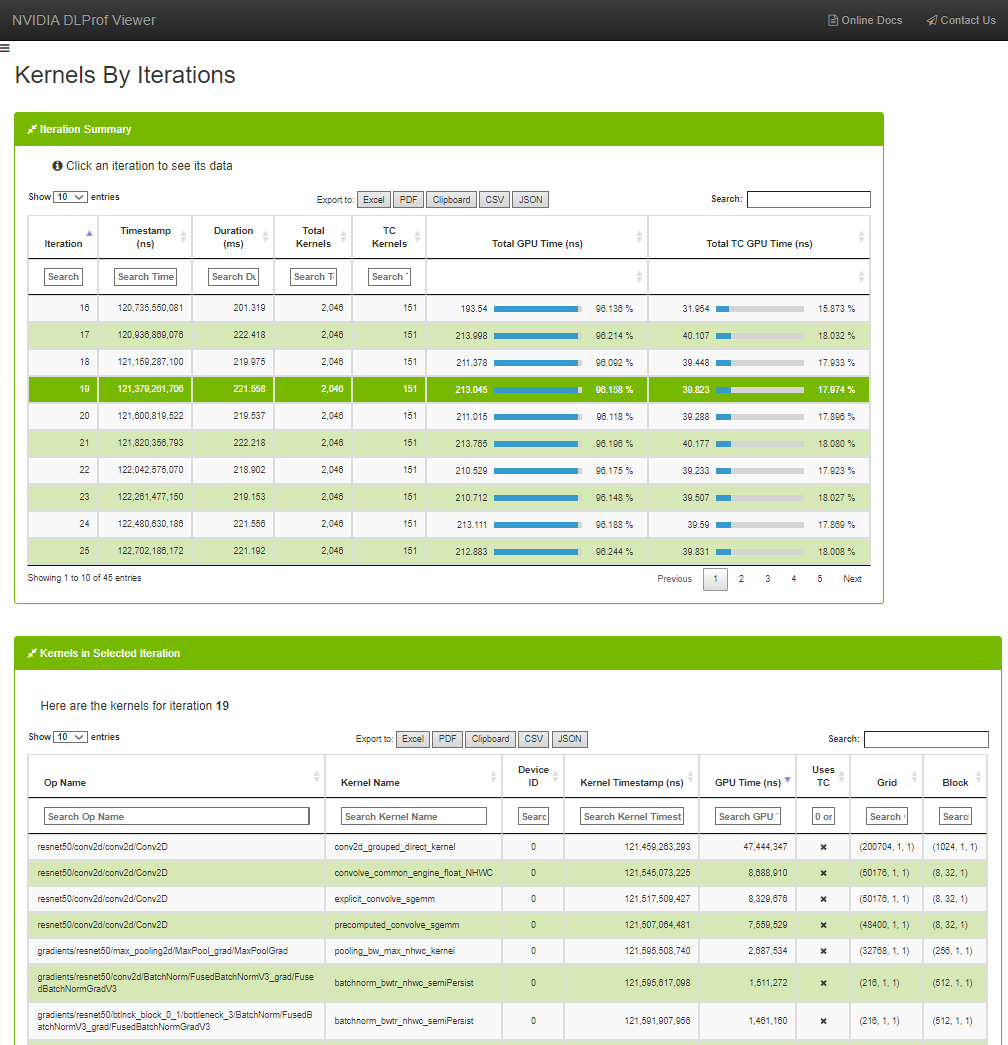

4.4. Kernels by Iteration

The Kernels by Iterations view shows operations and their execution time for every iteration. At a glance, you can compare iterations with respect to time as well as Kernels executed.

4.4.1. Iteration Summary Data Table

To see the kernels for a specific iteration, click a row in the top table. The ‘Kernels in Selected Iteration’ table will be filled with the kernels from the selection iteration.

See this description for all the features available in all DataTables.

Column Description
Iteration The iteration interval numbers.
Timestamp The exact time when this iteration started.
Duration The length of time it took for this iteration to execute. Units on this column are dynamic.
Total Kernels The number of GPU kernels called during this iteration.
TC Kernels The number of GPU Tensor Core kernels called during the iteration.
Total GPU Time (μs) Cumulative execution time for all kernels on the GPU during the iteration. The contents of this cell are broken into multiple pieces:
  1. The value is the cumulative execution time of this iteration on the GPU.
  2. The progress meter visually indicates how much of this iteration executed on the GPU.
  3. The percentage is the total GPU time over the total iteration time.
  4. Hovering over this cell displays a tooltip text with helpful information.

Units on this column are dynamic.

TC GPU Time (μs) Cumulative execution time for all Tensor Core kernels on the GPU during the iteration. The contents of this cell are broken into multiple pieces:
  1. The value is the cumulative execution time of Tensor Core kernels during this iteration.
  2. The progress meter visually indicates how much of this iteration executed Tensor Core kernels.
  3. The percentage is the total time using Tensor Core kernels over the total iteration time.
  4. Hovering over this cell displays a tooltip text with helpful information.

Units on this column are dynamic.

4.4.2. Kernels in Selected Iteration

See this description for all the features available in all DataTables.

Column Description
Op Name The name of the op that launched the kernel.
Kernel Name The name of the kernel.
Device ID the device ID of the kernel.
Kernel Timestamp (ns) The timestamp for when the CUDA API call was made for this kernel in the CPU thread. Useful to see the order in which the kernels were called.
GPU Time (ns) The time spent executing the kernel on the GPU.
Users TC A true/false field indicating whether or not the kernel uses Tensor Cores. To filter, type ‘1’ for true, and ‘0’ for false.
Grid The grid size of the kernel.
Block The block size of the kernel.

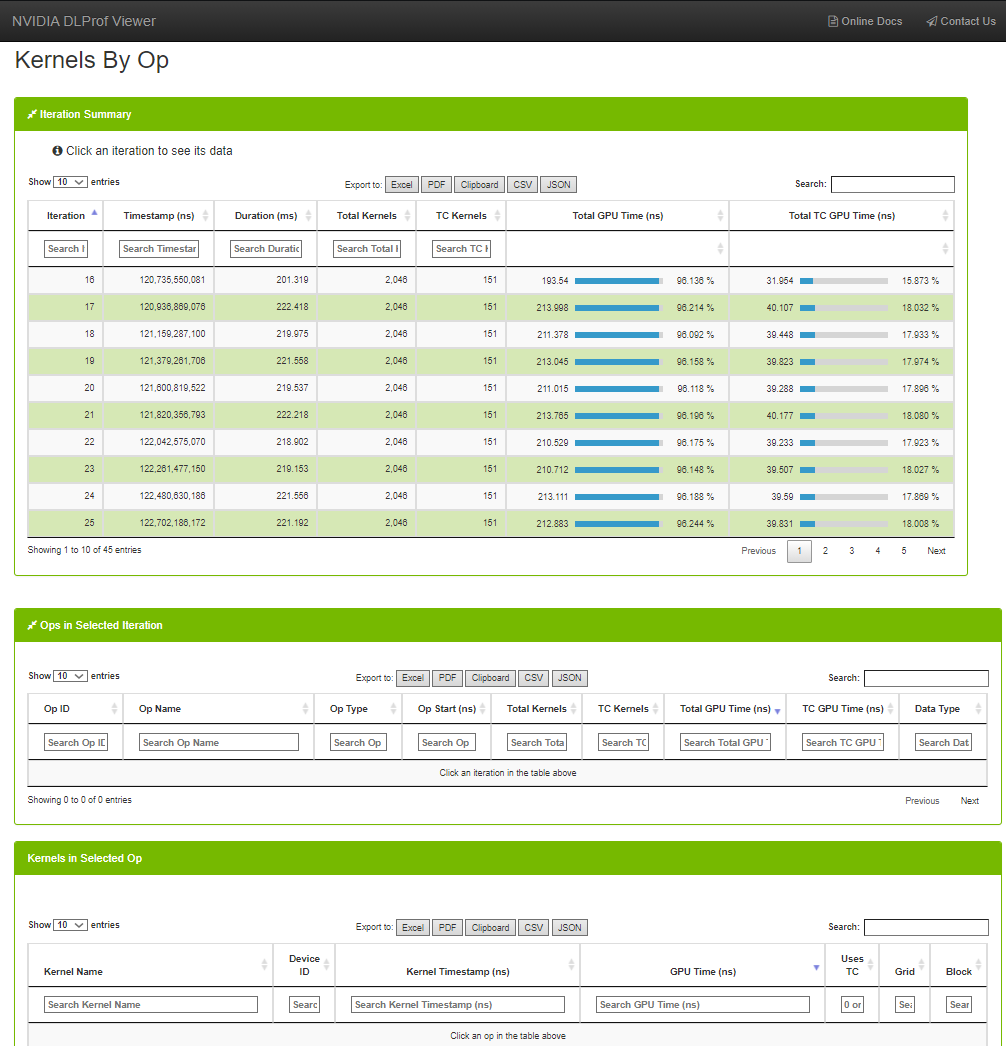

4.5. Kernels by Op

The Kernels by Op view is a variation of the Kernels by Iterations view. It has the capability to filter the list of kernels by iterations and op.

See this description for all the features available in all DataTables.

4.5.1. Iteration Summary Table

Selecting an iteration in the Iteration Summary table will populate the Ops in Selected Iteration table with all the profile data for the ops from the selected iteration. Selecting an op in the Ops in Selected Iteration table will populate the Kernels in Selected Op table with the list of kernels and timing data executed for the selected Op and Iteration.

See this description for all the features available in all DataTables.

Column Description
Iteration The iteration interval numbers
Timestamp The exact time when this iteration started.
Duration The length of time it took for this iteration to execute. Units on this column are dynamic.
Total Kernels The number of GPU kernels called during this iteration.
TC Kernels The number of GPU Tensor Core kernels called during the iteration.
Total GPU Time (μs) Cumulative execution time for all kernels on the GPU during the iteration. The contents of this cell are broken into multiple pieces:
  1. The value is the cumulative execution time of this iteration on the GPU.
  2. The progress meter visually indicates how much of this iteration executed on the GPU.
  3. The percentage is the total GPU time over the total iteration time.
  4. Hovering over this cell displays a tooltip text with helpful information.

Units on this column are dynamic.

TC GPU Time (μs) Cumulative execution time for all Tensor Core kernels on the GPU during the iteration. The contents of this cell are broken into multiple pieces:
  1. The value is the cumulative execution time of Tensor Core kernels during this iteration.
  2. The progress meter visually indicates how much of this iteration executed Tensor Core kernels.
  3. The percentage is the total time using Tensor Core kernels over the total iteration time.
  4. Hovering over this cell displays a tooltip text with helpful information.

Units on this column are dynamic.

4.5.2. Ops in Selected Iteration Table

Ops in Selected Iteration

See this description for all the features available in all DataTables.

Column Description
Op Name The name of the op that launched the kernel.
Direction

The fprop/bprop direction of the op. (only visible on PyTorch runs).

Op Type The type of the op.
Op Start The time the op was launched. Used to sort ops chronologically.
Total Kernels The number of GPU kernels called during this iteration.
TC Kernels The number of GPU Tensor Core kernels called during the iteration.
Total GPU Time (ns) Cumulative execution time for all kernels on the GPU during the op.
TC GPU Time (ns) Cumulative execution time for all Tensor Core kernels on the GPU during the op.
Data Type The data type of this op (eg, float16, int64, int32).
Input Shapes The input shapes of the op.

If the content of this cell is more than 100 characters, a ‘See More’ hyperlink appears. When clicked, the full contents of the cell appears. When the cell is expanded, the hyperlink text is changed to ‘See Less’. When clicked, the cell collapses back to the first 100 characters.

Stack Trace

The stack trace of the op. (only visible on PyTorch runs)

If the contents of this cell is more than 100 characters, a ‘See More’ hyperlink appears. When clicked, the full contents of the cell appears. When the cell is expanded, the hyperlink text is changed to ‘See Less’. When clicked, the cell collapses back to the first 100 characters.

4.5.3. Kernels Selected Iteration / Op Combination Table

Kernels in Selected Iteration / Op combination

See this description for all the features available in all DataTables.

Column Description
Kernel Name The name of the kernel.
Device ID

The device ID of the kernel.

Kernel Timestamp (ns)

The timestamp for when the CUDA API call was made for this kernel in the CPU thread. Useful to see the order in which the kernels were called.

GPU Time (ns)

The time spent executing the kernel on the GPU.

Uses TC A true/false field indicating whether or not the kernel uses Tensor Cores. To filter, type ‘1’ for true, and ‘0’ for false.
Grid

The grid size of the kernel.

Block

The block size of the kernel.

4.6. Iterations view

This view visually displays iterations. Users can quickly see how many iterations are in the model, the iterations that were aggregated/profiled, and the accumulated durations of tensor core kernels in each iteration. The colors on this panel match the colors on all the other dashboard panels.

Fields

UI Element Definition
X-Axis The iterations of the model.
Y-axis Duration of iterations. The unit of this axis is dynamic (e.g., ms, ns, s, etc).
Badges In the top right, four badges display iteration specifics of the profiled network.
  • Total
  • Profiled
  • Start
  • ttop

The values inside the start and stop badges come directly from DLProf, see the --iter_start and --iter_stop command line options.

Legend
  • Green: Accumulated duration of all kernels using tensor cores.
  • Pink: Accumulated duration of all kernels not using tensor cores.
  • Blue: Accumulated duration of all other kernels.
  • Gray: Duration of iteration outside the profile.

UI Controls

Control Definition
Toggle Buttons
  • All Iterations: Show all the iterations in the entire network.
  • Profiled Iterations: Zooms in to only show the iterations that were profiled.
Hover When mouse hovers over an iteration, a popup window appears displaying the values of all the constituents of the iteration.

5. Using Data Tables

DataTables are used in many views in the DLProf Plugin. The features in DataTables enable users to quickly find information. Below is a screenshot to see the location of the features, followed by a table describing the functionality of each feature.

Data Table Feature Definition
Showing label The label under the table (bottom left) will show a real-time count of rows in the table.
Search text box Filter results by text search. Typing in this field will display only those rows that contain the text in the box. Adding or removing text in the Search box will update the “Showing…” label.
Column search Typing into the text box under most column headers will display only those rows with the entered text. This is powerful since users can enter search criteria for multiple columns to zero-in on interesting rows. Columns with ‘x’ and ‘check mark’ are boolean fields. Users can enter "1" to show those rows with a ‘check mark’, and ‘0’ to show only those rows with ‘x’.
Sort toggle button Clicking on a column header will sort the table. When clicked, all rows are sorted either ascending or descending. The initial sort on most numeral columns are descending.
Show Entries drop list This drop list allows the user to display 10, 25, 50, or 100 rows. Changing the setting will update the “Showing…” label.
Pagination buttons Previous, next, and page# navigation. Allows users to quickly page through large data sets. Uses ‘Show Entries’ setting and updates the “Showing…” label.
Export to buttons

Allows users to easily export the data in the datatable to well known formats. An optional profile name is displayed in the header of all exports when the --profile_name command-line argument is used in DLProf.

Warning: A slight delay occurs when any of these buttons are clicked on large networks.

Enable pop-ups in your browser to export to PDF.

6. Graphs Plugin

The Graphs Plugin will only be available if a graphdef file is specified in DLProf and the tfevents.<xxx>.<yyy>.pb event file is created. This is a modified version of the TensorBoard's default graph plugin that highlights TensorCore usage and eligibility within the graph. This plugin is only available in the NGC containers.

6.1. Network View Panel

This view visualizes your neural network in the form of connected nodes. Graphs are often very large, so you can manipulate the graph visualization:

  • Scroll to zoom in and out
  • Drag to pan
  • Double clicking toggles node expansion (a node can be a container for other nodes)

You can also see metadata by clicking on a node. This allows you to see inputs, outputs, shapes and other details.

6.2. Guidance Panel

When the graph is in view without a node selected, a Guidance Panel is displayed. The text inside the panel provides guidance on how to improve Tensor Core usage by giving a few practices.

6.3. Tensor Core Help Panel

When an op node is selected in the network that is eligible to run tensor cores but does not, a help panel appears. It provides an explanation as to why Tensor Cores may not be used on this node. The help panel also has helpful links to help the user with additional information and resources.

7. XLA View

The Graphs Plugin can also display results from an XLA-enabled profiling. Below is the graph view of the ResNet50 v1.5 profiling with XLA optimizations enabled. The network shown here is the same network, just without XLA optimizations enabled.

Notices

Notice

This document is provided for information purposes only and shall not be regarded as a warranty of a certain functionality, condition, or quality of a product. NVIDIA Corporation (“NVIDIA”) makes no representations or warranties, expressed or implied, as to the accuracy or completeness of the information contained in this document and assumes no responsibility for any errors contained herein. NVIDIA shall have no liability for the consequences or use of such information or for any infringement of patents or other rights of third parties that may result from its use. This document is not a commitment to develop, release, or deliver any Material (defined below), code, or functionality.

NVIDIA reserves the right to make corrections, modifications, enhancements, improvements, and any other changes to this document, at any time without notice.

Customer should obtain the latest relevant information before placing orders and should verify that such information is current and complete.

NVIDIA products are sold subject to the NVIDIA standard terms and conditions of sale supplied at the time of order acknowledgement, unless otherwise agreed in an individual sales agreement signed by authorized representatives of NVIDIA and customer (“Terms of Sale”). NVIDIA hereby expressly objects to applying any customer general terms and conditions with regards to the purchase of the NVIDIA product referenced in this document. No contractual obligations are formed either directly or indirectly by this document.

NVIDIA products are not designed, authorized, or warranted to be suitable for use in medical, military, aircraft, space, or life support equipment, nor in applications where failure or malfunction of the NVIDIA product can reasonably be expected to result in personal injury, death, or property or environmental damage. NVIDIA accepts no liability for inclusion and/or use of NVIDIA products in such equipment or applications and therefore such inclusion and/or use is at customer’s own risk.

NVIDIA makes no representation or warranty that products based on this document will be suitable for any specified use. Testing of all parameters of each product is not necessarily performed by NVIDIA. It is customer’s sole responsibility to evaluate and determine the applicability of any information contained in this document, ensure the product is suitable and fit for the application planned by customer, and perform the necessary testing for the application in order to avoid a default of the application or the product. Weaknesses in customer’s product designs may affect the quality and reliability of the NVIDIA product and may result in additional or different conditions and/or requirements beyond those contained in this document. NVIDIA accepts no liability related to any default, damage, costs, or problem which may be based on or attributable to: (i) the use of the NVIDIA product in any manner that is contrary to this document or (ii) customer product designs.

No license, either expressed or implied, is granted under any NVIDIA patent right, copyright, or other NVIDIA intellectual property right under this document. Information published by NVIDIA regarding third-party products or services does not constitute a license from NVIDIA to use such products or services or a warranty or endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual property rights of the third party, or a license from NVIDIA under the patents or other intellectual property rights of NVIDIA.

Reproduction of information in this document is permissible only if approved in advance by NVIDIA in writing, reproduced without alteration and in full compliance with all applicable export laws and regulations, and accompanied by all associated conditions, limitations, and notices.

THIS DOCUMENT AND ALL NVIDIA DESIGN SPECIFICATIONS, REFERENCE BOARDS, FILES, DRAWINGS, DIAGNOSTICS, LISTS, AND OTHER DOCUMENTS (TOGETHER AND SEPARATELY, “MATERIALS”) ARE BEING PROVIDED “AS IS.” NVIDIA MAKES NO WARRANTIES, EXPRESSED, IMPLIED, STATUTORY, OR OTHERWISE WITH RESPECT TO THE MATERIALS, AND EXPRESSLY DISCLAIMS ALL IMPLIED WARRANTIES OF NONINFRINGEMENT, MERCHANTABILITY, AND FITNESS FOR A PARTICULAR PURPOSE. TO THE EXTENT NOT PROHIBITED BY LAW, IN NO EVENT WILL NVIDIA BE LIABLE FOR ANY DAMAGES, INCLUDING WITHOUT LIMITATION ANY DIRECT, INDIRECT, SPECIAL, INCIDENTAL, PUNITIVE, OR CONSEQUENTIAL DAMAGES, HOWEVER CAUSED AND REGARDLESS OF THE THEORY OF LIABILITY, ARISING OUT OF ANY USE OF THIS DOCUMENT, EVEN IF NVIDIA HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Notwithstanding any damages that customer might incur for any reason whatsoever, NVIDIA’s aggregate and cumulative liability towards customer for the products described herein shall be limited in accordance with the Terms of Sale for the product.

VESA DisplayPort

DisplayPort and DisplayPort Compliance Logo, DisplayPort Compliance Logo for Dual-mode Sources, and DisplayPort Compliance Logo for Active Cables are trademarks owned by the Video Electronics Standards Association in the United States and other countries.

OpenCL

OpenCL is a trademark of Apple Inc. used under license to the Khronos Group Inc.

Trademarks

NVIDIA, the NVIDIA logo, and cuBLAS, CUDA, cuDNN, DALI, DIGITS, DGX, DGX-1, DGX-2, DGX Station, DLProf, Jetson, Kepler, Maxwell, NCCL, Nsight Compute, Nsight Systems, NvCaffe, NVIDIA Ampere GPU Architecture, PerfWorks, Pascal, SDK Manager, Tegra, TensorRT, Triton Inference Server, Tesla, TF-TRT, and Volta are trademarks and/or registered trademarks of NVIDIA Corporation in the U.S. and other countries. Other company and product names may be trademarks of the respective companies with which they are associated.
